Leírás
4-point truss system

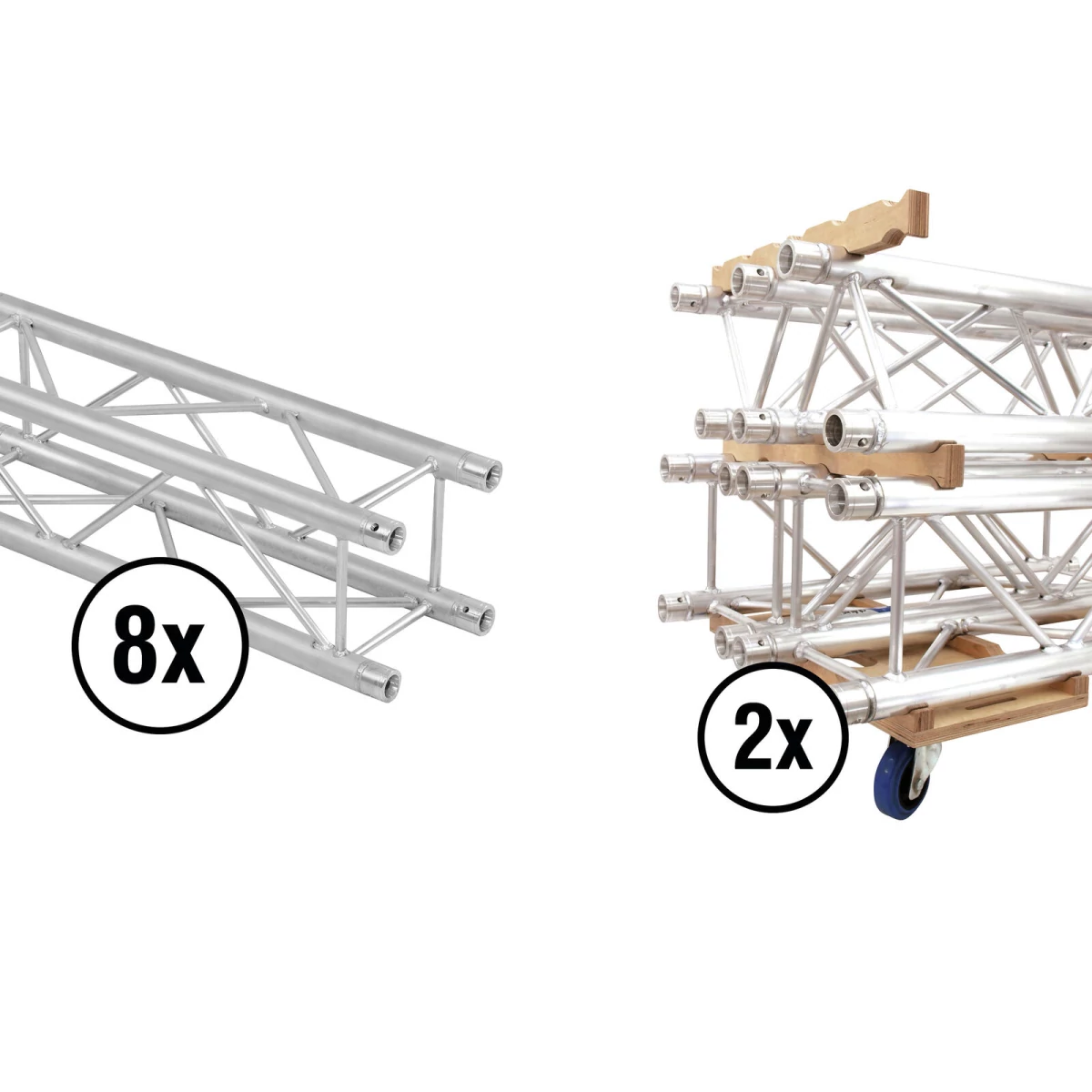

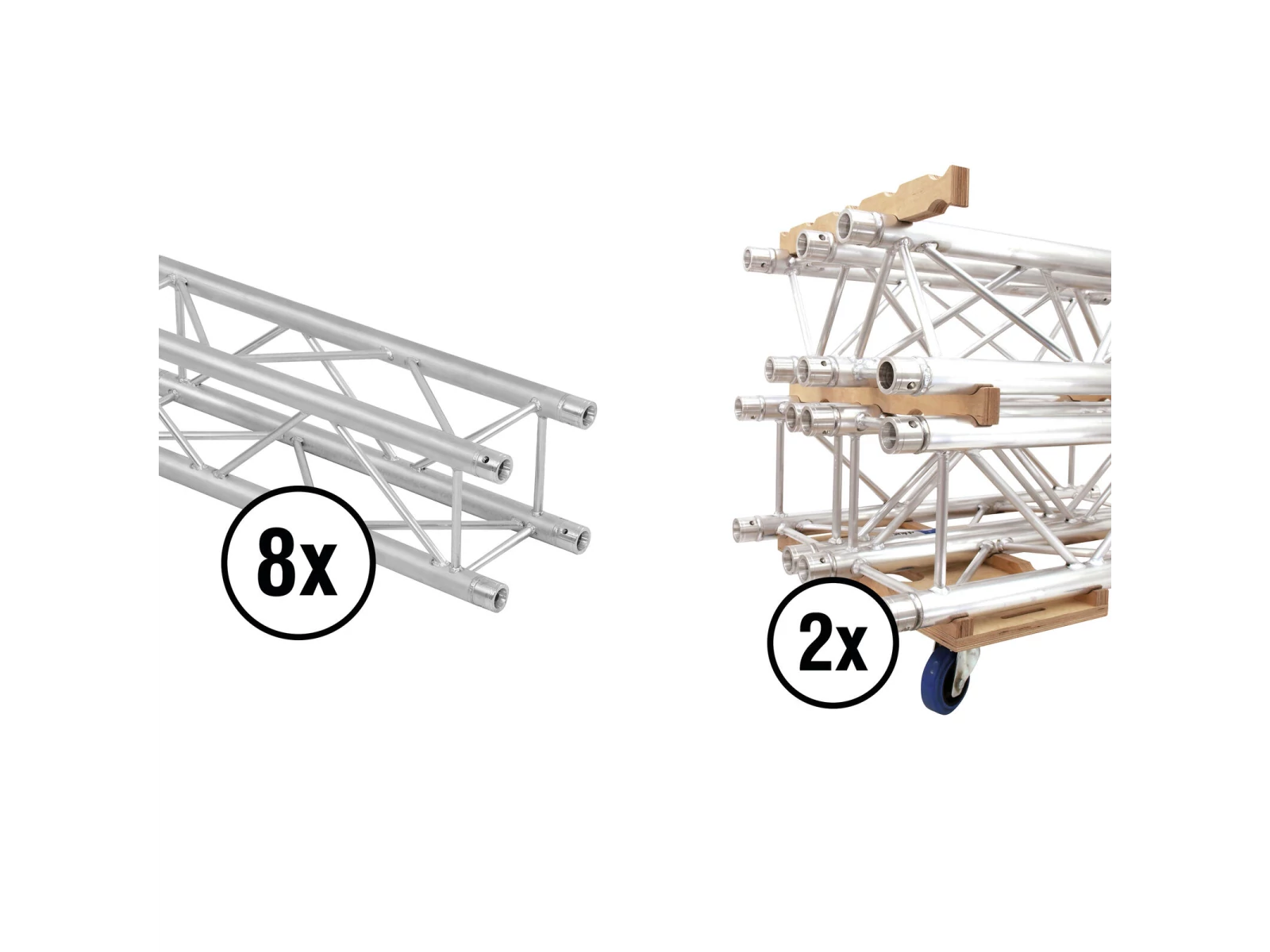

ALUTRUSS QUADLOCK QL-ET34-2000 4-way Cross Beam
- Strong EN-AW 6082 alloy for high loads
- High-quality aluminum-tubes with 50 mm in diameter
- Low weight
- Distance center - center: 240 mm
- Easy installation
- Trusspipe: 50 mm
- Made in Europe
- For application areas such as: Theater; Trade fair and shop fitting; clubs/dancing school
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x connection set
ALUTRUSS Truss Transport Board Combo for 3 Wheels
Transport cart for QUADLOCK and TRILOCK truss elements
- Practical transport cart made of multiplex wood
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Quick and secure stacking with optional stacking ridges
- Cut-outs for safety bands for safe transport of the truss elements
- Grip hole
- 12 borings for mounting castors (optional)
- The combination of 2 transport carts and 10 stacking ridges allows transport of 12 truss elements (recommended maximum load)
- Made in Germany
ROADINGER Swivel Castor 100mm BLUE WHEEL light blue
100 mm swivel castor
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
ROADINGER Swivel Castor 100mm BLUE WHEEL with brake
100 mm swivel castor
- Double-action brake (wheel and swivel)
- Double ball race
- Housing made of steel, zinc-plated
- Roller race hub bearing
- Replaceable bolt-on wheel
- Carrying capacity: 450 kg per set (4 castors)
- Made in Germany
- For further information about this product, please refer to the Data Sheet under "Downloads"
ROADINGER Bolt Set for Wheels
Complete set (4 x screw, 4 x nut, 4 x washer)
- Screw: hexagon screw M8 x30 DIN933 galvanized
- Nut: hexagon screw Kl.8 M8 DIN 934 galvanized
- Washer: size 8.4 DIN125 electrogalvanized
ALUTRUSS Truss Transport Ridge Combo
Stacking rail for QUADLOCK and TRILOCK truss elements
- Stacking ridge for quick and secure stacking of truss elements on matching transport carts
- Suitable for QUADLOCK and TRILOCK truss elements with 290 mm
- Made in Germany
SHZ Clamping Belt S400 Ratchet 5m/25mm black
Clamping belt
- LC400/800daN surroundings
- Complies with EN 12195-2
- Ratchet lock
Paraméterek
| Weight | 103,58 kg |
| ALUTRUSS QUADLOCK QL-ET34-2000 4-way Cross Beam | |
| Setup | Easy installation |
| Trusspipe | 50 mm x 2 mm |
| Welding technique | TIG-welding |
| Welding material | AlMg 5 |
| Alloy | AIMgSi1 T6 |
| Color | Alu colored |
| Dimensions | Length:2 m |
| Width | 29 cm |
| Height | 29 cm |
| Weight | 11,2 kg |
| ALUTRUSS Truss Transport Board Combo for 3 Wheels | |
| Maximum load | 6 truss systems vertical (height approx. 2.10 m) |
| Dimensions | Length:60 cm |
| Width | 30 cm |
| Height | 4,10 cm |
| Weight | 2,19 kg |
| ROADINGER Swivel Castor 100mm BLUE WHEEL light blue | |
| Color | Light blue |
| Dimensions | Height:12,8 cm |
| Diameter | Ø 10 cm |
| Weight | 660 g |
| ROADINGER Swivel Castor 100mm BLUE WHEEL with brake | |
| Color | Light blue |
| Dimensions | Height:12,8 cm |
| Diameter | Ø 10 cm |
| Weight | 930 g |
| ROADINGER Bolt Set for Wheels | |
| Weight | 90 g |
| ALUTRUSS Truss Transport Ridge Combo | |
| Material | Birch multiplex, 30 mm |
| Dimensions | Length:60 cm |
| Width | 3 cm |
| Depth | 5 cm |
| Weight | 500 g |
| SHZ Clamping Belt S400 Ratchet 5m/25mm black | |
| Standard | EN 12195-2, |
| Lock | Ratchet lock |
| Color | Black |
| Dimensions | Length:5 m |
| Width | 2,50 cm |
| Weight | 300 g |
