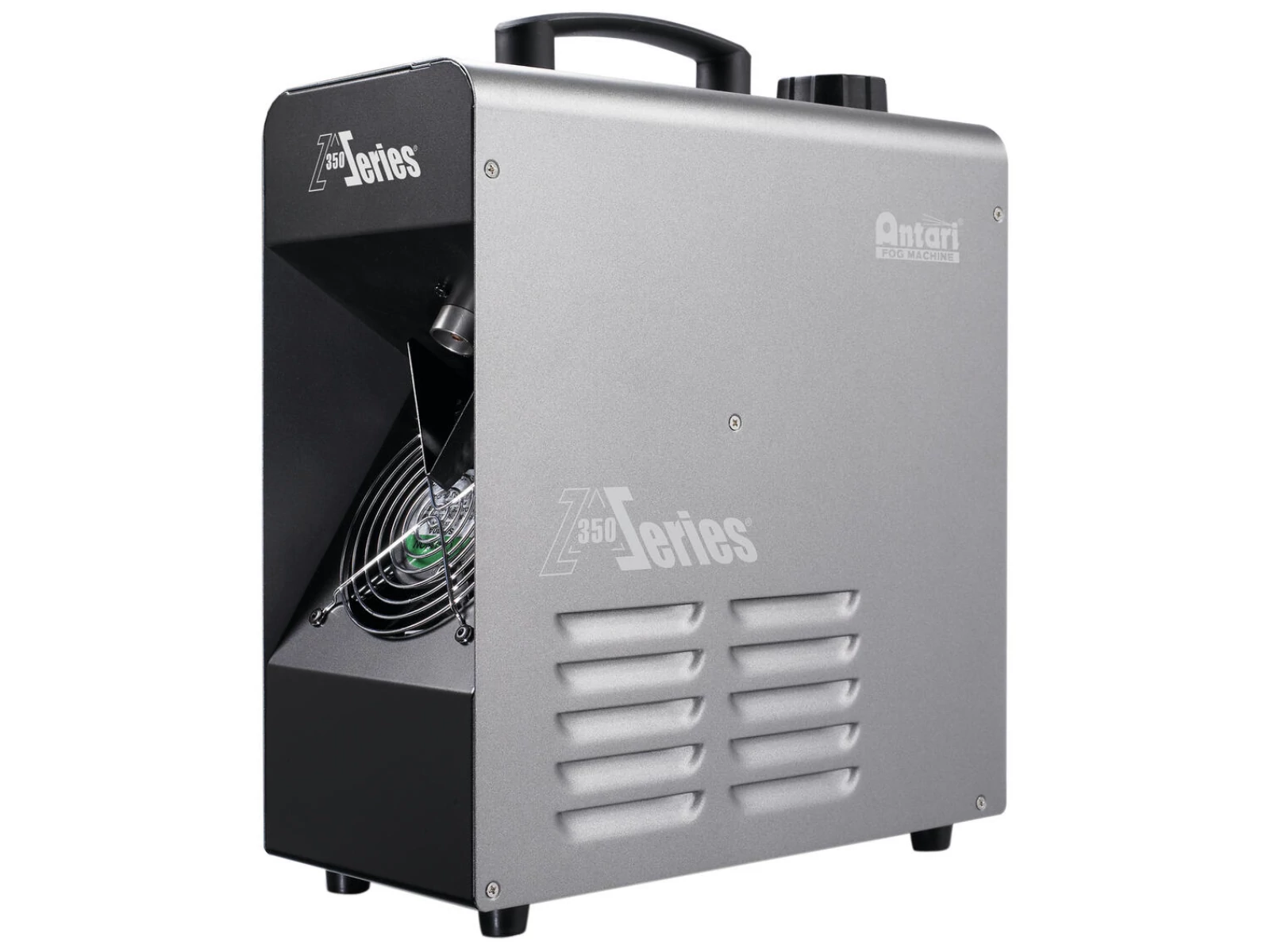

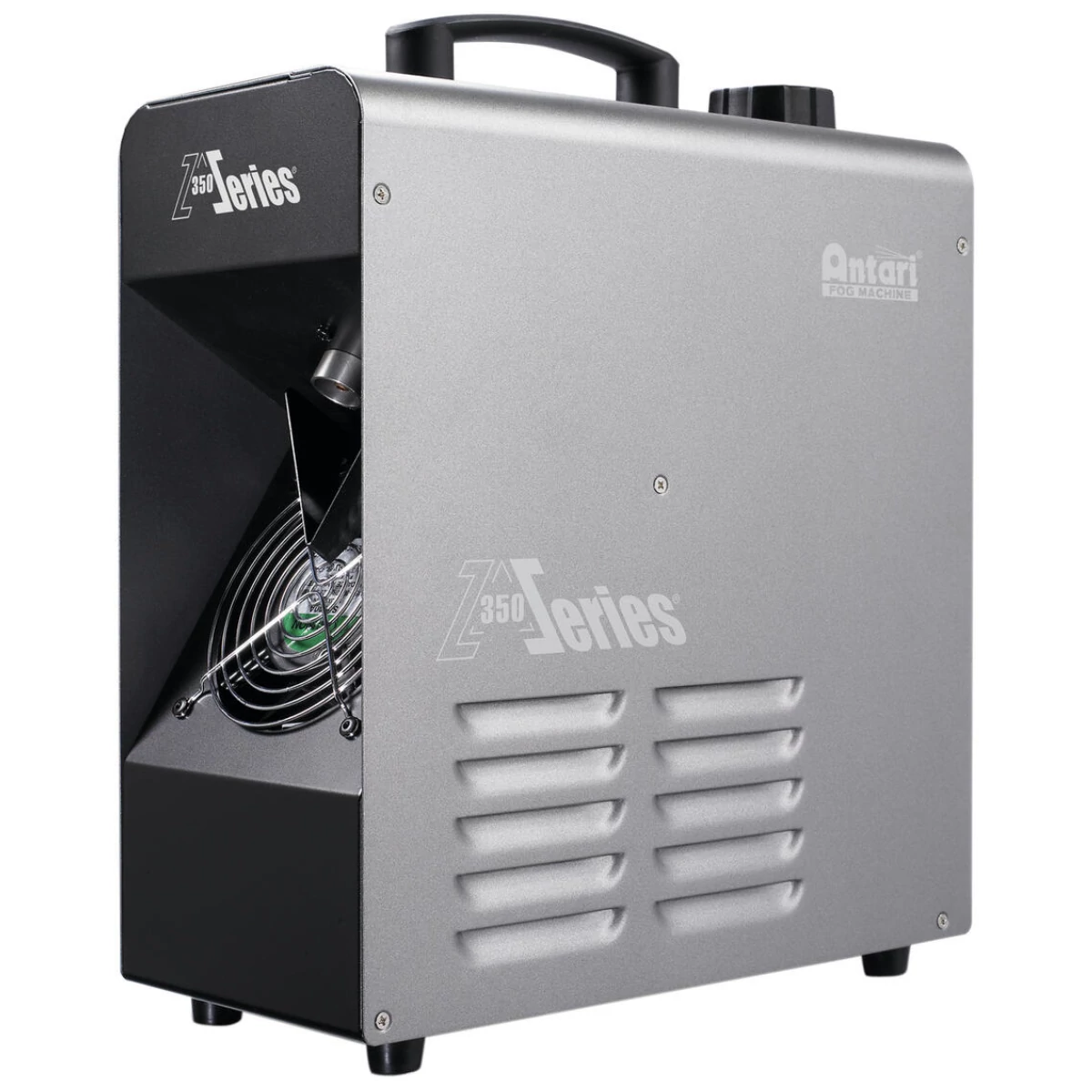

Extremely efficient fazer with DMX interface

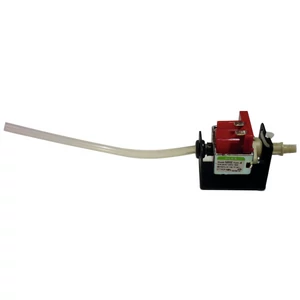

The Z-350 is stemming from years of experience in Fazer development. The adoption of the air pump technology not only enables the Z-350 to generate dry haze but also provides its heater with a self-cleaning function. The Z-350 comes with a larger tube of one diameter, which substantially reduces the risk of heater clogging.An extremely low fluid consumption rate grants a full tank (1.3 liters) of the Z-350 to produce more than 7 hours of non-stop hazing at maximum output.The new on-board DMX interface allows users smarter control of the Z-350: When a DMX signal is received, the machine powers up and starts heating up automatically. When the DMX signal is off, it automatically begins the self-cleaning process and then goes into Sleep mode.The machine weighs only 8.7 kg. Being so light and compact allows the Z-350 to be transported and setup anywhere-whenever needed.
- Extremely low fluid consumption rate grants a full tank to produce more than 7 hours of non-stop hazing at maximum output
- Produces fine, translucent haze without nebulizing the room at the same time
- Ideal for accentuating light and laser beams
- Combines the reliability of a fog machine with the extremely silent operation of a haze machine
- Fan speed and output volume variably adjustable via onboard controls
- Self-cleaning function
- When the DMX signal is off, it starts the self-cleaning process and then goes into standby mode
- Short warm-up time
- Control via wired remote control (optional); stand-alone; DMX
- With level indication
- Operates on water-based fluid
- Water-based fluid ready for use
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; Rental
- Application possibility: Standing
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 690 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Warm-up time | Approx. 4 min |

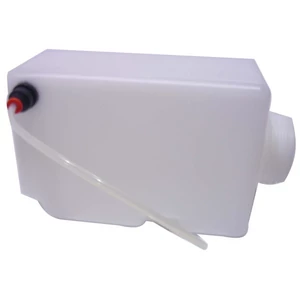

| Tank capacity | 1,3 l water-based fluid fixed tank |
| Fluid consumption | Approx. 3 ml/min |
| DMX channels | 2 |

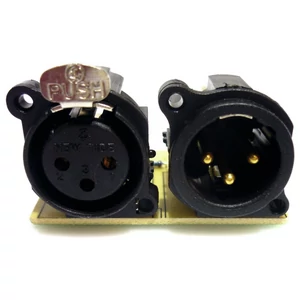

| DMX input | 1 x 3-pin XLR (M) mounting version |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| Control | Wired remote control (optional); stand-alone; DMX |
| Housing color | Grey |
| Operating principle | Vaporizing fog machine |
| Type of fluid | Water-based fluid ready for use |
| Heater | 800 W |
| Color | Grey |
| Dimensions | Width:32 cm |
| Depth | 15 cm |
| Height | 39 cm |
| Weight | 8,80 kg |
| Noise classification | Class 2 (slight noise) |
