Leírás

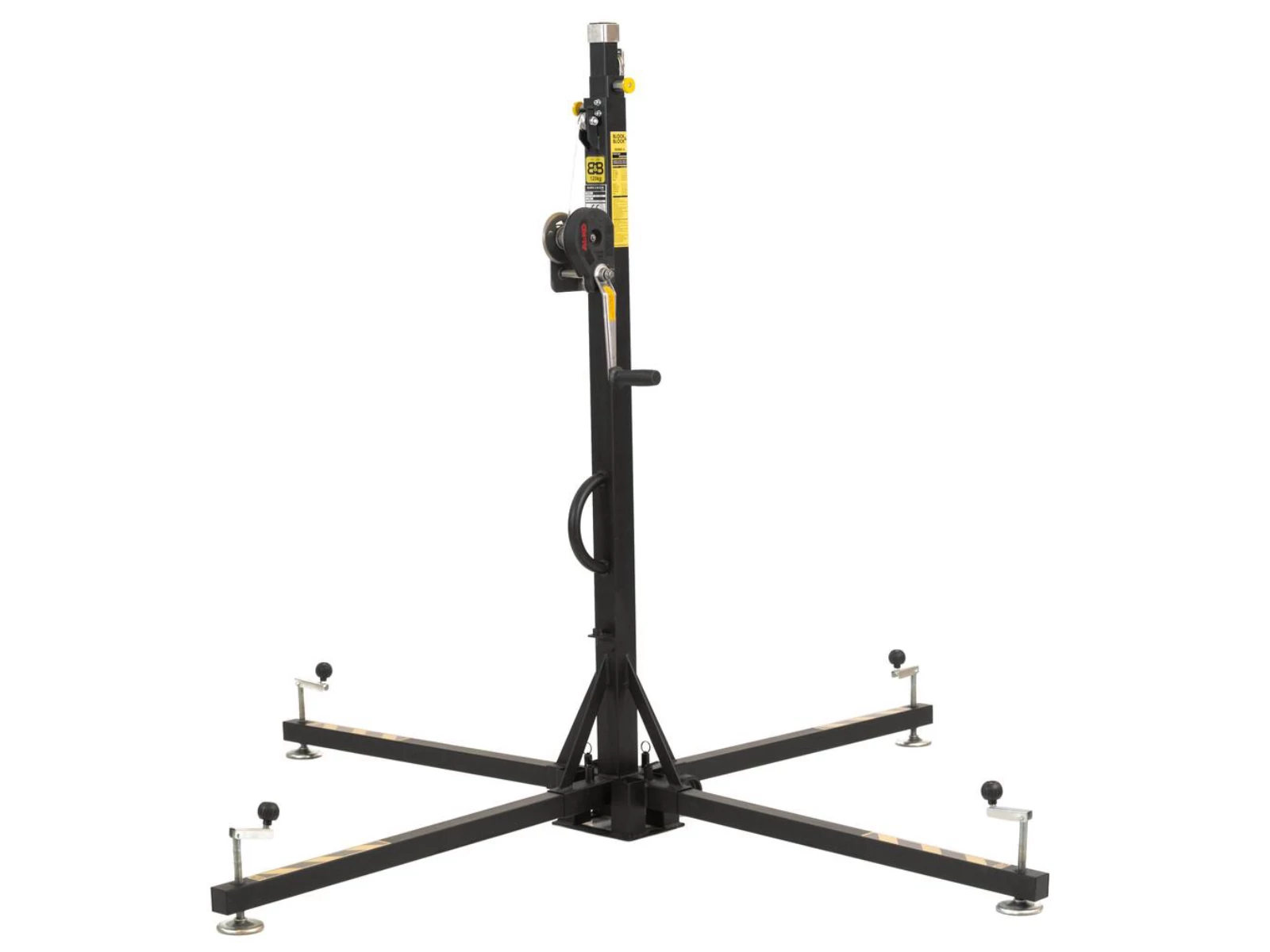

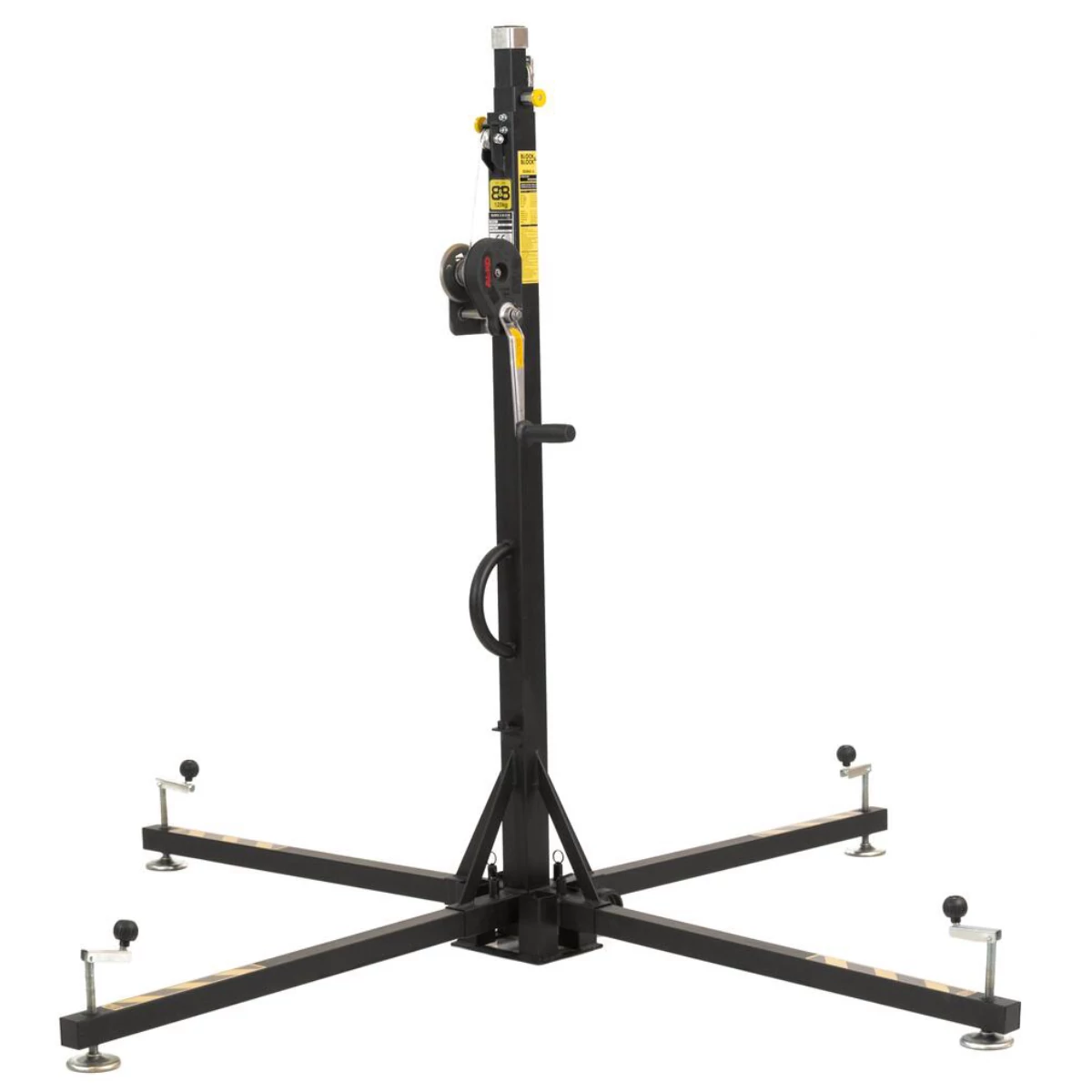

High-quality truss lift for loads up to 120 kg, made in EU
- Three-part telescopic ground support
- Safety bolts to lock the different sections at different heights
- Locking bolts in the base area to lock the booms
- Booms with adjustable spindle and steel plate with non-slip rubber base
- Corrosion protection through epoxy coating
- Water level to ensure a vertical position
- Earthing connection
- Transport rolls to move the lift when retracted
- AL-KO 351 PLUS winch: Maximum load 350 kg with automatic holding brake. CE declaration of conformity in compliance with the harmonized standards DIN EN 13157, EN 12100 I and II, EC Machinery Directive 2006/42/CE
- Galvanized steel ropes 6x19+1, manufactured in compliance with the standard 13414-1:2004, tensile strength 1770N/mm2
- Material: Carbon steel S-275-J0H, manufactured in compliance with the standards EN10219 and EN10305.5
- Adjustable height
- With BGV-C1 test certificate
- Made in Europe
- With BGV-C1 test certificate
Manuals
ManualsParaméterek
| Maximum carrying capacity | 120 kg |
| Minimum load | 25 kg |
| Nominal tensile strenght of rope | 1770 N/mm² |
| Height | Maximum:400 cm above 3 sections |
| Minimum | 157 cm |
| Attachment system | Ø 35mm |
| Steel rope | Ø 4 mm |
| Type (general stands) | Truss lifter |
| Material | Steel (powder-coated) |
| Transport dimensions | 36 cm x 36 cm x 1,6 m |
| Weight | 32,00 kg |
