The decorative trussing

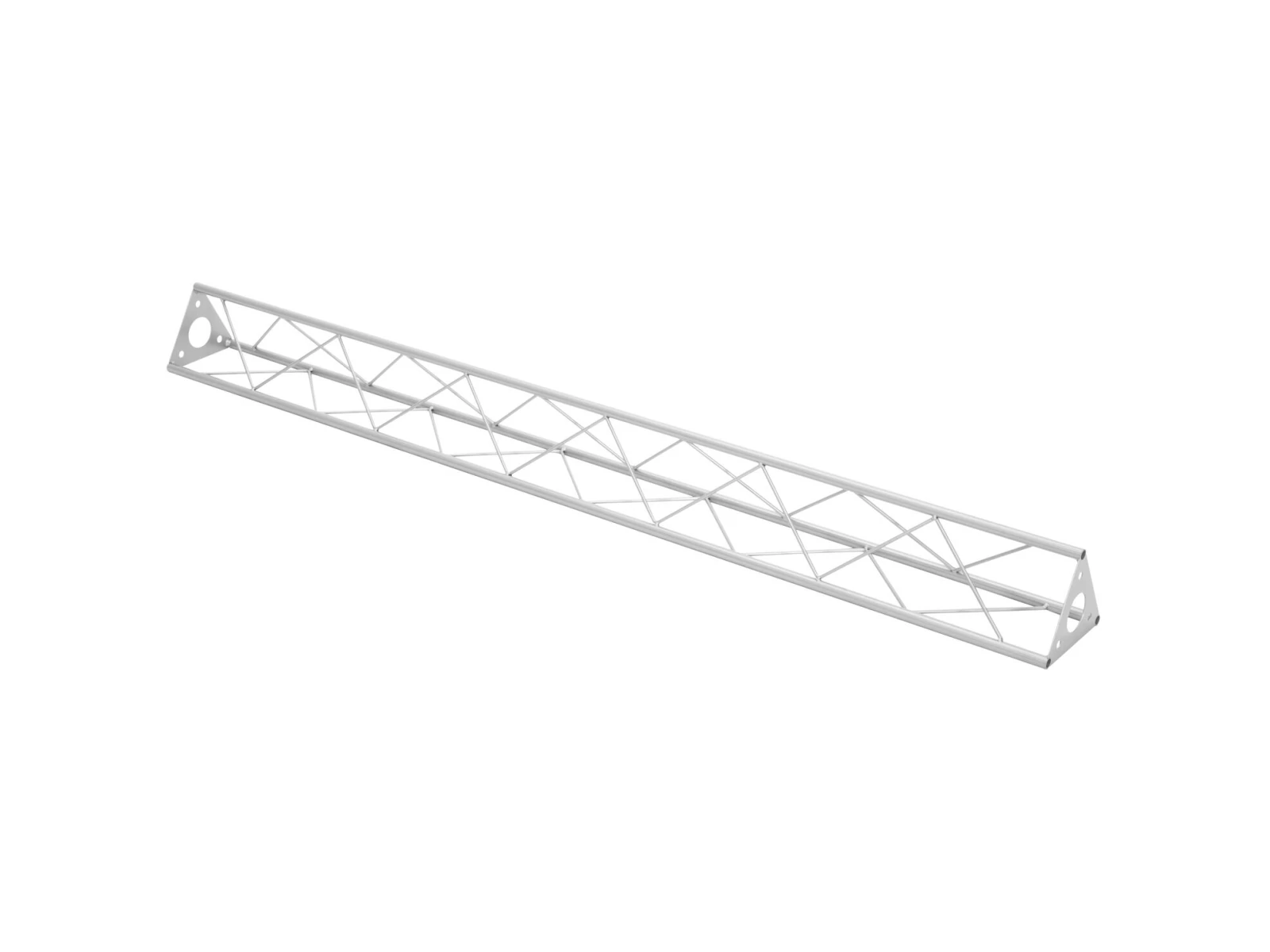

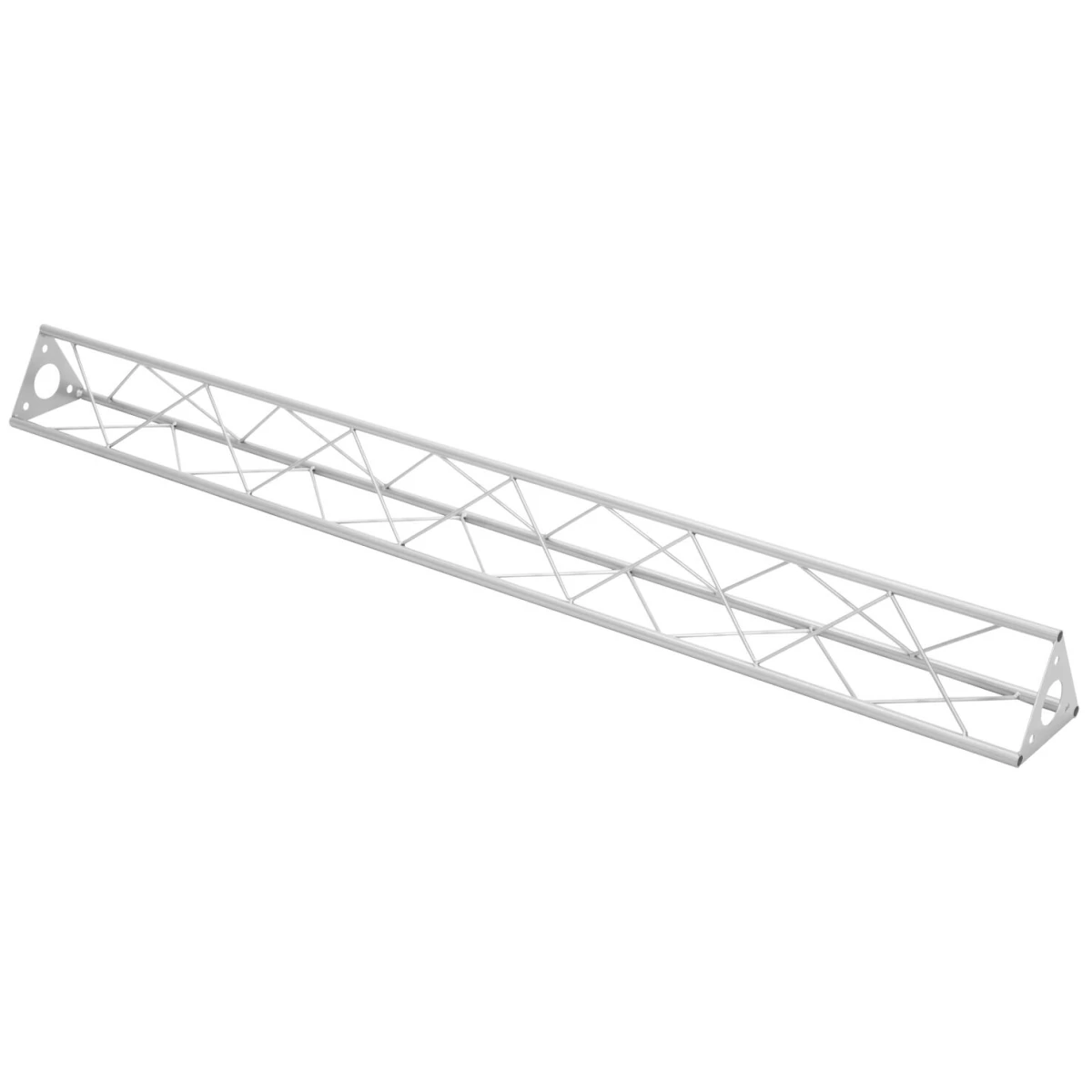

DECOTRUSS 3-point truss systemDECOTRUSS is a 3-point truss system made of steel. The individual elements are connected via three M10 bolts and nuts.The advantage of the bolt connection system is that these bolts and nuts are easily available in case of loosing fasteners.The three main chords are made of 15 mm steel tube with 1.5 mm wall thickness and can only be used for decorative purposes. With its minimal outer dimensions of 150 mm, DECOTRUSS is ideal for creating individual design-elements in decorative areas of private homes, fair booths, shops, discotheques and theatres.This truss system is a mere decoration system convincing by its compact dimensions, low storage requirements and easy transportation.Please note: this truss system must never be combined with other systems!
- Phantastic creations through a variety of crossbeams and corners
- DECOTRUSS constructions are meant as design elements
- Easy to assemble
- Trusspipe: 15 mm
- For application areas such as: Shop fitting; Trade fair and shop fitting
Package contents
- 1 x truss, 1 x user manual
Paraméterek
| Setup | Easy to assemble |
| Trusspipe | 15 mm x 1,5 mm |
| Material | Steel (powder-coated) |
| Color | Alu colored, powder-coated |
| Strut diameter x thickness | 5 mm solid matter |
| Dimensions | Length:1,5 m |
| Width | 15 cm |
| Height | 13 cm |
| Weight | 3,42 kg |
