Spot for lighting within trussing, 3 x 3 W 3in1 LED, QuickDMX transceiver

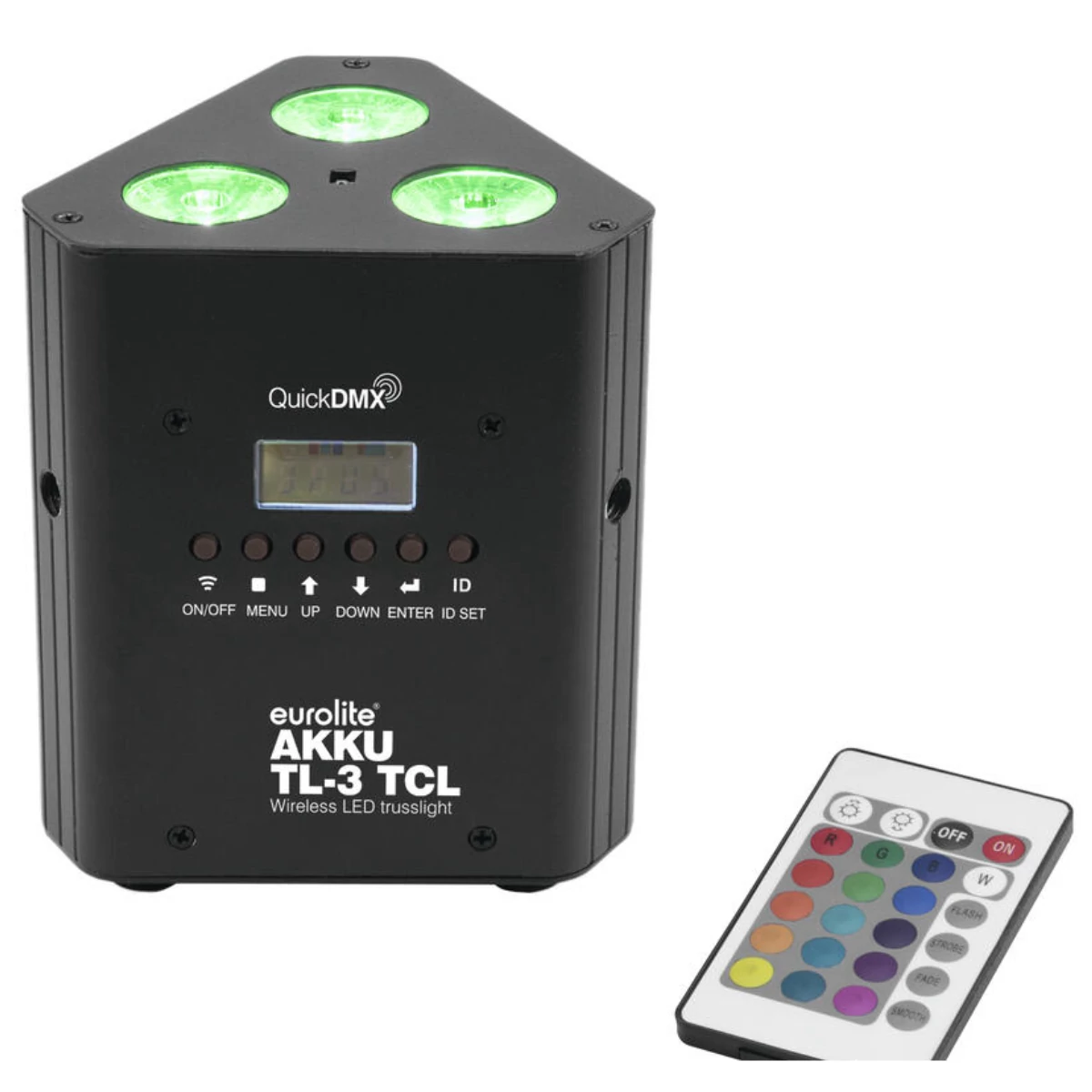

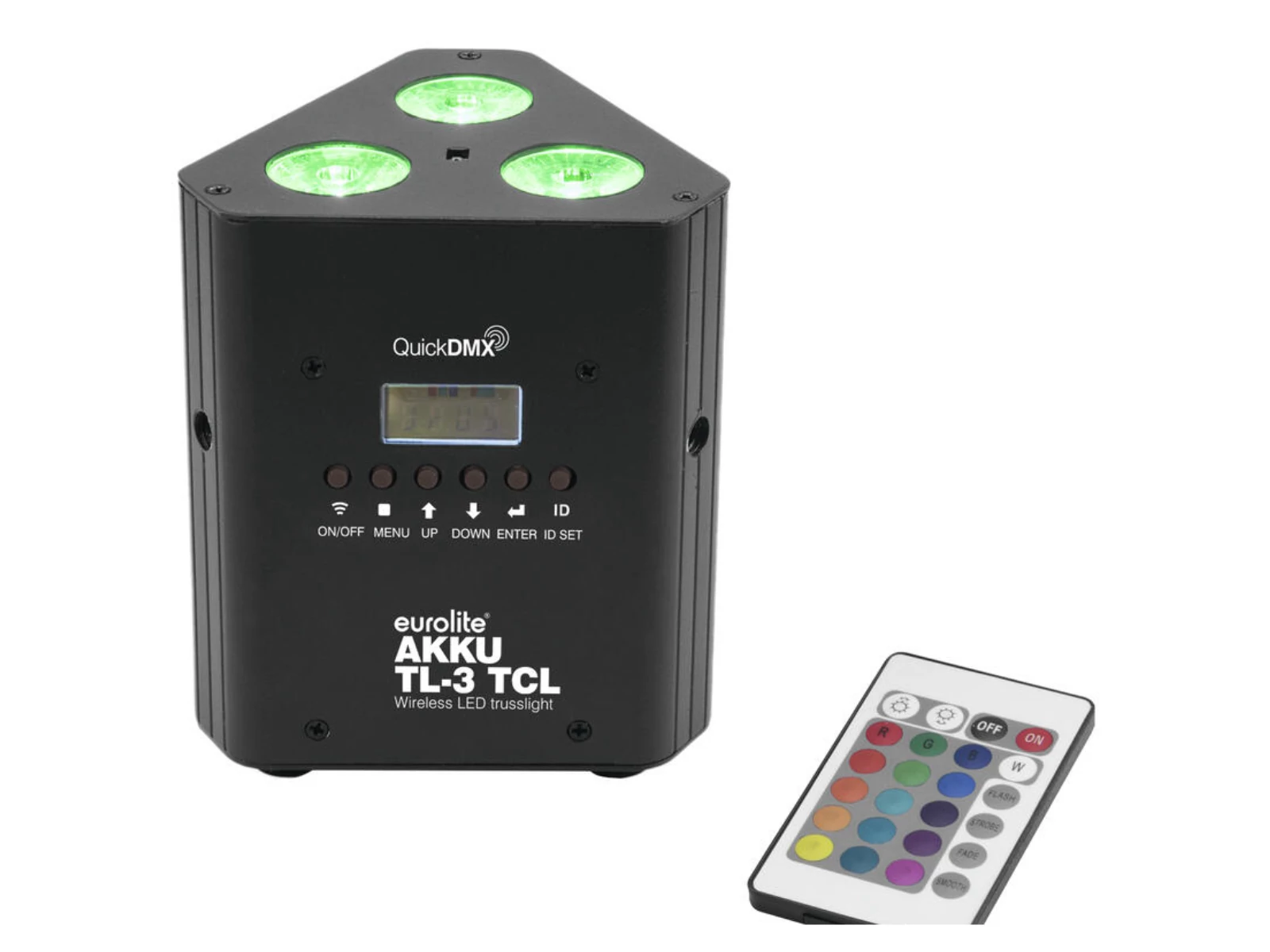

The AKKU TL-3 TCL Trusslight QuickDMX is a spotlight equipped with 3 bright 3-watt RGB LEDs (3in1) for lighting within trussing. It is wireless and battery-run (battery life 16 hours) and its small size makes it a great fit for many 3- and 4-point trussing systems. Furthermore, this device is equipped with a built-in QuickDMX transceiver for wireless transmission of DMX512 signals.You can choose from a variety of different functions such as static colors, continuous RGB color mixture, internal programs, dimmer effects as well as strobe effects with adjustable speed. The device can either be controlled via DMX or the supplied wireless remote control (Eurolite IR-13). All of these features make the AKKU TL-3 TCL the perfect choice for booth construction, stages and any kind of truss.
- Compact and bright
- Ideal for ALUTRUSS DECOLOCK DQ3 3-point system
- Integrated QuickDMX transceiver for wireless DMX control
- Threaded inserts for suspended installation
- Battery operation up to 16h depending on program used
- 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
- Dimmer electronic; color blend stepless; color change adjustable; Dimmer speed (step response) adjustable
- Strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; stand-alone; QuickDMX; IR remote control; Sound to light via Microphone
- Flicker-free
- With a beam angle of 11°
- LCD display
- For application areas such as: Wedding/gala/events; mobile use; Stage; mobile djs / entertainer
- Preprogrammed in Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Mains input and output for power linking up to 8 units
- Cordless, flexible and versatile
- 3 rubber feet
- Silent operation
- Application possibility: Standing; suspended
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 25 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Battery/battery pack |
| Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) | |
| Cable length | Approx. 1,2 m |
| Power output | 1 x IEC connector (F) mounting version |
| Fuse | 5 x 20 mm, F 5 A |
| Battery pack type | 1 x lithium ion 11,1 V, 4400 mAh, 48,84 Wh |
| Battery pack | Battery operation up to 16h depending on program used |
| Recharging time 3h | |
| Lamp type | LED lamp |
| LED | 3 x 3 W high-power 3in1 TCL RGB (homogenous color mix) |
| Flash rate | 0 - 23 Hz |
| DMX channels | 3; 5; 8 |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| Cooling | Passive convection cooling |
| Control | DMX; stand-alone; QuickDMX; IR remote control; Sound to light via Microphone |
| Preprogrammed in | Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection | Flicker-free |
| Carrier frequency | 2,4 GHz |
| Beam angle | 11° |
| Beam angle (1/2 peak) | 11° |
| Beam angle (1/10 peak) | 24° |
| Housing color | Black |
| Attachment system | M10 thread |
| Display type | LCD display |
| Transport aid | 3 x rubber feet |
| Dimensions | Width:12,1 cm |
| Depth | 10,8 cm |
| Height | 14,5 cm |
| Weight | 1,27 kg |
| Noise classification | Class 0 (no noise at all) |
| Remote control | |
| Battery | 1 x Button cell 3.0 V CR2032 lithium manganese built-in |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
