Leírás

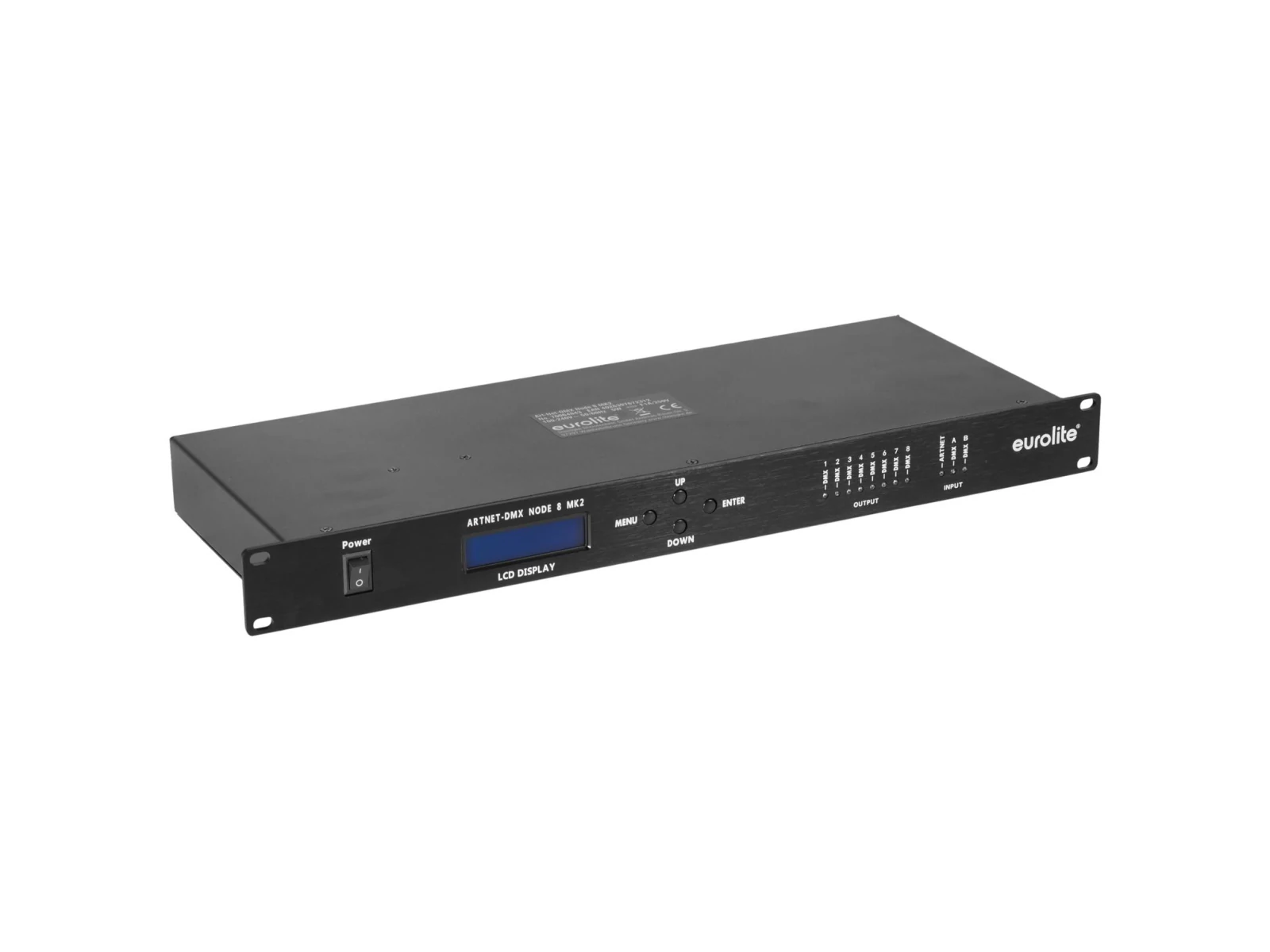

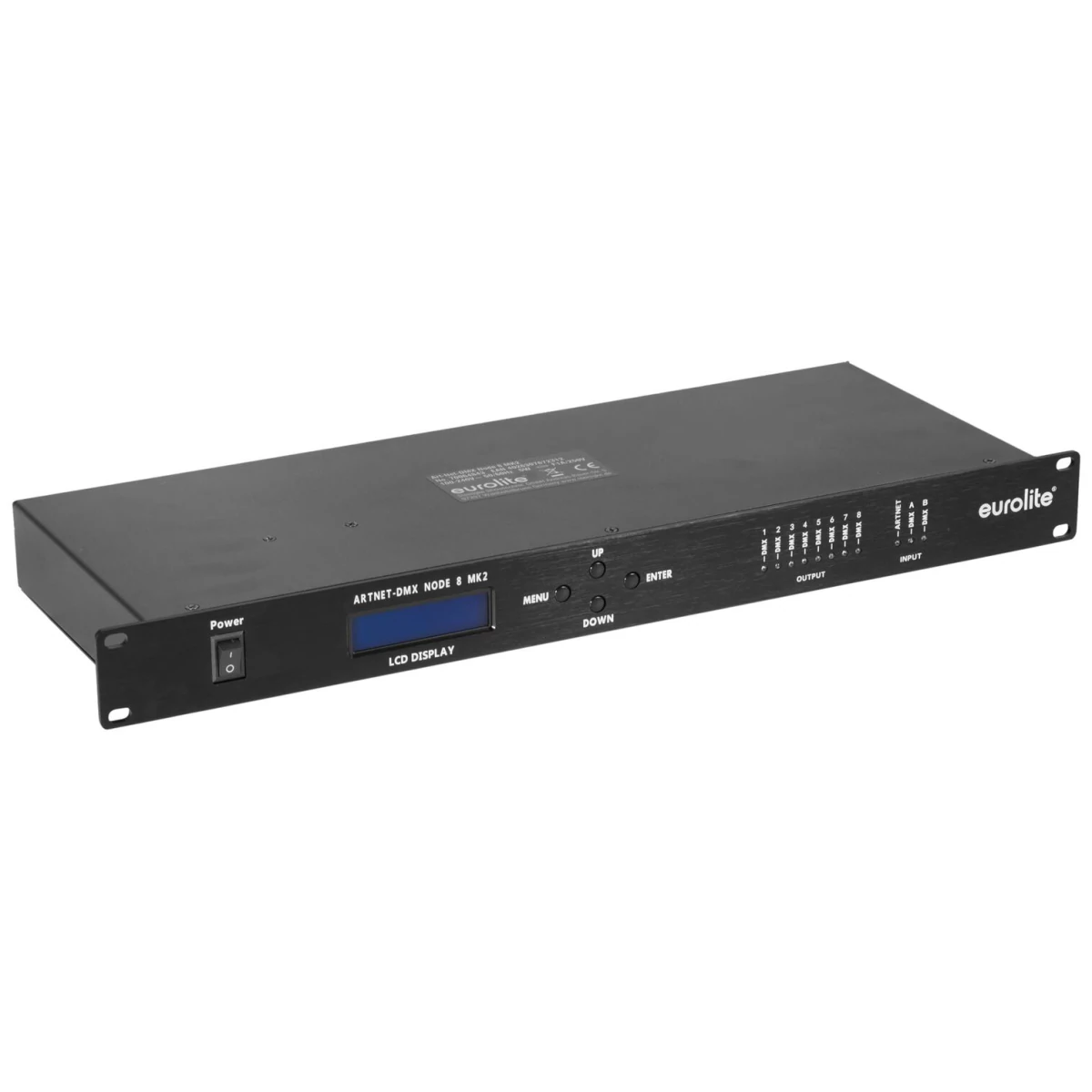

Art-Net interface for output of 8 universes on XLR
- Parallel DMX input possible (1024 channels)
- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs
- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Can transmit up to 4096 DMX channels
- Control via ArtNet
- The device can be connected via RJ-45 (F) mounting version to the PC
- (19") 48.3 cm rack installation
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 5 W |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| DMX channels | Output 4096 |
| DMX input | 2 x 3-pin XLR (M) mounting version |
| DMX output | 8 x 3-pin XLR (F) mounting version |
| Network connection | Protocol:ArtNet 3 via 2x RJ-45 (F) mounting version |
| Control | ArtNet |
| Connections | 2 x RJ-45 E-Con (F) mounting version |
| PC connect | Via RJ-45 (F) mounting version |
| Housing design | (19") 48.3 cm rack installation |
| Dimensions | Width:48,3 cm |
| Depth | 17,5 cm |
| Height | 4,45 cm |
| Weight | 2,40 kg |
