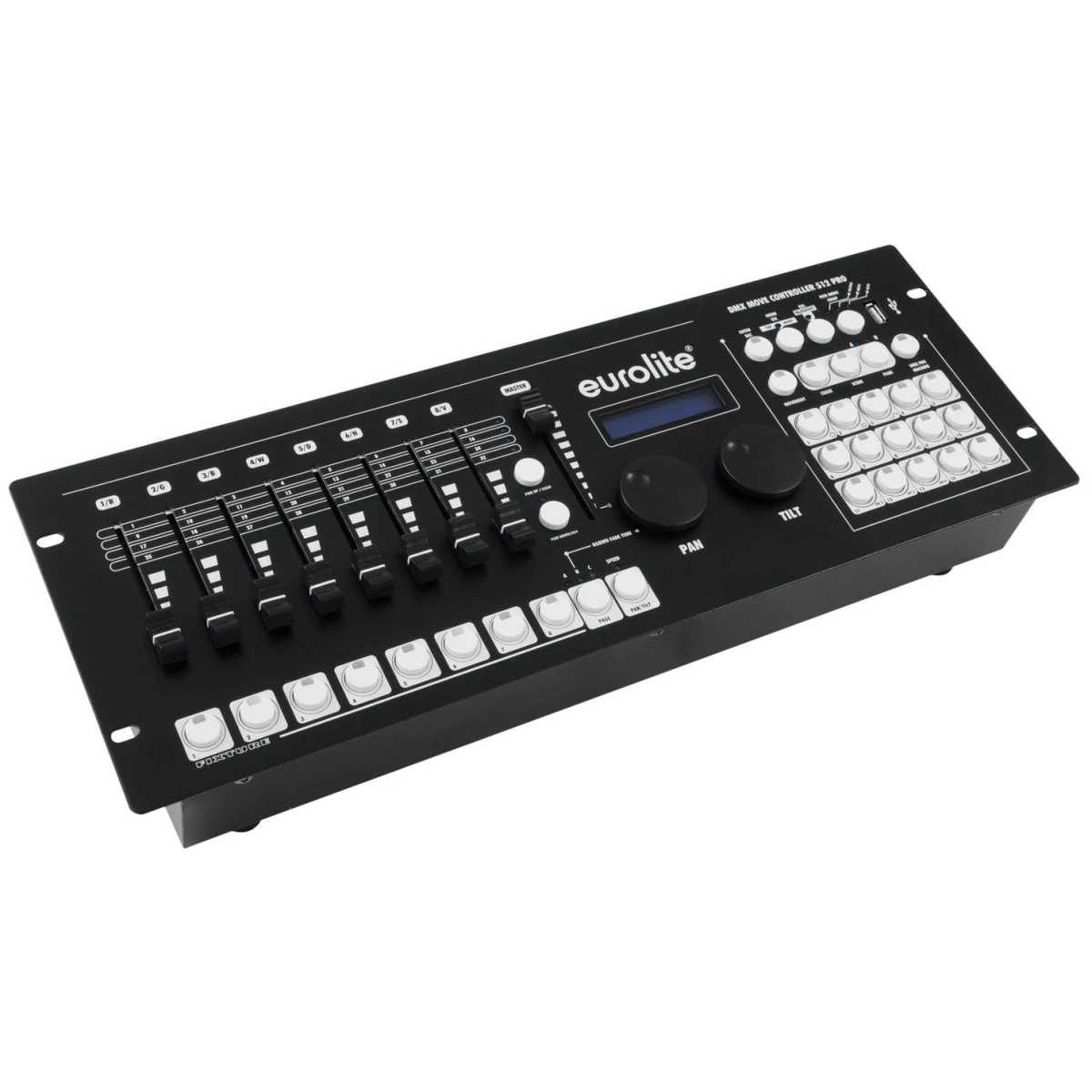

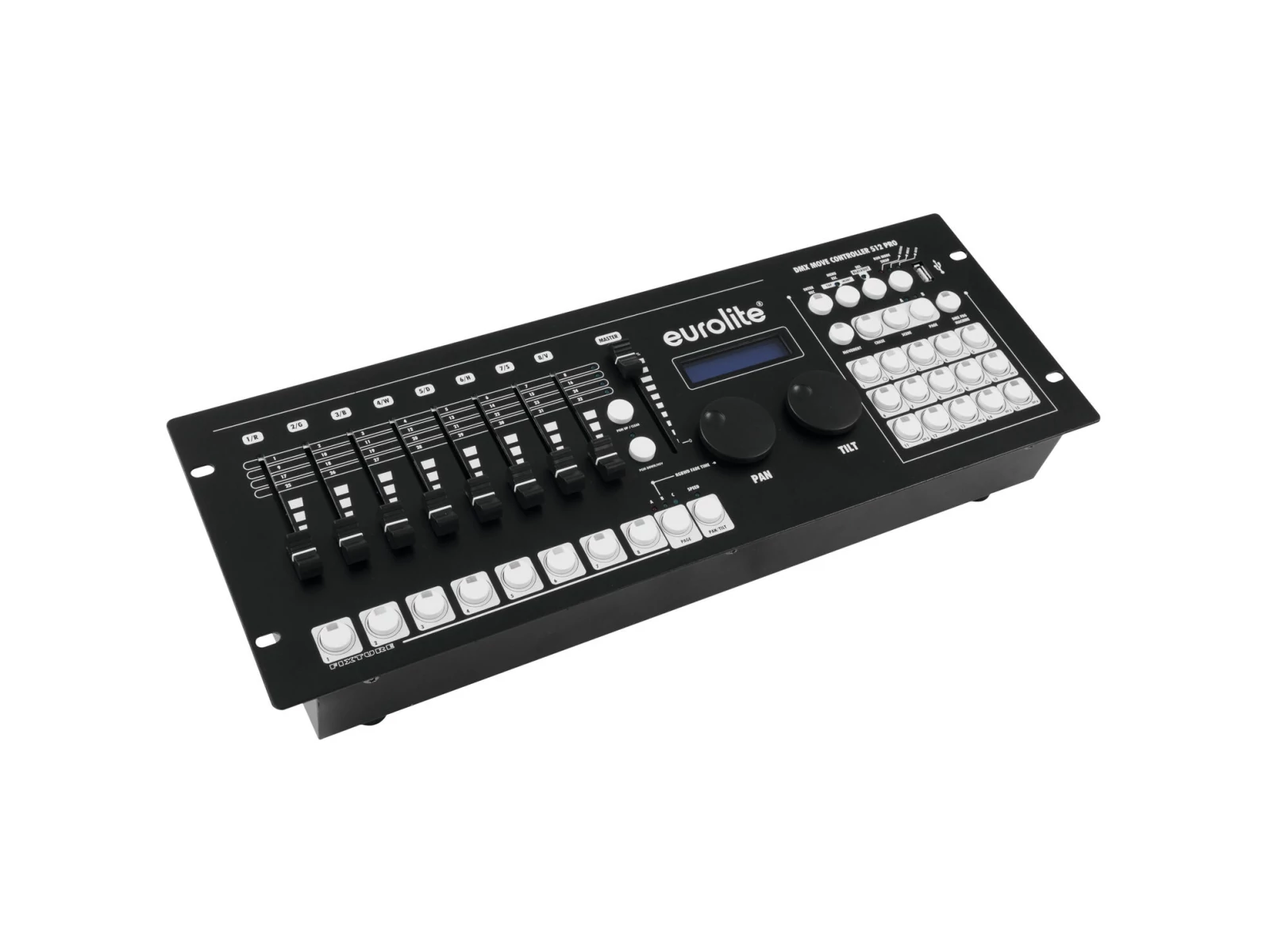

EUROLITE DMX Move Controller 512 PRO

Console with motorized faders, color & motion effects (24 devices/34 channels)

• DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
• 512 DMX channels can be assigned and inverted as desired to 34 control channels (softpatch)
• For 24 fixtures with max. 34 control channels each
• USB port for storing program data
• Quick programming thanks to 9 integrated movement patterns and 6 color effects (pan/tilt position, fade time and running time adjustable)
• Several movement patterns and color effects can be used simultaneously
• Manual, time-controlled or sound-controlled chase running mode
• 3 DMX fixture levels can be controlled

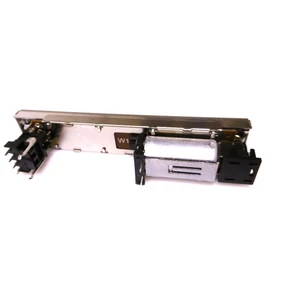

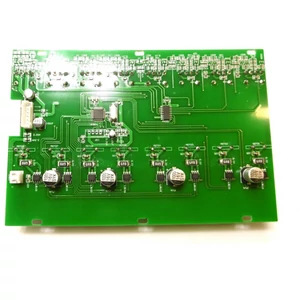

• 8 motorized DMX channel faders for user-friendly control
• The motor faders provide a precise overview of the parameters when switching the individual banks, chases and scenes
• 2 jog wheels for pan/tilt
• Master fader for color and dimmer channels
• Blackout function
• Color-illuminated buttons provide easy orientation
• Programmable 30 scenes/chases each with 485 cues distributed over 2 page/s
• Can transmit up to 512 DMX channels
• Control via DMX; RDM
• Firmware can be updated
• (19") 48.3 cm rack installation 4 U
• Desktop console housing
• For application areas such as: Clubs/dancing school; stage; mobile djs / entertainer
• Silent operation

Package contents

• 1 x controller, 1 x user manual, 1 x power cord
