Leírás

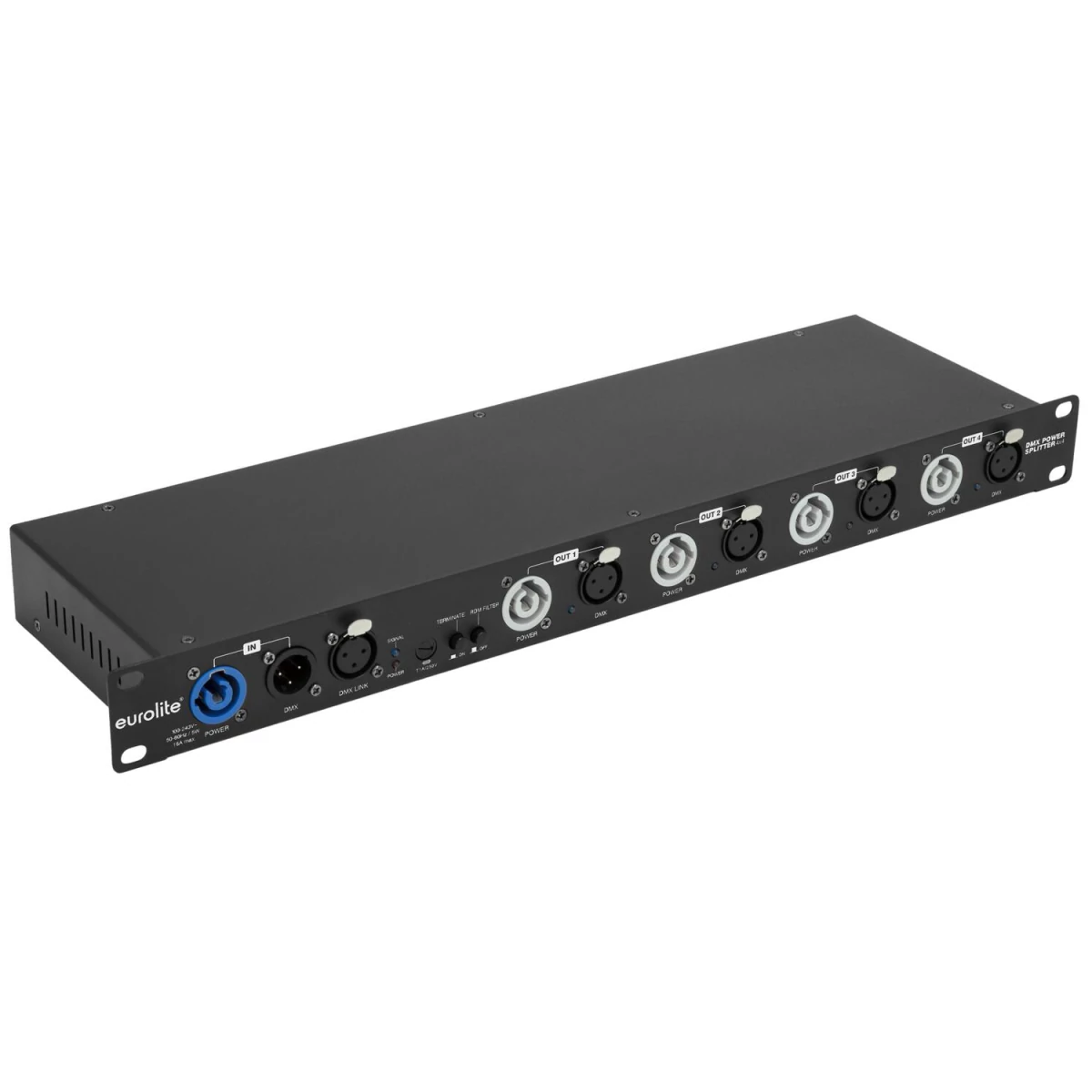

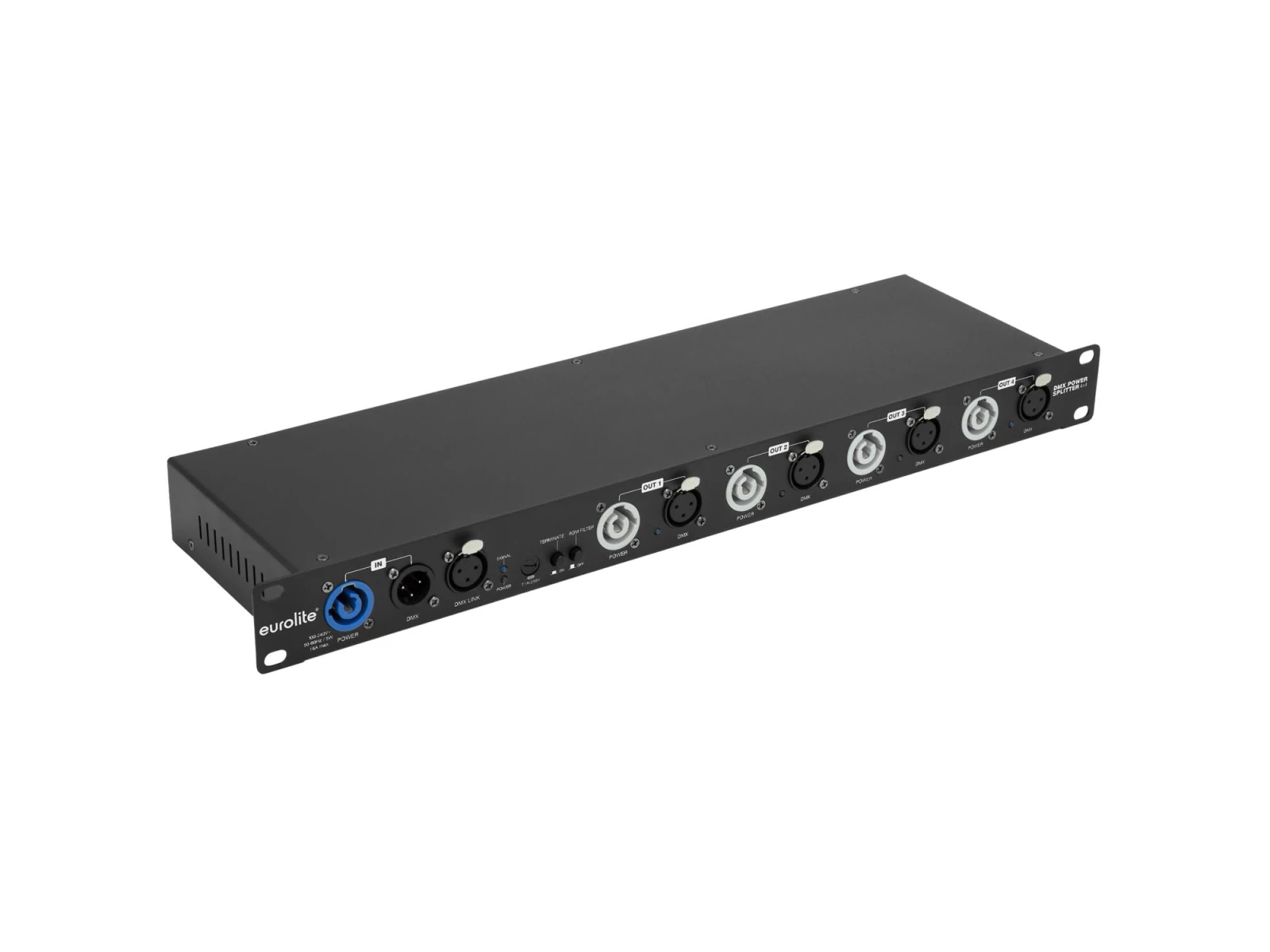

1 in/4 out power and DMX splitter with RDM support for rack mounting
The 4-fold splitter is designed for reliable distribution of DMX512 signals and operation voltage (max. 16 A). The unit features one DMX input and four DMX outputs with status indicators as well as a feed-through terminal for connection to an additional splitter. The mains connectors are designed as P-Con sockets. The splitter supports RDM for bidirectional communication over the DMX line and is suitable for mounting in an equipment rack.
- 1 P-Con input to 4 outputs, max. 16 A
- 1 DMX input to 4 outputs
- 1 DMX feed-through output
- Switchable RDM filter mode
- Switchable termination resistor
- Input and outputs galvanically isolated
- Each DMX output with independent driver and status indicator
- Control via DMX; RDM
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 5 W |
| Protection class | Protection class I |
| Output current | Max. 4 x 4 A per channal |
| Power connection | Via P-Con (blue), mounting version |
| Power output | 4 x P-Con (gray), mounting version |
| Fuse | 5 x 20 mm, T 1 A fuse replaceable |
| DMX input | 1 x 3-pin XLR (M) |
| DMX output | 4 x 3-pin XLR (F) with independent driver and status indicator |
| Control | DMX; RDM |
| Housing color | Black |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 13,8 cm |
| Height | 4,3 cm |
| Weight | 2,38 kg |
