Leírás

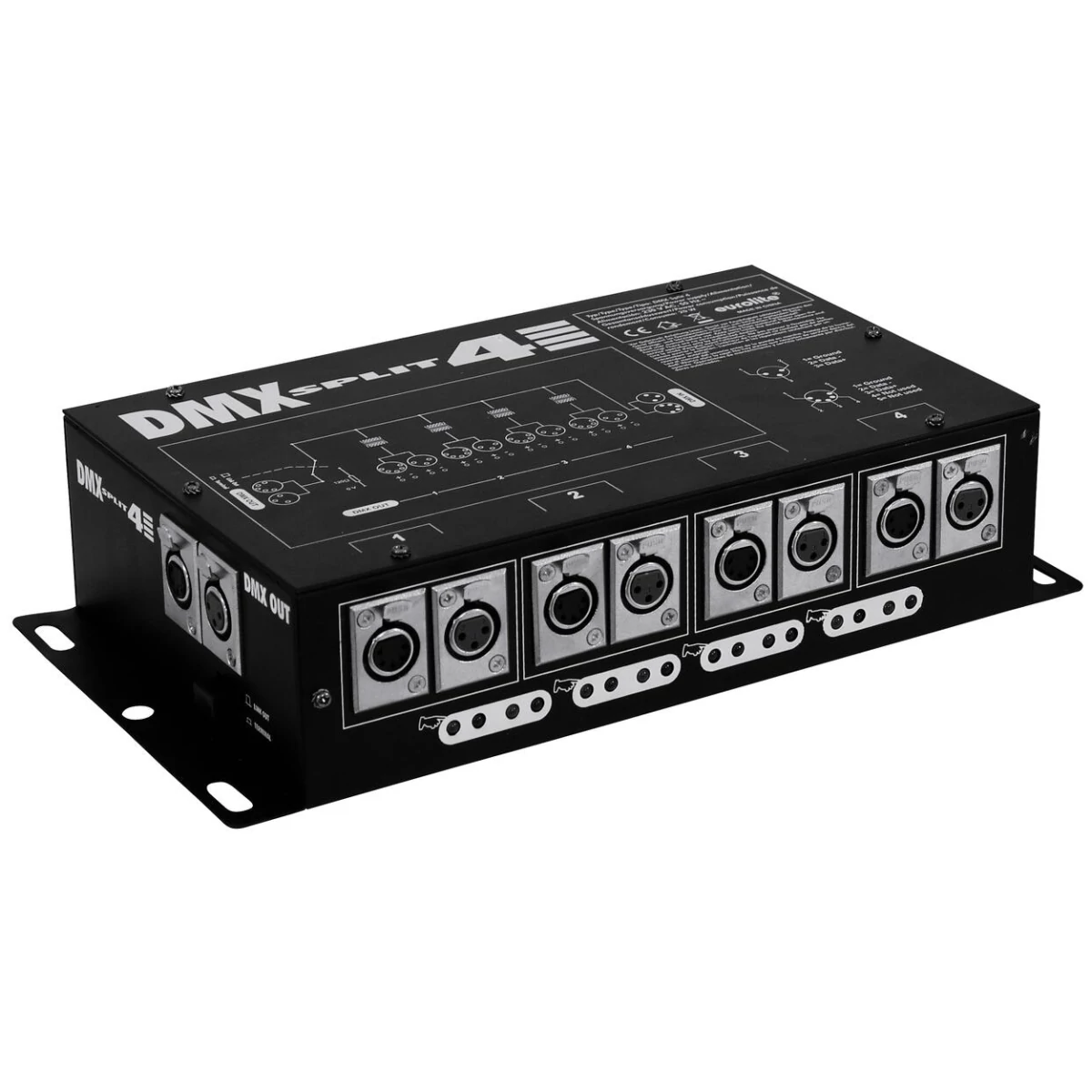

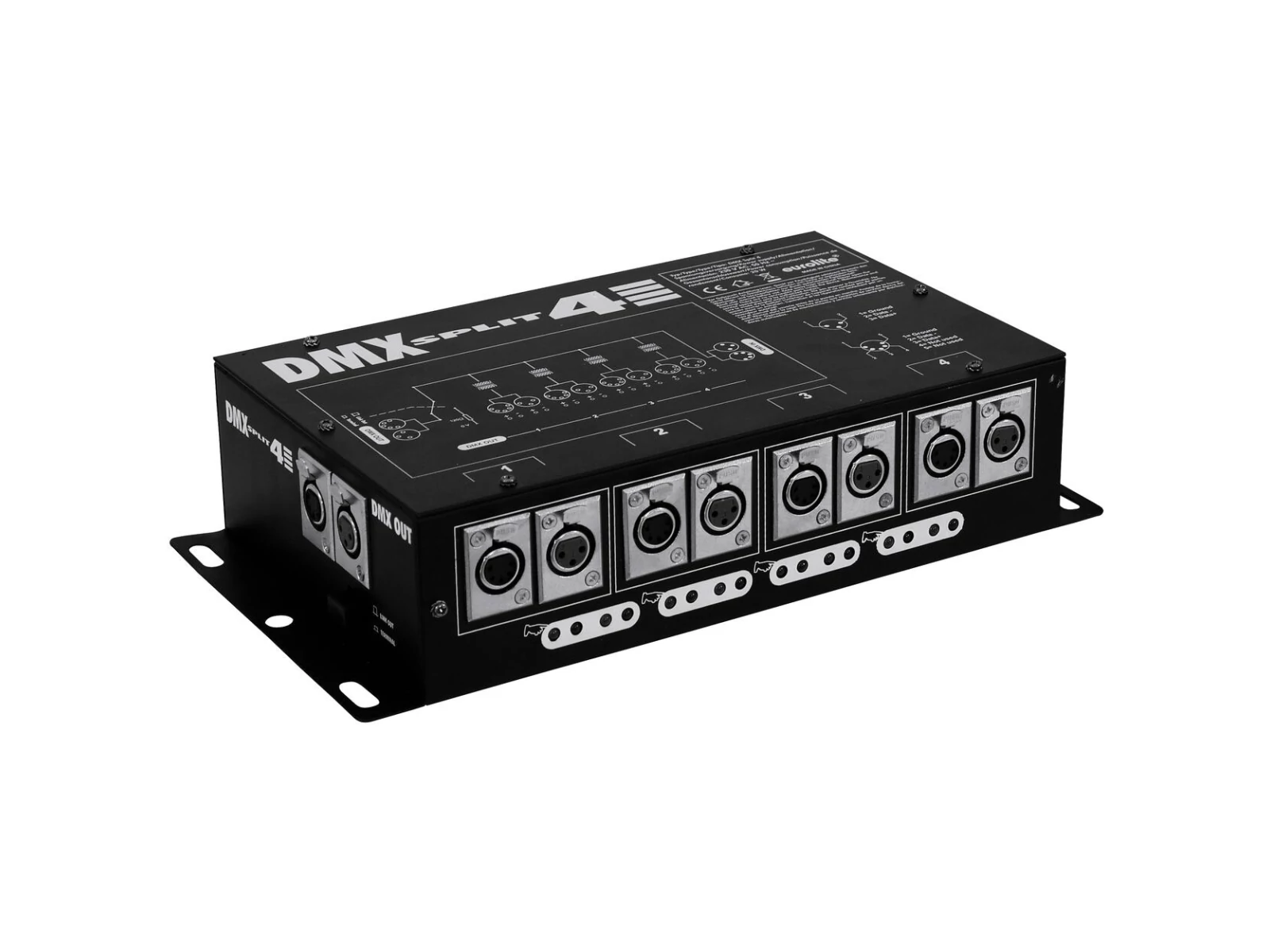

Splitter with 4 galvanically isolated outputs, 3-pin & 5-pin XLR sockets
- DMX splitter for splitting one DMX input signal to 4 DMX outputs
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse
- Switchable termination resistor
- Each DMX output with independent driver and status indicator
Package contents
- 1 x device, 1 x user manual
Paraméterek
Power supply | 230 V AC, 50 Hz |
Power consumption | 20 W |
Power connection | Fixed power supply cord with safety plug |
DMX input | 1 x 3-pin XLR (M) mounting version |
1 x 5-pin XLR (M) mounting version | |
DMX output | 4 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator |
4 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator | |
1 x 5-pin XLR (F) mounting version Bypass | |
1 x 3-pin XLR (F) mounting version Bypass | |
Control elements | Bypass/terminating resistor switch, power switch |
Dimensions | Width:32,5 cm |
Depth | 19 cm |
Height | 8 cm |
Weight | 2,55 kg |
