Leírás

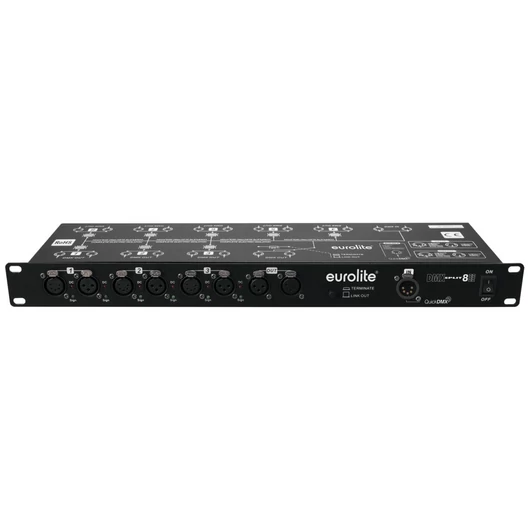

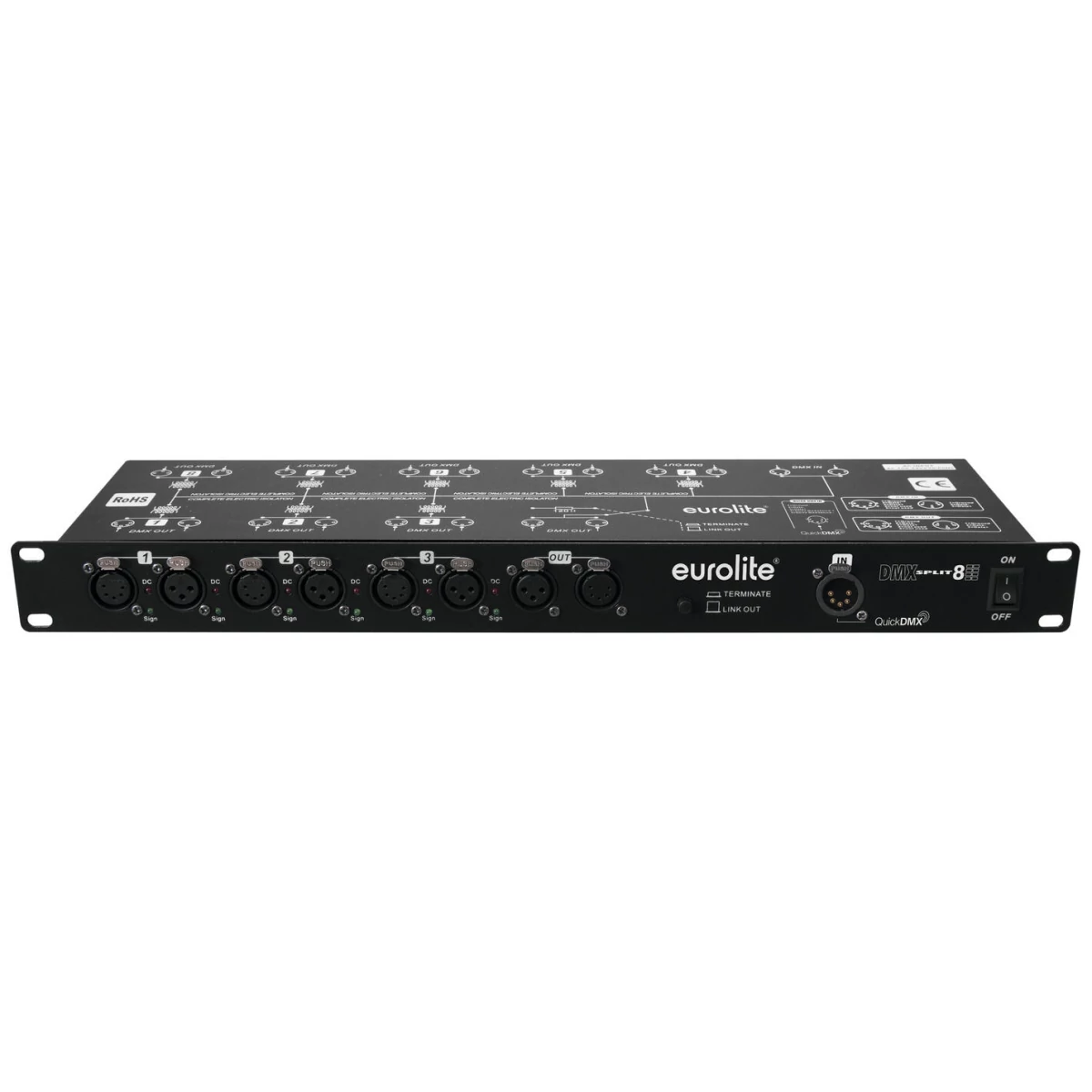

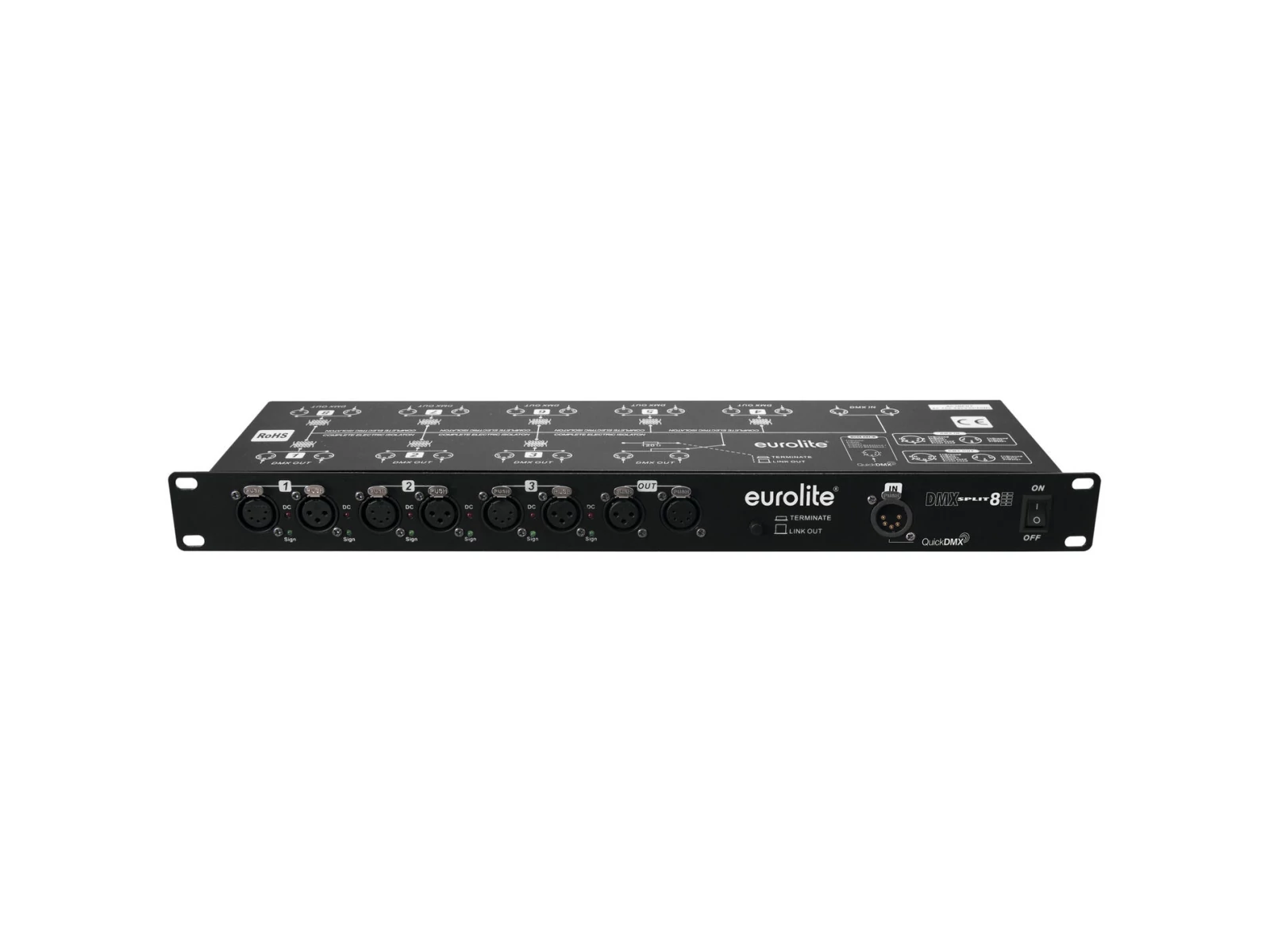

Splitter with 8 galvanically isolated outputs, 3/5-pin & QuickDMX XLR sockets
- DMX splitter for splitting one DMX input signal to 8 DMX outputs
- Input and outputs XLR 3-pin and 5-pin each
- Each DMX output with independent driver and status indicator
- Input and outputs galvanically isolated
- Input and outputs with a set of respective power supply and internal fuse

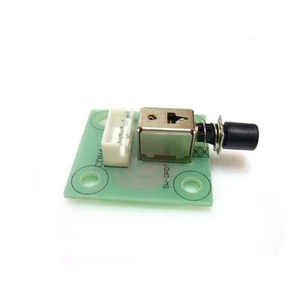

- Switchable termination resistor
- Control via DMX; QuickDMX via 5-pin XLR (M) mounting version (optional)
- (19") 48.3 cm rack installation 1 U
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 5 W |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| 1 x 5-pin XLR (M) mounting version | |
| DMX output | 8 x 3-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator |
| 8 x 5-pin XLR (F) mounting version Separate (galvanic) with independent driver and status indicator | |
| 1 x 5-pin XLR (F) mounting version Bypass | |
| 1 x 3-pin XLR (F) mounting version Bypass | |
| Control | DMX; QuickDMX via 5-pin XLR (M) mounting version (optional) |
| Control elements | Bypass/terminating resistor switch, power switch |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 14,5 cm |
| Height | 4,45 cm |
| Weight | 2,22 kg |
