Leírás

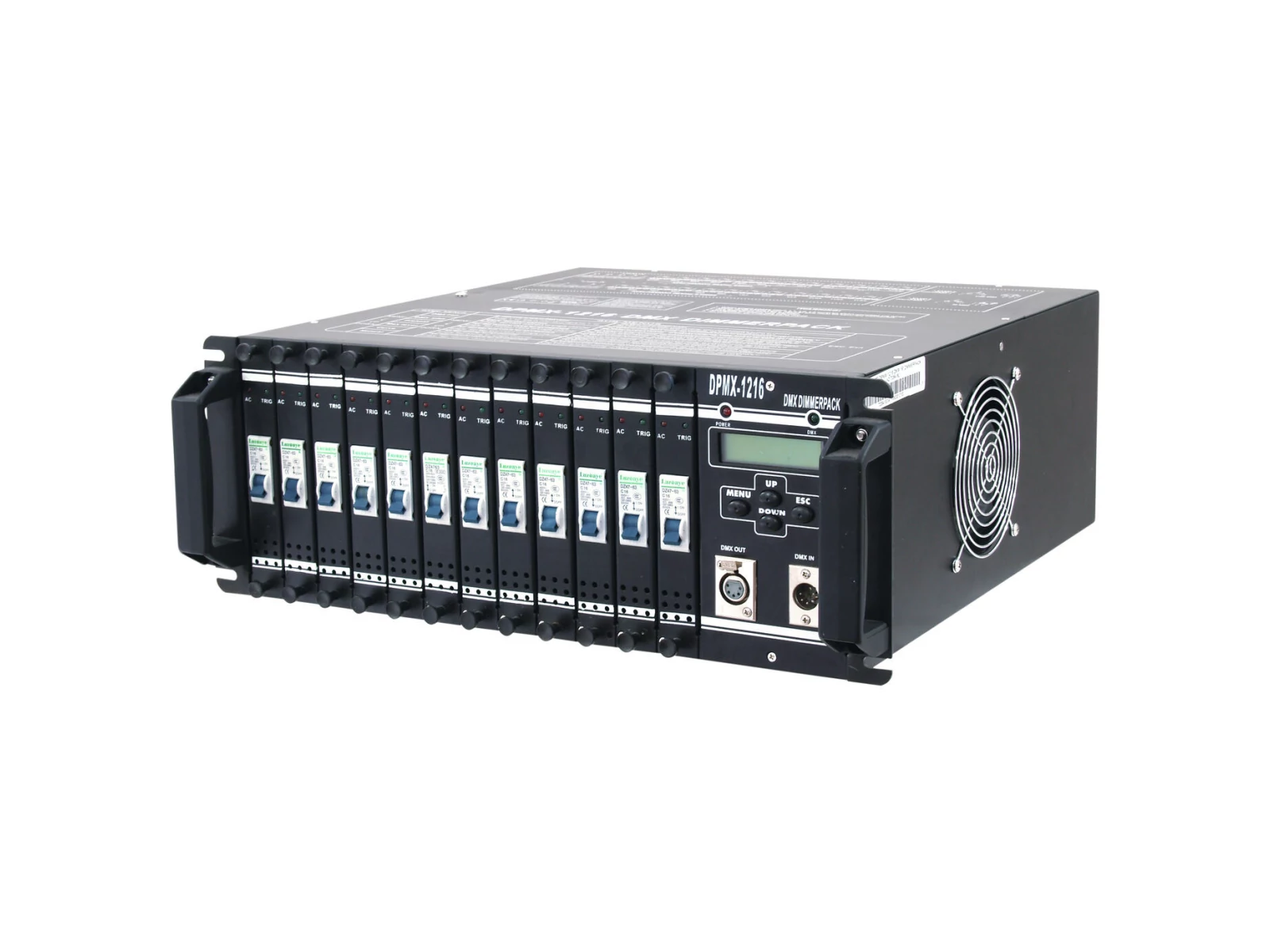

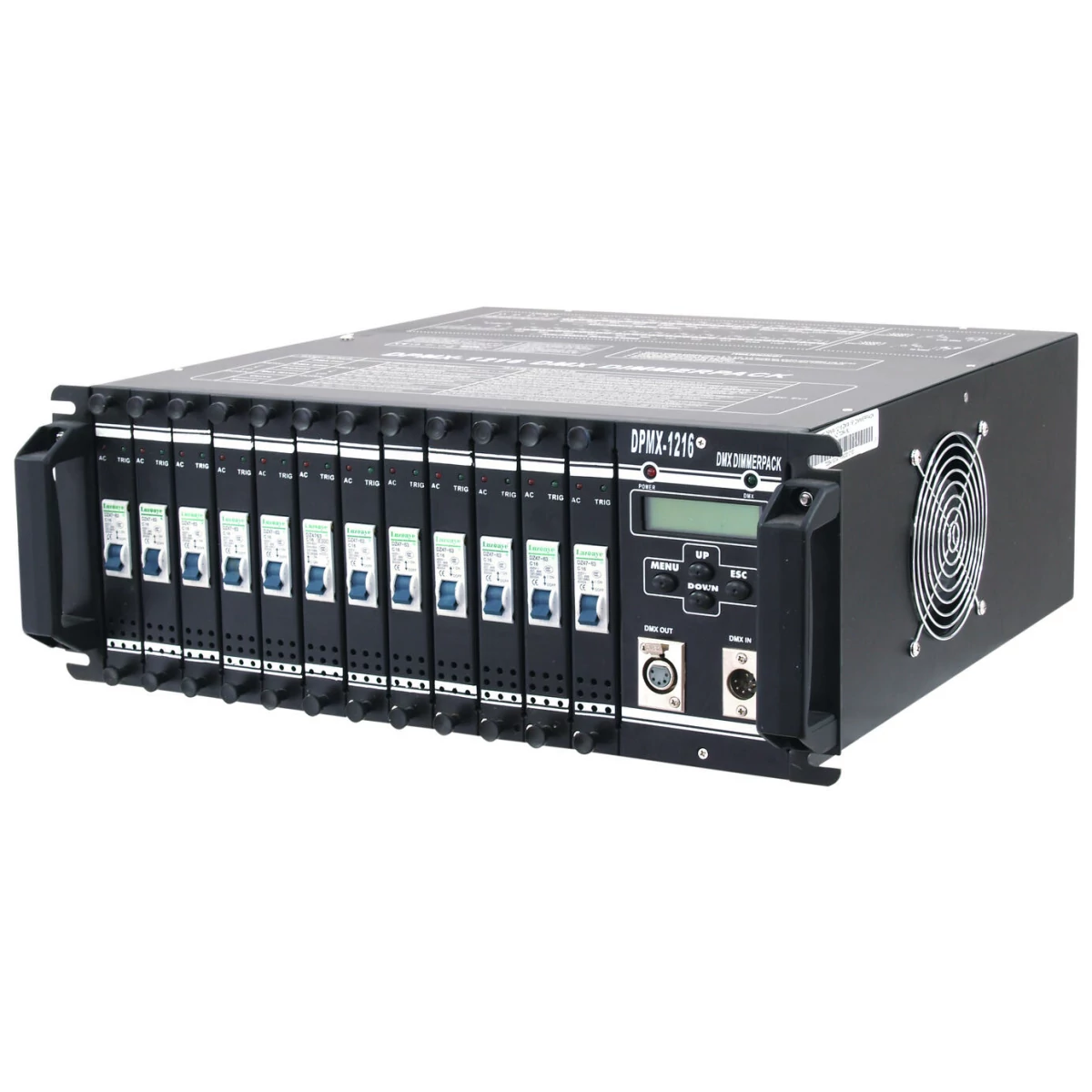

12 x 16A dimmer, service friendly modules, connection via terminal block
Reliability is always important. Especially at professional events the breakdown of any part of the equipment cannot be accepted. The DPMX-1216 dimmer pack series is the right answer here because it plays it safe: this universal output stage has an automatic circuit breaker on every channel, so single failures can be corrected without causing a complete blackout. Another benefit are the different outputs. Pole connector, safety plug, CEE or multipin: the DPMX-1216 19" serves really any kind.
- 12-channel dimmer pack with up to 16 A output per channel
- Modular design of the individual dimmer modules for quick and easy change
- 3-phase or 1-phase power supply
- Adjustable lamp preheat (0-50%) and limiter function to prolong bulb life
- Curve function for selection of different fade modes
- Dim or switch option assignable to each channel
- DMX Fail function: automatic digital input check to detect DMX signal errors
- Manual mode for dimming capability without an external lighting controller
- Synchronization of several devices possible via DMX
- Automatic circuit breaker per channel (type C)
- Channel-outputs on the rearpanel via pole connectors
- Only for professional use
- 12 integrated show programs
- Preprogrammed 12 scenes/chases
- The device is cooled by cooling fan
- Control via stand-alone; DMX
- LCD display
- (19") 48.3 cm rack installation 4 U
- For application areas such as: Trade fair and shop fitting; Stage; theater; Rental
- Very quiet working noise
Package contents
- 1 x device, 1 x user manual
Paraméterek
| Power supply | 230/380 V AC, 50 Hz |
| Protection class | Protection class I |
| Output power | Max. 43470 W; max. 3680 W per channal |
| Output current | Max. 189 A |
| Power connection | Mains input via screw terminal |
| Power output | Screw terminal |
| Power output fuse per channel | C 16 A Fuse resettable |
| Programs | Preprogrammed 12 scenes/chases |
| DMX channels | 12 |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| 1 x 5-pin XLR (M) mounting version | |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| 1 x 5-pin XLR (F) mounting version | |
| Cooling | Cooling fan |
| Control | Stand-alone; DMX |
| Control channels | 12 |
| Display type | LCD display |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 4 U |
| Dimensions | Width:48,3 cm |
| Depth | 48,5 cm |
| Height | 17,8 cm |
| Weight | 18,80 kg |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
