Leírás

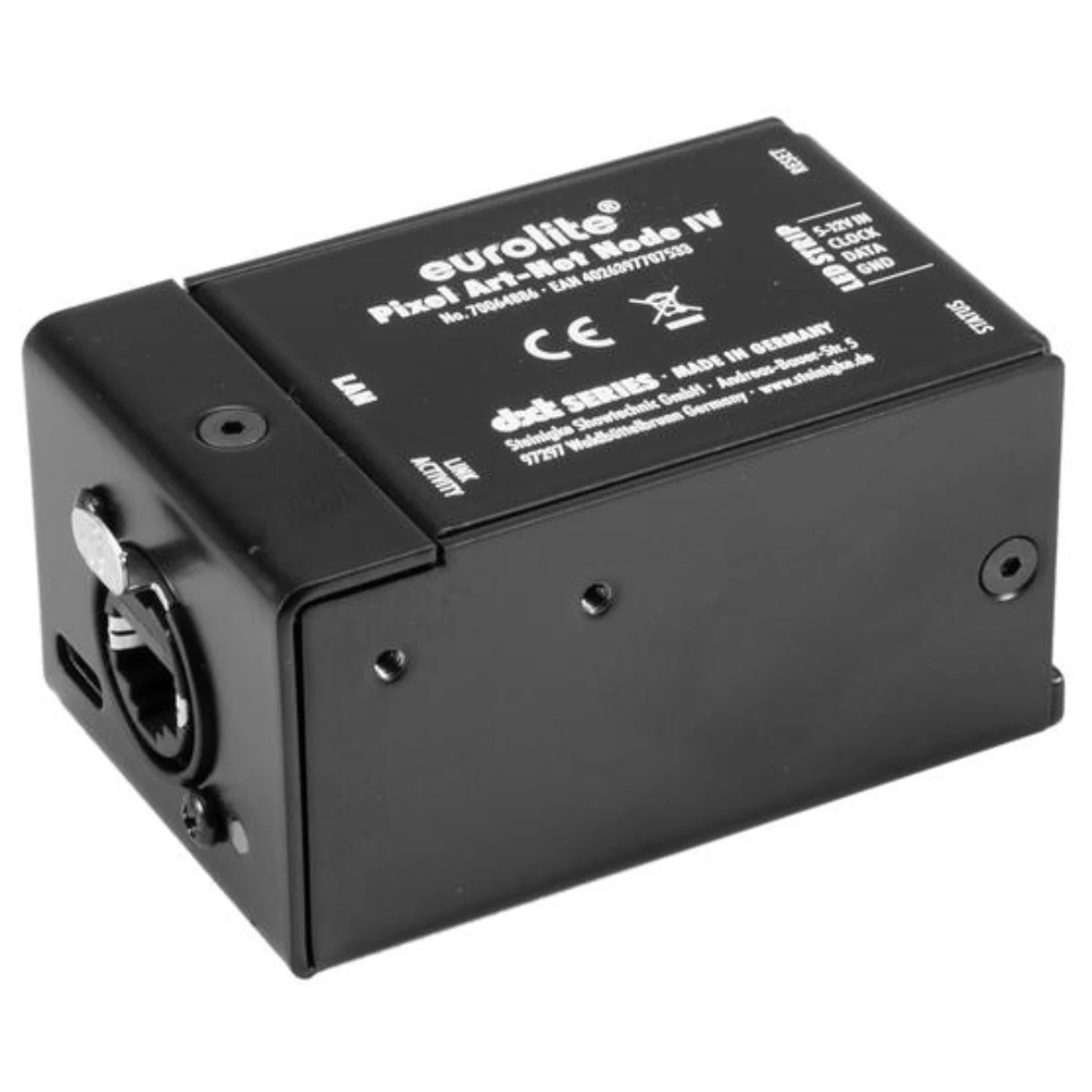

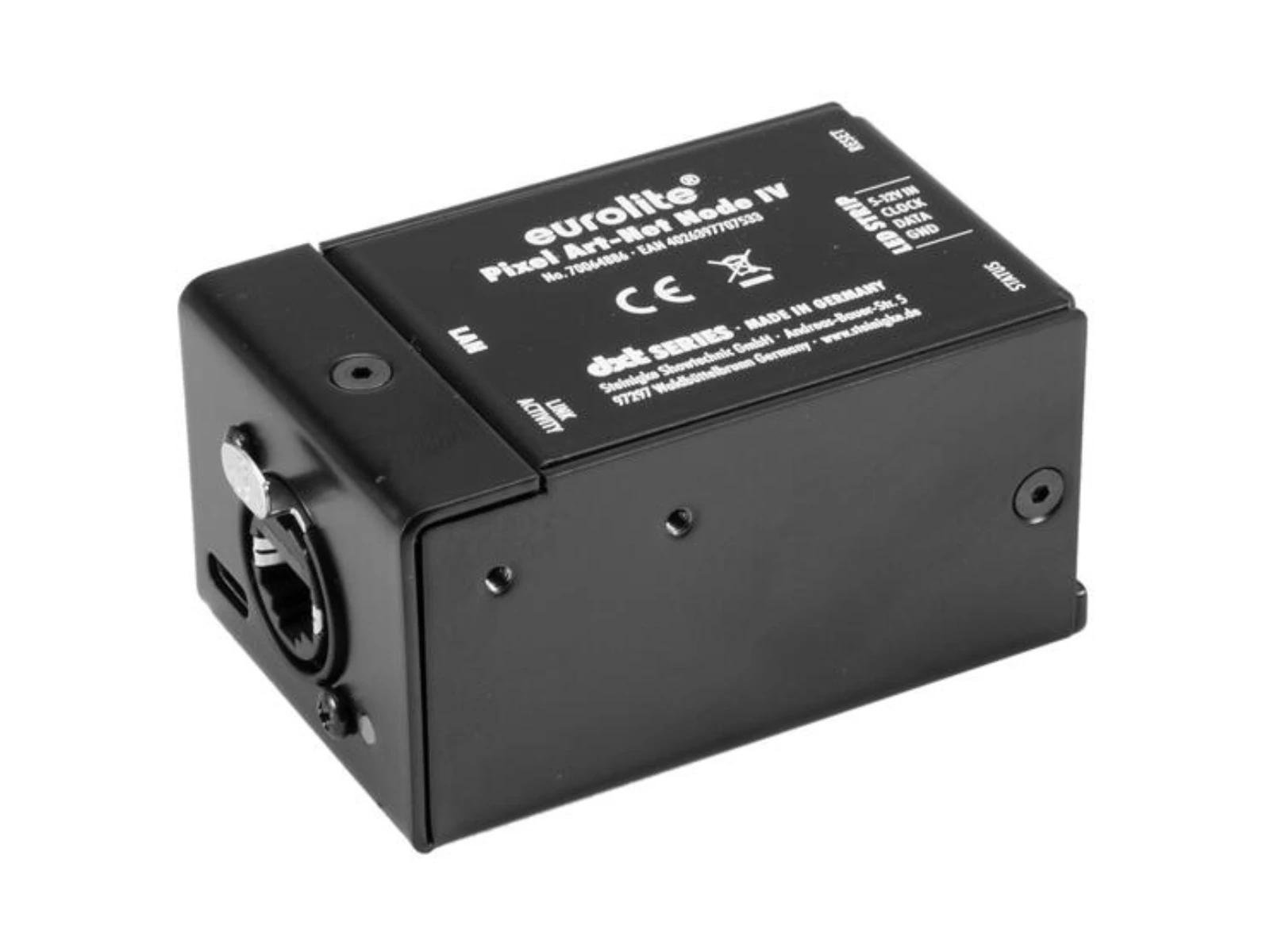

Art-Net interface for control of 50000 digital LED channels
- Can receive and process up to 2048 DMX channels
- 1 to 6 colors per pixel
- Supports pixel groups (1 - 9999)
- Control via ArtNet; sACN
- Configuration with website or Art-Net
- Useable for WS2801; WS2811, WS2812, SK6812; APA102 LED´s
- Does not require a separate adapter - power supply is via LED strip (5-12 V)
- Rugged metal housing
- Desktop console housing
- Made in Germany
- The device can be connected via RJ-45 etherCON (F) mounting version to the PC in connection with f.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC)
- Built with NEUTRIK connector
Paraméterek
Power supply | 5-12 V DC |
Pin configuration | Pin1 (GND) / Pin2 (DATA) / Pin3 (CLOCK) / Pin4 (VIN) |
Power consumption | 1 W |
IP classification | IP20 |
Power connection | Mains input via 4-pin screw plug connector (M) mounting version |
DMX channels | Input 2048 |
Network connection | Protocol:Ethernet TCP/IP via 1x RJ-45 etherCON (F) mounting version, 10 Mbit/s |
Standard | IEEE 802.3u |
Control | ArtNet; sACN |
Control channels | 50000 |
Housing color | Black |
Status LED | Signal, link |
Connections | Input:1 x RJ-45 etherCON (F) mounting version |
Output | screw plug-in terminal |
Use of brands | Built with NEUTRIK connector |
PC connect | F.e. FreeStyler, DMXControl 3, PC_DIMMER, Lightkey (MAC) via RJ-45 etherCON (F) mounting version |
Housing design | Desktop console housing |
Dimensions | Length:7,8 cm |
Width | 5,0 cm |
Height | 4,2 cm |
Weight | 250 g |
