Leírás

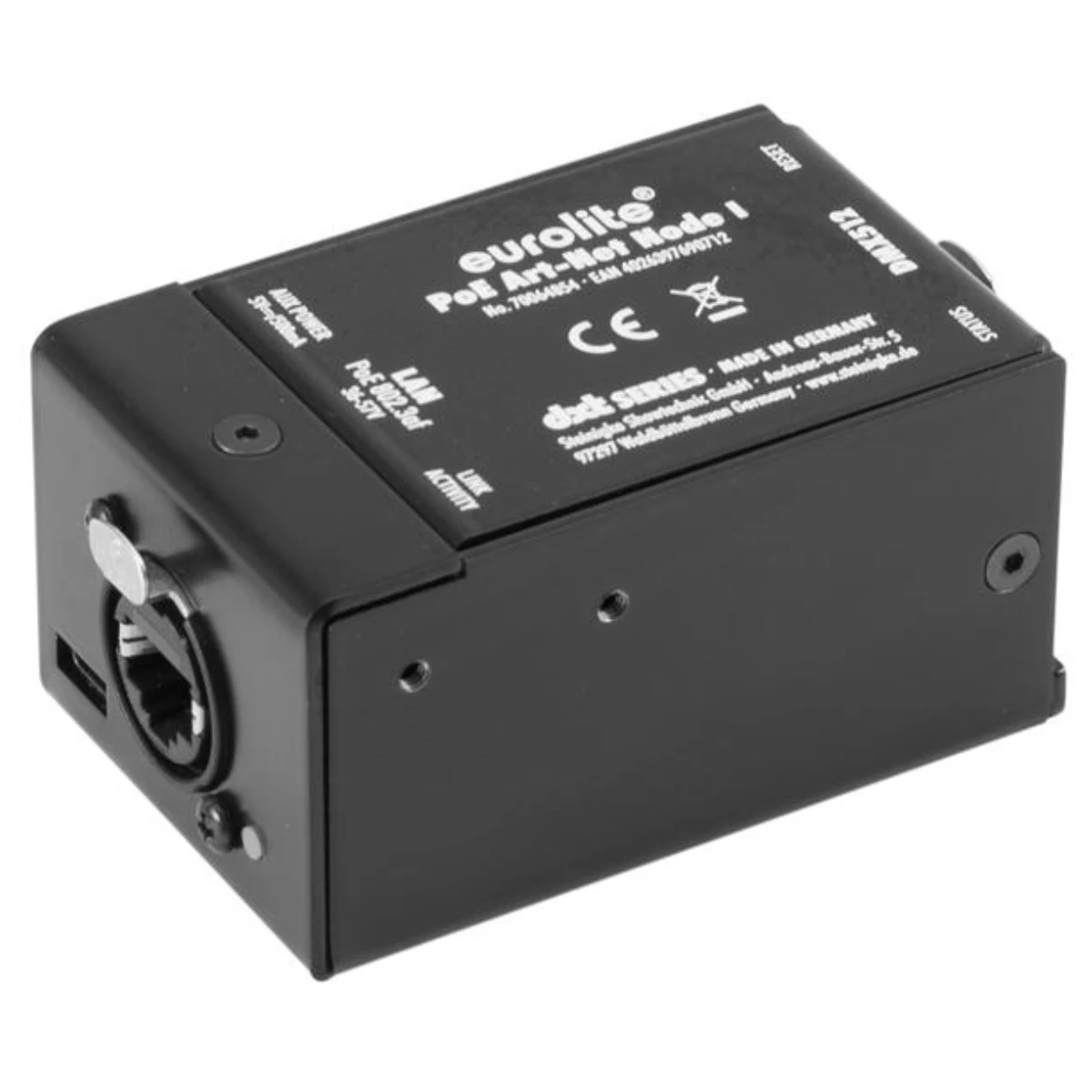

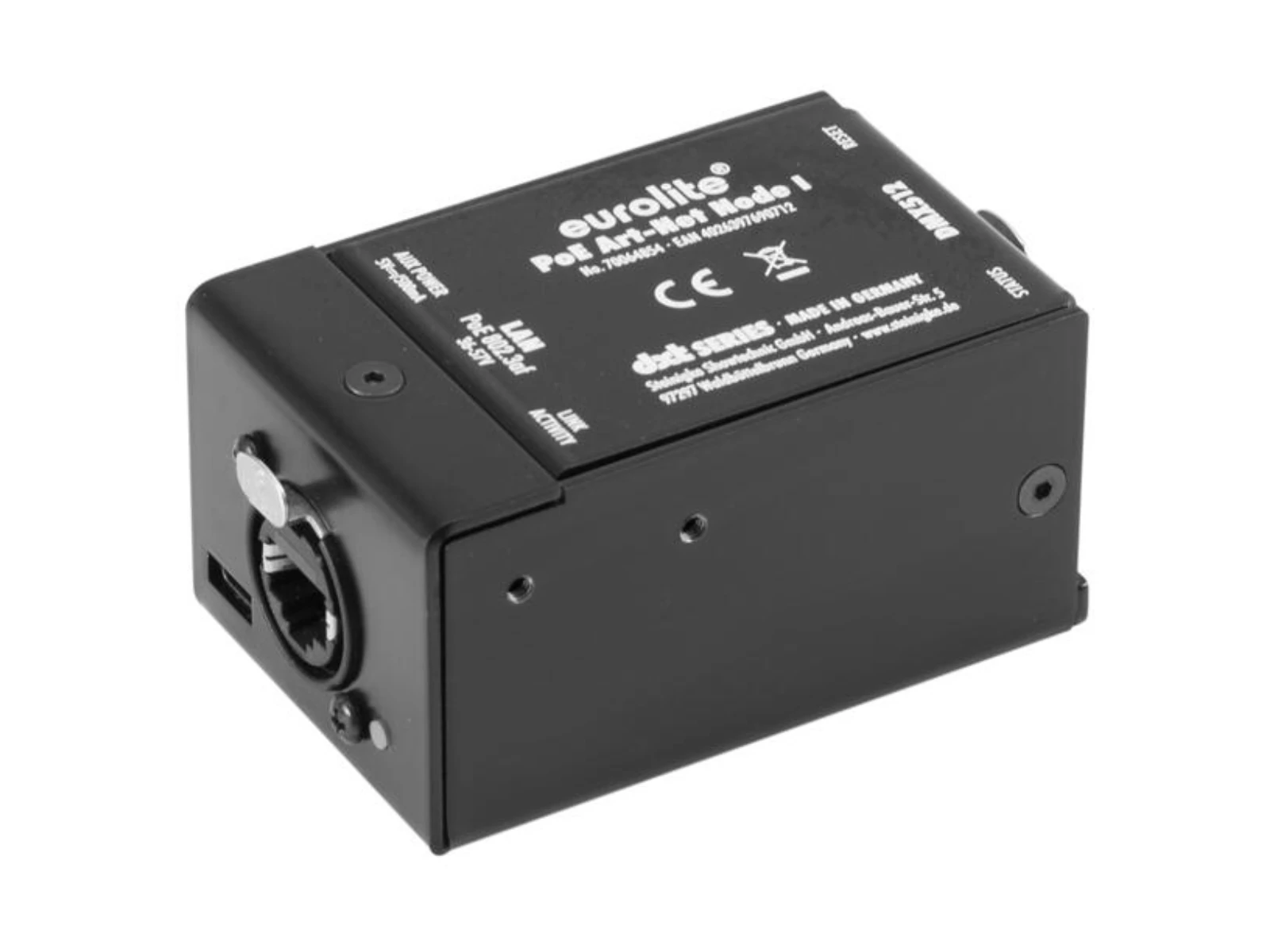

Art-Net interface for control of 512 DMX channels
- Power supply via 48V PoE switch / PoE injector (802.3af) or 5V USB-C port
- The apps' online fixture library is continuously updated and already includes more than 300 Eurolite and Futurelight fixtures - easily add new ones via the fixture profile editor
- DMX refresh rate: 40 Hz, 30 Hz or 20 Hz
- ArtDMX reception via Broadcast or Unicast
- Configuration with website or Art-Net
- Available settings: IP address / Subnet mask / Art-Net ShortName / Art-Net LongName / Art-Net Net / Art-Net Subnet / Art-Net Universe and DMX refresh rate and DMX in/out via website
- Rugged metal housing
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via Art-Net; Light´J app; Light Captain App
- Built with NEUTRIK connector
- Made in Germany
Manuals
ManualsParaméterek
| Power supply | 5 V DC 500 mA |
| 37-56 V DC | |
| IP classification | IP20 |
| Power connection | Mains input via USB C (W) mounting version power supply cord for USB A mains connection (provided) |
| Mains input via RJ-45 (F) mounting version | |
| DMX channels | Input 512 |
| Output 512 | |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| Network connection | Protocol:Ethernet TCP/IP via RJ-45 etherCON (F) mounting version, 10/100 Mbit/s |
| Control | Art-Net; Light´J app; Light Captain App |
| Status LED | Signal, link |
| Use of brands | Built with NEUTRIK connector |
| Color | Black |
| Dimensions | Width:7,8 cm |
| Depth | 5 cm |
| Height | 4,2 cm |
| Weight | 290 g |
