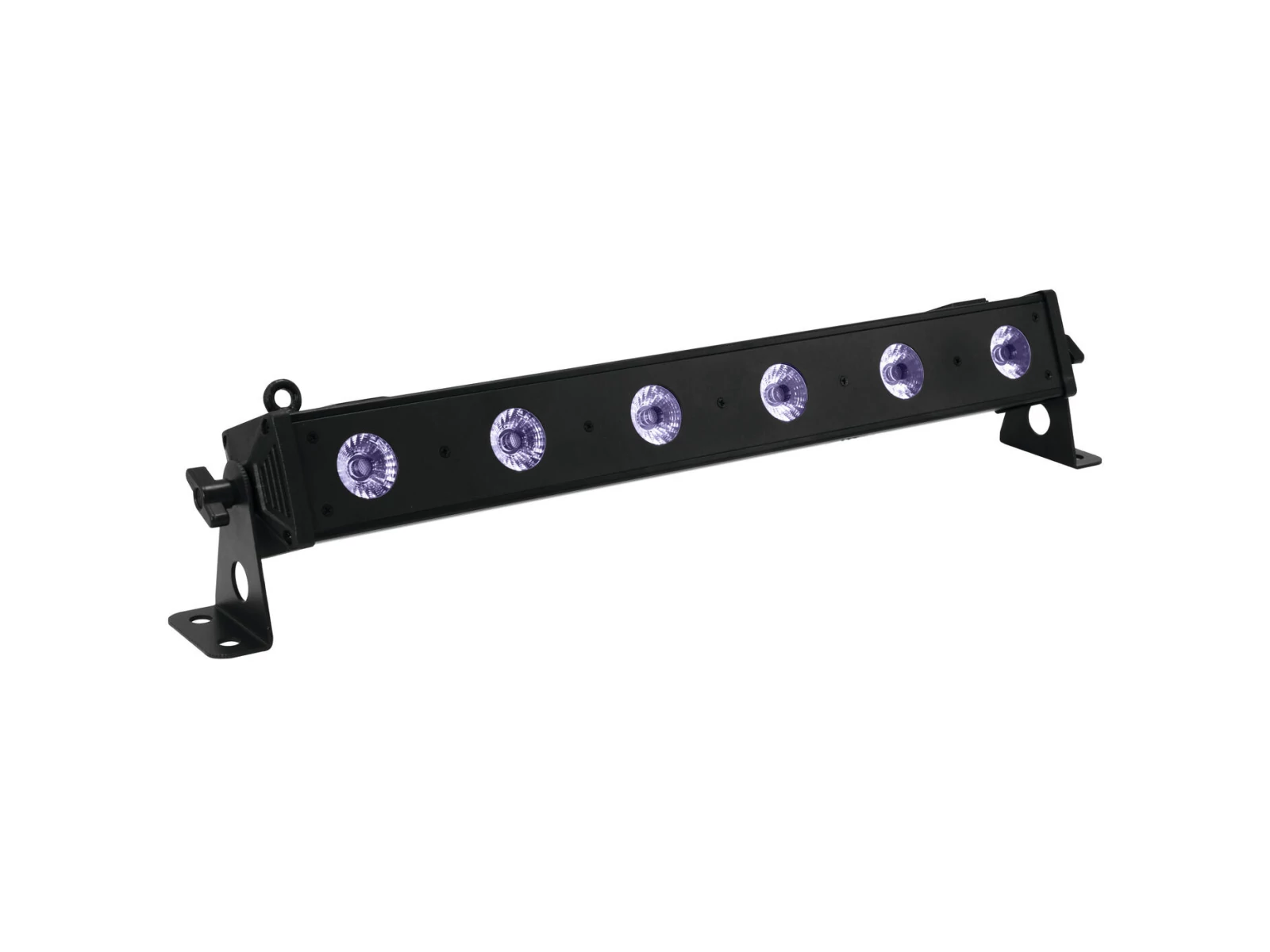

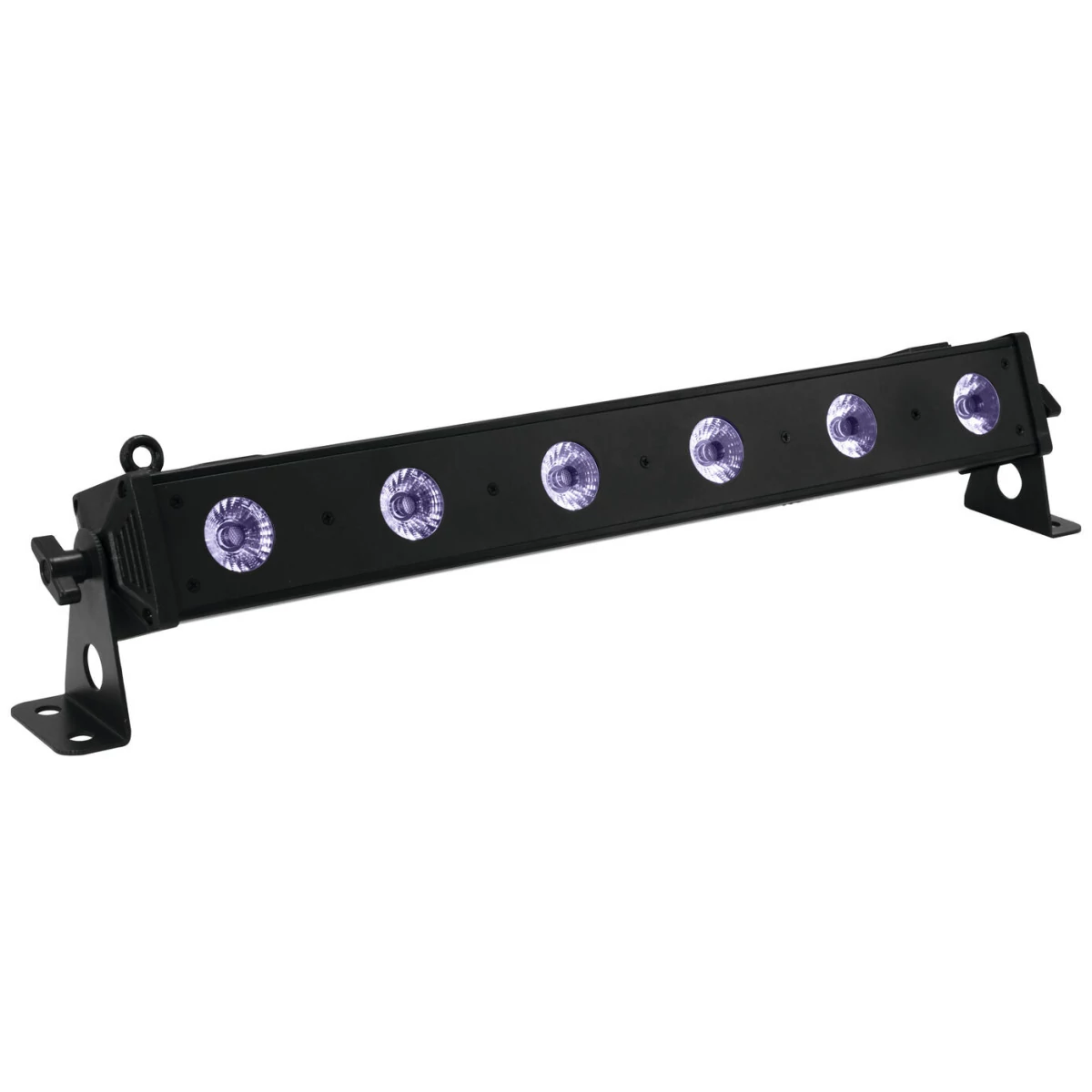

Light effect bar (50 cm) with UV LEDs
Light effect bar (50 cm) with UV LEDsThe powerful and dimmable light effect bar EUROLITE LED BAR-6 UV is equipped with six 1 W UV LEDs. Due to the convection cooling, the LED BAR is noiseless and offers you versatile application possibilities. Whether at events or for band performances - whether in the theatre or at galas - the LED Bar-6 UV is variably applicable. It is controlled via DMX, master-slave operation is also possible. The LED Bar also has a phantom-powered USB socket for a QuickDMX receiver. This is optionally available. In auto and music mode you can also use integrated show programs. Addressing and settings can be made via the integrated control unit with 4-digit LED display. The mains connections allow you to operate up to eight devices in a row.
- 6 high-power 1 W UV LEDs
- Built-in auto and music show programs
- Electronic dimmer (0-100%)
- Strobe effect 0-20 Hz
- Control panel with LED display for easy configuration
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX, CRMX and WDMX receivers (optional)
- Swivel mounting bracket
- Mains input and output for power linking up to 8 units
- LED: 6 x high-power 1 W ultra violet (UV)
- Can be operated in 1; 2 CH mode
- The device is cooled by passive convection
- Controlling by DMX; stand-alone; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in LED PC-Control 512; Light Captain
- Flicker-free projection
- Effect: UV effect; dimmable
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 15 W |
| IP classification | IP20 |
| Power connection | Mains input IEC connector (M) mounting version power supply cord with safety plug |
| Power output | IEC connector (F) mounting version |
| Lamp type | LED lamp |
| LED | 6 x high-power 1 W ultra violet (UV) |
| DMX channels | 1; 2 |
| Cooling | Passive convection |
| Control | DMX; stand-alone; Sound to light via Microphone; Master/slave function; LED PC-Control 512; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain |
| Beam angle | 14° |
| Beam angle (1/2 peak) | 14° |
| Beam angle (1/2 peak) | Wash effect |
| Beam angle (1/10 peak) | 24° |
| Housing color | Black |
| Dimensions | Length:56 cm |
| Depth | 8,5 cm |
| Height | 11,5 cm |
| Weight | 1,65 kg |
| Noise classification | Class 0 (no noise at all) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
