LED logo projector with 30 W LED, strobe, dimmer and gobo rotation, incl. IR remote control

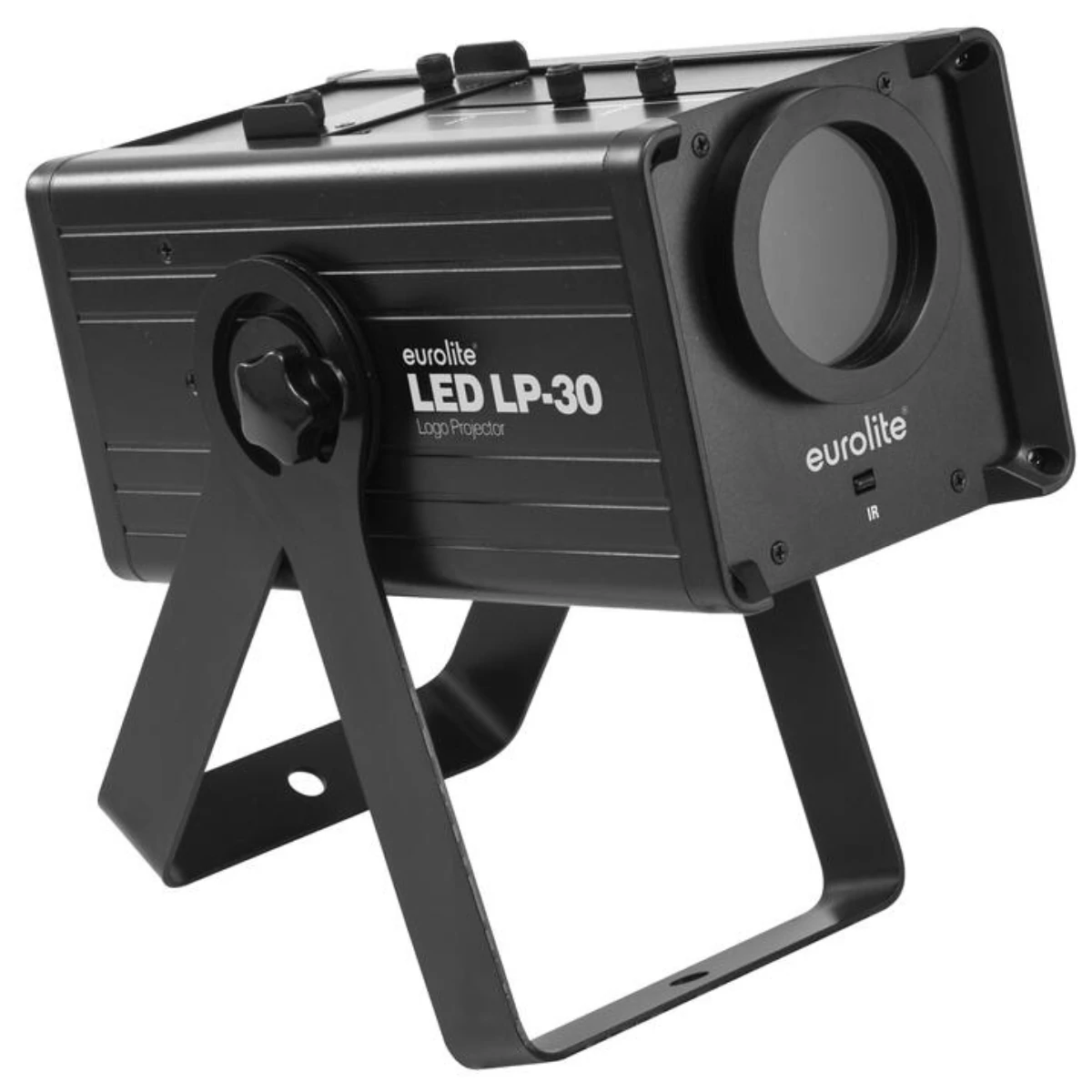

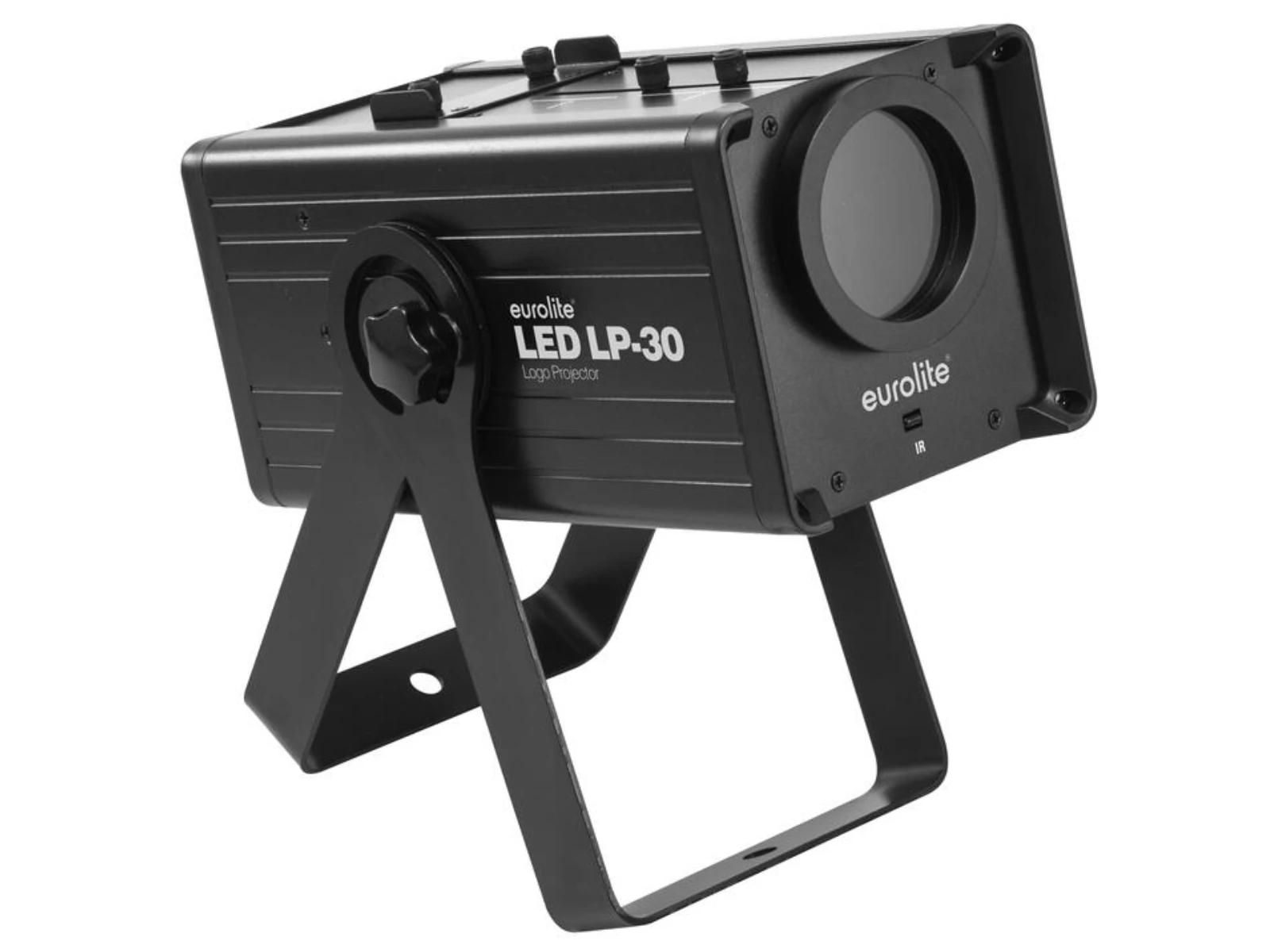

LED logo projector with 30 W LED incl. IR remote controlUse the EUROLITE LED LP-30 to advertise your booth with your company logo projected on the ceiling or throw a Christmas motif directly from your shop window onto the street to attract the full attention of passers-by. The LP-30 logo projector is completely silent as it is equipped with convection cooling. The sharp and flicker-free projection is made possible by the powerful, cool white 30-watt COB LED. Different gobos can be easily changed and inserted. Switch conveniently between static or rotating gobos and control the rotation speed and direction according to your needs. A gobo with "bubbles" motif is included in the delivery.The logo projector also features a dimmer, pre-programmed macros and a variable speed strobe effect with a random generator. You can control the projector either via DMX, master/slave or with the included infrared remote control. The logo projector is also compatible with QuickDMX - the wireless DMX system from Eurolite. The P-Con mains connection allows you to operate up to eight devices in series. You can address and set the LP-30 via the control board with LCD display.

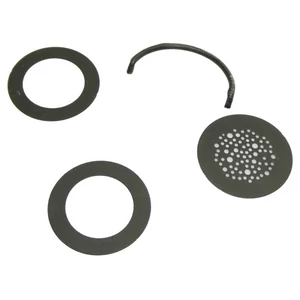

- Delivery includes a gobo, motive "bubbles"
- Clear projection
- 1 powerful LED 30 W COB (chip-on-board) cold white (CW)
- Gobo wheel with rotating gobos; focus manual; zoom manual; gobo wheel with static gobos
- Gobo effect; strobe effect
- The device is cooled by passive convection cooling
- Control via DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 11° - 16°
- With double bracket
- For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Dimmer electronic; color macros adjustable
- Preprogrammed in Light Captain; Light´J
- Mains input and output for power linking up to 8 units
- Application possibility: Standing; suspended; on stand
gobos
- Gobos changeable
Package contents
- 1 x device, 1 x power cord, 1 x remote control, 1 x battery, 1 x gobos, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz | |
| Power consumption | 35 W | |
| IP classification | IP20 | |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | |
| Lamp type | LED lamp | |
| LED type | 1 x 30 W COB (chip-on-board) cold white (CW) | |
| Equipment | Gobo wheel with rotating gobos; focus manual; zoom manual; gobo wheel with static gobos | |
| DMX channels | 2; 3; 4 | |
| DMX input | 3-pin XLR (M) mounting version | |
| DMX output | 3-pin XLR (F) mounting version | |
| Cooling | Passive convection cooling | |
| Control | DMX; IR remote control; stand-alone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) | |
| Preprogrammed in | Light Captain; Light´J | |
| Projection | Flicker-free | |
| Beam angle | 11° - 16° | |
| Beam angle (1/2 peak) | 11 - 16° | |
| Beam angle (1/10 peak) | 11 - 16° | |
| Housing color | Black | |
| Attachment system | Double bracket | |
| Material | Aluminum | |
| Dimensions | Length:25,2 cm | |
| Width | 12 cm | |
| Height | 24,8 cm | |
| Weight | 3,34 kg | |
| Noise classification | Class 0 (no noise at all) | |
| Mounting bracket | ||
| Diameter mounting holes | 2 x Ø10mm | |
| Material | Metal, 2,5 mm | |
| Power cord | ||
| Cable length | Approx. 1,2 m | |
| Remote control | ||
| Battery | 1 x button cell 3.0 V CR2032 lithium manganese built-in | |
| Gobos | ||
| Gobos | Outside diameter 27mm | |
| Image diameter 18mm | ||
| Gobos changeable | ||
| Legal specifications | ||
| Special product | Not designed for household room illumination | |
| Intended use | Show effect lighting | |
