Leírás

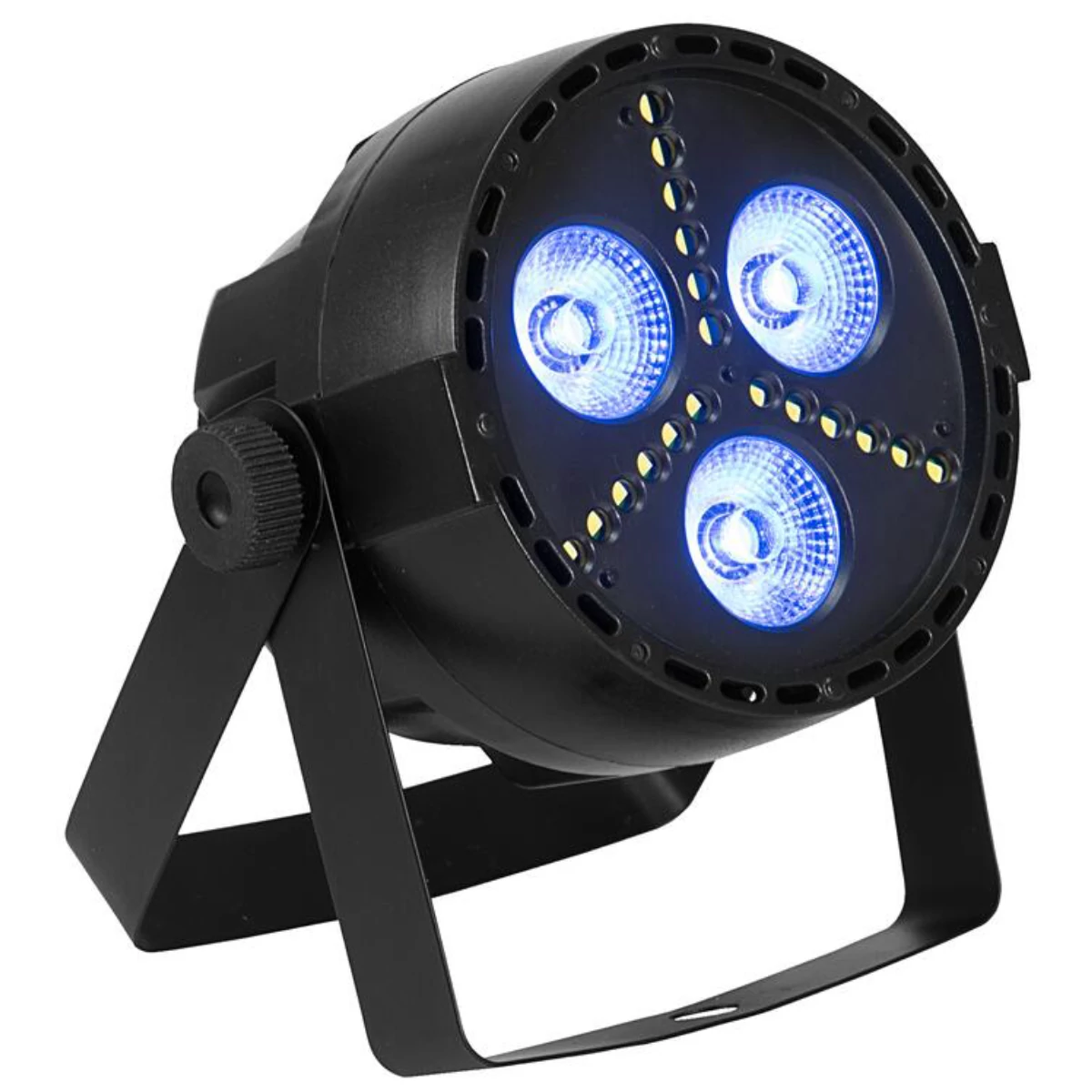

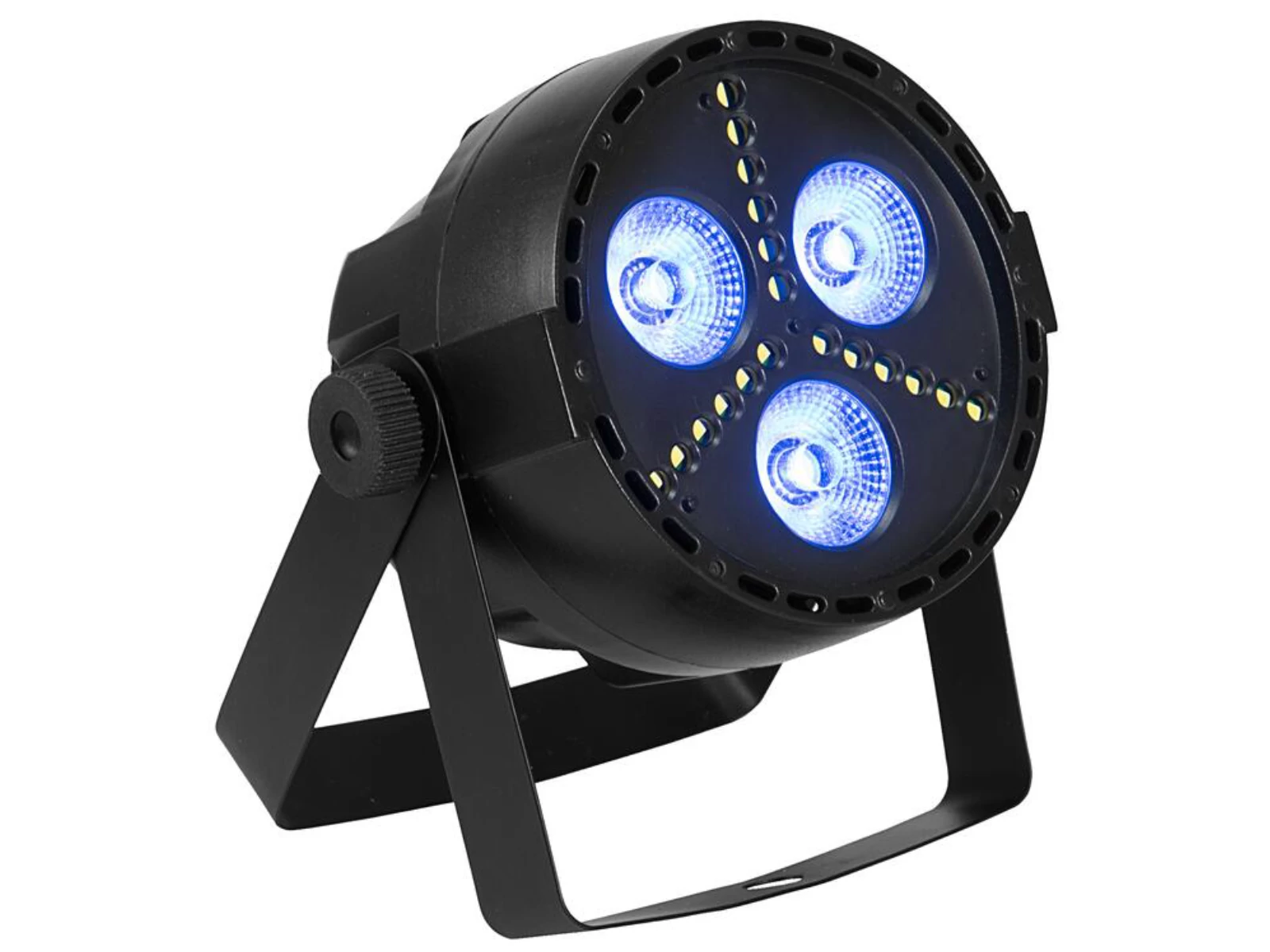

LED effect spotlight with RGB LEDs and stroboscope
- Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
- 3 integrated show programs
- The device is cooled by passive convection cooling
- Control via DMX; Sound to light via Microphone; stand-alone
- With double bracket
- 4 digit 7-segment LED display
- 3 powerful LEDs 3 W high-power 3in1 TCL RGB (homogenous color mix)
- 18 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- Strobe effect
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- With a beam angle of 22°
- For application areas such as: Party room; mobile djs / entertainer; small rental
- Silent operation
- Application possibility: Standing; suspended; on stand
Package contents
- 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 16 W |
IP classification | IP20 |
Protection class | Protection class II |
Power connection | Fixed power supply cord with Euro plug |
Lamp type | LED lamp |
LED | 3 x 3 W high-power 3in1 TCL RGB (homogenous color mix) |
18 x 0,5 W SMD 5730 cold white (CW) | |
DMX channels | 7 |
DMX input | 1 x 3-pin XLR (M) mounting version |
DMX output | 1 x 3-pin XLR (F) mounting version |
Cooling | Passive convection cooling |
Control | DMX; Sound to light via Microphone; stand-alone |
Preprogrammed in | Light´J; LED PC-Control 512; Light Captain |
Beam angle | 22° |
Beam angle (1/2 peak) | 22° |
Beam angle (1/10 peak) | 37° |
Housing color | Black |
Attachment system | Double bracket |
Display type | 4 digit 7-segment LED display |
Material | Plastic |
Dimensions | Width:15,2 cm |
Depth | 12 cm |
Height | 17 cm |
Weight | 520 g |
Noise classification | Class 0 (no noise at all) |
Mounting bracket | |
Diameter mounting holes | 1 x Ø10mm |
Material | Metal, 1 mm |
Power cord | |
Cable construction | 2 x 0,75 mm² H03VVH2-F |
Cable length | Approx. 0,9 m |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
