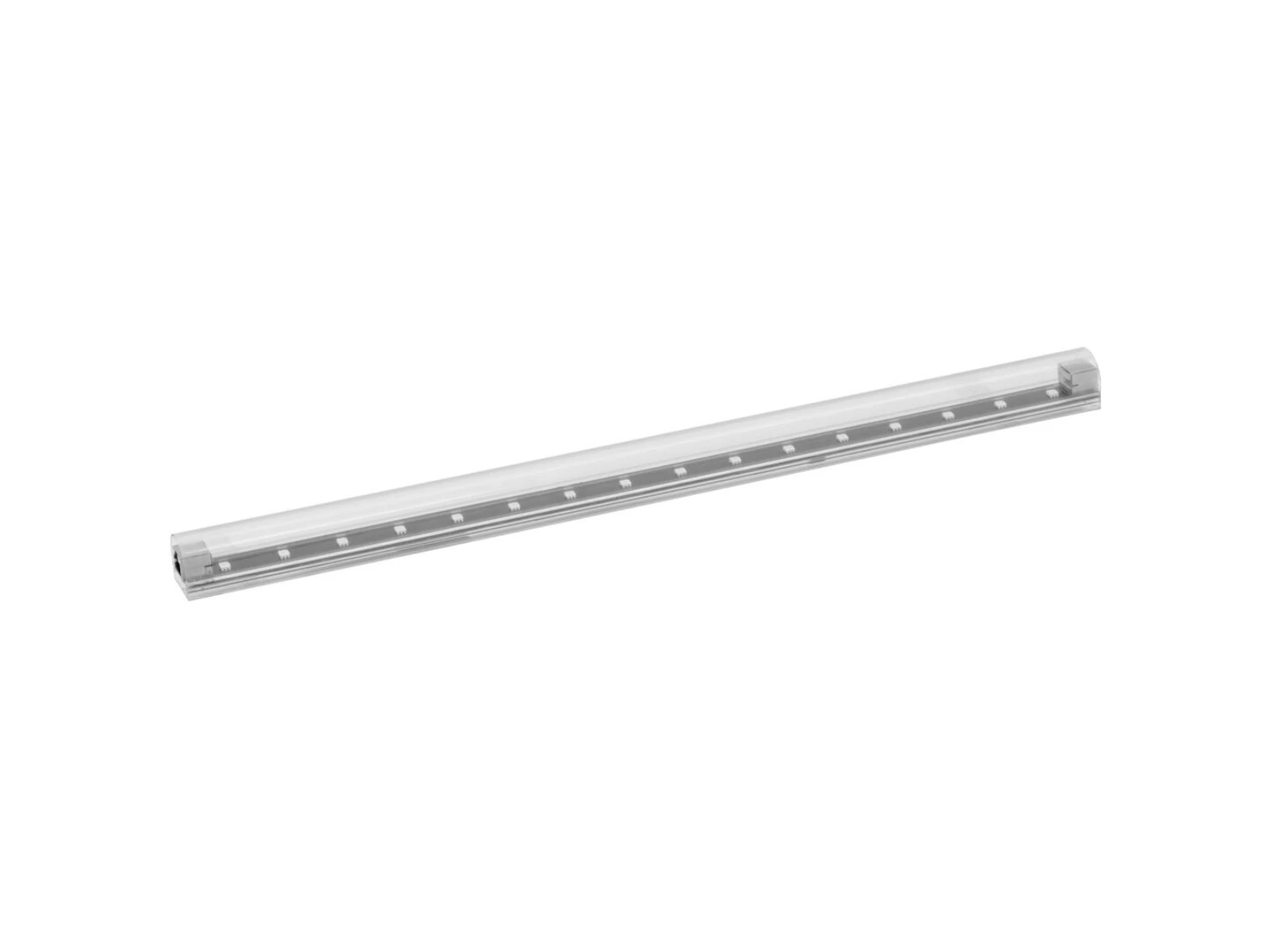

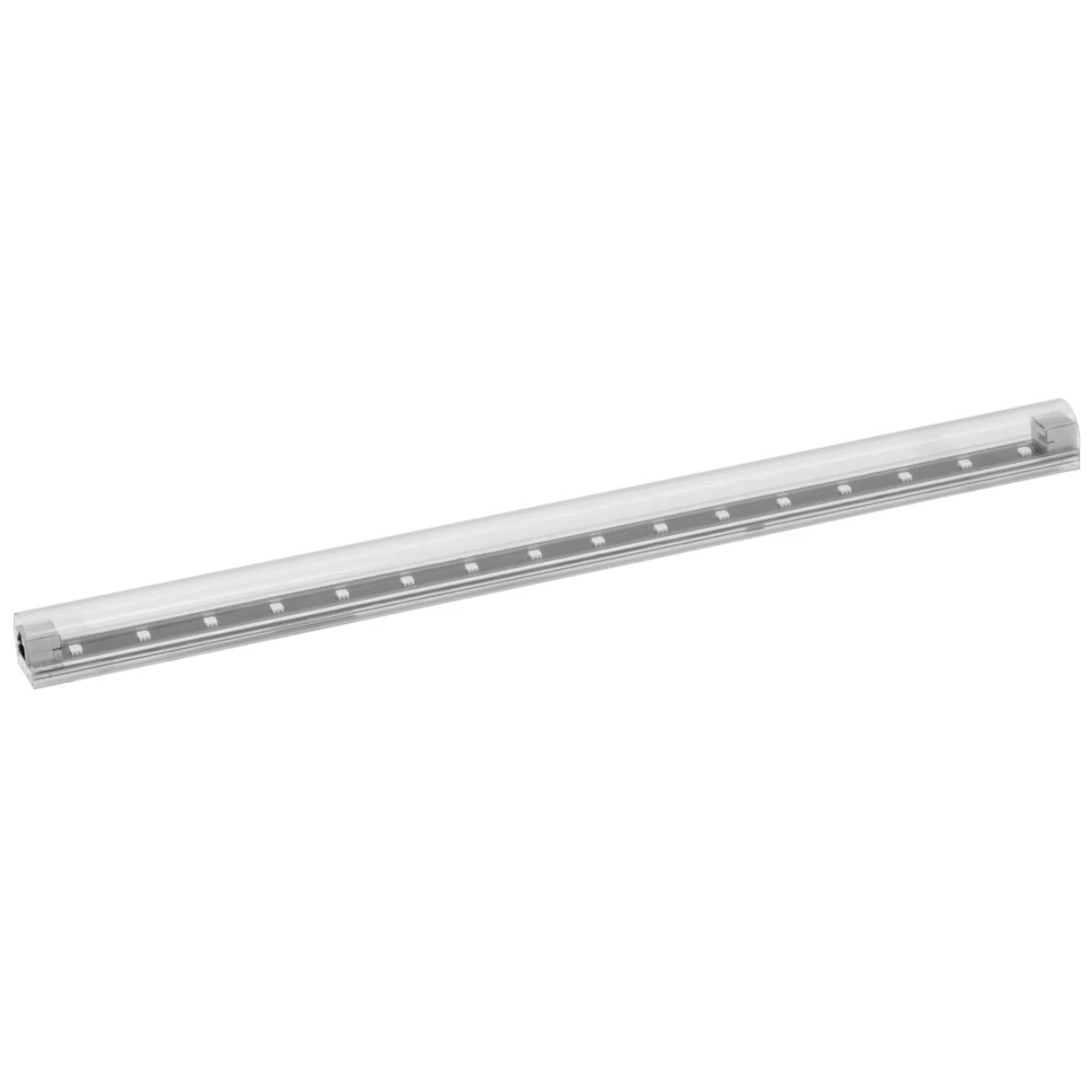

LED bar for pixel mapping applications
- LED bar with 16 or 32 pixels for video and pixel mapping applications via Art-Net
- Ultra-bright 3in1LEDs for smooth RGB color mixing
- 180° beam angle
- Each LED individually addressable for displaying multimedia content or stunning running light effects, color fades and animations
- Modular concept allows build-up of large effects for clubs, stages, shops and various other environments
- Signal distribution via UTP cable
- Control via Art-Net/DMX with the optional controller LED PSU-4A
- Easily create animations with MADRIX or any other control software supporting Art-Net
- Stand-alone operation possible with 30 built-in light programs
- RGB color mixture, dimmer, strobe, Master/Slave
- Mounting material included in delivery
- Truss holders available as accessory
- LED: 16 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Controlling by Accessories
Paraméterek
| Power supply | 24 V DC |
| Power consumption | 2 W |
| Protection class | Class III |
| Power connection | Mains input RJ-45 (F) mounting version |
| LED | 16 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Control | Accessories |
| Beam angle (1/2 peak) | 180° |
| Screen | 16 px |
| Pixel pitch 30 mm | |
| Housing color | Silver |
| Connections | 2 x signal via RJ-45 (F) mounting version |
| Dimensions | Length:50 cm |
| Depth | 3,2 cm |
| Height | 3,2 cm |
| Weight | 110 g |
| Legal specifications | |
| Ecodesign regulation | yes |
| Special product | Not designed for household room illumination |
| intended use | show effect lighting |
