Leírás

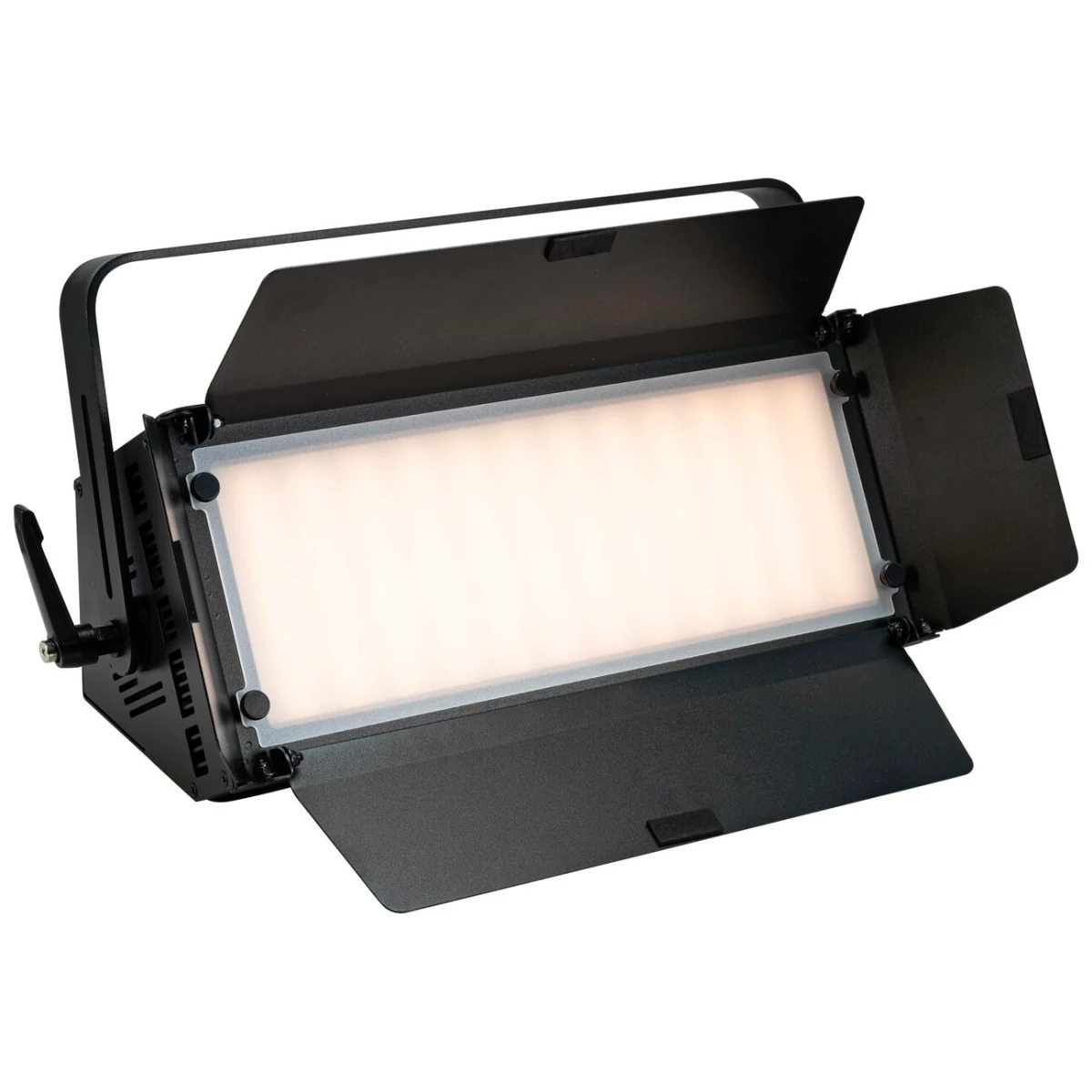

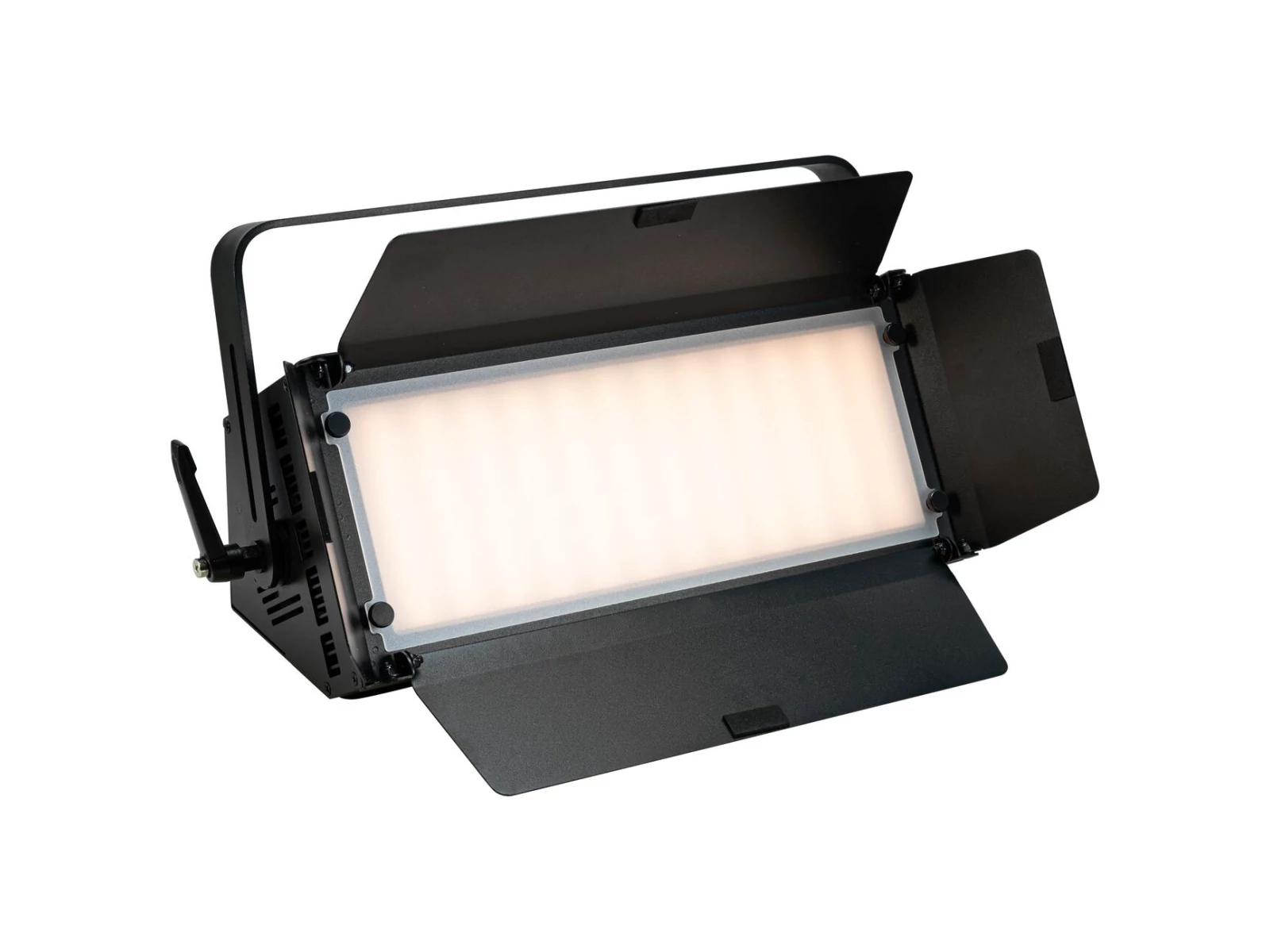

DMX-controlled surface light with 576 dual white LEDs, QuickDMX port, diffuser and barn doors
- 288 powerful LEDs 0,5 W SMD 5730 warm white (WW)
- 288 powerful LEDs 0,5 W SMD 5730 cold white (CW)
- Variable color temperature 3000 K - 6000 K
- Additional frost filter provides a wide, soft and homogeneous light
- 4 barn doors to avoid blinding the audience and for protection during transport
- Direct color temperature selection for 69 preset values
- Dimmer electronic
- Flicker-free
- With a beam angle of 120°
- The device is cooled by temperature-controlled fan
- Very high color rendering index (CRI)
- LCD display
- Rubber feet
- Control via DMX; Master/slave function; stand-alone; Quick select potentiometer for brightness and color temperature; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional)
- With Mounting bracket
- For application areas such as: Video and photography; Stage; Trade fair and shop fitting; Rental
- Mains input and output for power linking up to 8 units
- Preprogrammed in Light Captain
- Very quiet working noise
- Application possibility: Suspended; standing; on stand
Package contents
- 1 x spotlight, 1 x user manual, 1 x power cord, 1 x frost filter, 4 x knurled screw
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 160 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output | 1 x P-Con (gray), mounting version |
| Fuse | T 3,15 A Fuse fix in power supply |
| Lamp type | LED lamp |
| LED | 288 x 0,5 W SMD 5730 cold white (CW) |
| 288 x 0,5 W SMD 5730 warm white (WW) | |
| Color temperature | 3000K - 6000K adjustable |
| DMX channels | 2-1; 2-2; 3-1; 3-2; 4 |
| DMX input | 3-pin XLR (M) mounting version |
| 5-pin XLR (M) mounting version | |
| DMX output | 3-pin XLR (F) mounting version |
| 5-pin XLR (F) mounting version | |
| Cooling | Temperature-controlled fan |
| Control | DMX; Master/slave function; stand-alone; Quick select potentiometer for brightness and color temperature; CRMX by LumenRadio via USB (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional) |
| Preprogrammed in | Light Captain |
| Projection | Flicker-free |
| Beam angle | 120° |
| Beam angle (1/2 peak) | 120° |
| Color rendering index (CRI) | 93 Ra |
| Illuminance in Lux (lx) | Cold white (CW) 1m:3752 lx, 3m:453 lx, 6m:134 lx |
| Warm white (WW) 1m | 3664 lx, 3m:445 lx, 6m:132 lx |
| All 1m | 5667 lx, 3m:690 lx, 6m:204 lx |
| Housing color | Black |
| Attachment system | Mounting bracket |
| Display type | LCD display |
| Transport aid | Rubber feet |
| Dimensions | Length:44 cm |
| Width | 19,8 cm |
| Height | 22,3 cm |
| Weight | 6,00 kg |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
