LED sunbar with 3 effects: warm white beam effects, strobe and ambient light

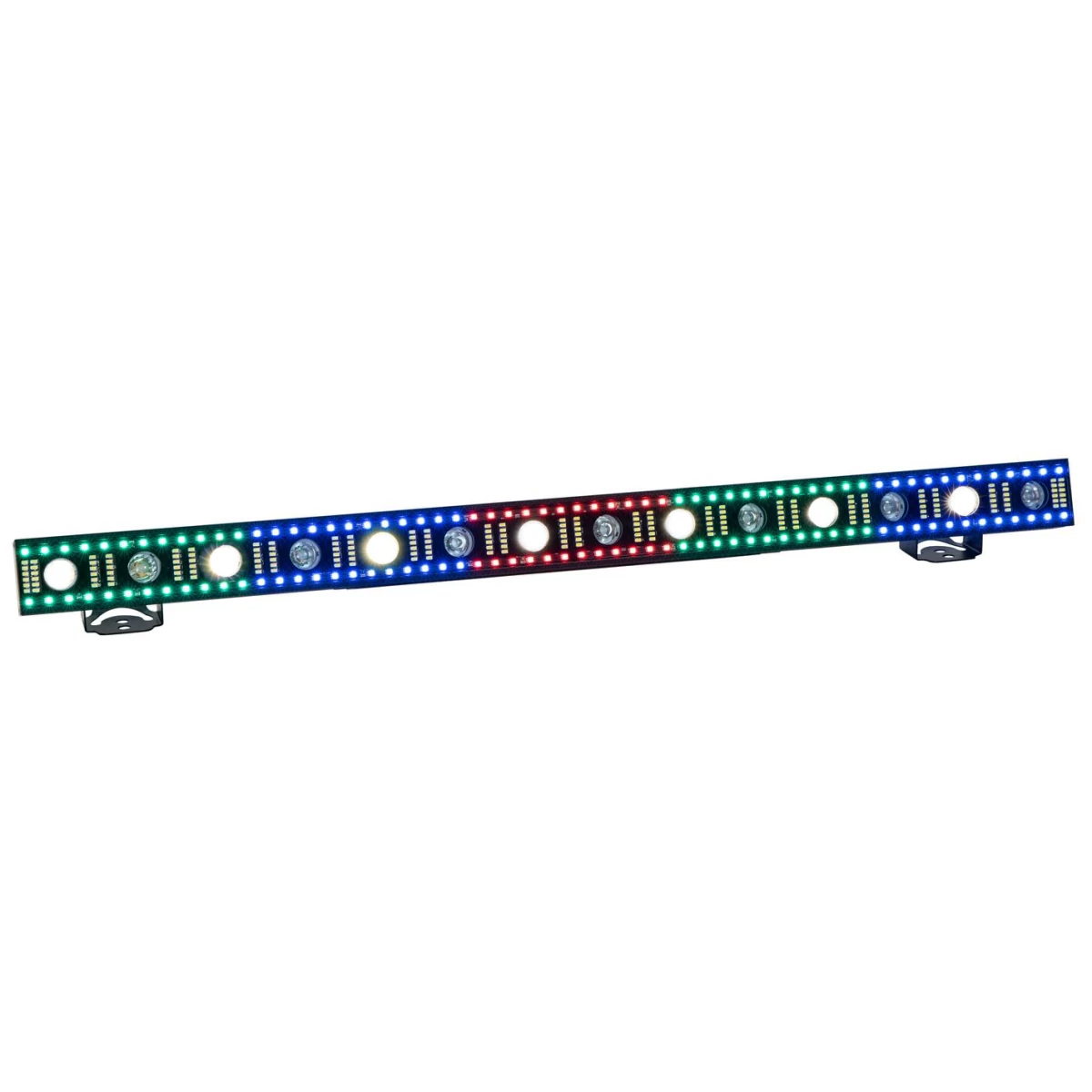

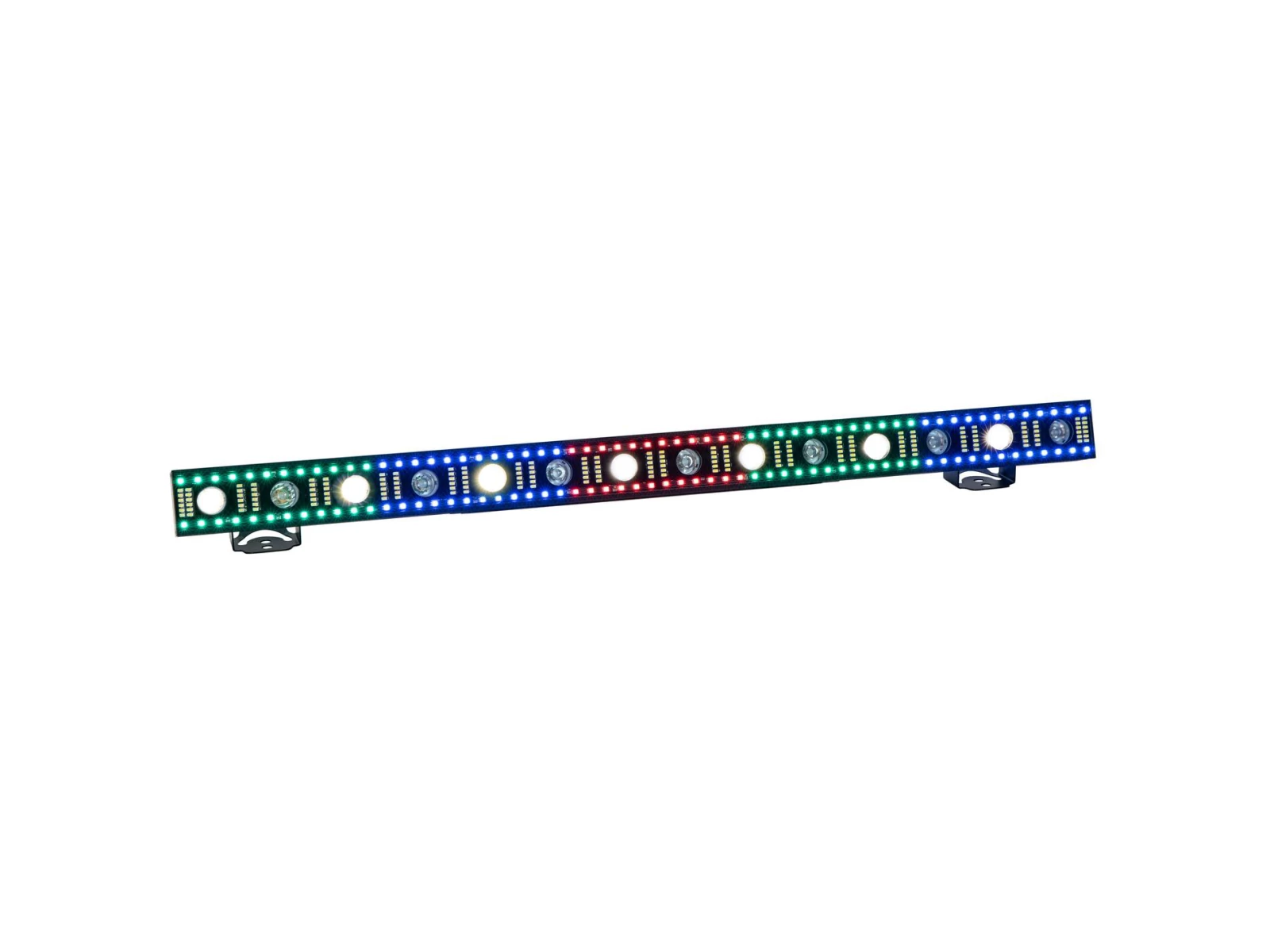

3in1-LED-Sunbar with warm white beam effects, stroboscope and ambient lightThe EUROLITE STP-14 Sunbar is equipped with three effects in one device: Beam effect, stroboscope and ambient light. It is therefore very suitable for your stage equipment, for decorative lighting, for example in shops or for use in discotheques. You can also use the LED bar in theatres or at galas: Due to pure convection cooling via cooling fins, this effect does not require a fan and is therefore particularly quiet in operation. The flicker-free STP-14 Sunbar is equipped with 14 warm-white 3-watt LEDs with a beam angle of 6.5° for narrow beams. 120 bright RGB LEDs behind the transparent cover provide appealing mood lighting and color animations, while 180 cold white LEDs provide fast, dynamic strobe effects. These lighting effects are particularly effective when you use fog.RGB color mixing is infinitely variable. The effects available are chases, dimmers and strobe effects with variable speed and via the random generator.All three LED types are divided into different segments which can be controlled individually via DMX. In addition, you can control the Sunbar STP-14 by music control via the integrated microphone with adjustable microphone sensitivity and in master/slave mode. Addressing and settings are made via the integrated control unit with four-digit LED display.The power supply of up to eight devices is possible via a P-Con mains connection.
- 3 striking effects in one device: beam effect, stroboscope and ambient light
- When fog is used, this effect becomes especially attractive
- 180 powerful LEDs SMD 3535 cold white (CW)
segments controlled separately - 120 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
segments controlled separately - 14 powerful LEDs 3 W high-power warm white (WW)
segments controlled separately - Color change adjustable; Dimmer electronic; color blend stepless; running light adjustable
- Strobe effect
- Integrated show programs
- Direct color selection for 10 preset colors
- The device is cooled by passive convection cooling
- Control via DMX; Master/slave function; stand-alone; Sound to light
- Flicker-free
- With a beam angle of 6,5°
- With Mounting bracket
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- Mains input and output for power linking up to 8 units
- Silent operation
- CREE LED installed
- 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; Installation; Stage; restaurants, bars and hotels
- Application possibility: Suspended; Wall mounting
Package contents
- 1 x light effect, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 95 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug included |
Fuse | T 3,15 A Fuse fix on board |
Lamp type | LED lamp |
LED | 180 x SMD 3535 cold white (CW) |
120 x SMD 5050 3in1 TCL RGB (homogenous color mix) | |
14 x 3 W high-power warm white (WW) | |
LED manufacturer | CREE |
DMX channels | 2; 6; 34; 37 |
DMX input | 1 x 3-pin XLR (M) mounting version |
DMX output | 1 x 3-pin XLR (F) mounting version |
Cooling | Passive convection cooling |
Control | DMX; Master/slave function; stand-alone; Sound to light |
Preprogrammed in | Light´J; LED PC-Control 512; Light Captain |
Projection | Flicker-free |
Beam angle | 6,5° |
Beam angle (1/2 peak) | Spot 6,5° |
Housing color | Black |
Attachment system | 2x Mounting bracket |
Display type | 4 digit 7-segment LED display |
Material | Aluminum casting; metal |
Dimensions | Length:1 m |
Depth | 9 cm |
Height | 8,5 cm |
Weight | 3,88 kg |
Noise classification | Class 0 (no noise at all) |
Mounting bracket | |
Diameter mounting holes | 4 x Ø8mm; 1 x Ø10mm; 2 x Ø11mm |
Material | Metal, 1,5 mm |
Power cord | |
Cable construction | 3 x 1,5 mm² H05VV-F |
Cable length | Approx. 1,2 m |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
