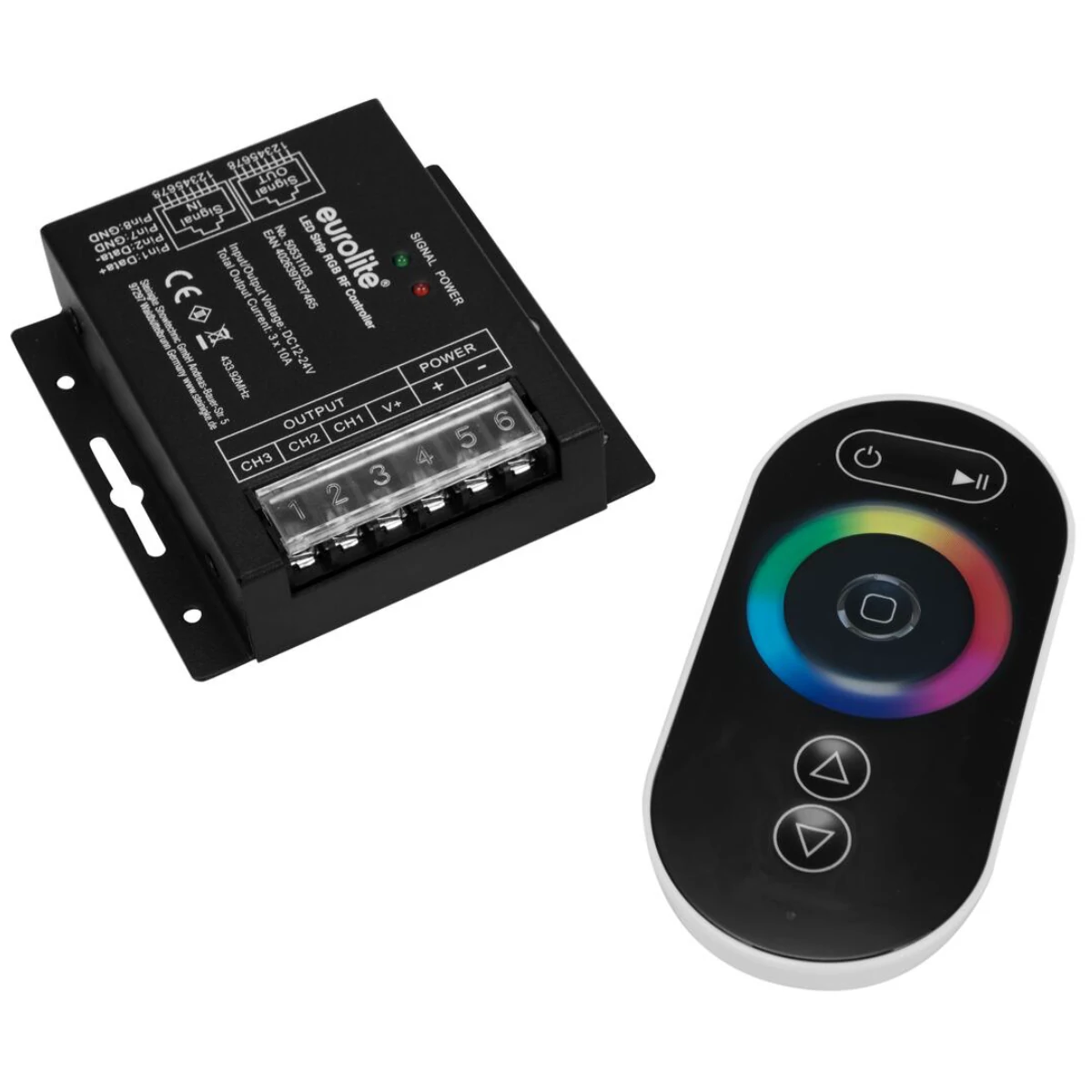

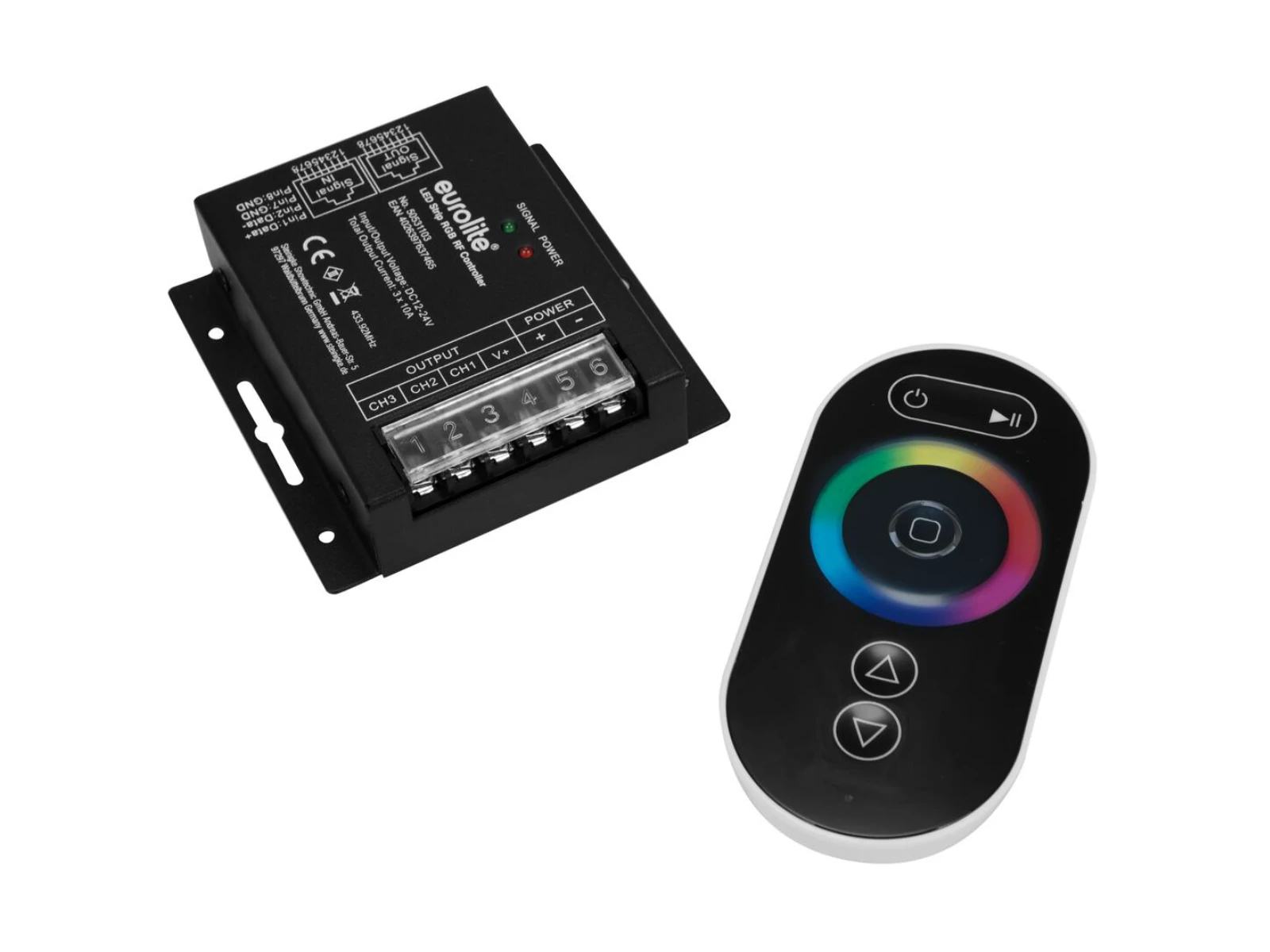

3-channel LED controller with wireless remote control for RGB LED strips 12-24V
Controller with wireless remote control for LED stripsUse the EUROLITE LED Strip RGB RF Controller to control your RGB LED strips for 12 to 24 volts. The supplied ergonomic, user-friendly remote control with touch-sensitive color wheel is well designed so that you can select the color conveniently.The controller offers you ten integrated programs - you can also adjust the speed and brightness.If the remote control is not used for a longer period of time, it automatically switches to standby mode. A simple movement or slight shaking turns the remote on again. This function increases the life of the three micro-batteries included in the package.The range is up to 20 meters.
- For controlling RGB LED strips 12-24 V
- Color selection via touch-sensitive color wheel
- RJ45 jacks for serial connection
- 10 integrated show programs
- Control via Wireless remote control
- Operating range up to 20m
- Dimmer electronic; program speed adjustable
Package contents
- 1 x controller, 1 x user manual, 1 x transmitter, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 12/24V DC |
| Power consumption | Max. 360 W 12 V DC |
| Max. 720 W 24 V DC | |
| 120 W 12 V DC per channal | |
| 240 W 24 V DC per channal | |
| Output current | Max. 3 x 10 A per channal |
| Power connection | Mains input via screw terminal |
| Power output | 4 x screw terminal |
| Battery | Micro (AAA) (not included) |
| Control | Wireless remote control |
| Range | Range up to 20m |
| Carrier frequency | 433,920 MHz |
| Connections | Signal via 2 x RJ-45 (F) mounting version |
| Screw terminal | |
| Dimensions | Length:9 cm |
| Width | 9 cm |
| Height | 2,4 cm |
| Weight | 260 g |
| Remote control | |
| Dimensions | Height:2,2 cm |
