Leírás

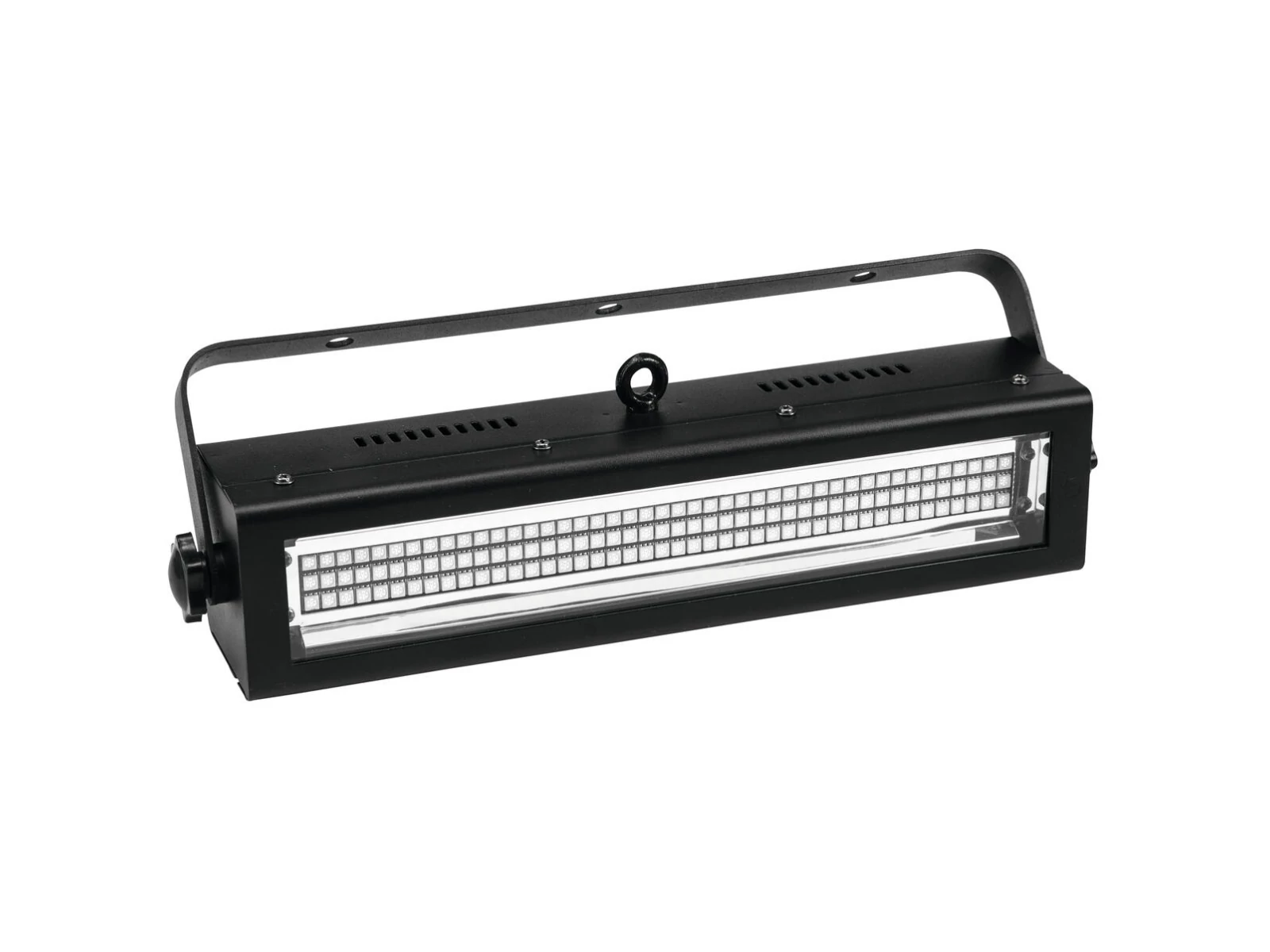

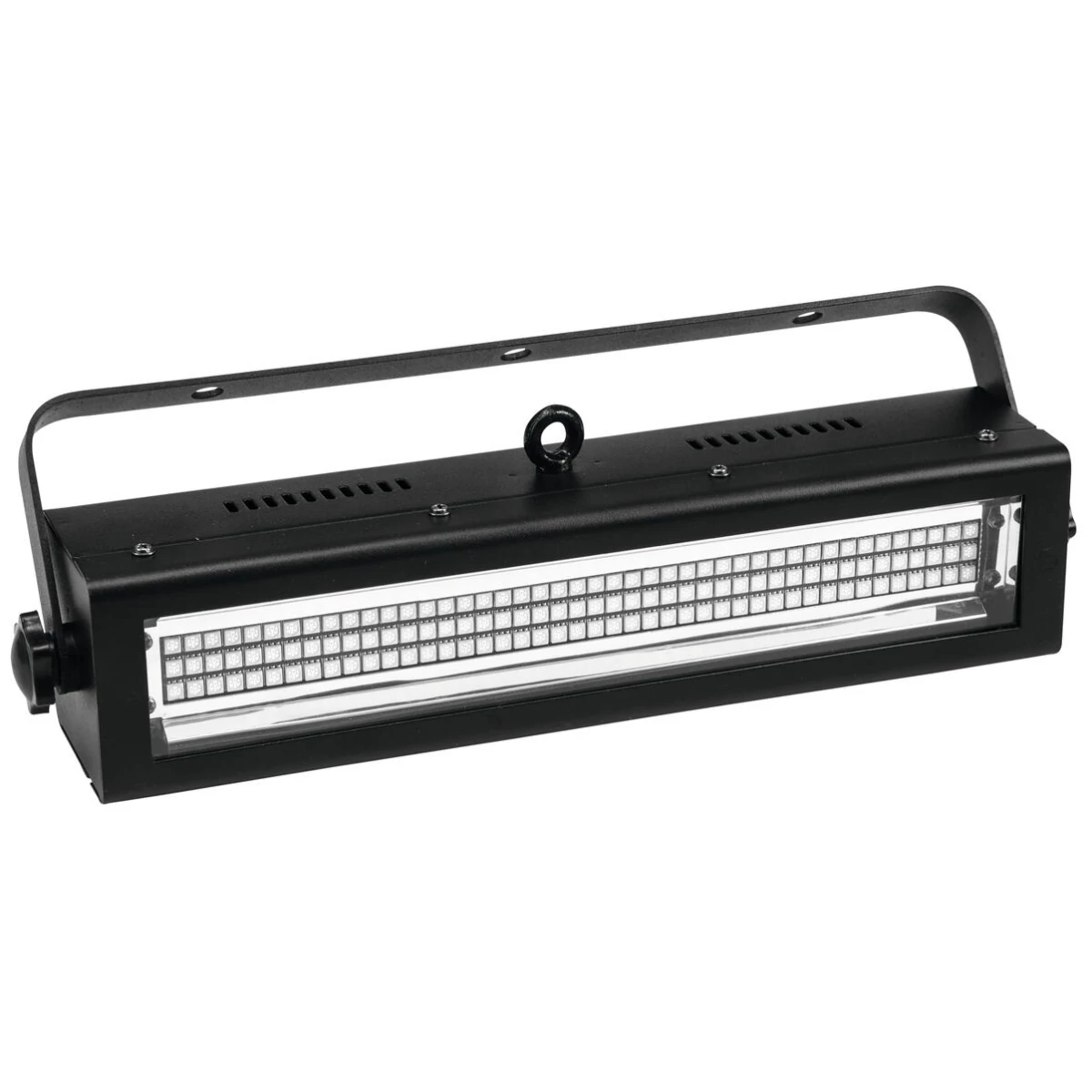

Multifunctional strobe/flood/blinder with 132 bright SMD RGB LEDs
The LED Strobe SMD PRO 132 DMX RGB combines three functions in one fixture: It is equipped with 132 bright RGB SMD LEDs for both dynamic strobe effects and slower blinder effects. Depending on the selected DMX mode, you can choose from up to 15 preset colors for wash effects. The built-in SMD LEDs are flicker-free and therefore the effect can also be used in a TV studio.The fixture has an auto, music, master/slave and DMX mode and incorporates 3-pin DMX connectors as well as an IEC input to connect it to the mains. The flash frequency and duration is variably adjustable. For a structured and versatile use, you can choose from 7 different DMX modes with 1, 2x2, 3x3, 4, or 6 DMX channels respectively.
- 132 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix)
- Dimmer electronic; color blend stepless; color change adjustable; pulse effect adjustable
- Strobe effect; Wash effect; Blinder effect
- Direct color selection for 15 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function
- Flicker-free
- With a beam angle of 70°
- With Mounting bracket
- For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer; restaurants, bars and hotels
- Preprogrammed in Light´J; LED PC-Control 512; Light Captain
- 4 digit 7-segment LED display
- Very quiet working noise
- Application possibility: Suspended
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord, 1 x xLR cable
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 30 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Lamp type | LED lamp |
| LED | 132 x 0,2 W SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate | 0 - 30 Hz |
| DMX channels | 1; 2; 2; 3; 3; 3; 4; 6 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Passive convection cooling |
| Control | Stand-alone; DMX; Sound to light via Microphone; Master/slave function |
| Preprogrammed in | Light´J; LED PC-Control 512; Light Captain |
| Projection | Flicker-free |
| Beam angle | 70° |
| Beam angle (1/2 peak) | 70° |
| Attachment system | Mounting bracket |
| Display type | 4 digit 7-segment LED display |
| Dimensions | Width:35 cm |
| Depth | 7 cm |
| Height | 7,1 cm |
| Weight | 1,70 kg |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
