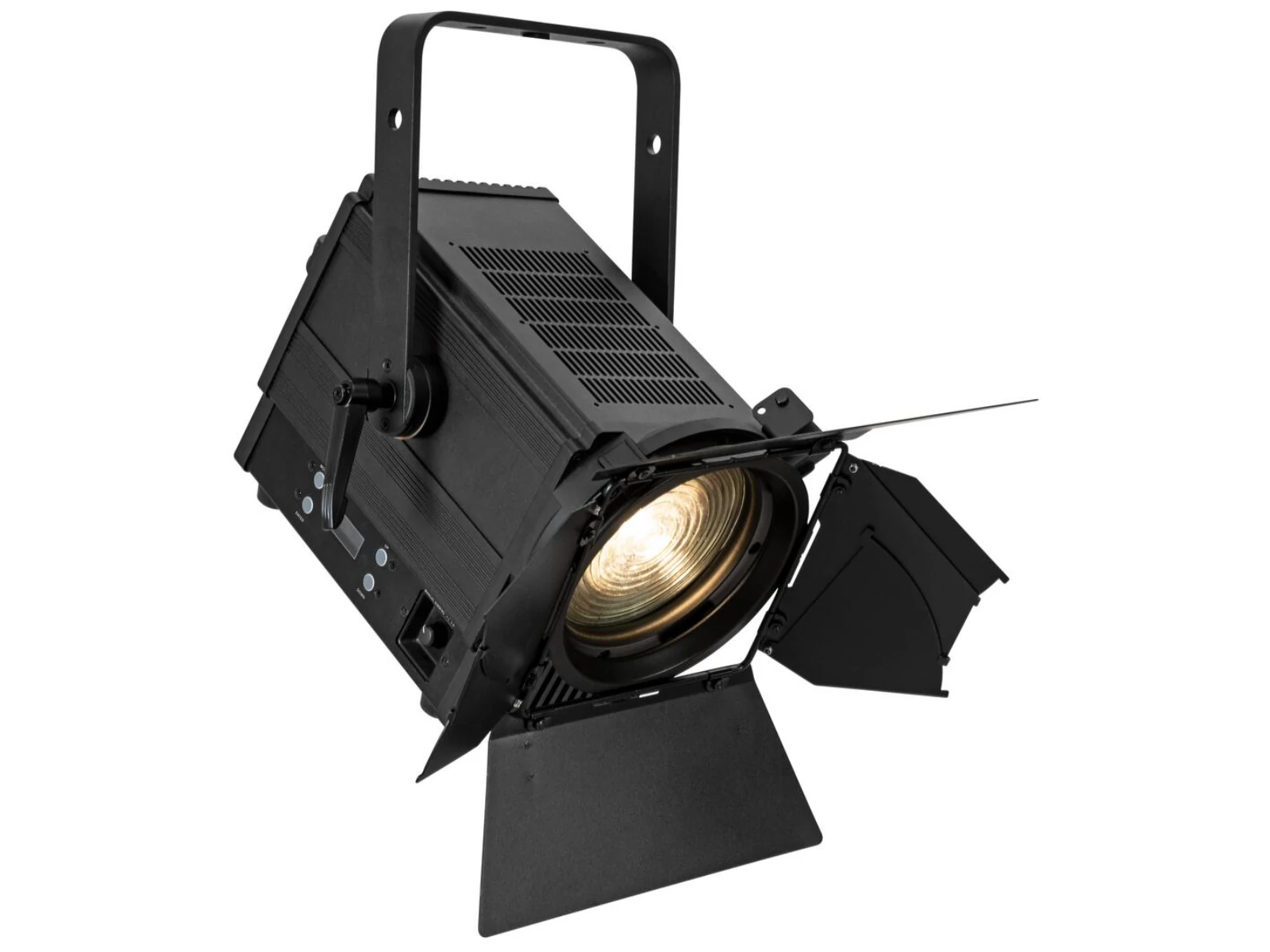

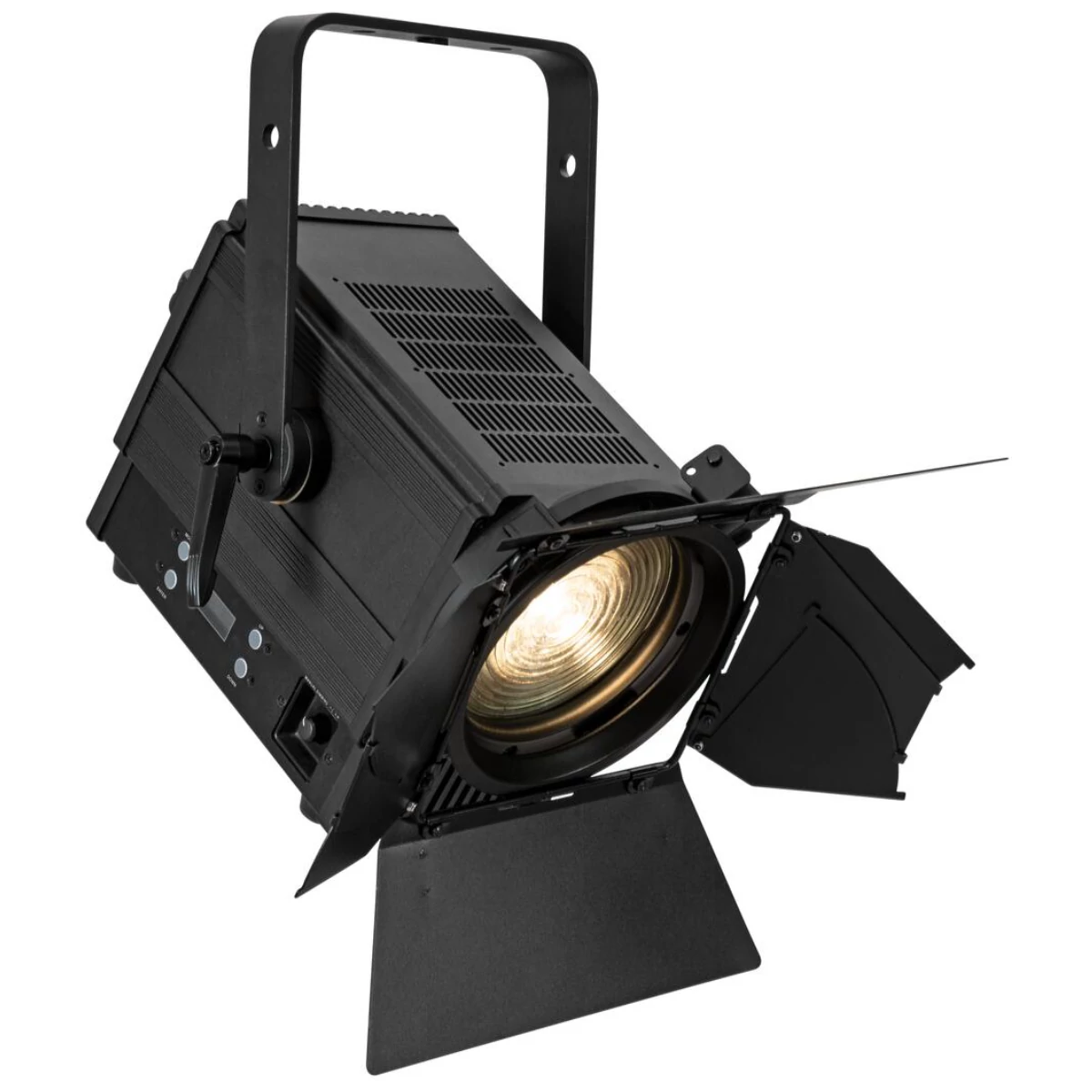

Fresnel spotlight (fresnel lens), 100 W warm white LED, CRI >90, quiet, DMX
- 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
- Strobe effect
- The device is cooled by low-noise cooling fan
- Control via stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 8° - 55°
- Very high color rendering index (CRI)
- With Mounting bracket
- LCD display
- Dimmer electronic; dimmer curves with adjustable response; pulse-width modulation variable; Dimmer speed (step response) adjustable
- Preprogrammed in Light Captain
- Rubber feet
- Mains input and output for power linking up to 8 units
- For application areas such as: Trade fair and shop fitting; Installation; Stage; theater
- Very quiet working noise
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x filter frame, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 95 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via P-Con (blue), mounting version included |
Power output | P-Con (gray), mounting version |
Fuse | 5 x 20 mm, T 2 A Fuse replaceable |
Lamp type | LED lamp |

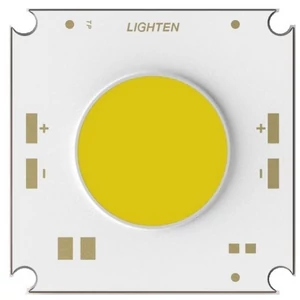

LED | 1 x 100 W COB (chip-on-board) warm white (WW) |
Color temperature | 3000K |
Flash rate | 20 Hz |
DMX channels | 1; 3 |
DMX input | 3-pin XLR (M) mounting version |
5-pin XLR (M) mounting version | |
DMX output | 3-pin XLR (F) mounting version |
5-pin XLR (F) mounting version | |
Cooling | Low-noise cooling fan |
Control | Stand-alone; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in | Light Captain |
Projection | Flicker-free |
Beam angle | 8° - 55° |
Beam angle (1/2 peak) | 8 - 40° |
Beam angle (1/10 peak) | 16 - 55° |
Color rendering index (CRI) | 96 Ra |
Luminous flux | 5384 lm |
Housing color | Black |
Attachment system | Mounting bracket |
Display type | LCD display |
Transport aid | Rubber feet |
Material | Aluminum casting; metal |
Dimensions | Length:35,0 cm |
Width | 31,5 cm |
Height | 39,5 cm |
Weight | 7,15 kg |
Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
Energy efficiency class (A - G) | G |
EPREL-Nr | 1243837 |
Power cord | |
Cable construction | 3 x 1,5 mm² H05VV-F |
Cable length | Approx. 1,8 m |
Mounting bracket | |
Diameter mounting holes | 5 x Ø13mm |
Material | Aluminum casting, 6 mm |
Barndoor | |
Material | Aluminum, 1 mm |
Ring diameter | Outside:172 mm |
Inside | 150 mm |
Dimensions | Width:42,2 cm |
Height | 42,5 cm |
Filter frame | |
Material | Aluminum, 1 mm |
Dimensions | Width:18,5 cm |
Height | 18,5 cm |
Diameter | Ø 15,2 cm |
