Variable truss light and uplight with bright 3 x 7 W RGB+UV LED

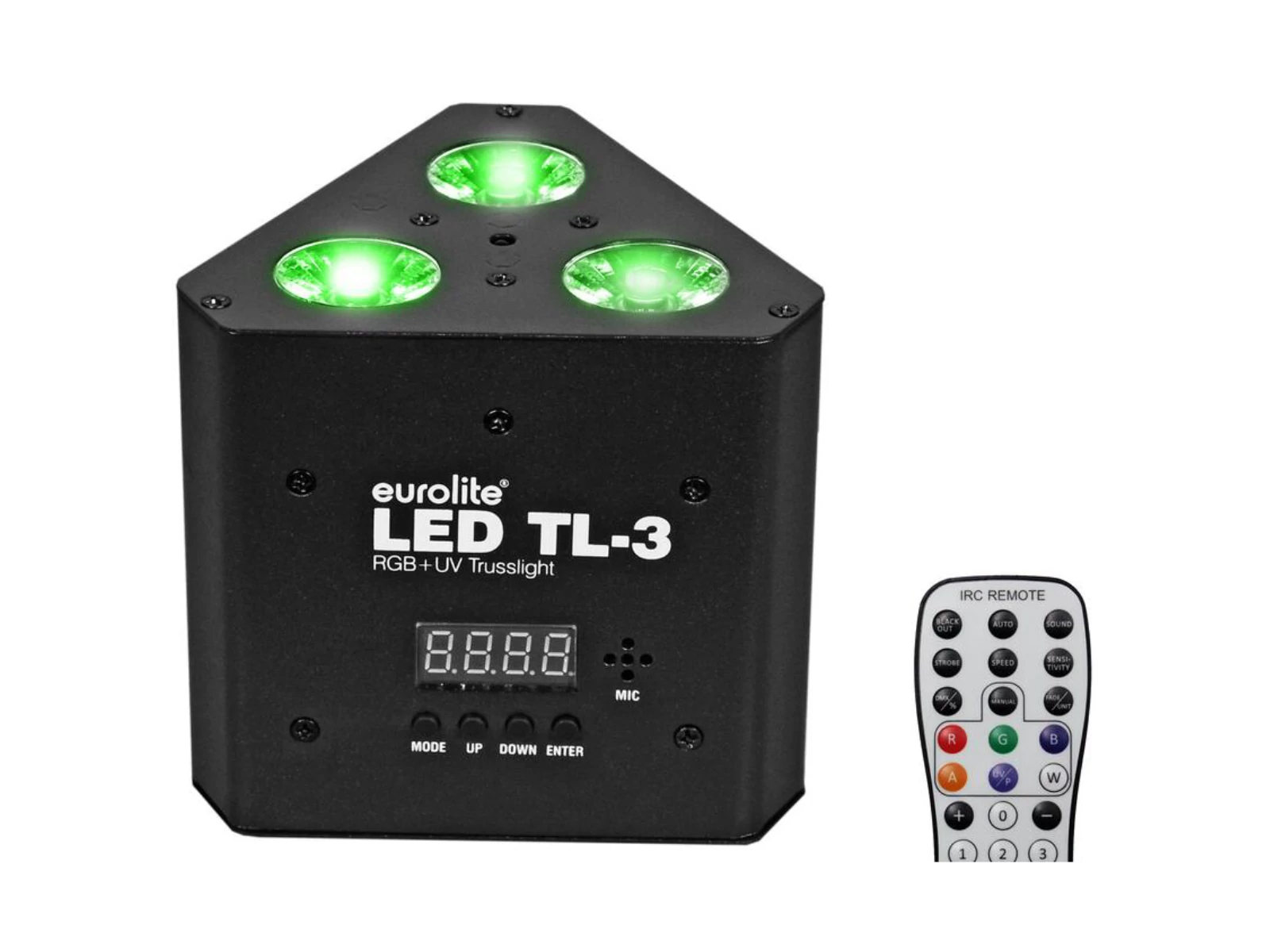

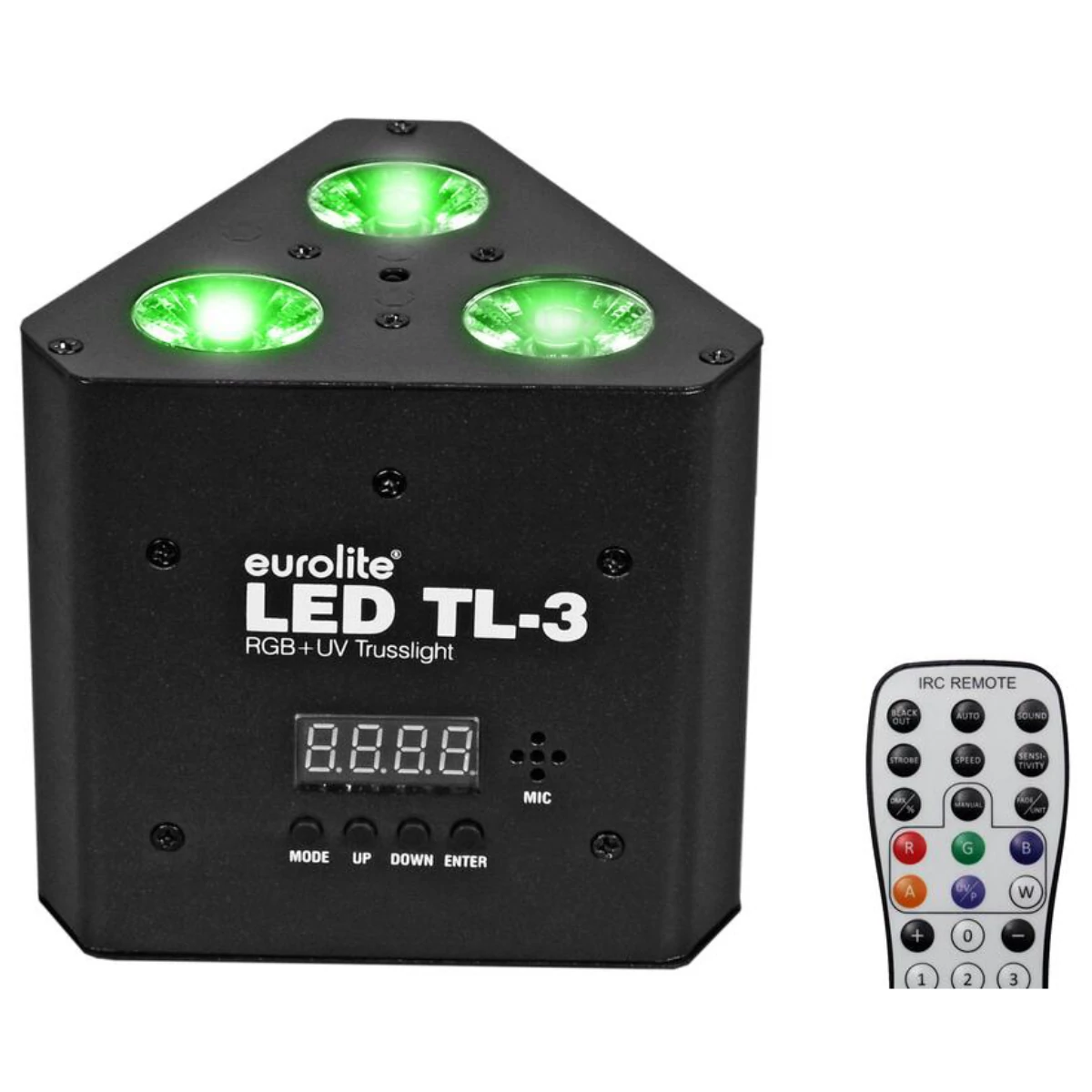

Truss light and uplight with bright 3 x 7 W RGB+UV LEDThe flicker-free EUROLITE TL-3 Trusslight is equipped with three 7 Watt 4in1 LEDs each in the colors red, green, blue and UV. It is compact and powerful and therefore very suitable for trussing, stand construction and stage mounting. The TL-3 fits perfectly to the 3-point system ALUTRUSS DECOLOCK DQ3. Also on board are integrated show programs in auto and music mode, direct color selection for 17 colors, dimmer and strobe effect with variably adjustable speed. The trusslight can be used in master/slave mode. Addressing and settings can be done via the integrated control unit with four-digit LED display. You can control the TL-3 either with the included infrared remote control, in standalone mode, via DMX or optionally QuickDMX. Thanks to the IEC mains connections, you can easily connect up to eight devices together.
- Compact and bright
- Perfect for ALUTRUSS 3-POINT SYSTEM DECOLOCK DQ3
- Color change adjustable; Dimmer electronic; color blend stepless
- UV effect; Strobe effect
- 2 integrated show programs
- Direct color selection for 17 preset colors
- Control via IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 16°
- 4 digit 7-segment LED display
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; mobile djs / entertainer
- Preprogrammed in LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- Rubber feet
- Mains input and output for power linking up to 8 units
- Very quiet working noise
- Application possibility: Standing; suspended
Package contents
- 1 x spotlight, 1 x power cord, 1 x remote control, 1 x battery, 1 x user manual
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 15 W |
| IP classification | IP20 |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Power output | 1 x IEC connector (F) mounting version |
| Fuse | F 1 A Fuse replaceable |
| Lamp type | LED lamp |
| Flash rate | 1 - 20 Hz |
| DMX channels | 3; 4; 4; 8 |
| DMX input | 1 x 3-pin XLR (M) mounting version |
| DMX output | 1 x 3-pin XLR (F) mounting version |
| Control | IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
| Preprogrammed in | LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 |
| Projection | Flicker-free |
| Beam angle | 16° |
| Beam angle (1/2 peak) | 16° |
| Beam angle (1/10 peak) | 33° |
| Housing color | Black |
| Attachment system | M10 thread |
| Display type | 4 digit 7-segment LED display |
| Transport aid | Rubber feet |
| Material | Metal |
| Dimensions | Width:12,2 cm |
| Depth | 10,8 cm |
| Height | 11,7 cm |
| Weight | 890 g |
| Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
| Photobiological safety | Risk Group 0 |
| Power cord | |
| Cable construction | 3 x 0,75 mm² H05VV-F |
| Cable length | Approx. 1,1 m |
| Remote control | |
| Battery | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
