Leírás

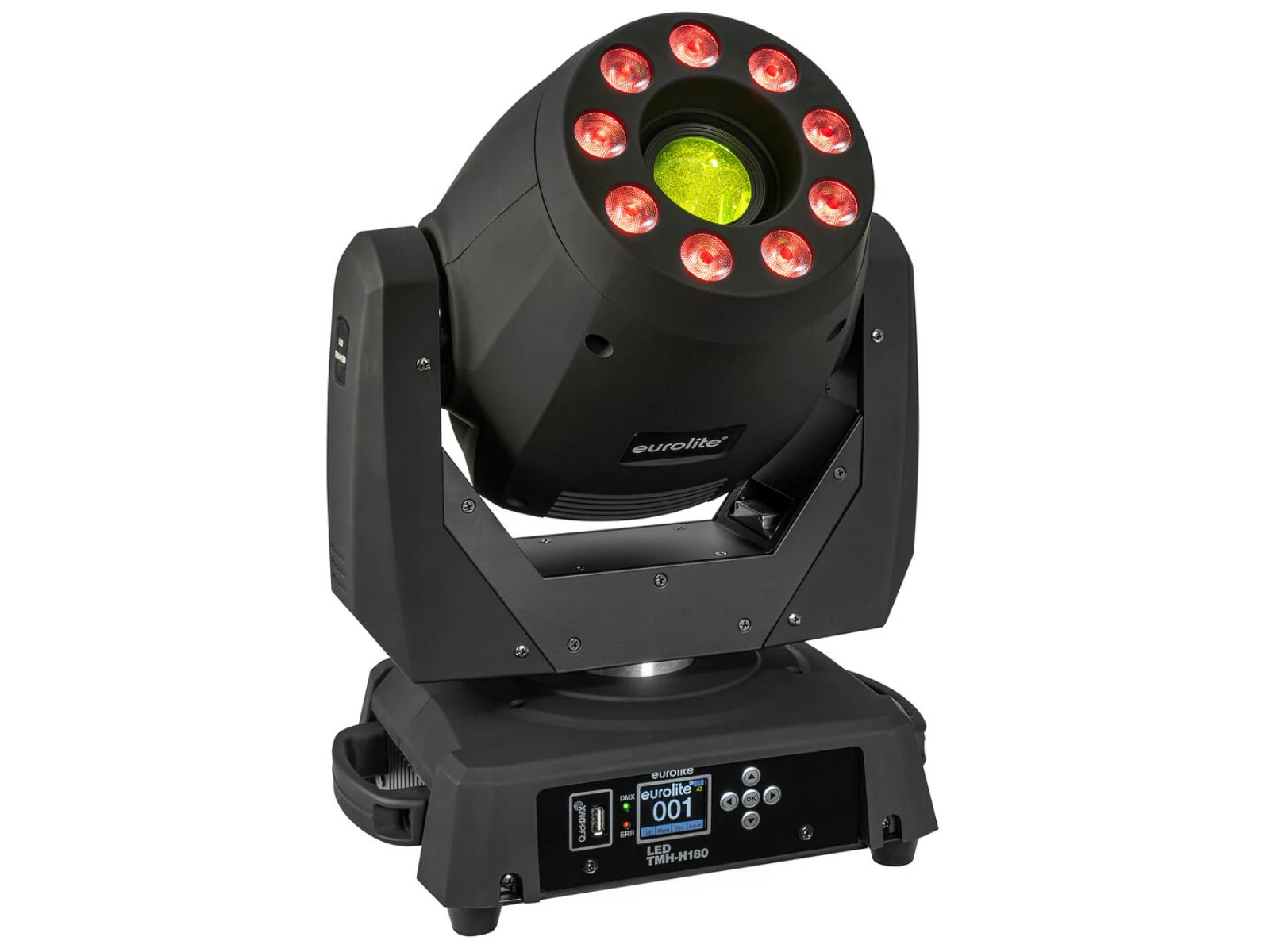

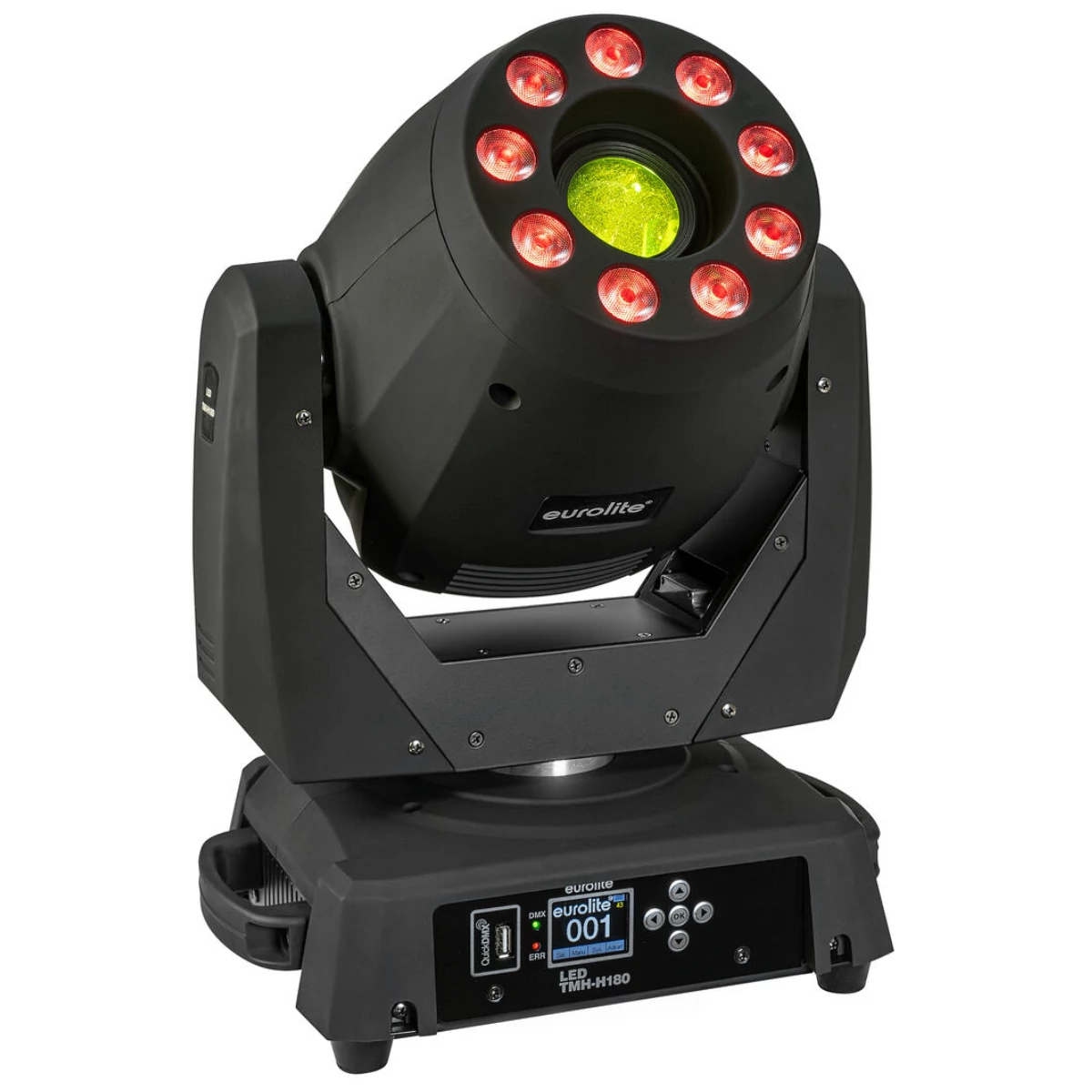

LED Moving Head hybrid spot/wash with rotating gobos, color wheel, prism and QuickDMX port
- Bright spotlight and full-fledged washlight in one device
- 1 powerful LED 200 W COB (chip-on-board) cold white (CW)
- 9 powerful LEDs 8 W high-power 4in1 QCL RGBW (homogenous color mix)
- Positioning within 540° PAN, 220° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Prism 3-fold rotating; Focus motor-driven; gobo wheel with rotating gobos
- Color wheel with 8 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
Slot-in gobo system for easy gobo replacement - Shake effect
- Integrated show programs
- The device is cooled by temperature-controlled fan
- Preprogrammed in Light Captain; LED PC-Control 512
- Flicker-free
- With a beam angle of 10°
- Multicolor LCD display
- Dimmer electronic
- Control via stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function
- Gobo effect; Strobe effect
- With Omega bracket
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Stage; Rental
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 280 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output | P-Con (gray), mounting version |
| Fuse | 5 x 20 mm, T 3,15 A Fuse replaceable |
| Lamp type | LED lamp |
| LED | 1 x 200 W COB (chip-on-board) cold white (CW) |
| 9 x 8 W high-power 4in1 QCL RGBW (homogenous color mix) | |
| Max. TILT movement | 220° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Flash rate | 1 - 20 Hz |
| Equipment | Prism 3-fold rotating; Focus motor-driven; gobo wheel with rotating gobos |
| Color generation | Color wheel with 8 dichroic filters plus open |
| Half colors selectable, Rainbow effect with adjustable speed in both directions | |
| Gobos | Gobo wheel with rotating gobos, 7 gobos and open |
| Outside diameter 24mm | |
| Image diameter 16mm | |
| Slot-in gobo system for easy gobo replacement | |
| Shake effect | |
| DMX channels | 21; 23 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Temperature-controlled fan |
| Control | Stand-alone; DMX; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); Master/slave function |
| Preprogrammed in | Light Captain; LED PC-Control 512 |
| Projection | Flicker-free |
| Beam angle | 10° |
| Beam angle (1/2 peak) | Spot 10° |
| Wash effect 14° | |
| Beam angle (1/10 peak) | Wash effect 30° |
| Illuminance in Lux (lx) | Spot cold white (CW) 3m:21934 lx, 6m:5598 lx |
| Wash effect red (R) 1m | 1430 lx, 3m:160 lx, 6m:41 lx |
| Wash effect green (G) 1m | 1495 lx, 3m:171 lx, 6m:41 lx |
| Wash effect blue (B) 1m | 604 lx, 3m:66 lx, 6m:17 lx |
| Wash effect cold white (CW) 1m | 4241 lx, 3m:481 lx, 6m:123 lx |
| Wash effect all 1m | 7407 lx, 3m:829 lx, 6m:206 lx |
| Housing color | Black |
| Attachment system | 2x Omega bracket |
| Display type | Multicolor LCD display |
| Dimensions | Width:32,0 cm |
| Depth | 22,5 cm |
| Height | 45,0 cm |
| Weight | 12,00 kg |
| Noise classification | Class 3 (clearly perceptible sounds) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
