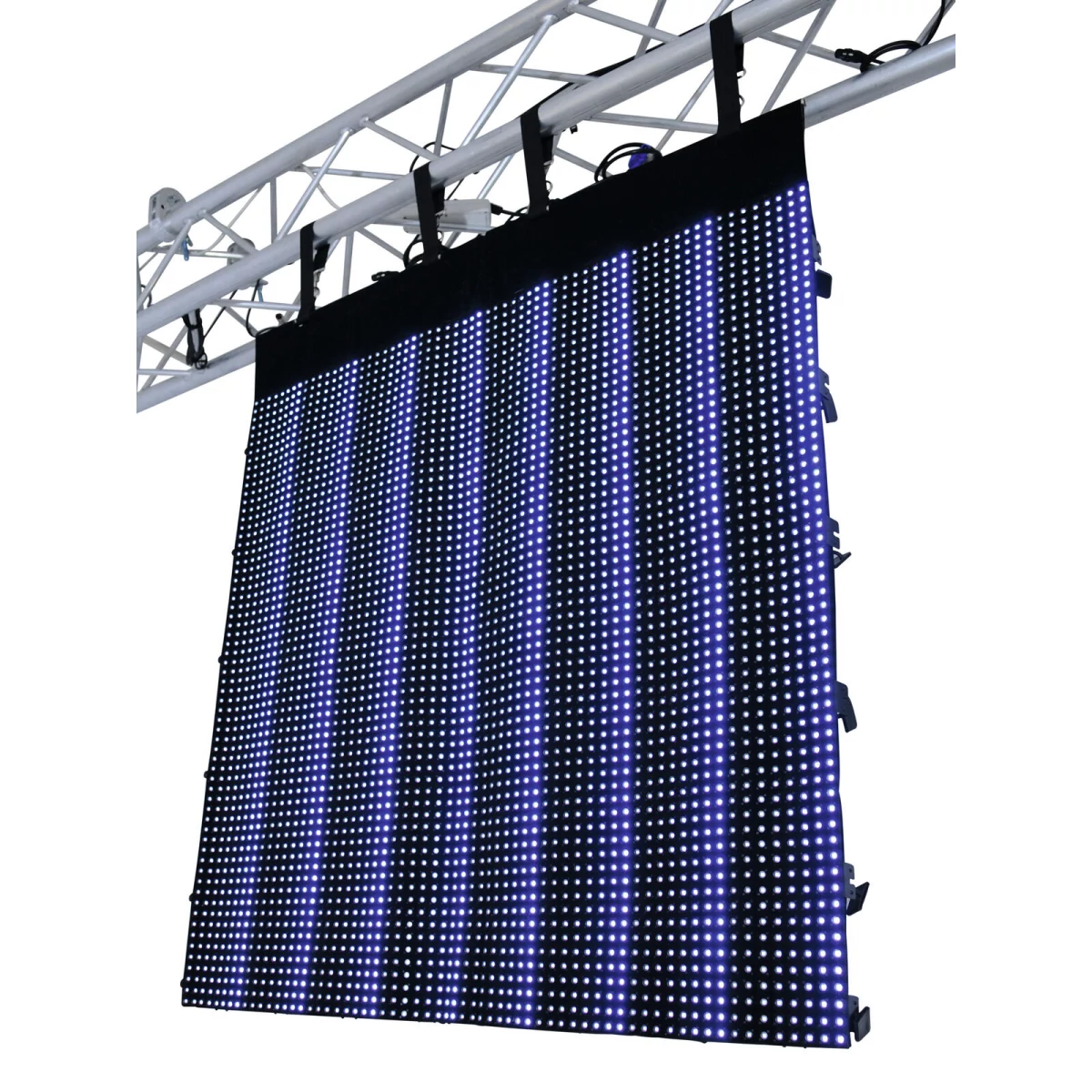

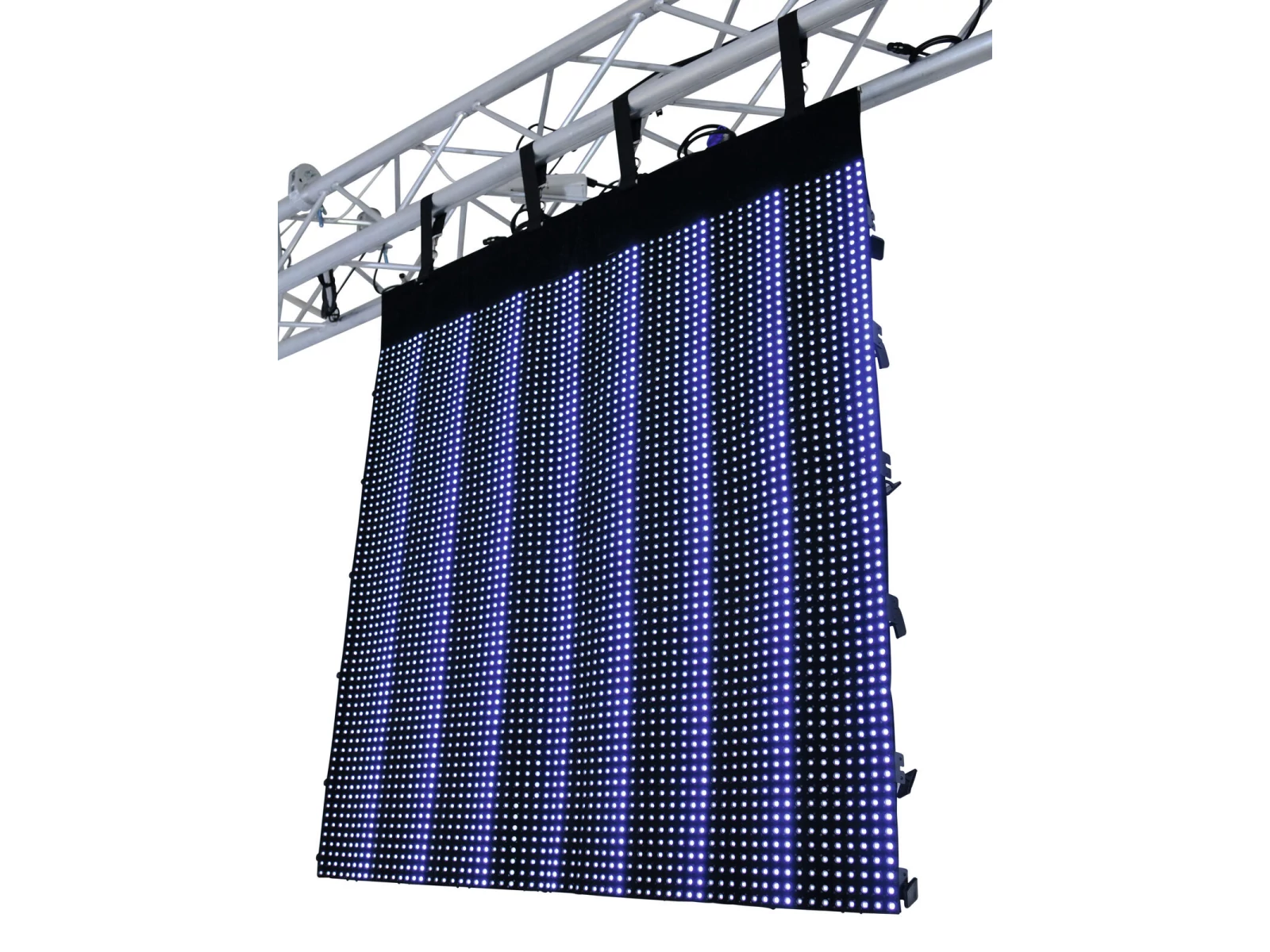

LED soft displays
- Flexible displays with tricolor RGB LEDs (type SMD 5050) for bright and colorful projection of videos and graphics
- Improved version with even brighter LEDs and new angled connectors
- Modular display concept allows the build-up of large areas, ideal for outdoor use with large viewing distances
- Bendable and foldable PVC material suitable for various shapes, e.g. columns, circles, angles
- Fast and uncomplicated installation, indoor and outdoor (IP44)
- Truss suspension via built-in belts
- Water-repellent and flame-resistant
- Low weight and small volume for convenient transport
- Easy maintenance - LEDs can be replaced without difficulty
- Controllable via optional network components and PC software
- All-in-one control system T9 (80503301): network interface and software LED Show T9 - ideal system for mobile use with notebooks with 1-gigabit NIC
- Control system LED studio: receiver interface (80503311), PCI sending card and software LED Studio (80503130)
- Recommended media software: MADRIX
- Switch-mode power supply for operation between 100 and 240 volts
- Power output for passing on the power supply
- Available in different sizes and pixel pitches
- Custom sizes available upon request (in 0.32 m units)
- LED: 8192 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Paraméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 68,00 W |
| IP classification | IP44 |
| LED | 8192 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Beam angle (1/2 peak) | 110° |
| Screen | Max. 64x124 px |
| Pixel pitch 20 mm | |
| Pixeldensity 2500/m˛ | |
| Brightness 3600cd/m˛ | |
| Lamp life | 100000 h |
| Dimensions | Width:1,28 m |
| Height | 2,56 m |
| Weight | 31,72 kg |
| Display port | DVI/RJ45 |
| Display mode | synchronous to video source |
| Drive mode | 1/8 scan |
| Screen resolution | max. 1280 x 1024 (LED Studio) |
| max. 1024 x 896 (LED Show T9) | |
| Frame rate | 60 Hz |
| Data refresh rate | 600 Hz |
| Colors | 16.7 million (R 256, G 256, B 256) |
| Operating temperature | -10 to 45 °C |
| Humidity | 10 to 90 % |
| Legal specifications | |
| Ecodesign regulation | yes |
| Special product | Not designed for household room illumination |
| intended use | show effect lighting |
