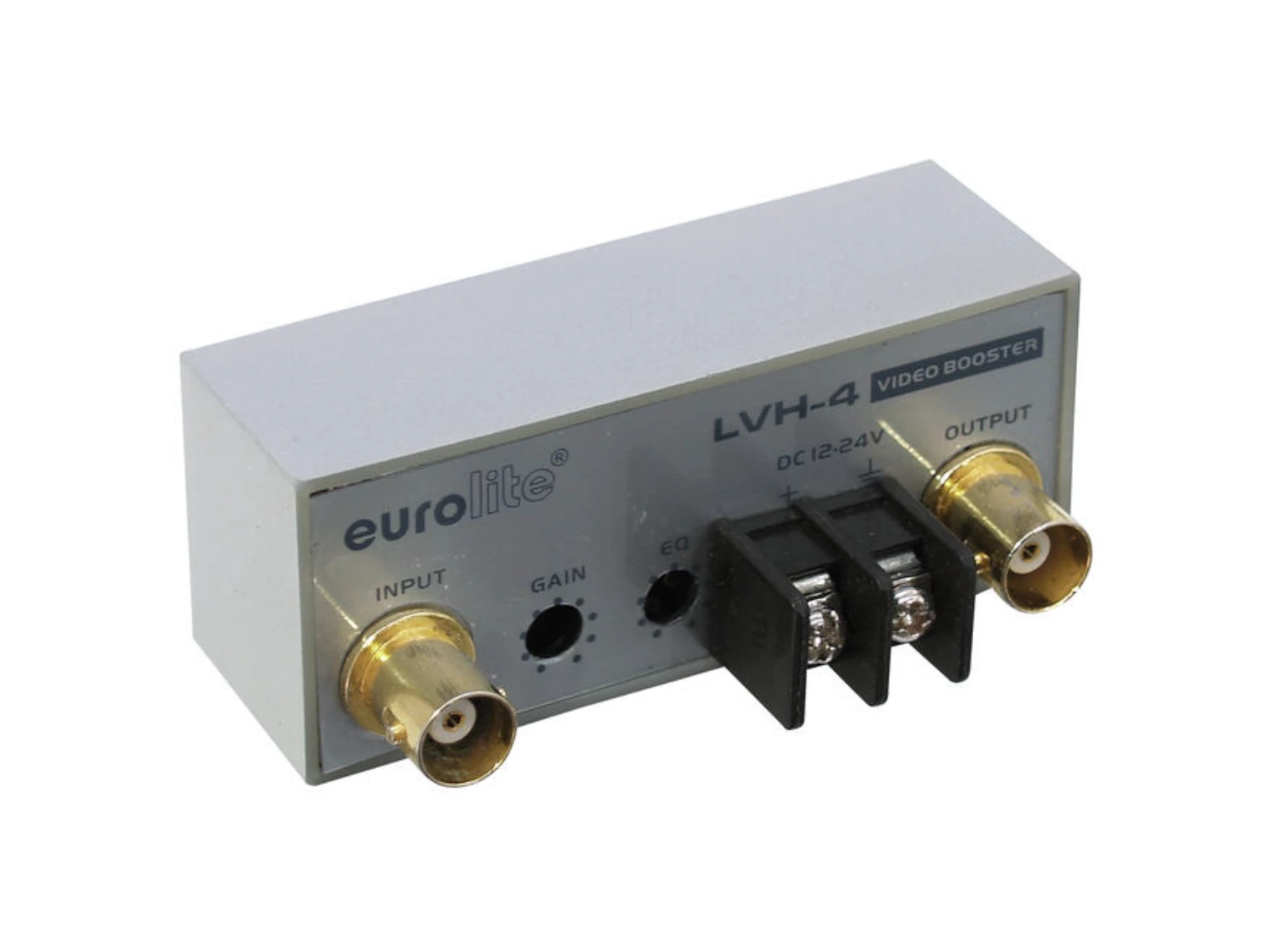

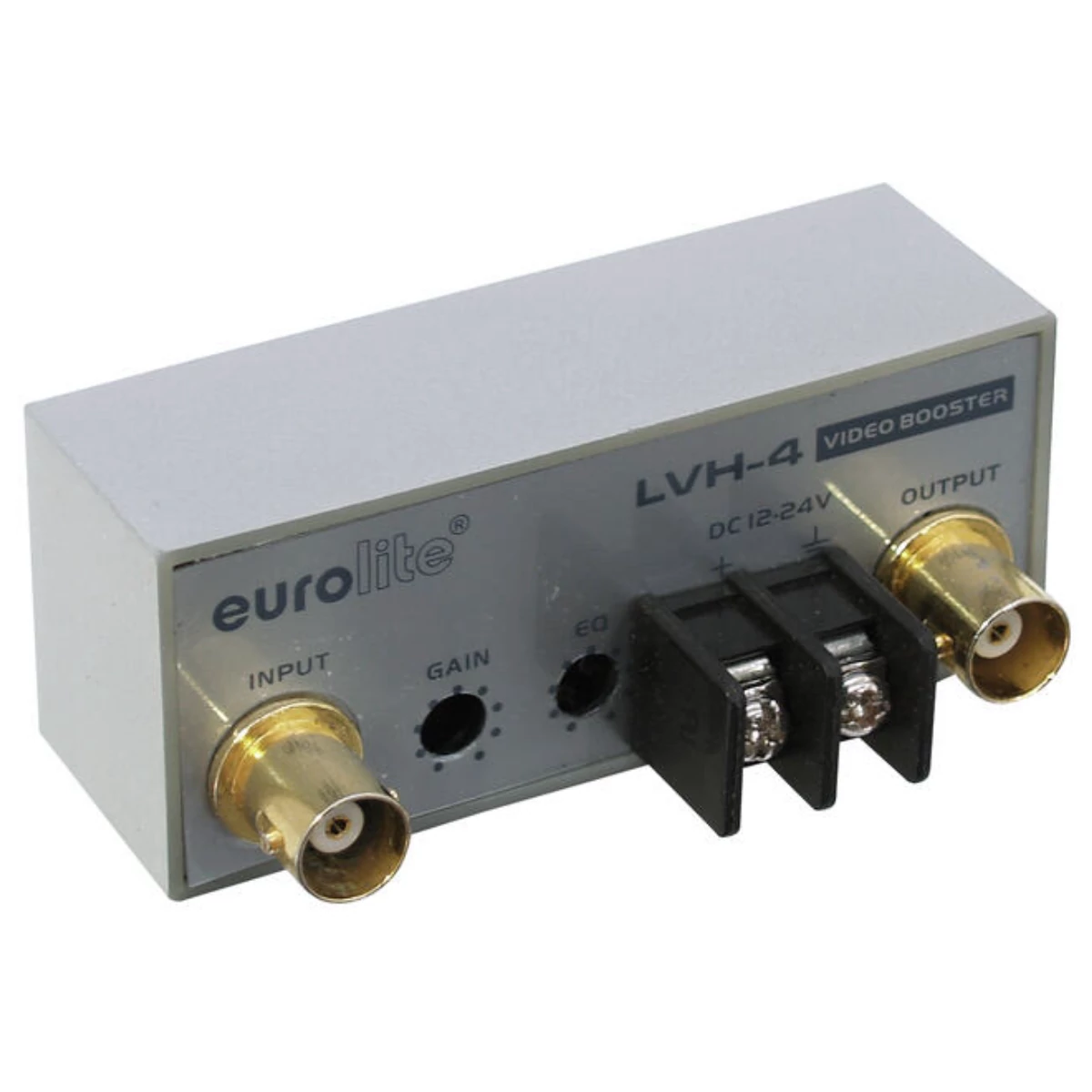

Video line amplifier with equalizer
The Video Booster amplifies your signal to keep the quality high even over long distances of up to 600 meters. Of course, it can also be used to amplify a naturally weak signal to reach the desired quality standard. All this comes in an extremely compact design.
- Equalizes and compensates for signal losses inherent in long cable runs (max. 600 m)
- 75 ohms input and outputs via BNC plugs
- Separate controls for amplification and equalization
- 12-24 V AC/DC power supply via signal source or external source (not included)
- Ultra compact
Paraméterek
| Power supply | 12-24 V DC 30 mA |
| 12-24 V AC 30 mA | |
| S/N ratio | >70 dB |
| Dimensions | Width:7,6 cm |
| Depth | 4,1 cm |
| Height | 3,1 cm |
| Weight | 70 g |
| 1 x video input | 1 Vpp/ 75 ohms, BNC |
| 1 x video output | 1 Vpp/ 75 ohms, BNC |
| Gain | adjustable to +5 dB |
| Bandwidth | 10 MHz |
| Equalization adjustment | 0 dB to +4 dB/ 3.58 MHz |
| 0 dB to +7 dB/ 5 MHz |
