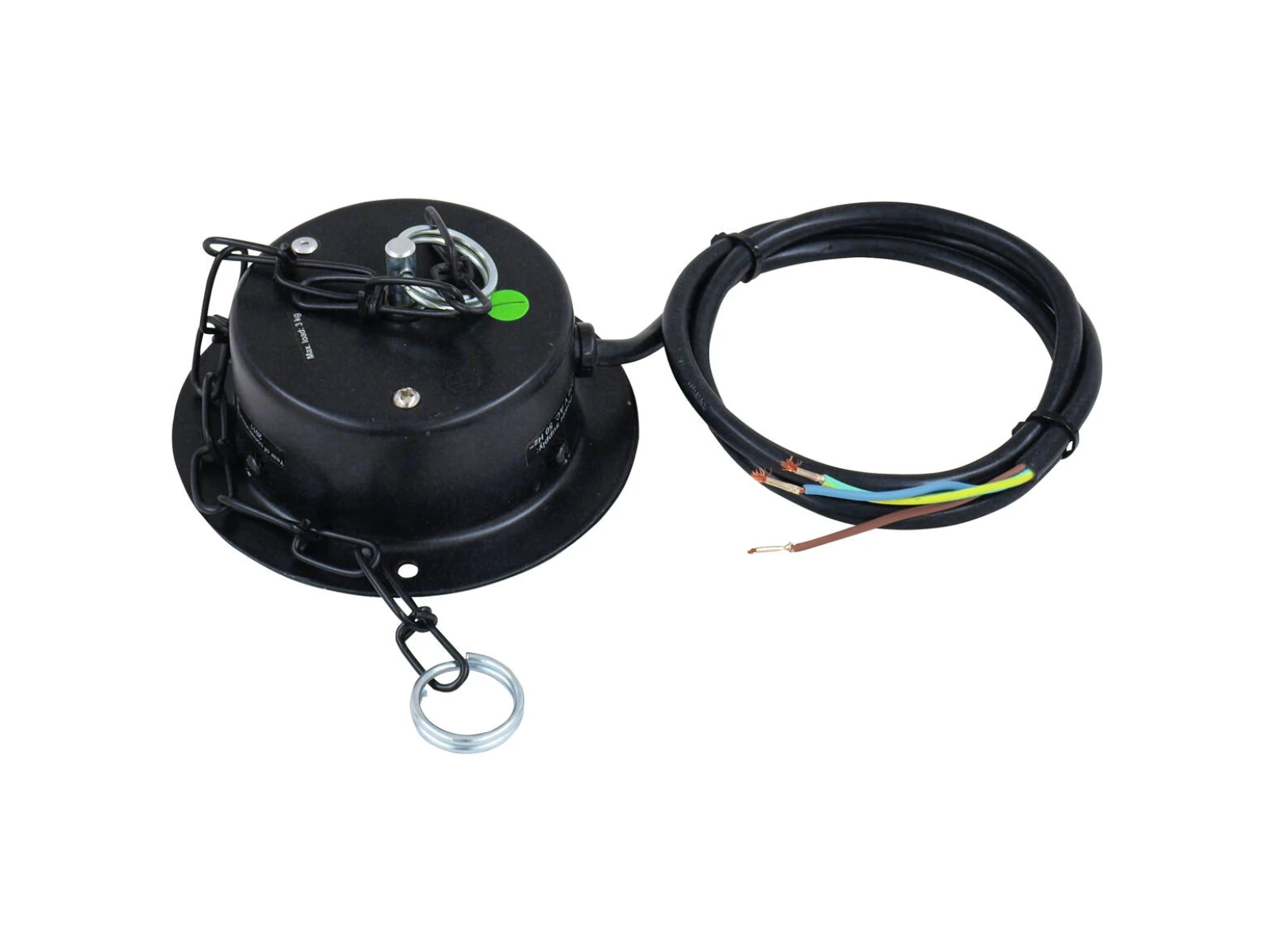

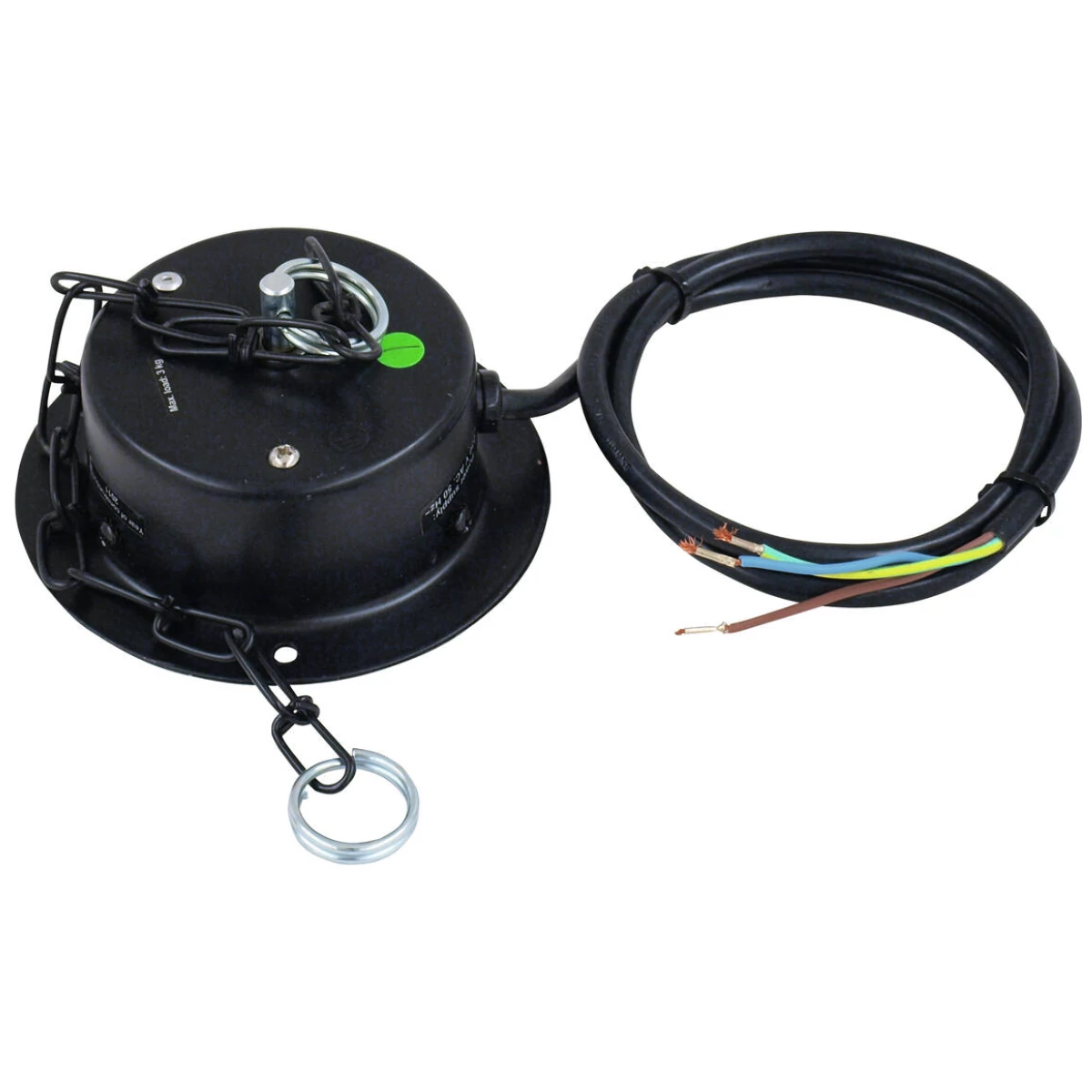

Motor for mirror balls up to 30 cm with 3 RPM
This solid mirror ball motor can carry a load of up to 3 kg. This equals a mirror ball of approximately 30 cm, safety margins included. The motor has a slow ration speed of 3 RPM. This creates calm, relaxing effects, especially when you choose for a pin spot to shine on the mirror ball. This product is available with or without plug. The mounting material must be ordered separately.
- The maximum load always means the mirror ball weight including chains and the fixation material
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Suitable for a mirror ball with a diameter of up to 30 cm
- For application areas such as: Clubs/dancing school
Package contents
- 1 x motor, 1 x chain, 3 x mounting material, 3 x screw, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 4 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Fixed supply cord with open wires |
| Cable construction | 3 x 0,75 mm² H05VV-F |
| Cable length | Approx. 0,8 m |
| Speed | 2,5 RPM |
| Maximum load | 3 kg |
| Max. mirror ball diameter | 30 cm (EUROLITE) |
| Housing color | Black |
| Diameter mounting holes | 3 x Ø5mm |
| Material | Metal |
| Dimensions | Height:6 cm |
| Diameter | Ø 11 cm |
| Weight | 300 g |
| Chain | |
| Material | Metal, 2 mm |
| Color | Black |
| Dimensions | Length:30 cm |
