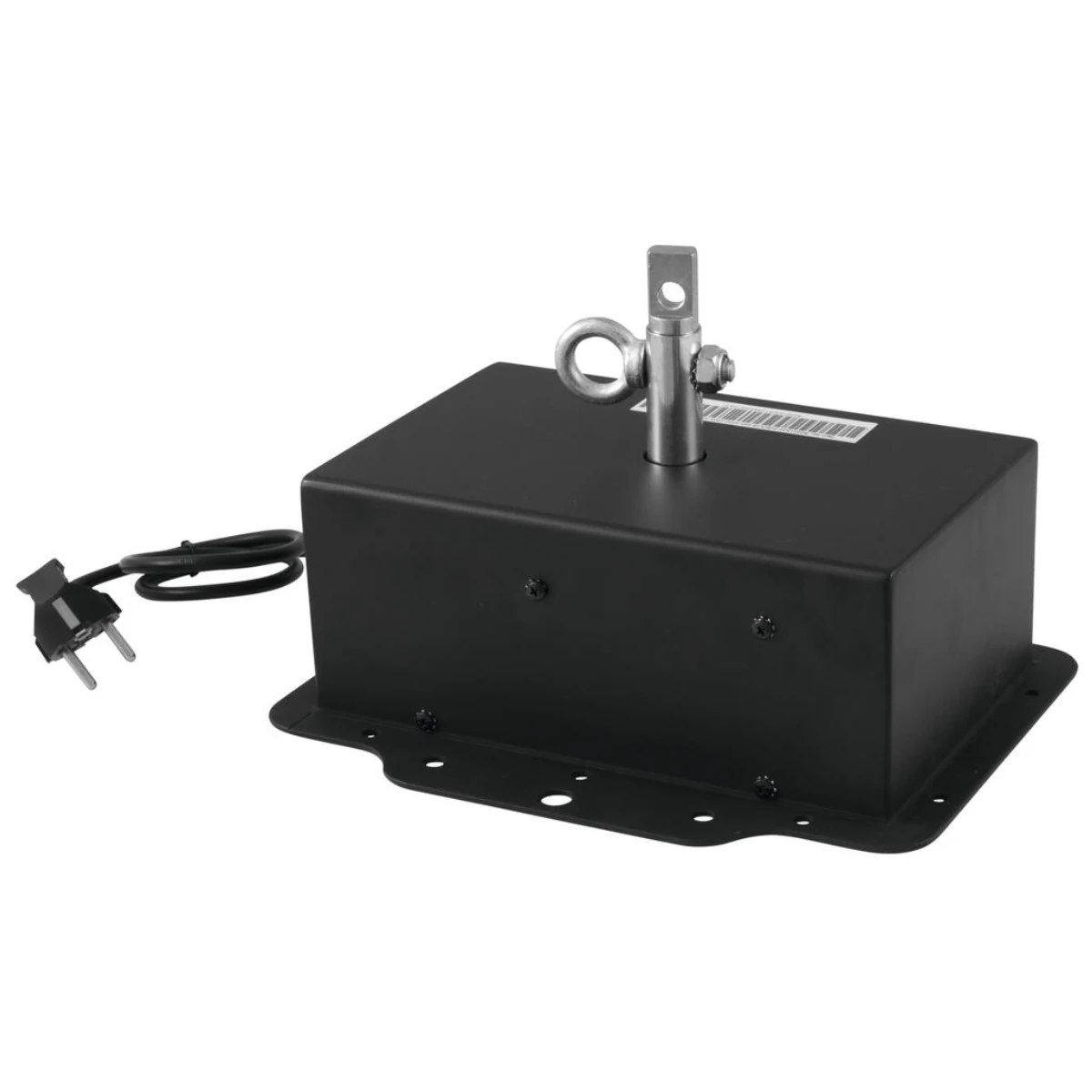

Mirror ball motor for mirror balls up to 100 cm diameter
This solid mirror ball motor can carry a load of up to 40 kg. This equals a mirror ball of approximately 100 cm, 12-fold safety margin included. The motor has a speed of 1 RPM (rotations per minute). This creates a peaceful effect, especially when you choose for a pin spot to shine on the mirror ball. The motor is equipped with a patented mechanical drop protection against unintentional loosening of the axis as well as the required second eyelet for the attachment of the safety chain.All Eurolite safety motors comply with the safety norm DIN EN ISO 12100 and relevant accident prevention regulations. Each production charge is subject to strict quality control which makes the motor suitable for discotheques and other public events.
- The maximum load always means the mirror ball weight including chains and the fixation material
- 2 chains and 4 quick links must be ordered separately
- 1 rotation per minute
- The motor always has to be installed with a secondary safety attachment
- Before taking into operation for the first time, the installation has to be approved by an expert
- Control via plug and play
- Suitable for a mirror ball with a diameter of up to 100 cm
- LGA tested
- For application areas such as: Clubs/dancing school
Package contents
- 1 x motor, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 7 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable construction | 3 x 0,75 mm² H05VV-F |
| Cable length | Approx. 0,9 m |
| Speed | 1 RPM , 360 ° |
| Control | Plug and play |
| Maximum load | 40 kg |
| Max. mirror ball diameter | 100 cm (EUROLITE) |
| Housing color | Black matte |
| Diameter mounting holes | 2 x Ø12mm; 4 x Ø7mm; 10 x Ø6mm |
| Material | Metal, 3 mm |
| Dimensions | Length:28,5 cm |
| Width | 23,5 cm |
| Height | 18,5 cm |
| Weight | 5,60 kg |
