Leírás

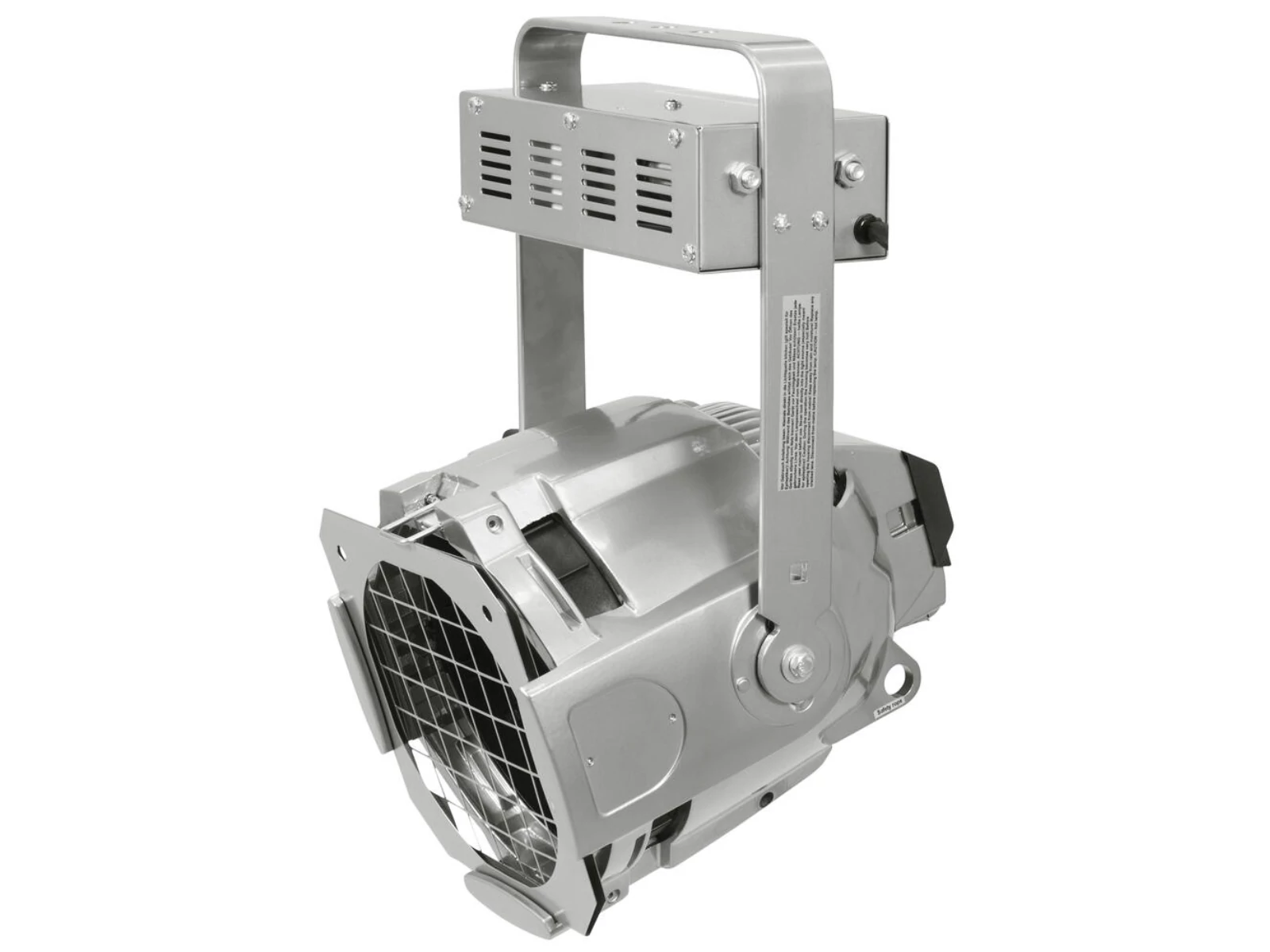

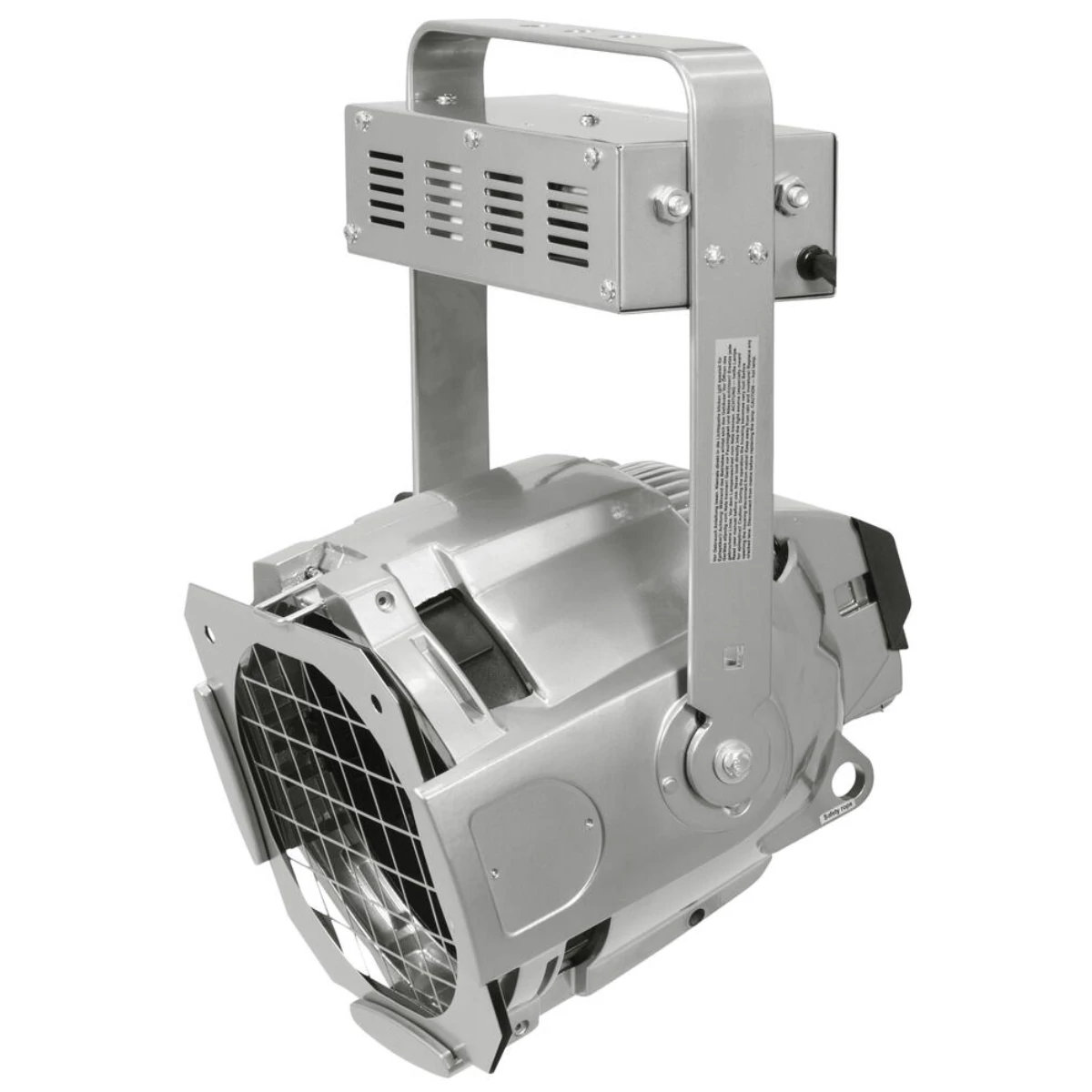

Spot for CDM-T 150 discharge lamp with 4 lenses/beam angles
- Spot with 4 exchangeable lenses (VNSP, NSP, MFL and WFL)
- Light output of a conventional PAR 56 spot with less power consumption
- High-quality die-cast housing for highest stability
- High-quality aluminum reflector
- Color wheel with dichroic filters plus open
- The device is cooled by passive convection cooling
- Controlling by plug and play
- For application areas such as: Theater; mobile use; Trade fair and shop fitting
Package contents
- 1 x device, 1 x filter frame, 4 x lens, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 155 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Fixed power supply cord with safety plug |
| Cable length | 0,85 m |
| Fuse | 5 x 20 mm, T 3,15 A Fuse replaceable |
| Base | G-12 |
| Lamp type | Discharge lamp |
| Color generation | Via color filter frame (optional) |
| Color generation | Color wheel with dichroic filters plus open |
| Cooling | Passive convection cooling |
| Control | Plug and play |
| Beam angle (1/2 peak) | NSP 20° x 36° |
| MFL 21° x 36° | |
| WFL 30° x 53° | |
| VNSP 15° x 36° | |
| Housing color | Silver |
| Dimensions | Width:28 cm |
| Depth | 22 cm |
| Height | 40 cm |
| Weight | 6,65 kg |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
