Leírás

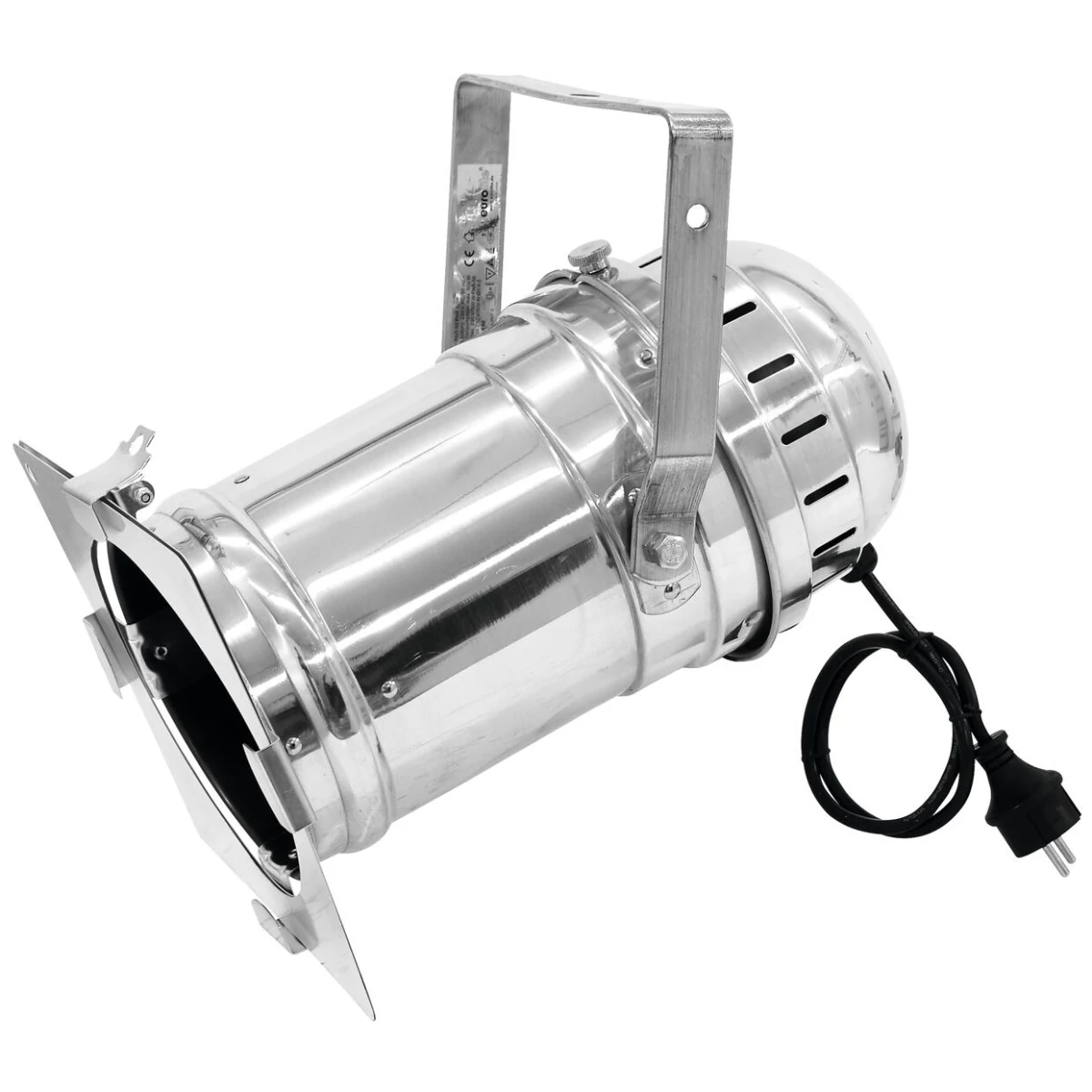

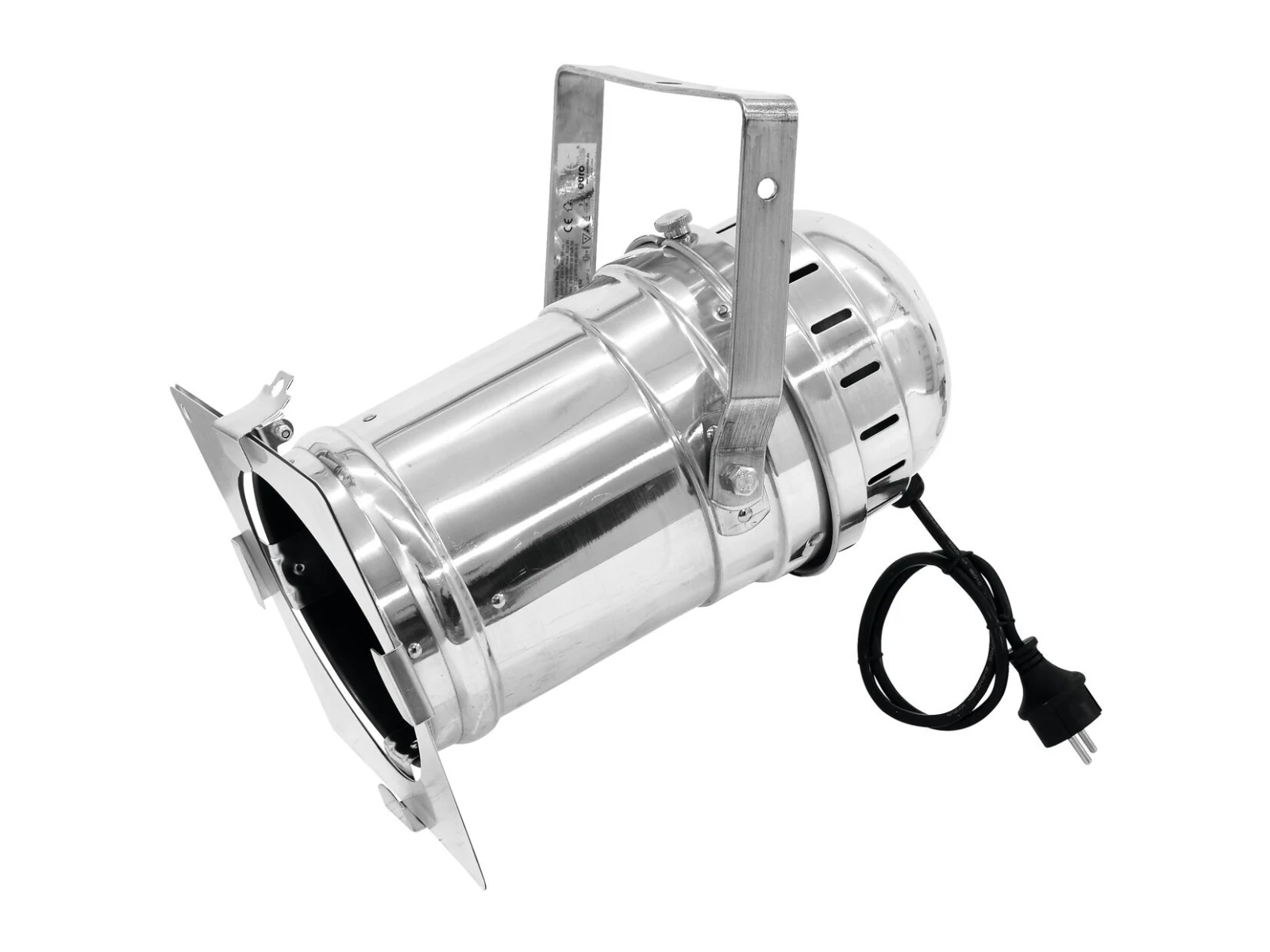

PAR-56 housing long with plug
- Spotlight housing for decoration or display windows, discotheques
- Comes fully-wired with black silicone cable, stable earthing in the housing, directly clamped ceramic socket and safety-plug
- Protection grille on the rear housing cover - complies with CE regulations
- For lamps with max. 500 W
- Rugged aluminum housing
- Strong aluminum mounting bracket
- Delivered with color filter frame
- Heat-resistant fixing screw
- 4 clip-to-hold clamps with spring locks for comfortable opening of the color filter frame
- Safety grille (splinter protection) is integrated in the tube
- Strong extension spring for safe hold and for quick opening of the rear housing cover
- With strong cable tension relief
- Well-suited for easy installation of our Raylight reflectors with matching connector (GX16)
- Simple mounting: connect with ceramic socket - ready!
- Supplied without lamp
- Available in silver or black
- Via color filter frame
- Controlling by plug and play
- For PAR 56
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | Max. 500 W |
| IP classification | IP20 |
| Protection class | Class I |
| Power connection | Fixed Power supply cord with safety plug |
| Cable length | Approx. 0,7 m |
| Base | GX16d |
| Lamp type | Selectable |
| Color generation | Via color filter frame |
| Control | Plug and play |
| Housing color | Silver |
| Dimensions | Width:23 cm |
| Depth | 36 cm |
| Height | 23,5 cm |
| Weight | 1,36 kg |
| Legal specifications | |
| Ecodesign regulation | yes |
| Special product | Not designed for household room illumination |
| intended use | show effect lighting |
