Leírás
Installation rope, safety bond, safety
- Rope with thimble and connector

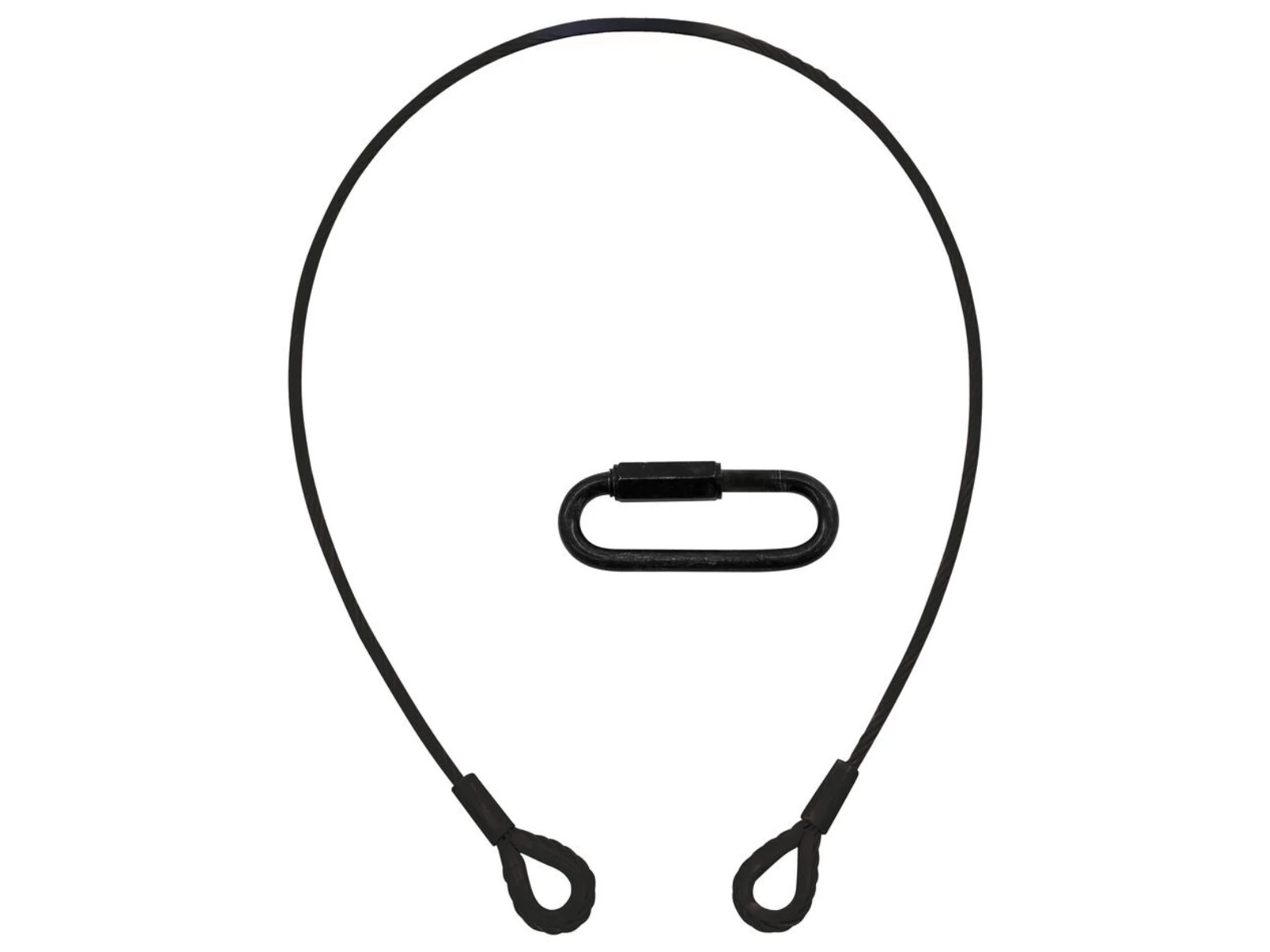

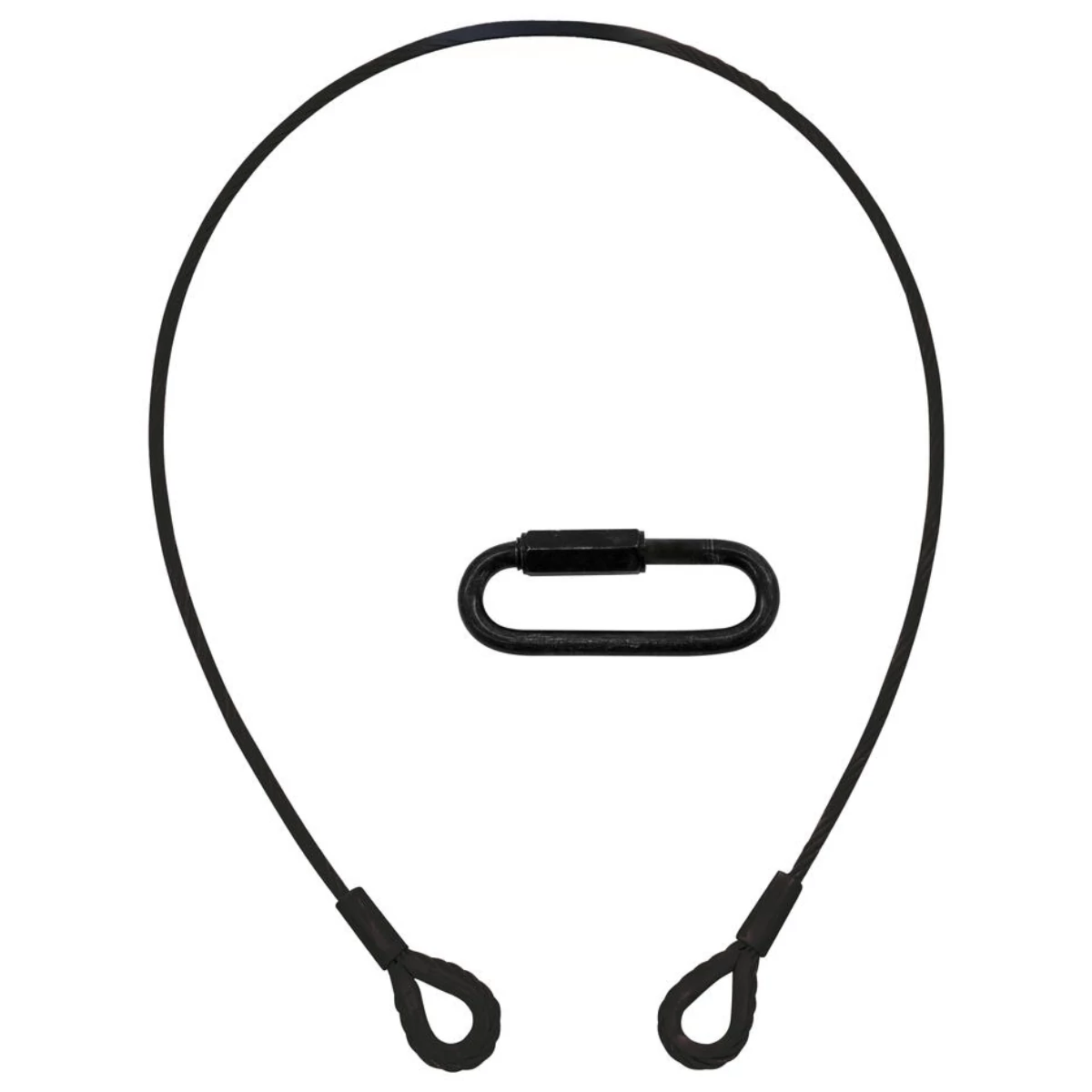

EUROLITE Steel Rope 1000x6mm black with Thimbles
- Round strand rope 6 x 19 with fibre core
- With two thimbles
- Suitable for installing and securing loads above persons
- Complies with DIN EN 12385-4:2008-06 and DIN 56927:2009-03
- Rope with thimble
- For further information about this product, please refer to the Data Sheet under "Downloads"
EUROLITE Quick Link Type B-200 black
Quick link
- Galvanized
- Complies with DIN 56927:2009-03
- For further information about this product, please refer to the Data Sheet under "Downloads"
Paraméterek
| Secured weight (BGV C1) | Max. 35 kg |
| Strength classification | 1770 |
| Temperature range | -40° C - +100° C |
| Weight | 240 g |
| Length weigth | 0,125 kg/m |
| EUROLITE Steel Rope 1000x6mm black with Thimbles | |
| Maximum load WLL (5-fold) | 400 kg |
| Design of the core | 6 x 19 FC |
| Strength classification | 1960 |
| Standard | DIN EN 12385-4:2008-06, DIN 56927:2009-03 |
| Nominal tensile strenght of rope | 1770 N/mm² |
| Wire surface | Zinc-plated |
| Color | Black |
| Temperature range | -40° C - +100° C |
| Dimensions | Length:1 m |
| Diameter | Ø 6 mm |
| Weight | 200 g |
| Length weigth | 0,0554 kg/m |
| EUROLITE Quick Link Type B-200 black | |
| Maximum load WLL (10-fold) | 200 kg |
| Standard | DIN 56927:2009-03, |
| Shape | B - big opening |
| Opening | 0-14,5 mm |
| Dimensions | Length:5,80 cm |
| Width | 3 cm |
| Diameter | Ø 6 mm |
| Weight | 40 g |
