Leírás

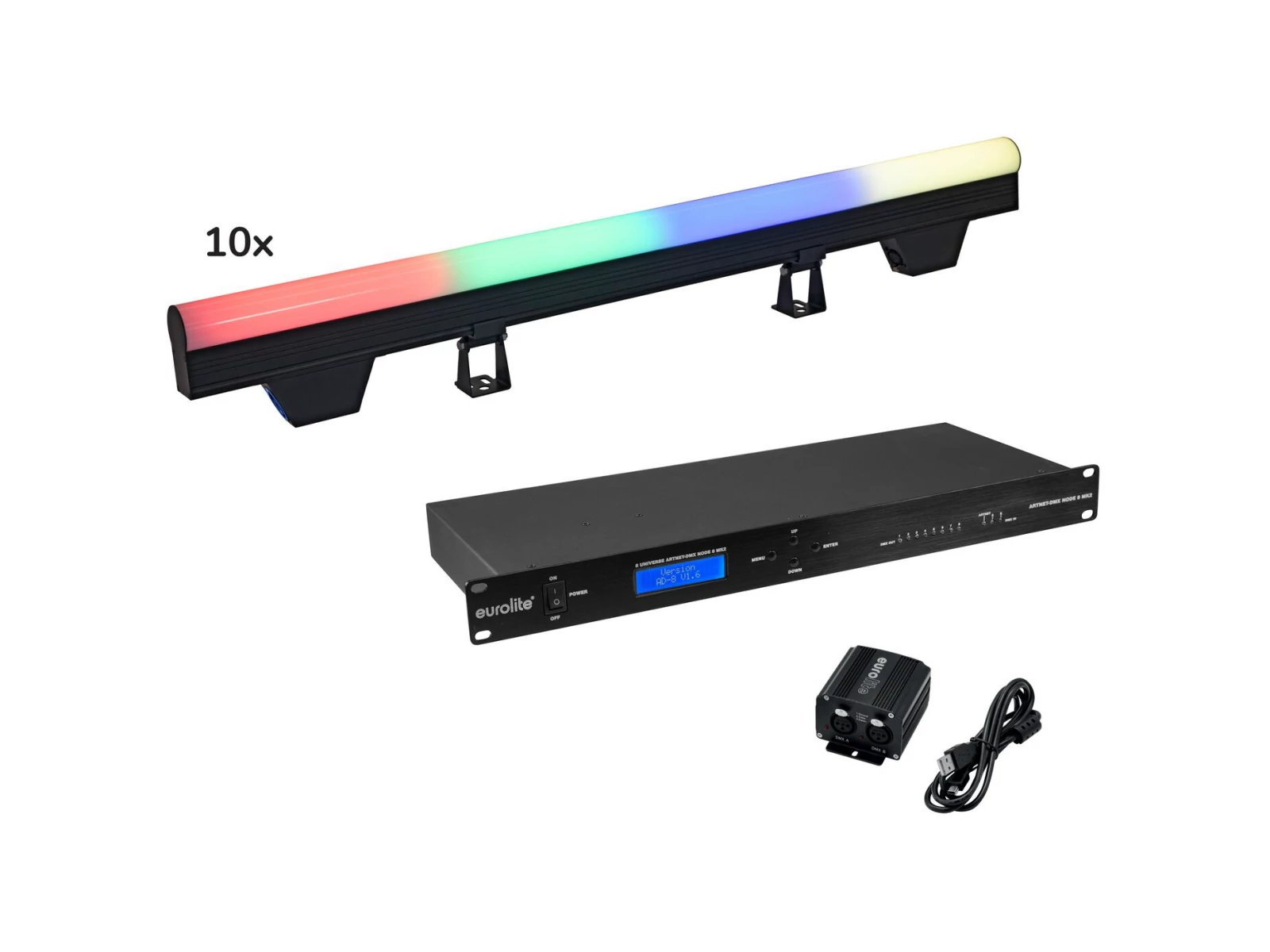

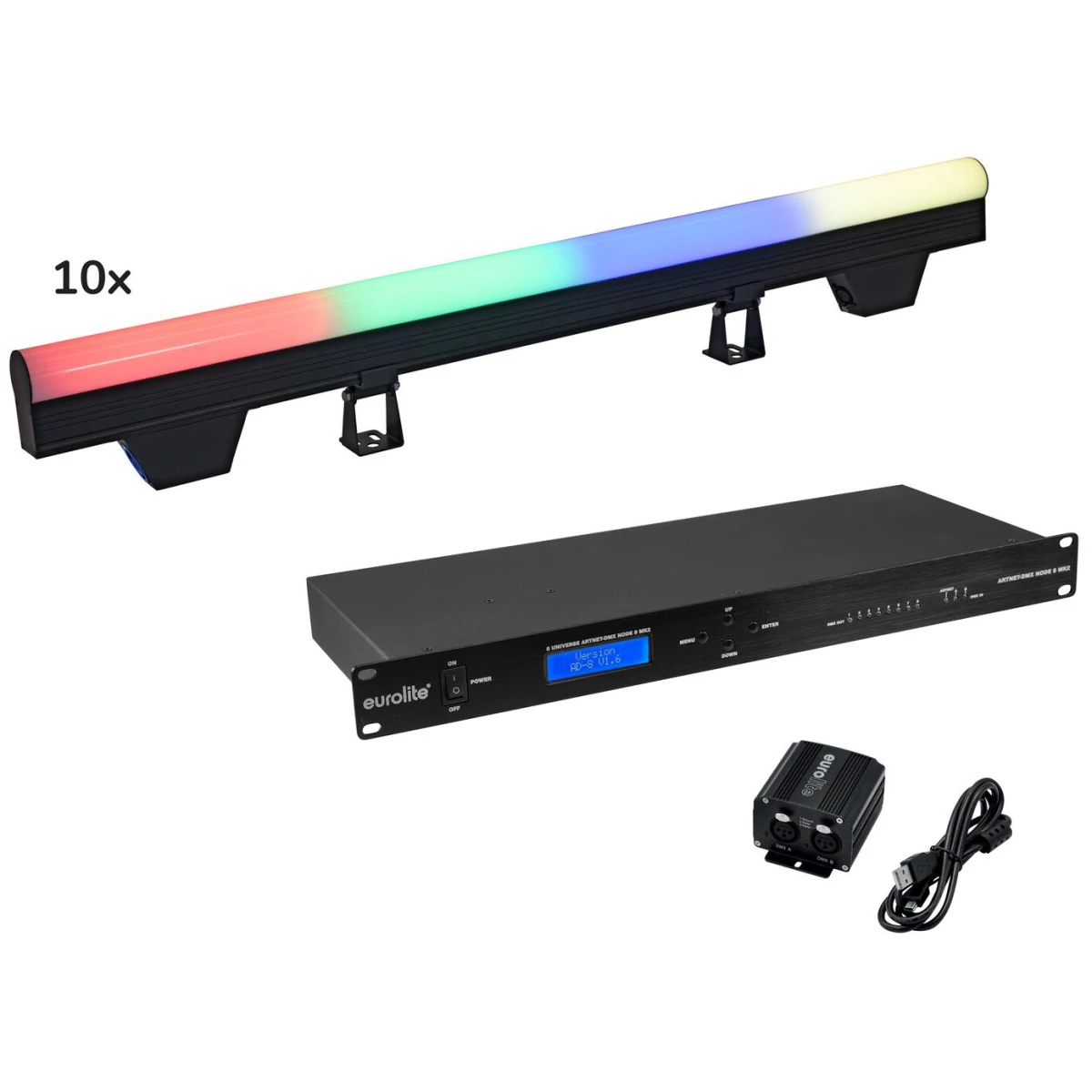

10x DMX-controllable pixel rail with RGB color mixing incl. USB interface and Art-Net interface
EUROLITE LED PT-100/32 Pixel DMX Tube
DMX controlled pixel tube with RGB color mixing
- DMX and power terminals intelligently designed for easy wiring
- 96 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
32 segments controlled separately - Color change adjustable; Dimmer electronic
- Strobe effect
- Integrated show programs
- Direct color selection for 17 preset colors
- The device is cooled by passive convection cooling
- Control via stand-alone; DMX; sound to light via microphone; master/slave function
- With a beam angle of 120°
- With Mounting bracket
- 4 digit 7-segment LED display
- Silent operation
- Preprogrammed in LED PC-Control 512; Light Captain
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Stage; restaurants, bars and hotels
- Application possibility: Suspended; wall mounting
Package contents
- 1 x light effect, 1 x user manual, 1 x power cord
EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software
USB interface for 2 DMX universes with 3 lighting control softwares
- LED PC Control (architectural lighting)
- DMX Control (show lighting)
- Pixel Control (pixel mapping and video mixing)
- 64 Art-Net universes with 512 channels each on Ethernet
- 32,768 individual channels or 10,922 RGB pixels
- High DVI resolution output (1024 x 768 pixels)
- Supports touch screen controls
- Can transmit up to 1024 DMX channels
- Control via DMX
- The device can be connected via USB to the PC
- For application areas such as: Clubs/dancing school; Trade fair and shop fitting; Installation; restaurants, bars and hotels
Package contents
- 1 x device, 1 x USB cable
EUROLITE Art-Net/DMX Node 8 MK2
Art-Net interface for output of 8 universes on XLR
- Parallel DMX input possible (1024 channels)
- 8 optically isolated XLR plugs (3-pin) for DMX output
- 2 XLR jacks (3-pin) for DMX input
- Variable data routing capabilities for all DMX outputs
- User-friendly configuration directly at the front panel via 4 operating buttons and alphanumeric LCD screen (2 x 16 characters)
- LED indication for functions
- Splitter operation possible
- Can transmit up to 4096 DMX channels
- Control via ArtNet
- The device can be connected via RJ-45 (F) mounting version to the PC
- (19") 48.3 cm rack installation
Package contents
- 1 x device, 1 x user manual, 1 x power cord
Paraméterek
| Weight | 23,58 kg |
| EUROLITE LED PT-100/32 Pixel DMX Tube | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 30 W |
| IP classification | IP20 |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Power output | 1 x P-Con (gray), mounting version |
| Lamp type | LED lamp |
| LED type | 96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
| Flash rate | 20 Hz |
| DMX channels | 3; 5; 8; 48; 96 |
| DMX input | 3-pin XLR (M) mounting version |
| DMX output | 3-pin XLR (F) mounting version |
| Cooling | Passive convection cooling |
| Control | Stand-alone; DMX; sound to light via microphone; master/slave function |
| Preprogrammed in | LED PC-Control 512; Light Captain |
| Beam angle | 120° |
| Beam angle (1/2 peak) | 120° |
| Housing color | Black |
| Attachment system | Mounting bracket |
| Display type | 4 digit 7-segment LED display |
| Dimensions | Length:99,9 cm |
| Width | 5,9 cm |
| Height | 15,3 cm |
| Weight | 2,10 kg |
| Noise classification | Class 0 (no noise at all) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
| EUROLITE USB Interface 2x512 DMX/Artnet incl. 64x DMX512 Control Software | |
| Power supply | 100-240 V AC, 50/60 Hz |
| 5 V DC 1 A | |
| Power connection | Mains input via micro USB (F) mounting version power supply cord for USB A mains connection (provided) |
| DMX channels | Output 1024 |
| DMX output | 2 x 3-pin XLR (F) mounting version |
| Control | DMX |
| USB port | USB 2.0, Typ mini USB (F) mounting version |
| Color | Black |
| PC connect | Via USB |
| Dimensions | Width:7 cm |
| Depth | 9 cm |
| Height | 4,5 cm |
| Weight | 180 g |
| EUROLITE Art-Net/DMX Node 8 MK2 | |
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 5 W |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| DMX channels | Output 4096 |
| DMX input | 2 x 3-pin XLR (M) mounting version |
| DMX output | 8 x 3-pin XLR (F) mounting version |
| Network connection | Protocol:ArtNet 3 via 2x RJ-45 (F) mounting version |
| Control | ArtNet |
| Connections | 2 x RJ-45 E-Con (F) mounting version |
| PC connect | Via RJ-45 (F) mounting version |
| Housing design | (19") 48.3 cm rack installation |
| Dimensions | Width:48,3 cm |
| Depth | 17,5 cm |
| Height | 4,45 cm |
| Weight | 2,40 kg |
