Leírás
LED moving head beam with color wheel, static gobo wheel, prism and focus
- Positioning within TILT
EUROLITE LED TMH-B90 Moving-Head Beam
- 1 powerful LED 90 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN, 200° TILT
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter
- Beam effect
- Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed in both directions - Gobo wheel with static gobos, 13 gobos und open
shake effect - Integrated show programs
- The device is cooled by cooling fan
- Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Flicker-free
- With a beam angle of 3°
- Good color rendering index (CRI)
- LCD display
- Dimmer electronic
- Preprogrammed in Light Captain; EASY SHOW 3; Light´J
- Mains input and output for power linking up to 8 units
- For application areas such as: Clubs/dancing school; Wedding/gala/events; Stage; mobile djs / entertainer
- Application possibility: Standing; suspended
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet

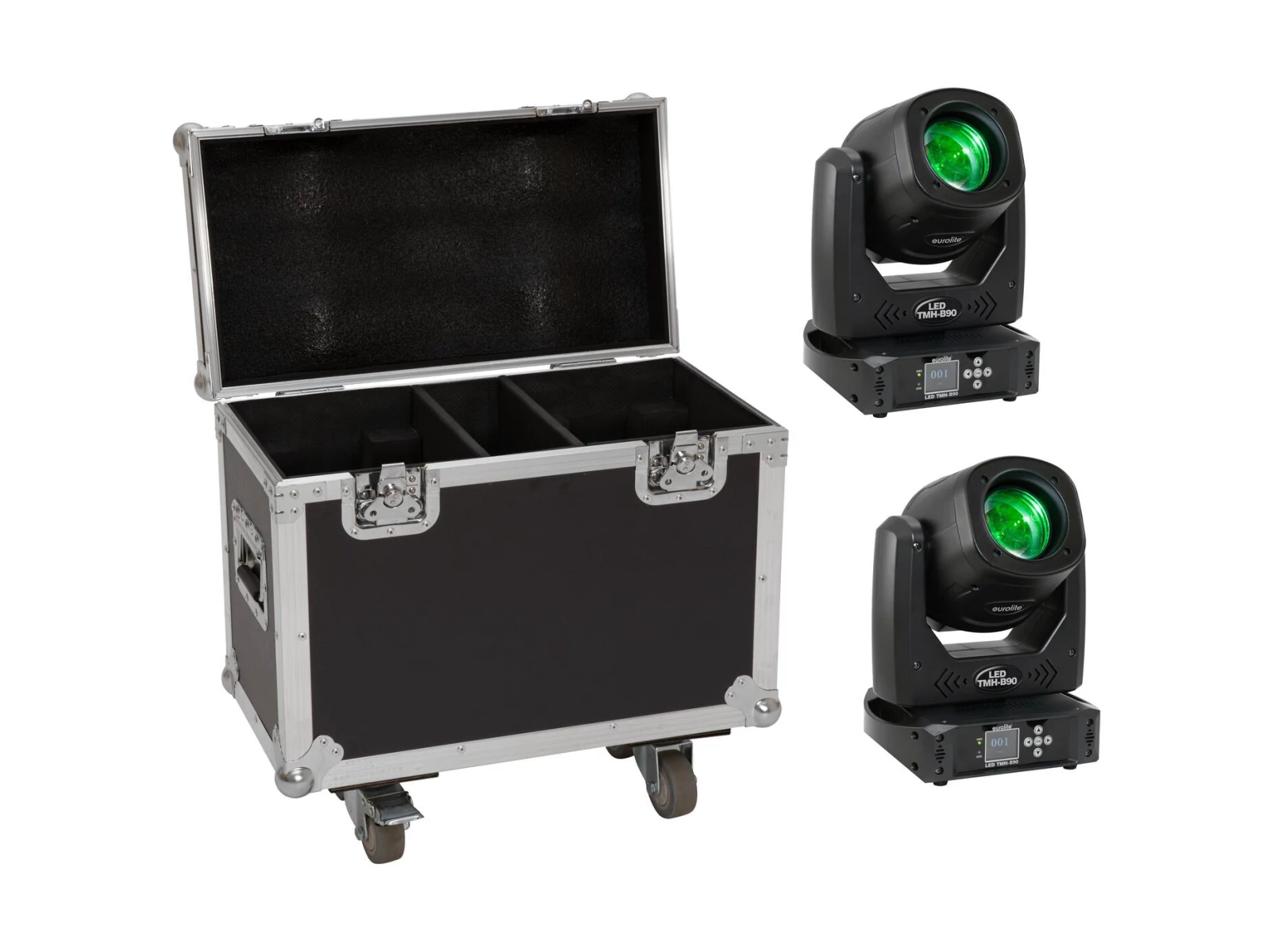

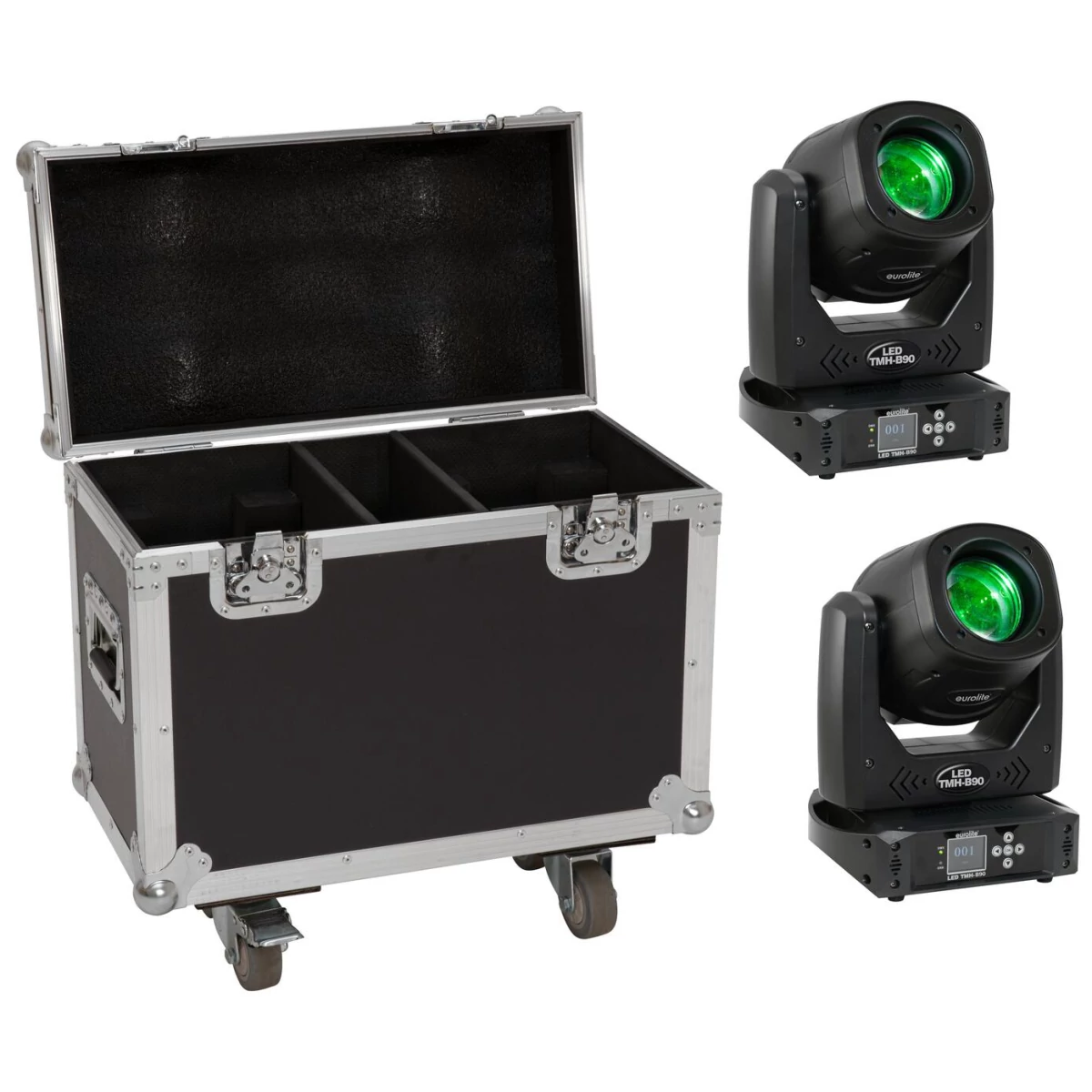

ROADINGER Flightcase 2x TMH-S90/H90/B90
Trunk case with castors
- For optimal security
- With 2 Device compartments
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
cover with foam padding - Aluminum profile frames 30mm with rounded edges
- 2 hinged, chromium plated case handles
- 2 chrome tip-over locks
- 2 high-quality butterfly locks
- Castors
Paraméterek
Weight | 26,25 kg |
EUROLITE LED TMH-B90 Moving-Head Beam | |
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 125 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
Power output | P-Con (gray), mounting version |
Device fuse | 5 x 20 mm, T 2 A Fuse replaceable |
Lamp type | LED lamp |
LED | 1 x 90 W COB (chip-on-board) cold white (CW) |
Max. TILT movement | 200° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Max. PAN movement | 540° Exact positioning (16 bit resolution) Auto position correction (feedback) |
Flash rate | 2 - 20 Hz |
Equipment | Color wheel; gobo wheel with static gobos; Focus motor-driven; Prism 8-fold rotating; frost filter |
Color generation | Color wheel with 7 dichroic filters plus open |
Half colors selectable, Rainbow effect with adjustable speed in both directions | |
Gobos | Gobo wheel with static gobos, 13 gobos und open |
Shake effect | |
DMX channels | 14 |
DMX input | 3-pin XLR (M) mounting version |
DMX output | 3-pin XLR (F) mounting version |
Cooling | Cooling fan |
Control | Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) |
Preprogrammed in | Light Captain; EASY SHOW 3; Light´J |
Projection | Flicker-free |
Beam angle | 3° |
Beam angle (1/2 peak) | 3° |
Color rendering index (CRI) | 80 Ra |
Illuminance in Lux (lx) | Cold white (CW) 3m:33839 lx, 6m:10454 lx |
Housing color | Black |
Display type | LCD display |
Dimensions | Width:25,5 cm |
Depth | 20,5 cm |
Height | 33,0 cm |
Weight | 6,55 kg |
Noise classification | Class 2 (slight noise) |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
ROADINGER Flightcase 2x TMH-S90/H90/B90 | |
Maximum load | 50 kg |
Aluminum profile frames | 30 mm |
Case handle | 2 pc/pcs |
Stop hinge | 2 pc/pcs |
Lock | Butterfly lock:2 pc/pcs |
Transport aid | Castors |
Material | Plywood multi-layer glued, 7 mm |
Color | Black, laminated |
Device compartment | 20 cm x 26 cm x 37 cm |
Accessory compartment | 9,5 cm x 26 cm x 37 cm |
Dimensions | Width:57 cm |
Depth | 31 cm |
Height | 54 cm |
Weight | 13,15 kg |
