Leírás

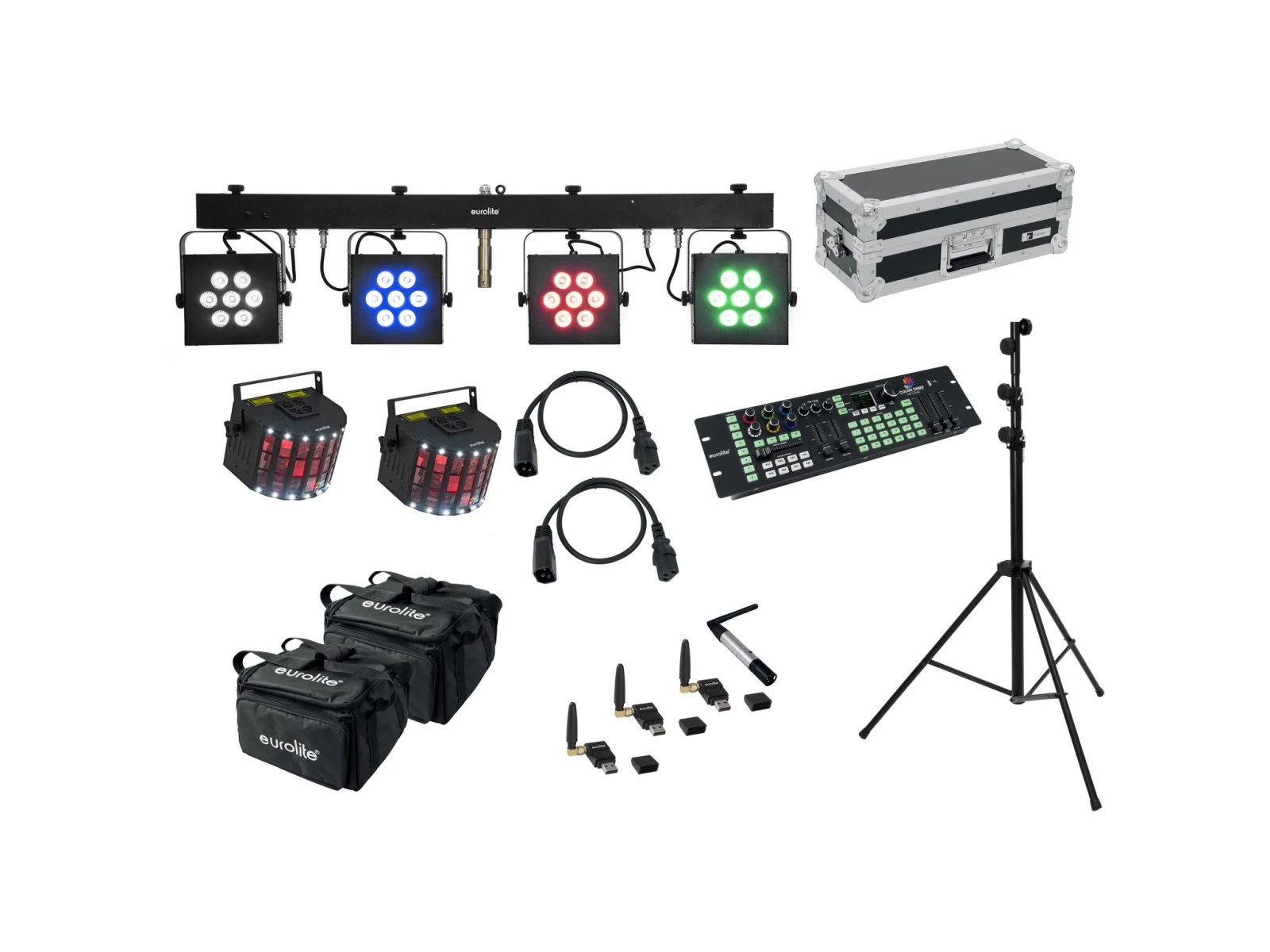

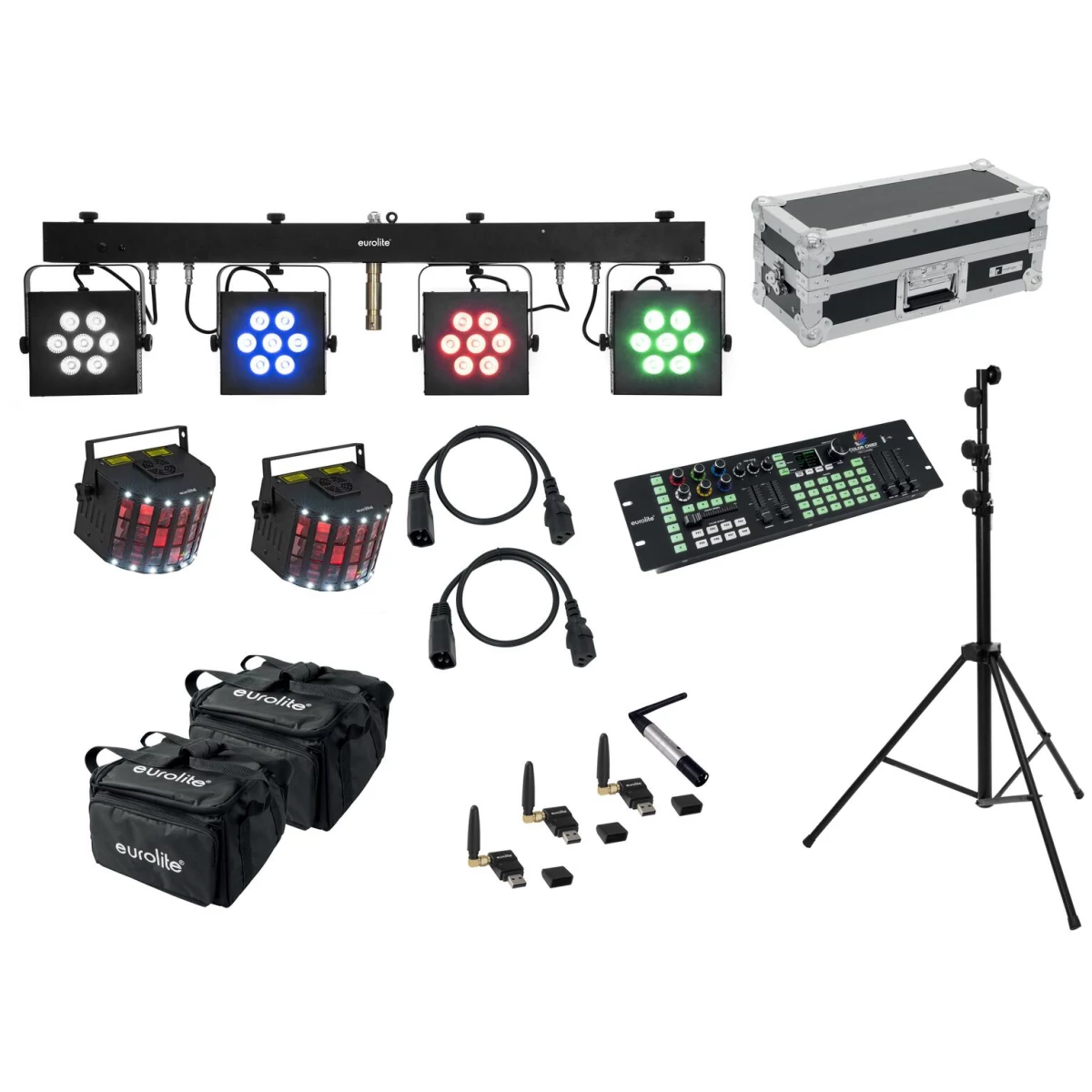

Bar with 4 powerful RGBAW/UV spots, QuickDMX support, IR remote control and carrying bag
EUROLITE LED KLS-3002 Next Compact Light Set
- Crossbar with integrated DMX control unit and TV spigot for tripod installation
- 7 powerful LEDs 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix)
spots controlled separately - With a beam angle of 19°
- 20 integrated show programs
- Direct color selection for 21 preset colors
- Dimmer electronic; color blend stepless; color selection; program selection
- UV effect
- Control via stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
- Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3
- For application areas such as: Mobile use; Stage; mobile djs / entertainer; Rental
- Mounting points and power outlets for additional fixtures
- Mains input and output for power linking up to 8 units
- Silent operation
- Application possibility: Suspended; on stand
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x power cord, 1 x remote control, 1 x bag, 2 x omega bracket, 4 x knurled screw, 4 x washer, 1 x battery, 1 x terminating plug (power)
EUROLITE LED Laser Derby MK2
DMX light effect with RG laser (2M), rotating LED derby, stroboscope and IR remote control
- 2 laser diodes project hundreds of red and green laser beams
- 7 integrated show programs
- Dimmer electronic; color macros adjustable
- Control via IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional)
- The device is cooled by cooling fan
- With Mounting bracket
- 4 digit 7-segment LED display
- Laser; multi beam effect; Strobe effect
- Preprogrammed in Light Captain; EASY SHOW 2
- For application areas such as: Clubs/dancing school; Party room; mobile djs / entertainer; small rental
- Application possibility: Suspended; on stand
laser
- Laser class 2M
does not require additional protective measures or appointment of a laser safety officer
light effect
- 4 powerful LEDs 10 W SMD 5050 R/G/B/W
strobes
- 16 powerful LEDs 0,6 W SMD 2835 cold white (CW)
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 1 x mounting bracket, 2 x knurled screw, 4 x washer
EUROLITE DMX LED Color Chief Controller
DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Quick and easy programming
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases and scenes can be run simultaneously
- USB port for storing program data
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- Programmable 24 scenes/chases distributed over 1 page/s
- Can transmit up to 240 DMX channels
- Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
- (19") 48.3 cm rack installation 3 U
- Desktop console housing
- For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels
- Silent operation
- Firmware can be updated
Package contents
- 1 x controller, 1 x user manual, 1 x external mains adapter
EUROLITE STV-60-WOT EU Steel Stand black
Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm
- Stable lighting stand for mobile use
- TV spigot
- Available in various colors
- Made in Europe
- For application areas such as: Mobile use
- Adjustable height
Package contents
- 1 x stand, 1 x user manual
EUROLITE SB-4 Soft Bag L
Black soft bag for up to 4 devices, 320 x 320 x 200 mm
- Practical transport bag offers enough space for several lighting effects and accessories
- With Dividers
- With 2 Outside pockets
- With 4 Device compartments
- High-quality workmanship with nylon , black, water repellent
- Interior with foam padding
cover with foam padding - 2 carrying straps
Package contents
- 1 x bag
OMNITRONIC IEC Extension 3x0.75 0.6m bk
Package contents
- 1 x network cable
ROADINGER Mixer Case Pro MCA-19-N, 3U, black
Rack case
- Upward tilted profile rails for top-operated units
- High-quality workmanship with plywood multi-layer glued 7 mm, black, laminated
- Interior with foam padding
- Removable cover
- Aluminum profile frames 30mm with rounded edges
- Rugged carrying handle
- 2 high-quality butterfly locks
- Rubber feet
- With profile rails suitable for 19" units
- 3 U
Package contents
- 1 x case
EUROLITE QuickDMX USB Wireless Transmitter/Receiver
Wireless miniature DMX transceiver 2.4 GHz, phantom powered
- User-friendly USB plug with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Requires 5 V phantom power for operation
- Can receive and process up to 512 DMX channels
- Can transmit up to 512 DMX channels
- Control via DMX; QuickDMX; plug and play
- Operating range up to 400m with line-of-sight
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity
EUROLITE QuickDMX Wireless Transmitter
Compact wireless DMX transmitter 2.4 GHz
- User-friendly 3-pin XLR adapter (male) with swivel antenna
- Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
- Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
- 1 to 512 QuickDMX receivers can be controlled by each transmitter
- LED indication for functions
- Transceiver, to be used as transmitter or receiver
- Can transmit up to 512 DMX channels
- Control via QuickDMX; DMX; plug and play
- Operating range up to 400m
- Up to 6 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable
Paraméterek
Weight | 29,89 kg | |
EUROLITE LED KLS-3002 Next Compact Light Set | ||
Power supply | 100-240 V AC, 50/60 Hz | |
Power consumption | 225 W | |
IP classification | IP20 | |
Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) | |
Cable length | 3 m | |
Power output | 2 x IEC connector (F) mounting version fused | |
1 x P-Con (gray), mounting version Bypass | ||
Device fuse | 5 x 20 mm, T 2,5 A Fuse replaceable | |
Power output fuse per channel | 5 x 20 mm, T 5 A Fuse replaceable | |
Lamp type | LED lamp | |
LED | 7 x 10 W high-power 6in1 HCL RGBWA/UV (homogenous color mix) | |
DMX channels | 2; 4; 6; 10; 24; 28 | |
DMX input | 1 x 3-pin XLR (M) mounting version | |
DMX output | 1 x 3-pin XLR (F) mounting version | |
Cooling | Passive convection cooling | |
Control | Stand-alone; DMX; IR remote control; Sound to light via Microphone; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional) | |
Preprogrammed in | EASY SHOW 1; Light´J; LED PC-Control 512; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 2; EASY SHOW 3 | |
Beam angle | 19° | |
Beam angle (1/2 peak) | 19° | |
Beam angle (1/10 peak) | 35° | |
Housing color | Black | |
Attachment system | TV spigot Ø 28mm | |
Omega bracket | ||
Dimensions | Width:1,28 m | |
Depth | 8 cm | |
Height | 29 cm | |
Weight | 11,14 kg | |
Noise classification | Class 0 (no noise at all) | |
Remote control | ||
Battery | 1 x Button cell 3.0 V CR2025 lithium manganese built-in | |
Legal specifications | ||
Special product | Not designed for household room illumination | |
Intended use | Show effect lighting | |
EUROLITE LED Laser Derby MK2 | ||
Power supply | 100-240 V AC, 50/60 Hz | |
Power consumption | 60 W | |
IP classification | IP20 | |
Protection class | Protection class I | |
Power connection | Mains input via IEC (M) power supply cord with safety plug | |
Power output | IEC connector (F) mounting version Bypass | |
Fuse | 5 x 20 mm, T 1,6 A Fuse replaceable | |
Lamp type | LED lamp | |
DMX channels | 2; 4; 5; 6; 8; 7; 9 | |
DMX input | 1 x 3-pin XLR (M) mounting version | |
DMX output | 1 x 3-pin XLR (F) mounting version | |
Cooling | Cooling fan | |
Control | IR remote control; stand-alone; DMX; Master/slave function; Sound to light via Microphone; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional) | |
Preprogrammed in | Light Captain; EASY SHOW 2 | |
Housing color | Black | |
Attachment system | Mounting bracket | |
Display type | 4 digit 7-segment LED display | |
Control elements | Navigation keys, sensitivity rotary dial | |
Status LED | DMX, slave mode, auto mode, sound mode | |
Dimensions | Width:26 cm | |
Depth | 19 cm | |
Height | 19 cm | |
Weight | 2,17 kg | |
Power cord | ||
Cable length | 1,5 m | |
Remote control | ||
Battery | 1 x Button cell 3.0 V CR2025 lithium manganese built-in | |
Laser | ||
Laser class | 2M | |
Laser color | R/G | |
Laser module | Green (G) 35 mW 515nm | |
Red (R) 100 mW 650nm | ||
Light effect | ||
LED | 4 x 10 W SMD 5050 R/G/B/W | |
Strobes | ||
LED | 16 x 0,6 W SMD 2835 cold white (CW) | |
EUROLITE DMX LED Color Chief Controller | ||
Power supply | 100-240 V AC, 50/60 Hz | |
9 V DC 800 mA | ||
Power consumption | 10 W | |
IP classification | IP20 | |
Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) | |
Programs | Programmable 24 scenes/chases distributed over 1 page/s | |
DMX channels | Output 240 | |
DMX output | 1 x 3-pin XLR (F) mounting version | |
Control | DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone | |
Housing color | Black | |
Available storage media | USB devices (FAT 32) | |
USB port | Typ A | |
Color | Black | |
PC connect | , firmware can be updated | |
Housing design | (19") 48.3 cm rack installation 3 U | |
Desktop console housing | ||
Dimensions | Width:48,3 cm | |
Depth | 13,35 cm | |
Height | 8,5 cm | |
Weight | 2,25 kg | |
Noise classification | Class 0 (no noise at all) | |
EUROLITE STV-60-WOT EU Steel Stand black | ||
Maximum carrying capacity | 30 kg | |
Height | Maximum:320 cm | |
Minimum | 150 cm | |
Attachment system | TV spigot Ø 28mm | |
Type (general stands) | Light stand/manual | |
Material | Steel/magnesium | |
Color | Black | |
Transport dimensions | 1,26 m x 12 cm x 15 cm | |
Weight | 5,65 kg | |
EUROLITE SB-4 Soft Bag L | ||
Maximum load | 25 kg | |
Carrying strap | 2 pc/pcs | |
Material | Nylon | |
Color | Black, water repellent | |
Compartment dimensions | 15 cm x 15 cm x 20 cm | |
Inside dimensions | 31 cm x 34 cm x 20 cm | |
Dimensions | Width:32 cm | |
Depth | 41 cm | |
Height | 20 cm | |
Weight | 520 g | |
OMNITRONIC IEC Extension 3x0.75 0.6m bk | ||
Cable construction | 3 x 0,75 mm² Power cable | |
Cable length | 0,6 m | |
Plug A | 1 x IEC (M) | |
Plug B | 1 x IEC (F) | |
Color | Black | |
Weight | 80 g | |
ROADINGER Mixer Case Pro MCA-19-N, 3U, black | ||
Maximum load | 25 kg | |
Removable covers | 1 pc/pcs | |
Aluminum profile frames | 30 mm | |
Carrying handle | 1 pc/pcs | |
Lock | Butterfly lock:2 pc/pcs | |
Transport aid | Rubber feet | |
Material | Plywood multi-layer glued, 7 mm | |
Color | Black, laminated; dark brown, laminated | |
Inside dimensions | 45 cm x 20 cm x 10,5 cm | |
Front panel width | 19" | |
Mounting height | Approx. 13.5 cm (3 U) | |
Mounting depth | 105 mm | |
Housing design | 3 U | |
Dimensions | Width:55 cm | |
Depth | 24 cm | |
Height | 23,5 cm | |
Weight | 5,10 kg | |
EUROLITE QuickDMX USB Wireless Transmitter/Receiver | ||
Power supply | 5 V DC | |
IP classification | IP20 | |
Power connection | Mains input via USB A (M) connectable version | |
DMX channels | Input 512 | |
Output 512 | ||
DMX output | 1 x USB, type A | |
Control | DMX; QuickDMX; plug and play | |
Range | Range up to 400m with line-of-sight | |
Carrier frequency | 2,4 GHz | |
Parallel mode | Max. 6 transmitter | |
Modulation | GFSK | |
Color | Black | |
Dimensions | Width:8,6 cm | |
Depth | 4 cm | |
Height | 1,1 cm | |
Weight | 10 g | |
EUROLITE QuickDMX Wireless Transmitter | ||
Power supply | 100-240 V AC, 50/60 Hz | |
5 V DC 1 A | ||
IP classification | IP20 | |
Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord for USB A mains connection (provided) | |
DMX channels | Output 512 | |
DMX input | 1 x 3-pin XLR (M) | |
Control | QuickDMX; DMX; plug and play | |
Range | Range up to 400m | |
Carrier frequency | 2,4 GHz | |
Parallel mode | Max. 6 transmitter | |
Modulation | GFSK | |
Color | Silver | |
Dimensions | Length:21,2 cm | |
Diameter | Ø 1,8 cm | |
Weight | 150 g |
