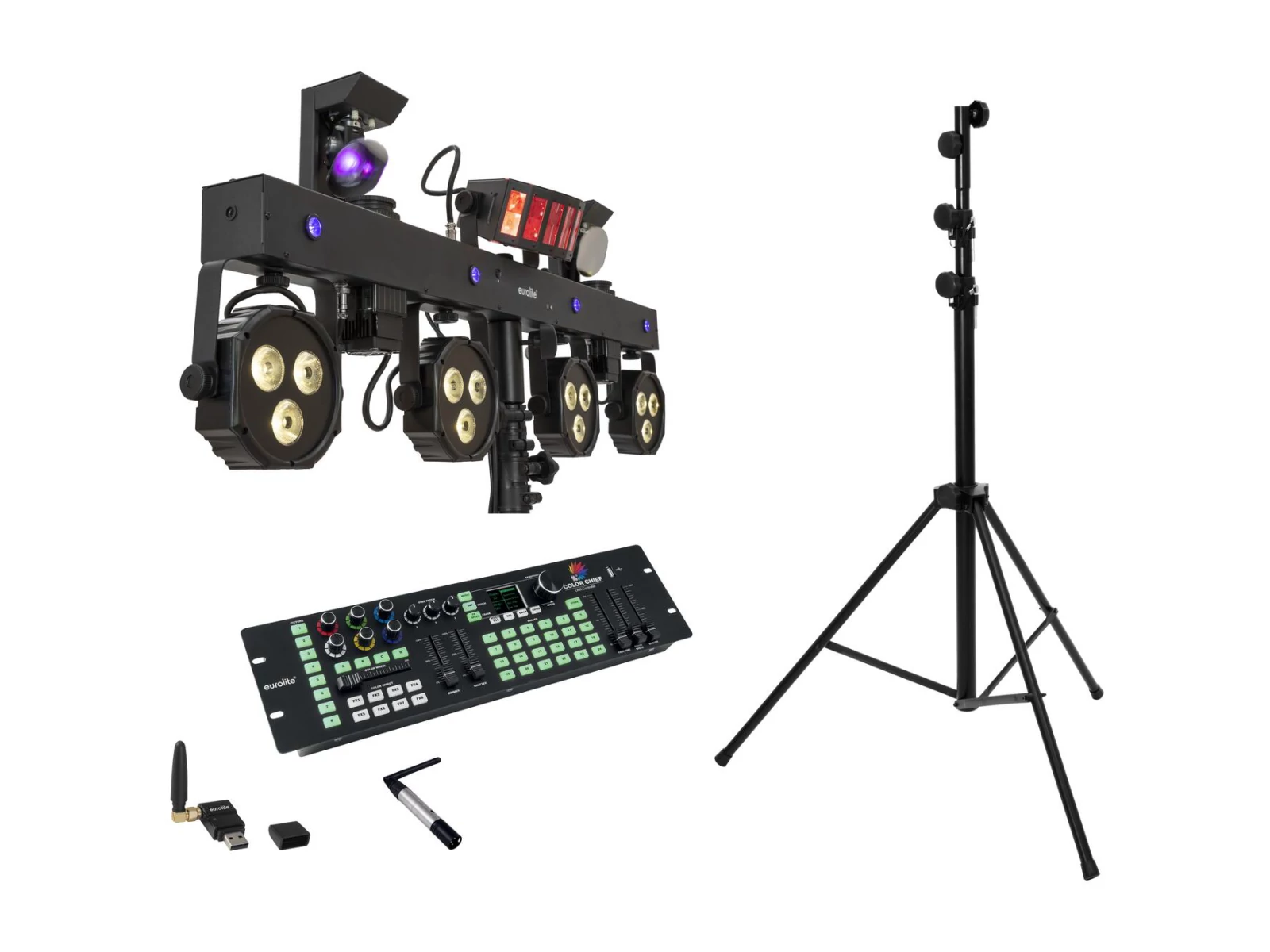

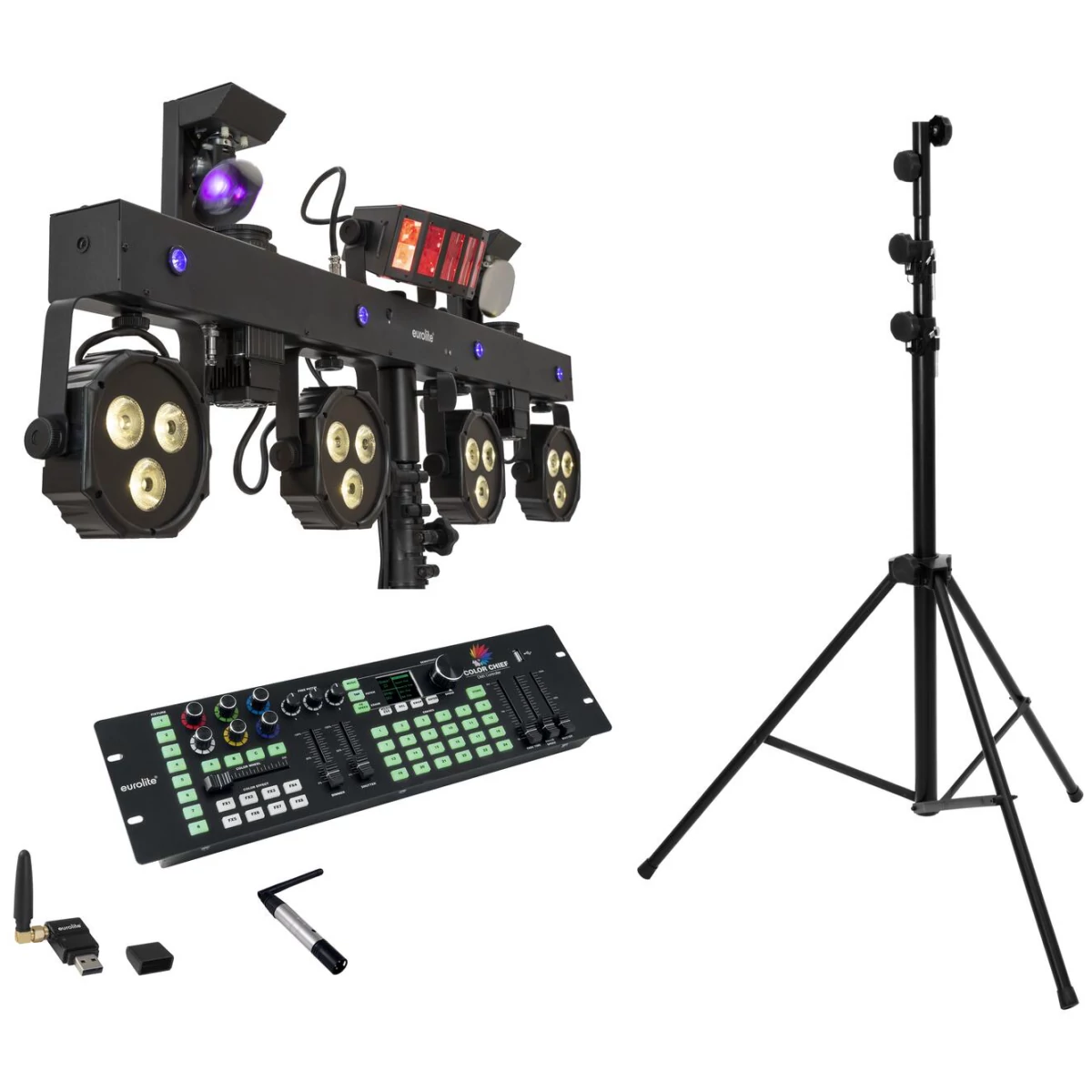

EUROLITE Set LED KLS Scan Next FX Compact Light Set + Controller + Steel stand

Compact bar with derby, spots, scanners, UV effect, QuickDMX port and bag

• Positioning within TILT

EUROLITE LED KLS Scan Next FX Compact Light Set

• Crossbar with integrated DMX control unit and TV spigot for tripod installation
• When fog is used, this effect becomes especially attractive
• Positioning within TILT
• Color wheel; gobo wheel with static gobos
• 20 integrated show programs
• Control via DMX; IR remote control; Sound to light via Microphone; stand-alone; Master/slave function; Wireless footswitch (optional); QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
• OLED display
• For application areas such as: Rental; small rental; Wedding/gala/events; mobile use; mobile djs / entertainer
• Mains input and output for power linking up to 8 units
• Color wheel with 8 dichroic filters plus open
  half colors selectable
• Preprogrammed in Light Captain; EASY SHOW 2; EASY SHOW 3
• Application possibility: Suspended; on stand

spotlight

• 3 powerful LEDs 7 W high-power 4in1 QCL RGB/WW (homogenous color mix)
  4 spots controlled separately
• With a beam angle of 15°

light effect

• 2 powerful LEDs 3 W R/G/B

moving light

• 1 powerful LED 15 W cold white (CW)

bar

• 4 powerful LEDs 1 W high-power ultra violet (UV)
  LEDs controlled separately

Package contents

• 1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 2 x mounting bracket, 1 x remote control, 1 x battery, 1 x bag, 2 x knurled screw, 2 x washer, 1 x terminating plug (power)

EUROLITE QuickDMX USB Wireless Transmitter/Receiver

Wireless miniature DMX transceiver 2.4 GHz, phantom powered

• User-friendly USB plug with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Requires 5 V phantom power for operation
• Can receive and process up to 512 DMX channels
• Can transmit up to 512 DMX channels
• Control via DMX; QuickDMX; plug and play
• Operating range up to 400m with line-of-sight
• Up to 6 transmitters can be operated in parallel without interference

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

• User-friendly 3-pin XLR adapter (male) with swivel antenna
• Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
• Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transceiver and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
• 1 to 512 QuickDMX receivers can be controlled by each transmitter
• LED indication for functions
• Transceiver, to be used as transmitter or receiver
• Can transmit up to 512 DMX channels
• Control via QuickDMX; DMX; plug and play
• Operating range up to 400m
• Up to 6 transmitters can be operated in parallel without interference

Package contents

• 1 x device, 1 x user manual, 1 x declaration of conformity, 1 x external mains adapter, 1 x uSB cable

EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

• Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
• For 8 devices or device groups, each with up to 4 segments
• Quick and easy programming
• Additional fixtures can be configured manually
• 8 color effects directly selectable
• 3 additional channels available per fixture (e.g. for rotations)
• Color wheel selection and simulation
• 24 memory spaces for scenes and chases
• Several chases and scenes can be run simultaneously
• USB port for storing program data
• Sound control via audio signal or TAP button
• Master dimming, fade time and run time easily adjustable
• Programmable 24 scenes/chases distributed over 1 page/s
• Can transmit up to 240 DMX channels
• Control via DMX; Sound to light via RCA (F) mounting version; Sound to light via Microphone
• (19") 48.3 cm rack installation 3 U
• Desktop console housing
• For application areas such as: Clubs/dancing school; Party room; Trade fair and shop fitting; mobile djs / entertainer; restaurants, bars and hotels
• Silent operation
• Firmware can be updated

Package contents

• 1 x controller, 1 x user manual, 1 x external mains adapter

EUROLITE STV-60-WOT EU Steel Stand black

Lighting stand, made in EU, maximum load 30 kg, height 150-315 cm

• Stable lighting stand for mobile use
• TV spigot
• Available in various colors
• Made in Europe
• For application areas such as: Mobile use
• Adjustable height

Package contents

• 1 x stand, 1 x user manual
