Leírás
Compact spotlight with 20 W COB LED, manual zoom, color rendering index (CRI) >95

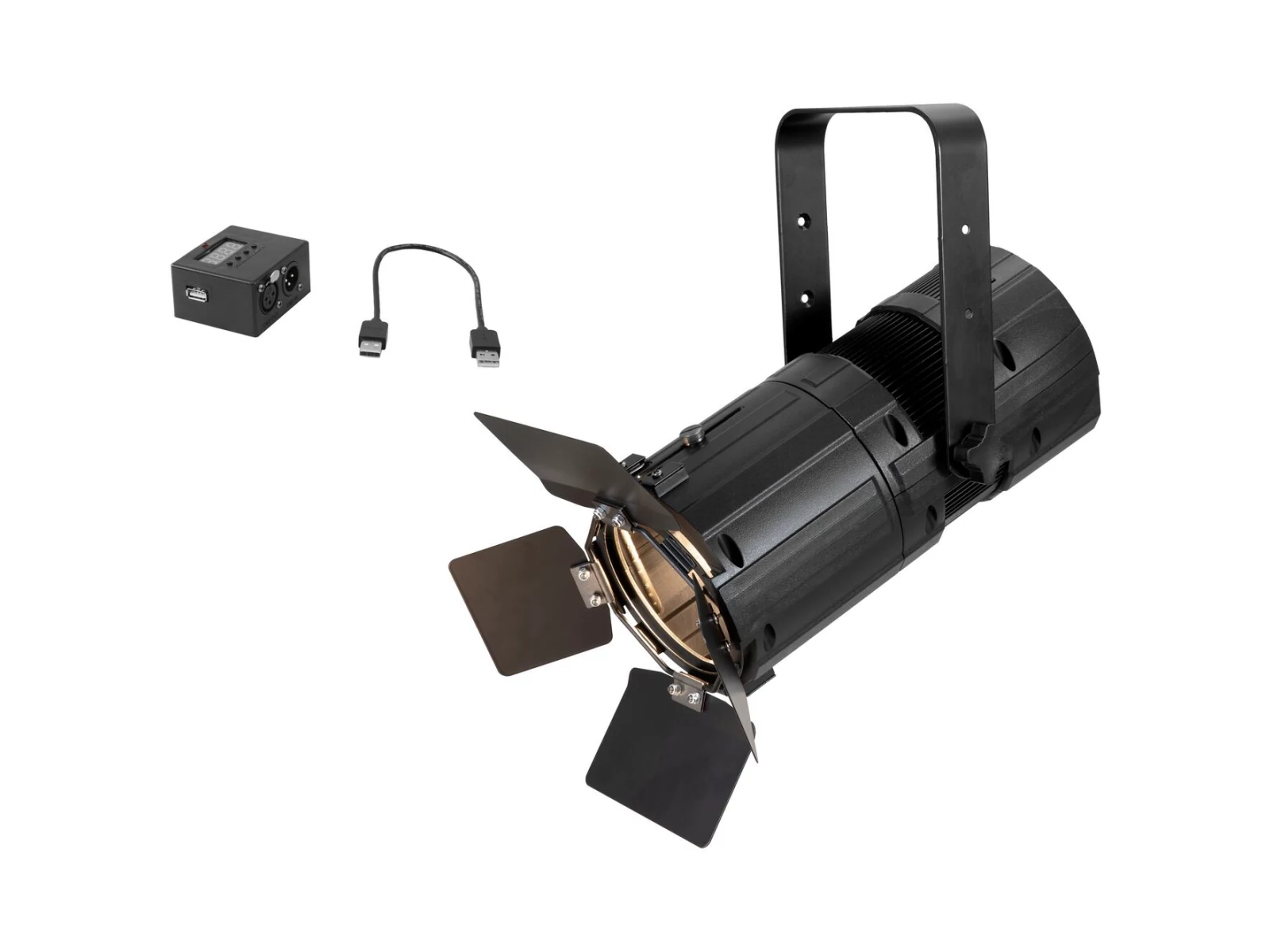

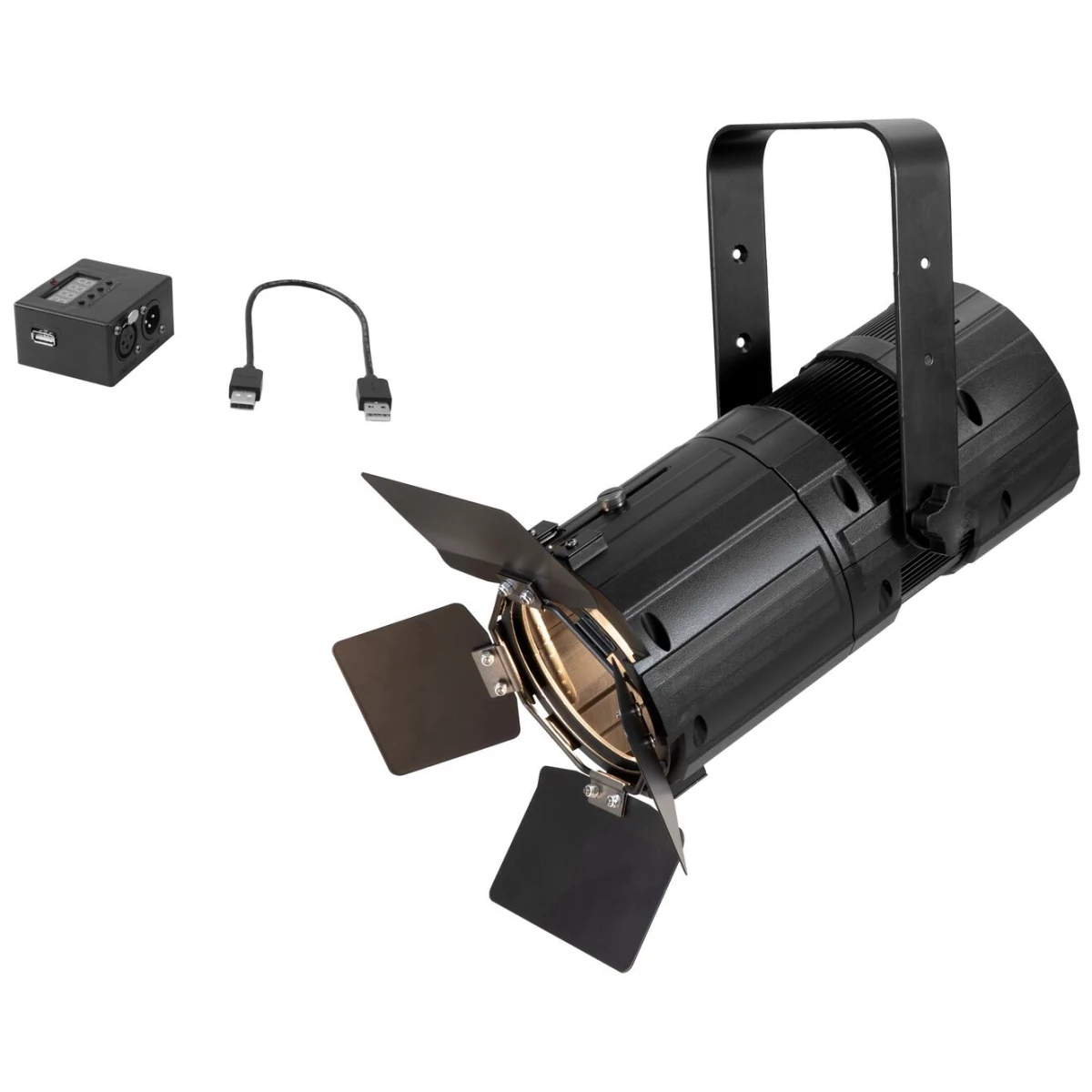

EUROLITE LED PFR-50 WW Fresnel Spot
- 1 powerful LED 20 W COB (chip-on-board) warm white (WW)
- With fresnel lens
- With a beam angle of 11° - 40°
- Flicker-free
- The device is cooled by cooling fan
- Very high color rendering index (CRI)
- Control via stand-alone; DMX (optional); Master/slave function (optional)
- For application areas such as: Trade fair and shop fitting; Installation; theater; Rental
- Very quiet working noise
- Application possibility: Suspended; on stand
Package contents
- 1 x spotlight, 1 x power cord, 1 x barndoor, 1 x plug (male), 1 x user manual
EUROLITE DMX-Interface for LED PFE-50
Control unit with DMX interface for EUROLITE LED PFE-50 3000 K Profile Spot
- Adds full DMX functionality to the spotlight
- Control via DMX; Master/slave function
- Dimmer electronic
- Strobe effect
- 4 digit 7-segment LED display
Package contents
- 1 x device, 1 x uSB cable, 4 x screw
Paraméterek
Weight | 2,06 kg |
EUROLITE LED PFR-50 WW Fresnel Spot | |
Power supply | 100-240 V AC, 50/60 Hz |
Power consumption | 48 W |
IP classification | IP20 |
Protection class | Protection class I |
Power connection | Mains input via 3-pin screw plug connector (M) mounting version power supply cord with safety plug (provided) |
Power output | 3-pin screw plug connector (F) mounting version |
Fuse | 5 x 20 mm, T 1 A Fuse replaceable |
Lamp type | LED lamp |
LED | 1 x 20 W COB (chip-on-board) warm white (WW) |
Cooling | Cooling fan |
Control | Stand-alone; DMX (optional); Master/slave function (optional) |
Projection | Flicker-free |
Beam angle | 11° - 40° |
Beam angle (1/2 peak) | 11 - 30° |
Beam angle (1/10 peak) | 21 - 40° |
Color temperature | 3100K |
Color rendering index (CRI) | 96 Ra |
Illuminance in Lux (lx) | Narrow warm white (WW) 1m:20302 lx, 3m:2529 lx, 6m:667 lx |
Wide warm white (WW) 1m | 5751 lx, 3m:748 lx, 6m:207 lx |
Housing color | Black |
Material | Plastic; aluminum |
Slot for spot length | Ø 11 cm |
Dimensions | Length:30,5 cm |
Width | 16,0 cm |
Height | 22,0 cm |
Weight | 1,94 kg |
Noise classification | Class 1 (very slight noise, suitable for noise-sensitive environments) |
Mounting bracket | |
Diameter mounting holes | 1 x Ø11mm; 2 x Ø8mm; 4 x Ø4mm |
Material | Aluminum, 3 mm |
Power cord | |
Cable construction | 3 x 0,75 mm² H05VV-F |
Cable length | Approx. 1,4 m |
Barndoor | |
Material | Metal, 1 mm |
Ring diameter | Outside:99 mm |
Inside | 90 mm |
Legal specifications | |
Special product | Not designed for household room illumination |
Intended use | Show effect lighting |
EUROLITE DMX-Interface for LED PFE-50 | |
IP classification | IP20 |
DMX channels | 2 |
Control | DMX; Master/slave function |
Housing color | Black |
Display type | 4 digit 7-segment LED display |
Weight | 120 g |
