Leírás

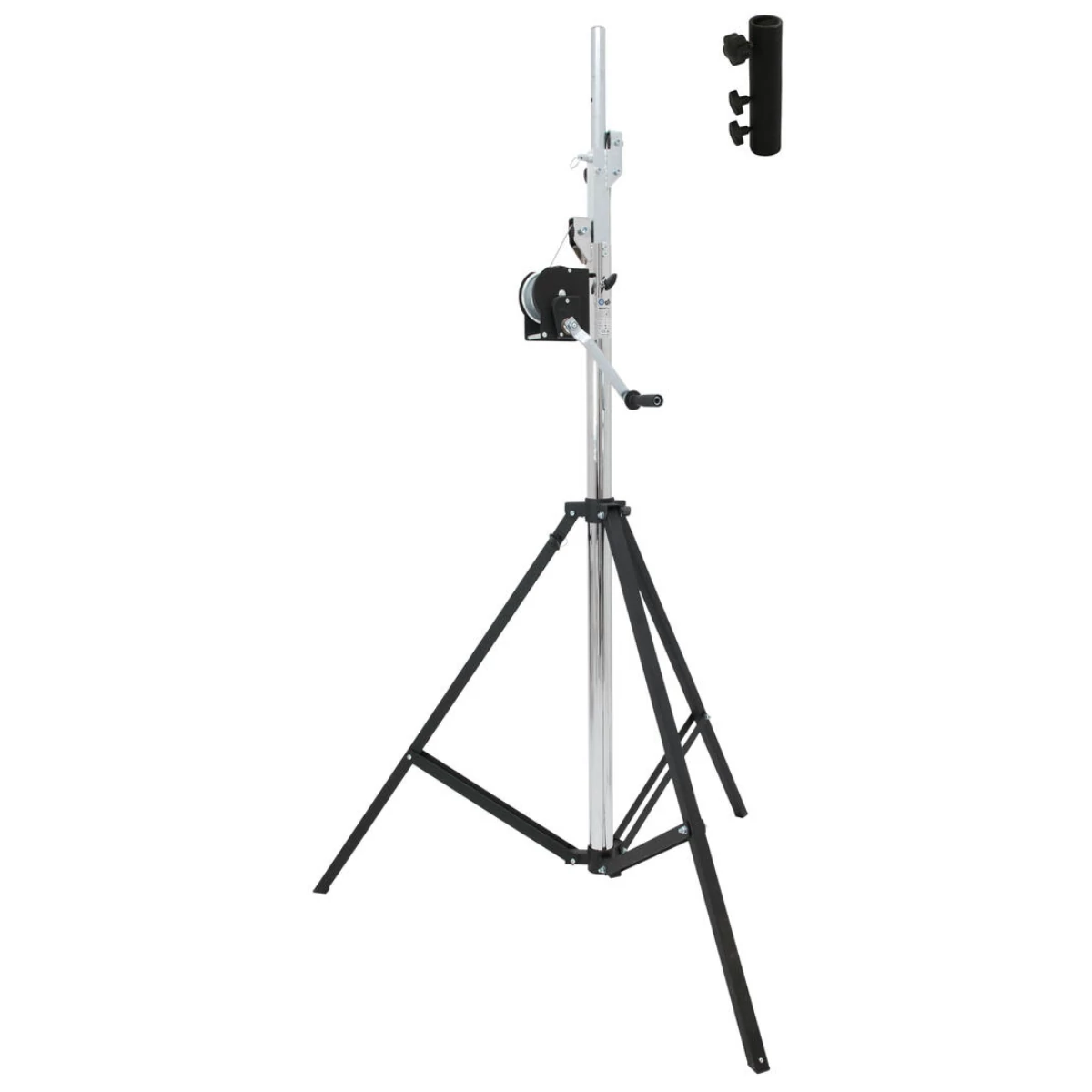

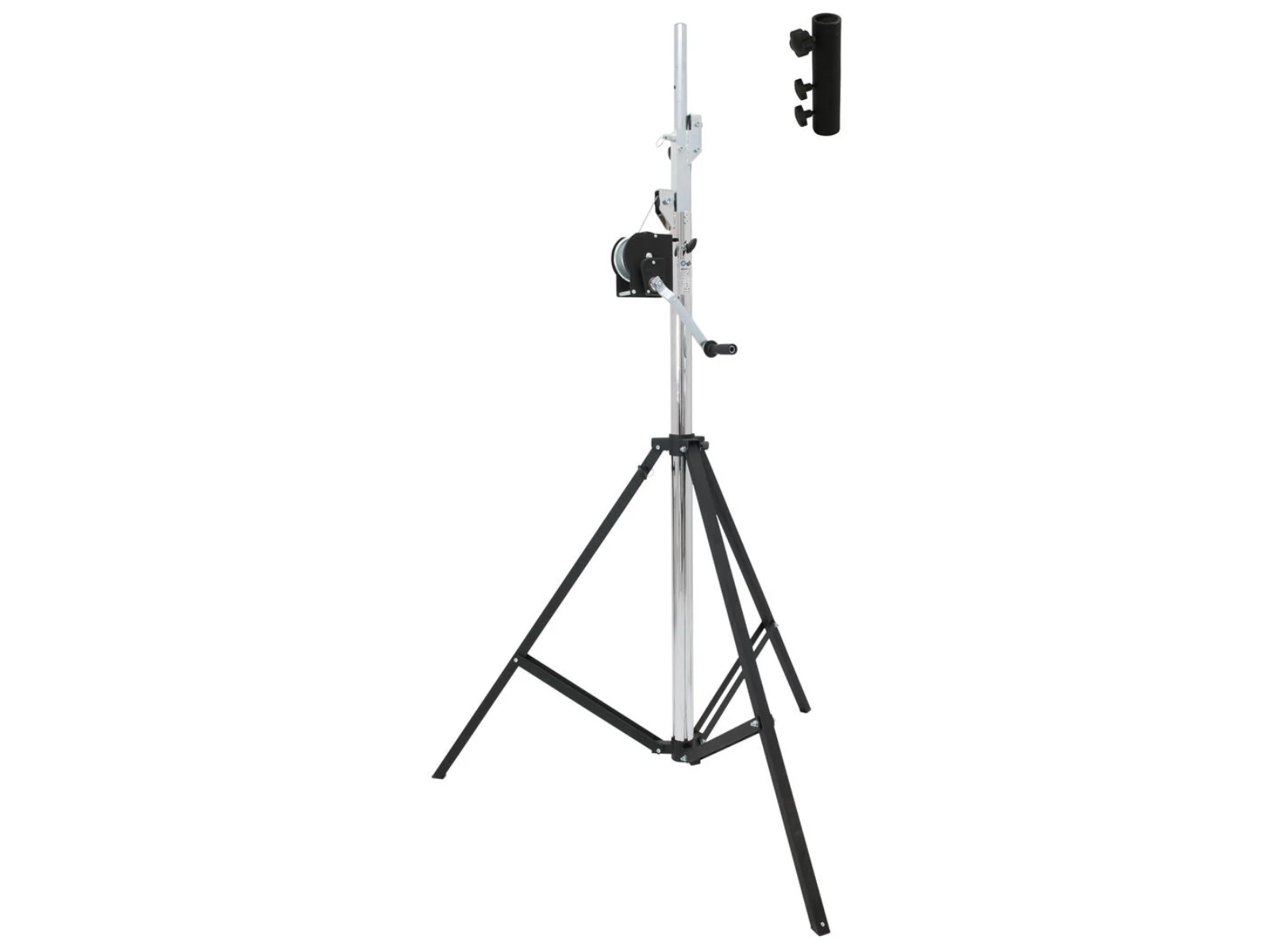

High-quality winch-stand with matching massive adapter
EUROLITE STT-400/85 Winch Stand TÜV/GS
High-quality winch-stand, maximum load 85 kg, maximum height 400 cm
- 1-gear winch for easy lifting of the loads
- Automatic braking system
- Safety bolt for mechanical locking
- Easy handling
- Complies with DIN 15560-27 and DIN EN ISO 12100-2
- Adjustable height
- TÜV Süd certified
- For application areas such as: Mobile use
Package contents
- 1 x user manual
EUROLITE STV-3529 Adapter long
Massive adapter for 35 mm tube, 28 mm TV spigot, maximum load WLL 100 kg
- For stands with telescopic tube 35 mm
- Connection element for cross beam with 28 mm TV spigot
- With M6 and M8 fixation screw
- Heavy version for highest stability
- TV spigot
Package contents
- 1 x device, 1 x user manual, 2 x knurled screw
Paraméterek
Weight | 25,60 kg |
EUROLITE STT-400/85 Winch Stand TÜV/GS | |
Maximum carrying capacity | 85 kg |
Minimum load | 25 kg |
Standard | DIN 15560-27, DIN EN ISO 12100-2 |
Height | Maximum:400 cm above 3 sections |
Minimum | 175 cm |
Attachment system | Ø 35mm |
Steel rope | Ø 4 mm |
Type (general stands) | Light stand/wind up |
Transport dimensions | 1,75 m x 30 cm x 27 cm |
Base area | Ø 1,6 m |
Weight | 24,10 kg |
EUROLITE STV-3529 Adapter long | |
Maximum load BGV C1 (8-fold) | 50 kg |
Max. load WLL (4-fold) | 100 kg |
Attachment system | TV spigot Ø 28mm |
Ø 35mm | |
Type (general stands) | Accessory |
Material | Steel, 6 mm, powder-coated |
Dimensions | Width:8,50 cm |
Depth | 5 cm |
Height | 19,50 cm |
Weight | 1,50 kg |
