Steel rope with loops, grouted without grummet thimbles

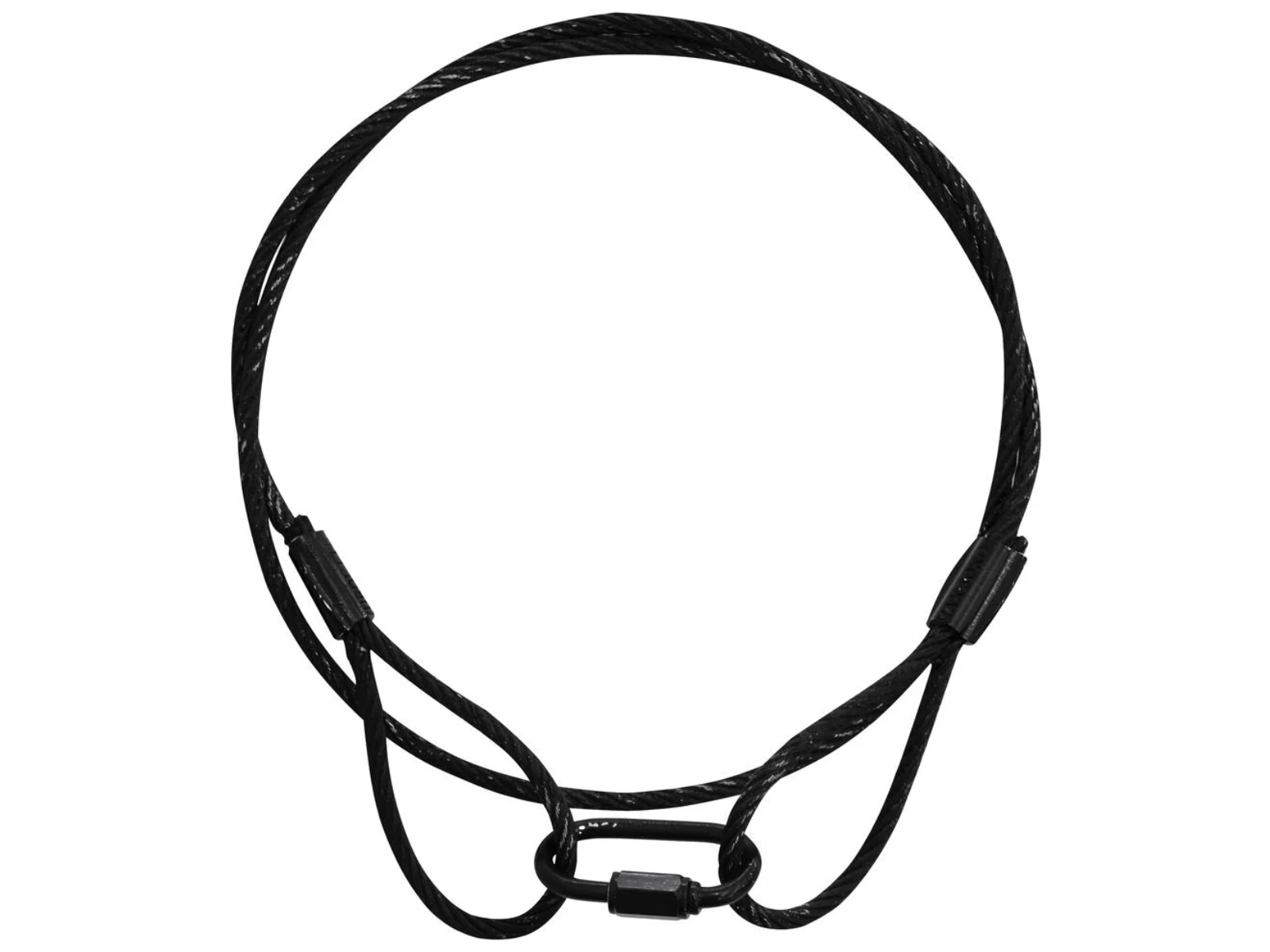

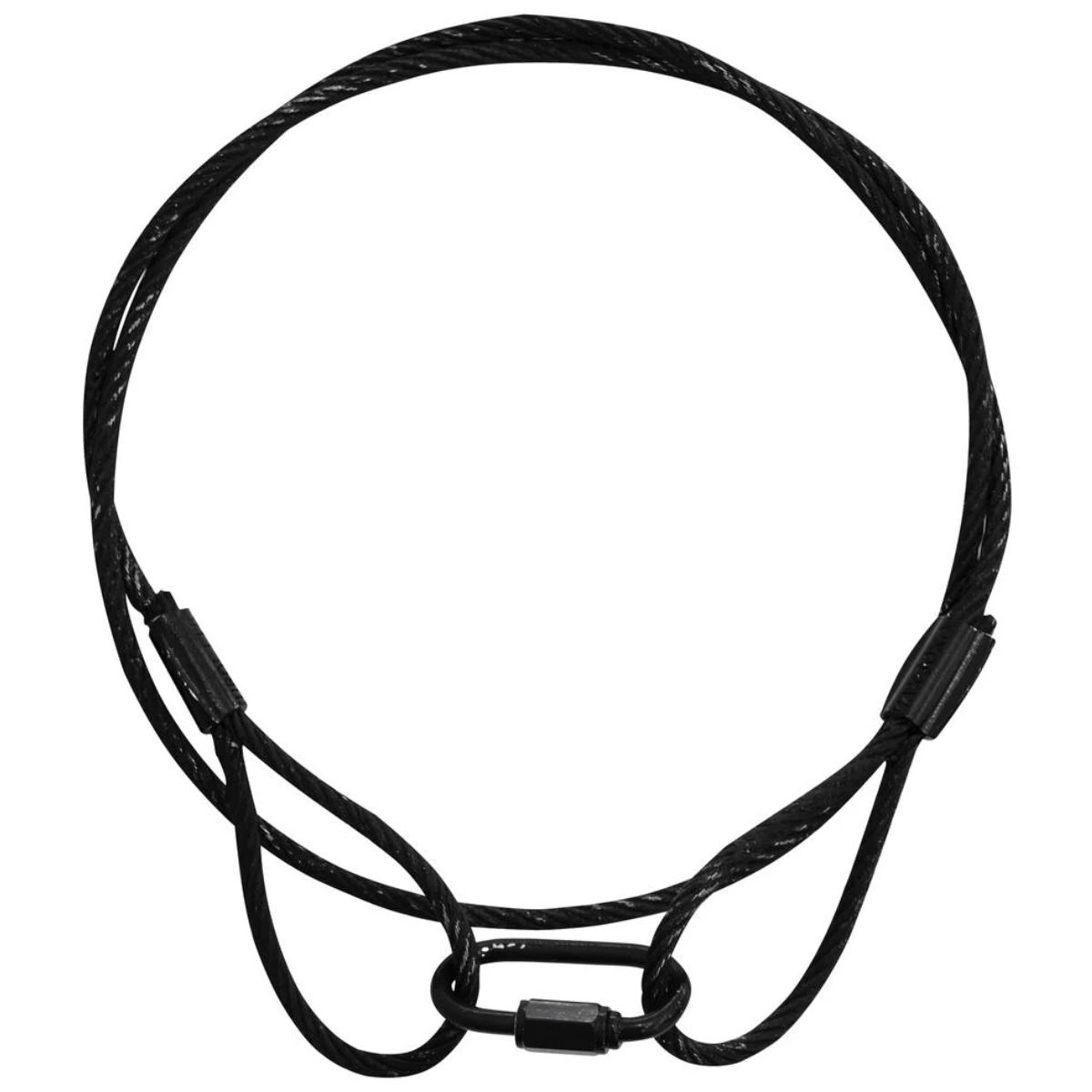

EUROLITE Steel Rope (SC) 900x4mm black without quick link
- With steel core
- Stopping rope for general lifting purposes
- Rope with loop
Package contents
- 1 x safety bond
EUROLITE Quick Link Type A-90
Quick link
- Complies with DIN 56927:2009-03
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x device
Paraméterek
| Weight | 90 g |
| EUROLITE Steel Rope (SC) 900x4mm black without quick link | |
| Maximum load WLL (5-fold) | 175 kg |
| Design of the core | 6 x 19 |
| Nominal tensile strenght of rope | 1770 N/mm² |
| Wire surface | Zinc-plated |
| Color | Black |
| Temperature range | -40° C - +100° C |
| Dimensions | Length:90 cm |
| Diameter | Ø 4 mm |
| Weight | 80 g |
| EUROLITE Quick Link Type A-90 | |
| Maximum load WLL (10-fold) | 90 kg |
| Standard | DIN 56927:2009-03, |
| Shape | A - small opening |
| Material | Steel, zinc-plated |
| Opening | 0-5,5 mm |
| Dimensions | Length:3,10 cm |
| Width | 4,10 cm |
| Depth | 2,20 cm |
| Diameter | Ø 4 mm |
| Weight | 10 g |
