Leírás

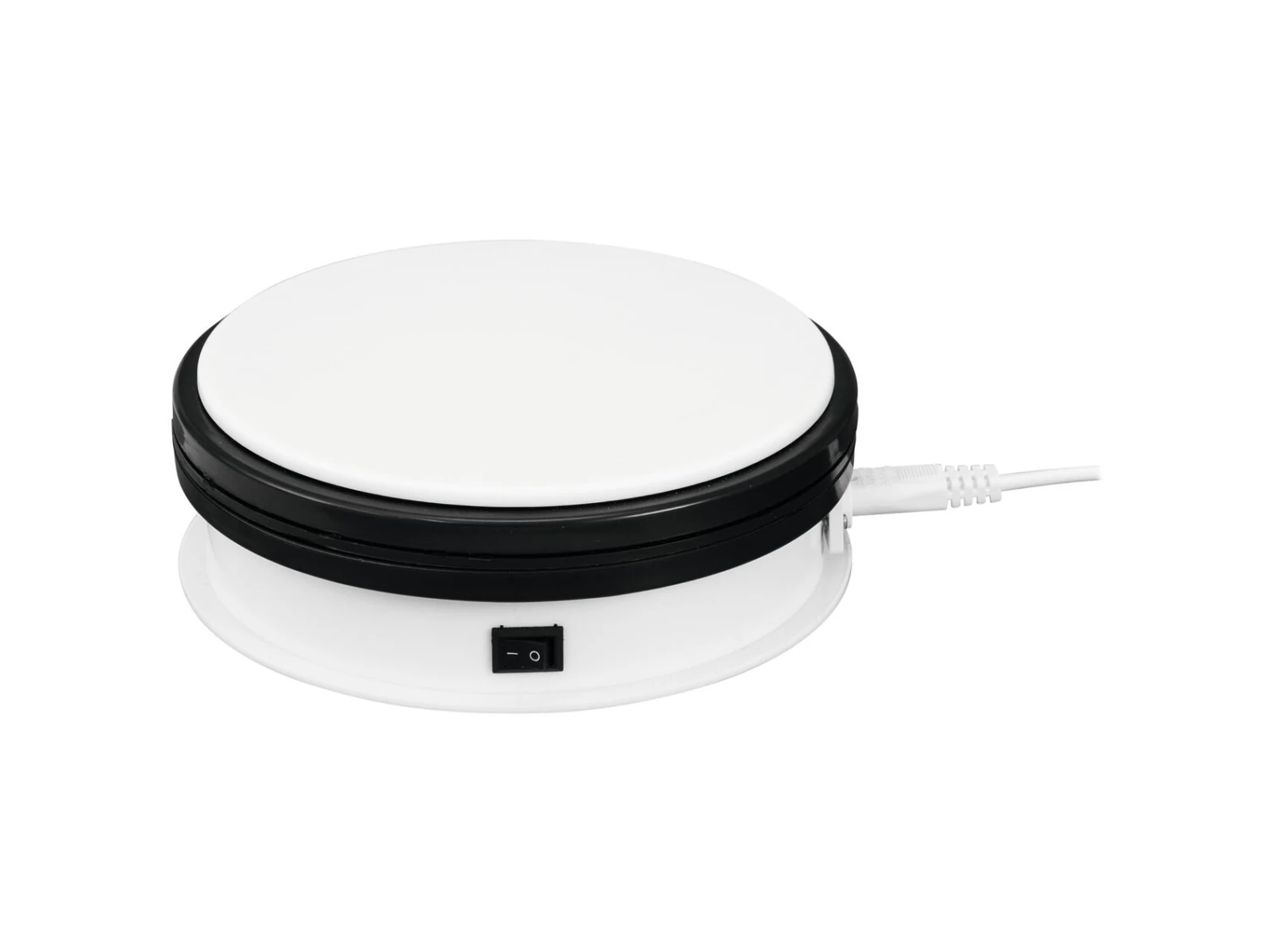

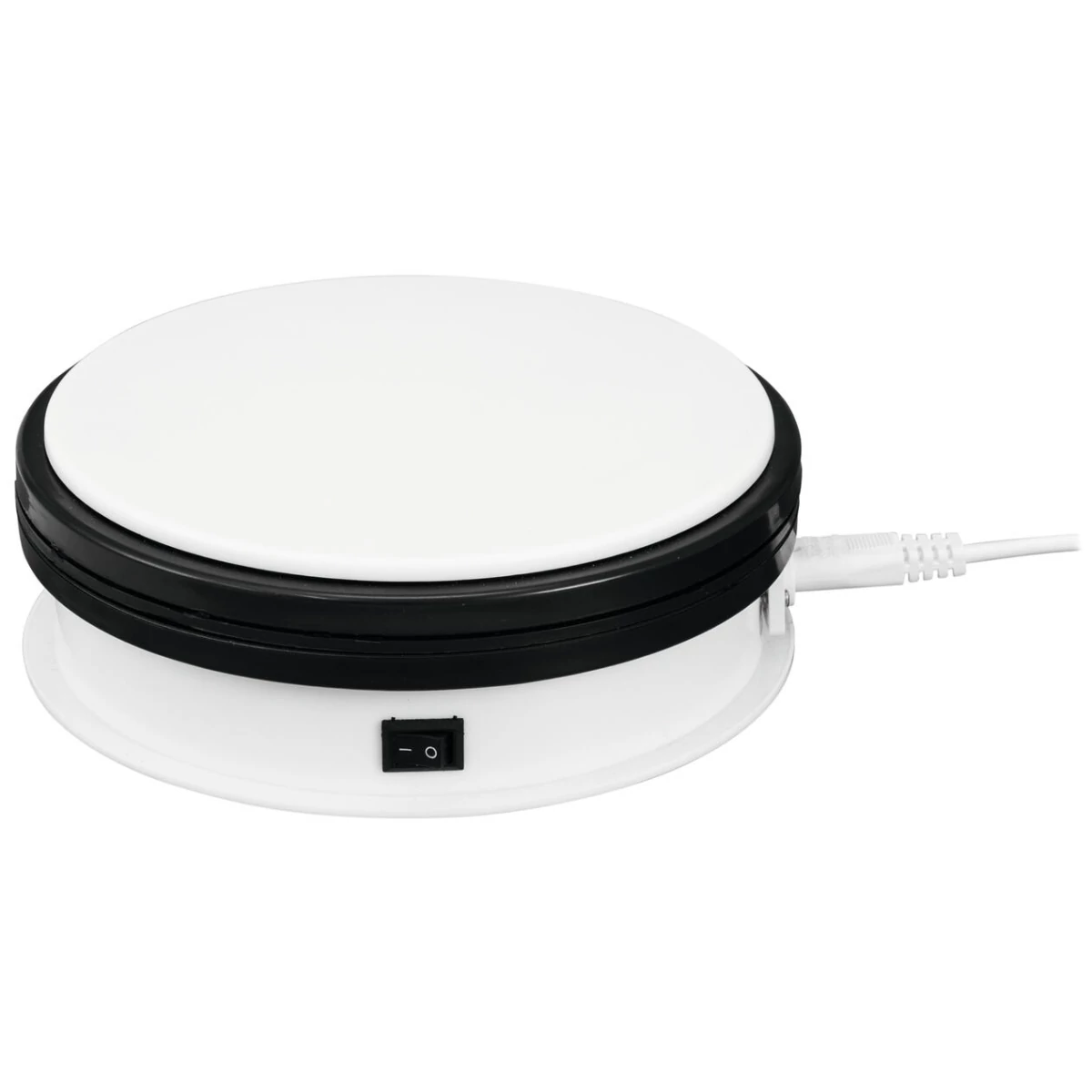

Rotating support for product presentation in salesrooms
Perfect presentation thanks to rotary plateThe electrical rotary plate by EUROPALMS is ideal to promote your products with style. No matter if it is at a trade fair or in a window display, this rotary plate makes any product a real eye-catcher.Small power packageThe high-performance motor has been developed for permanent use and can move products with a weight between 5 and 40 kg, depending on the model. The rotary plate is delivered ready to use. It is equipped with a Euro power cord and is available in 3 different sizes:- 15 cm diameter - 5 kg maximum load with 2.4 rpm- 25 cm diameter - 25 kg maximum load with 1 rpm- 45 cm diameter - 40 kg maximum load with 0.5 rpmAvailable in different colorsThe housing impresses with its elegant design and is available in the colors silver, black and white. The choice is up to you!
- Control via on/off switch on device
- Available in various colors and sizes
- Classy design
- For application areas such as: Wedding/gala/events; trade fair construction
Package contents
- 1 x device, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| Power consumption | 4 W |
| IP classification | IP20 |
| Protection class | Protection class II |
| Power connection | Mains input via C8 (M) "figure 8" mounting version power supply cord with Euro plug (provided) |
| Fuse | 5 x 20 mm, F 0,2 A fuse replaceable |
| Speed | 2,4 RPM , 360 ° forward/backward |
| Control | On/off switch on device |
| Maximum load | 5 kg |
| Color | White, matte |
| Dimensions | Height:6 cm |
| Diameter | Ø 15 cm |
| Weight | 570 g |
| Power cord | |
| Cable construction | 2 x 0,75 mm² H03VVH2-F |
| Cable length | Approx. 1,8 m |
| Color | White |
