Leírás

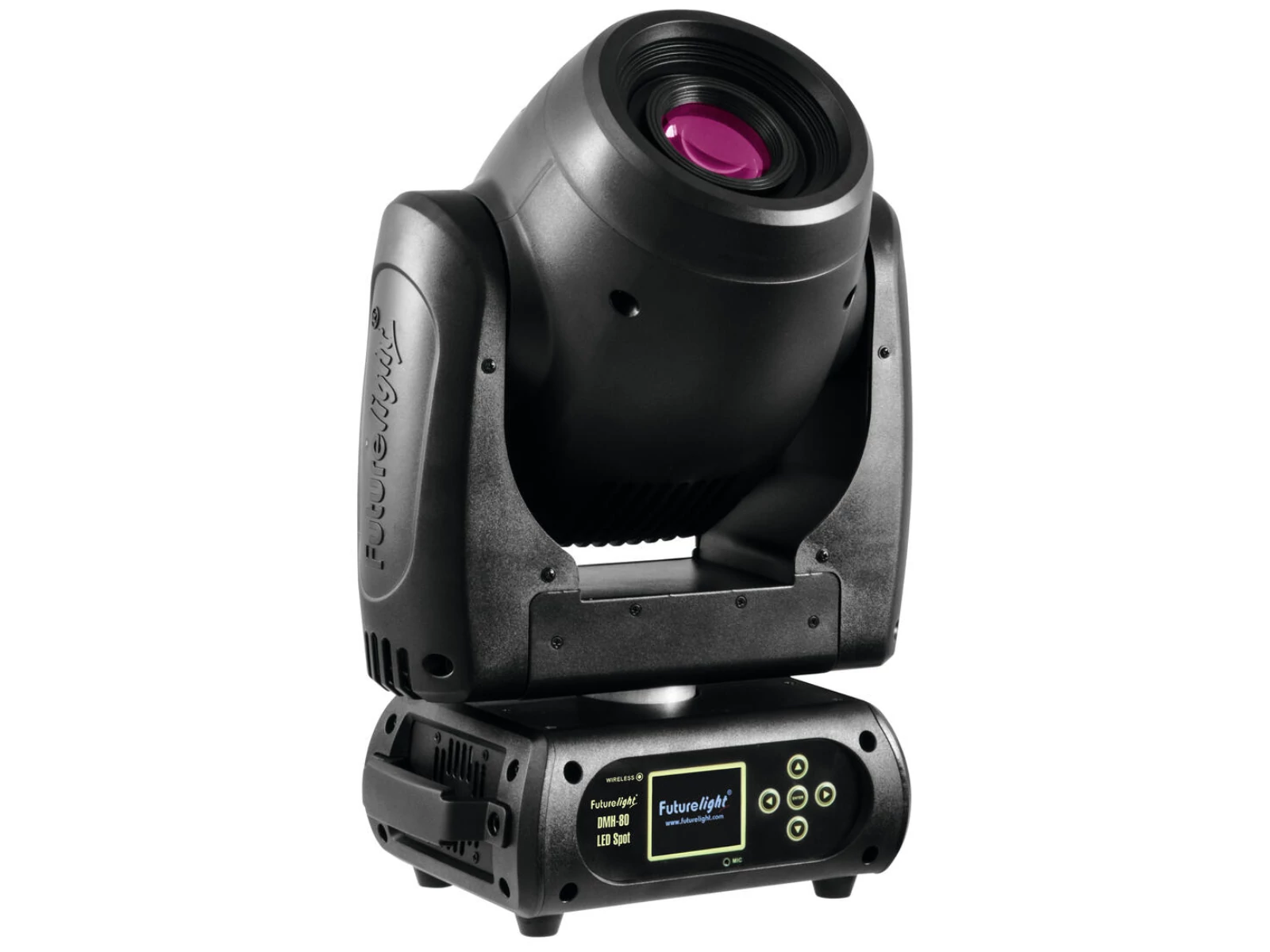

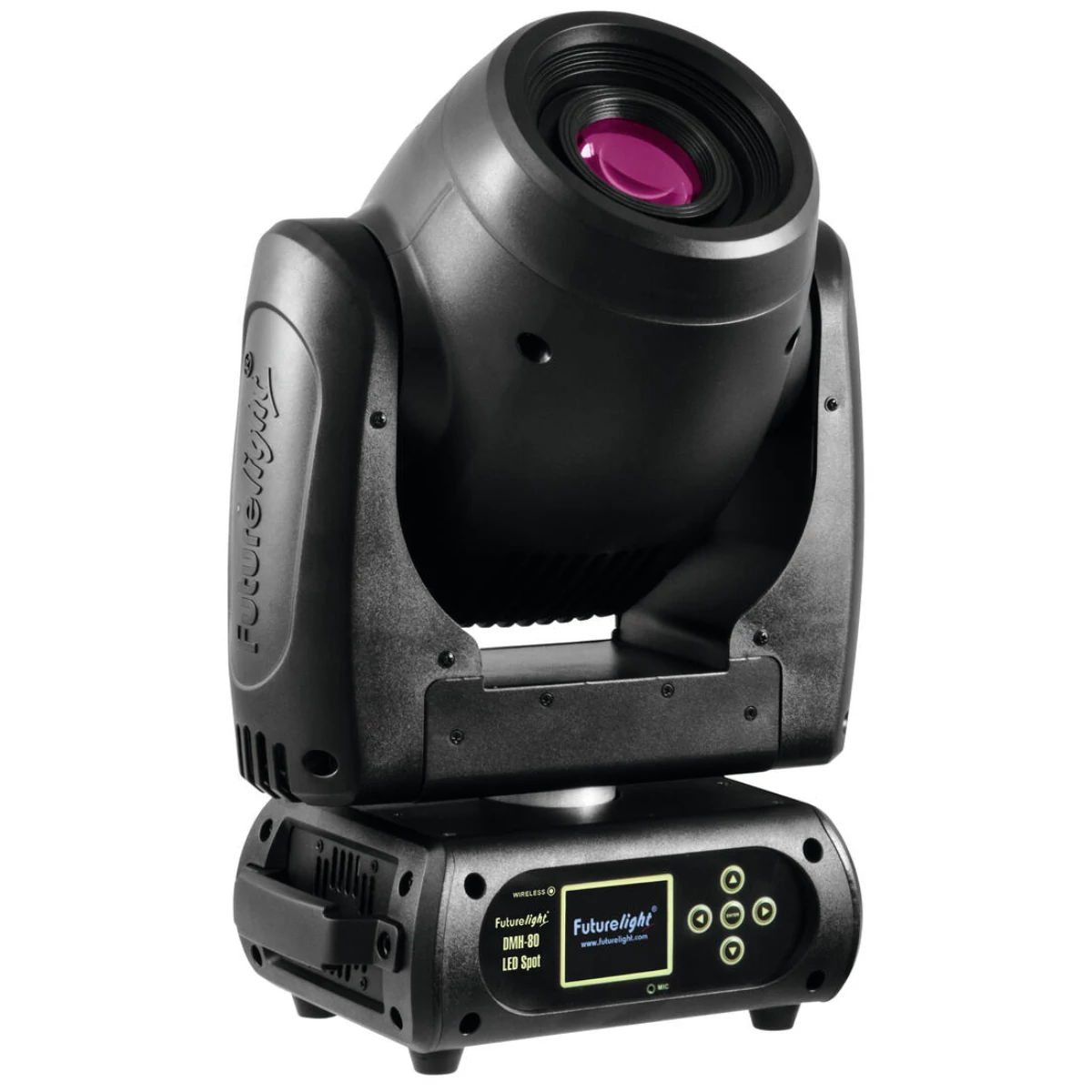

PRO moving-head with 75 W LED and unique 16-facet prism
- High PAN/TILT speed
- Number of scenes can be changed individually
- The scenes can be modified via the Control Board or via an external controller and loaded into the memory
- 1 powerful LED 75 W COB (chip-on-board) cold white (CW)
- Positioning within 540° PAN and 270° TILT
- PAN angle switchable between 540° and 630°
- Auto position correction (feedback)
- Exact positioning (16 bit resolution)
- Gobo wheel with rotating gobos; Prism 16-fold rotating; Focus motor-driven
- Gobo effect; beam effect; Strobe effect
- Color wheel with 8 dichroic filters plus open
Rainbow effect with adjustable speed in both directions - Gobo wheel with rotating gobos, 7 gobos and open
shake effect - Gobos changeable
- Slot-in gobo system for easy gobo replacement
- The device is cooled by temperature-controlled fan
- Control via stand-alone; DMX; RDM; Sound to light via Microphone; W-DMX by wireless solution upgradeable
- With a beam angle of 10° - 16°
- Multicolor LCD display
- Dimmer electronic
- Preprogrammed in LED PC-Control 512; Light Captain
Package contents
- 1 x moving light, 1 x user manual, 1 x power cord, 1 x declaration of conformity, 1 x xLR cable, 1 x omega bracket
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 135 W |
| IP classification | IP20 |
| Power connection | Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided) |
| Power output | 1 x PowerCON (gray), mounting version |
| Lamp type | LED lamp |
| LED | 1 x 75 W COB (chip-on-board) cold white (CW) |
| Max. TILT movement | 270° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Max. PAN movement | 540°, 630° Exact positioning (16 bit resolution) Auto position correction (feedback) |
| Equipment | Gobo wheel with rotating gobos; Prism 16-fold rotating; Focus motor-driven |
| Color generation | Color wheel with 8 dichroic filters plus open |
| Rainbow effect with adjustable speed in both directions | |
| Gobos | Gobo wheel with rotating gobos, 7 gobos and open |
| Outside diameter 24mm | |
| Image diameter 19mm | |
| Shake effect | |
| Gobos changeable | |
| Slot-in gobo system for easy gobo replacement | |
| DMX channels | 11; 13; 17; 18 |
| DMX input | 1 x 5-pin XLR (M) mounting version |
| DMX output | 1 x 5-pin XLR (F) mounting version |
| Cooling | Temperature-controlled fan |
| Control | Stand-alone; DMX; RDM; Sound to light via Microphone; W-DMX by wireless solution upgradeable |
| Preprogrammed in | LED PC-Control 512; Light Captain |
| Beam angle | 10° - 16° |
| Beam angle (1/2 peak) | 10 - 16° |
| Beam angle (1/10 peak) | 10 - 16° |
| Illuminance in Lux (lx) | Narrow cold white (CW) 3m:8334 lx, 6m:2169 lx |
| Wide cold white (CW) 3m | 5211 lx, 6m:1339 lx |
| Housing color | Black |
| Display type | Multicolor LCD display |
| Dimensions | Width:29,9 cm |
| Depth | 25,2 cm |
| Height | 39,8 cm |
| Weight | 9,55 kg |
| Noise classification | Class 2 (slight noise) |
| Legal specifications | |
| Special product | Not designed for household room illumination |
| Intended use | Show effect lighting |
