Leírás

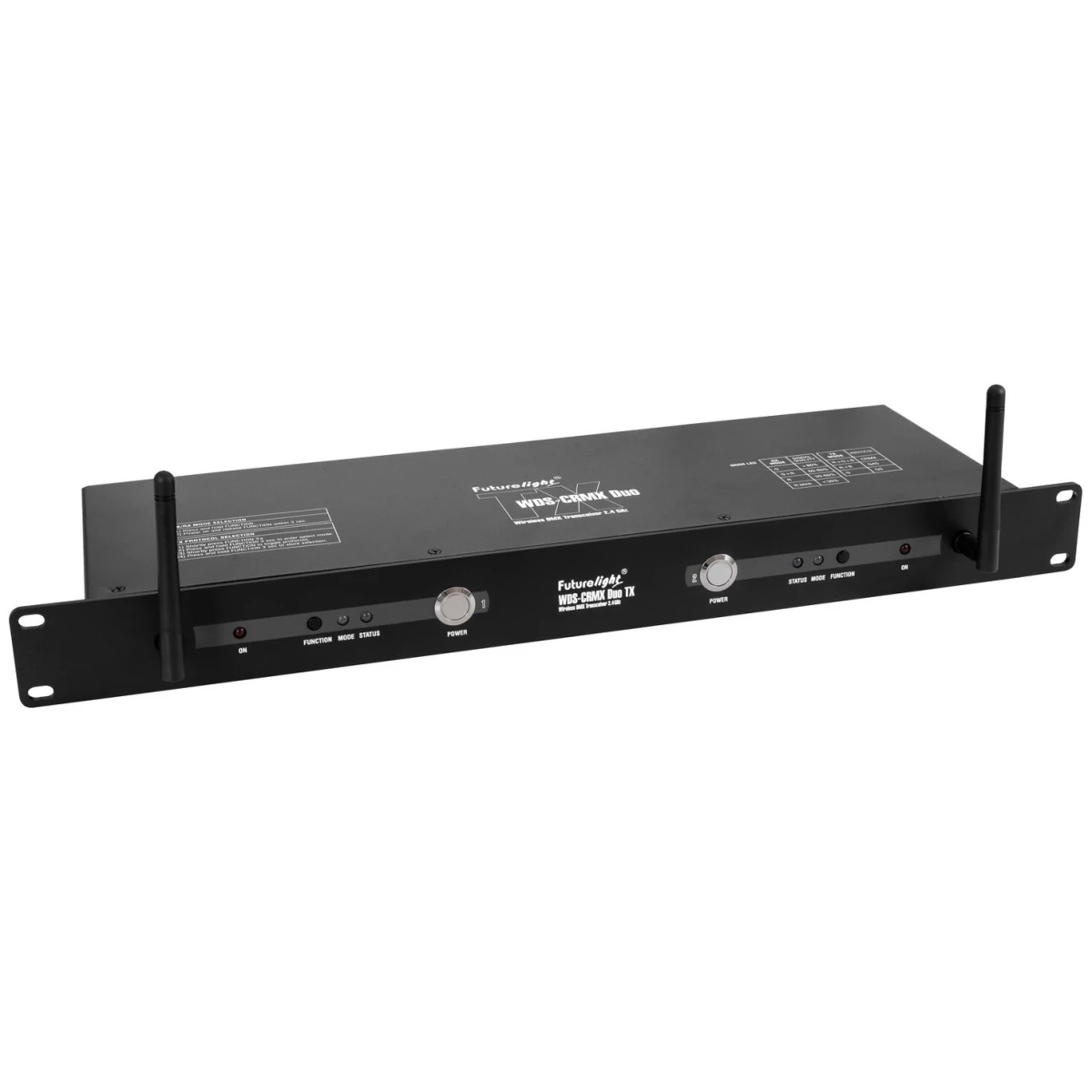

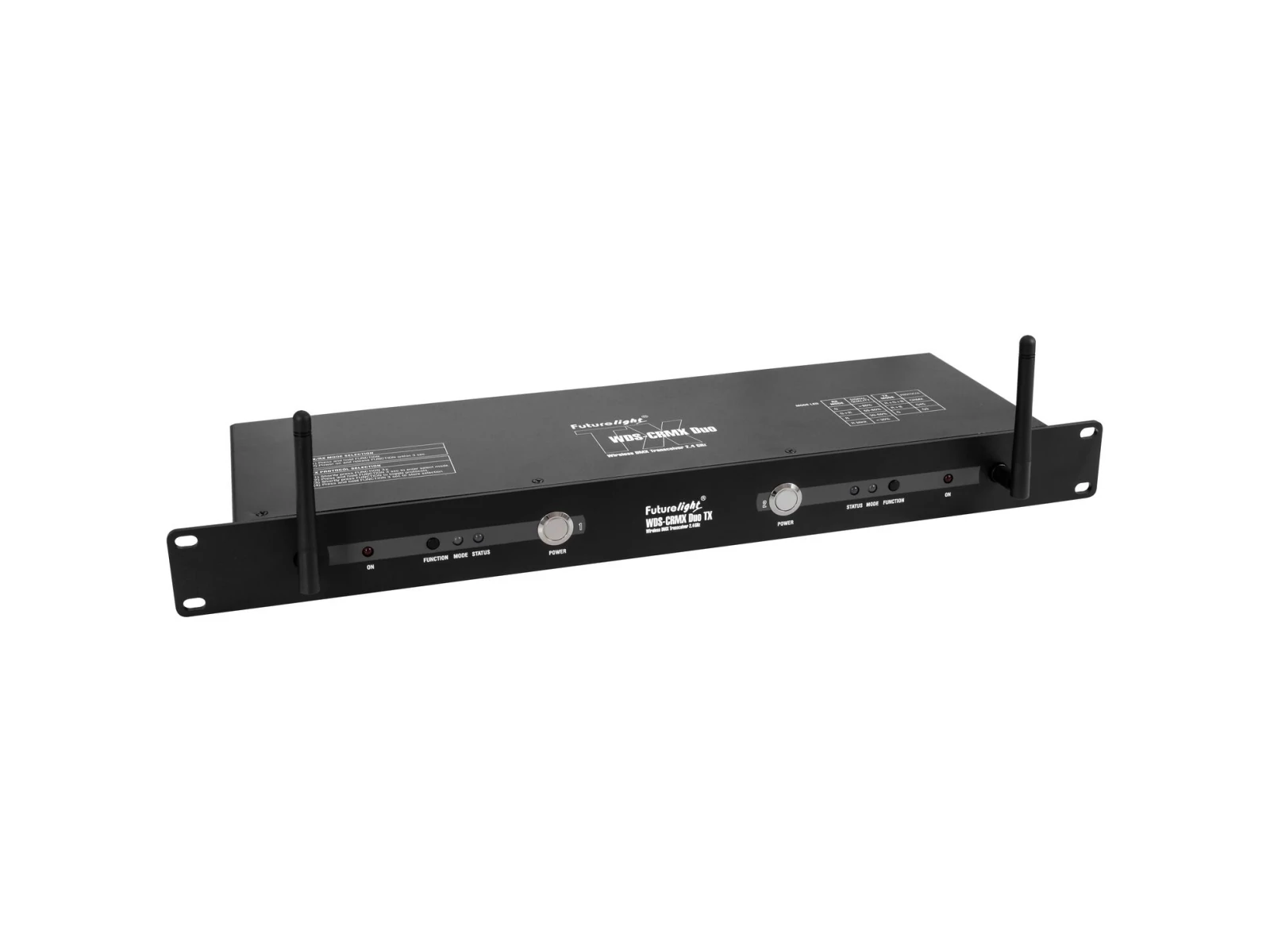

Wireless DMX system 2.4 GHz - two transceivers with CRMX unit in 19" housing
- Transceiver, to be used as transmitter or receiver
- Control via CRMX by LumenRadio; W-DMX by wireless solution
- Adaptive frequency hopping ensures interference-free operation in the 2.4 GHz band
- Can receive and process up to 1024 DMX channels
- Can transmit up to 1024 DMX channels
- Operating range up to 600m with line-of-sight
- Multicolored LED indicator
- Mains input and output for power linking up to 8 units
- (19") 48.3 cm rack installation 1 U
- Up to 10 transmitters can be operated in parallel without interference
Package contents
- 1 x device, 1 x user manual, 1 x power cord, 1 x declaration of conformity
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| Power consumption | 3 W |
| IP classification | IP20 |
| Protection class | Protection class I |
| Power connection | Mains input via P-Con (blue), mounting version power supply cord with safety plug |
| Power output | P-Con (gray), mounting version |
| Device fuse | T 1 A Fuse serviceable |
| DMX channels | Input 1024 |
| Output 1024 | |
| DMX input | 2 x 3-pin XLR (M) mounting version |
| 2 x 5-pin XLR (M) mounting version | |
| DMX output | 2 x 3-pin XLR (F) mounting version |
| 2 x 5-pin XLR (F) mounting version | |
| Control | CRMX by LumenRadio; W-DMX by wireless solution |
| Range | Range up to 600m with line-of-sight |
| Carrier frequency | 2,4 GHz |
| Parallel mode | Max. 10 transmitter |
| Antenna gain | 3 dBi |
| Modulation | GFSK |
| Status LED | DMX, level meter, power |
| Color | Black |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Length:48,3 cm |
| Depth | 14,0 cm |
| Height | 44 cm |
| Weight | 1,33 kg |
