Show laser class 3B with 900 mW power in red, green, blue

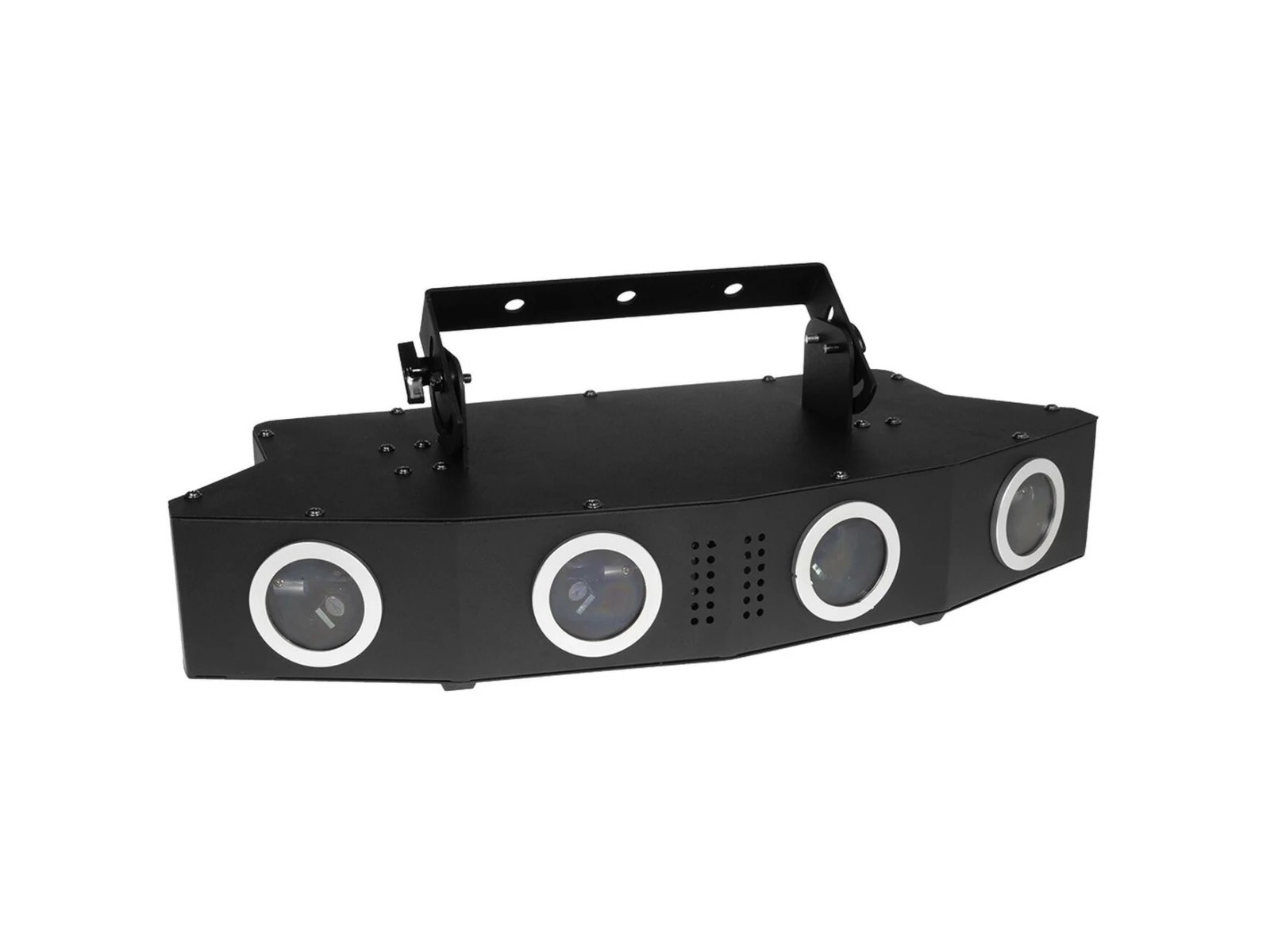

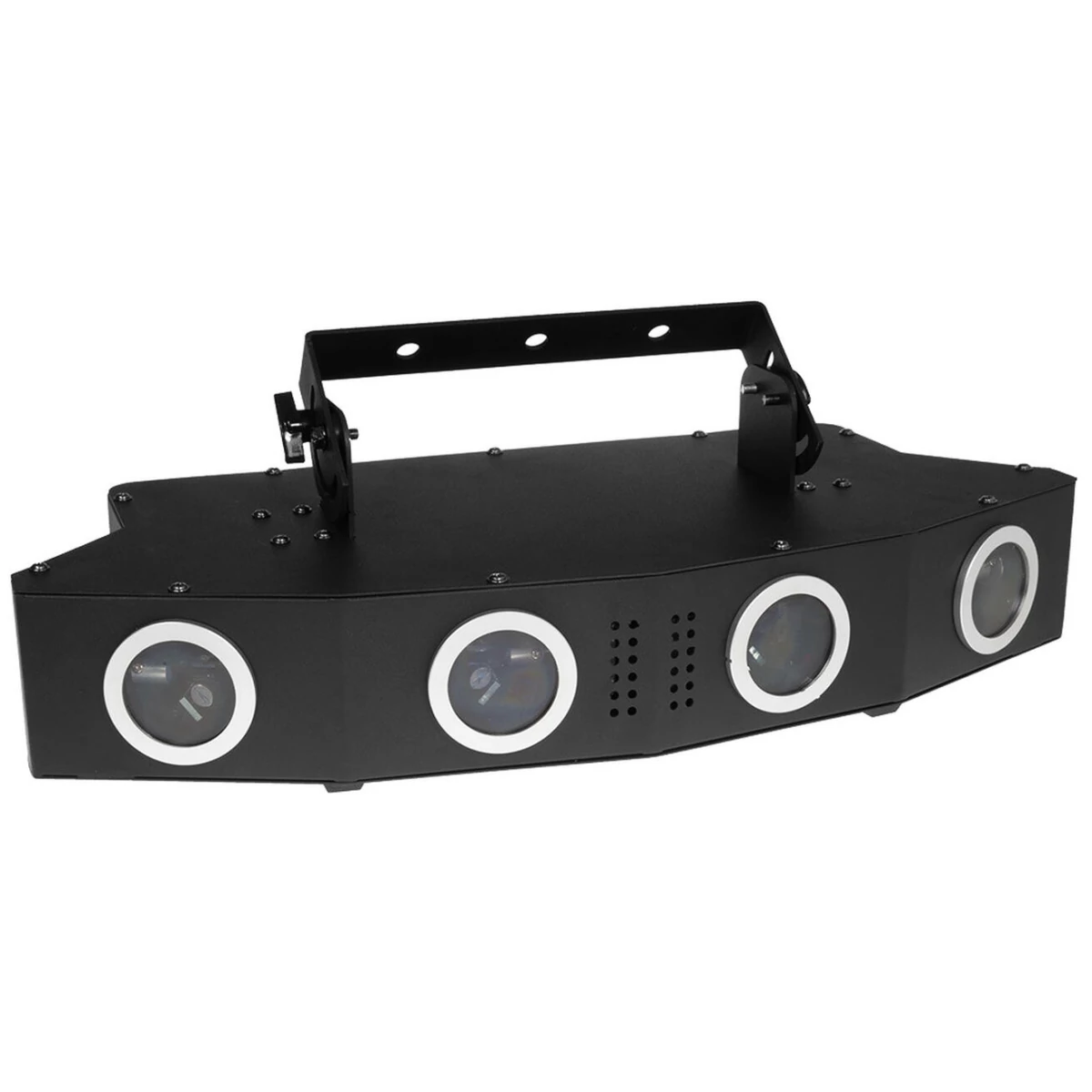

The Laserworld EL-900RGB is a complete laser show in one device. It has been designed to especially meet the demands of mobile DJs and smaller nightclubs to fill the whole room and overcome the limits of rather narrow scan angles. The EL-900RGB is an RGB show laser system with a total overall output power of up to 900mW and fast step motors with 3-8 kpps. it has four beam apertures with an individual pair of step motors.Many of the built-in patterns have been programmed in a way that the four laser outlets play well together and fill the whole room, like a multi unit laser show. The curved shape of the unit allows for a very large horizontal deflection angle, so the laser can cover the whole room.The Laserworld EL-900RGB can be run in sound-to-light, stand alone or DMX mode. It can display many different colors, including white!The red diode laser module with a wavelength of 650nm, the green DPSS laser module with a wavelength of 532nm and the royal-blue laser module with a wavelenght of 450nm ensure beautiful colors and bright beams. The beam has 3 mm diameter at aperture and a divergence of about 2 mrad. About 50 preset basic patterns, like layers, tunnels, fences, waves etc. are included. Many of them do not output all the same way on all four laser outlets, but some of the x-axis mirrored or modified in a way, that the laser display looks nice and homogenous. The sensitivity of the integrated microphone can be adjusted for the soud-to-light signal perception.
- Control via DMX; stand-alone; Master/slave function; Sound to light via Microphone
- For application areas such as: Clubs/dancing school
- Application possibility: Suspended
- For further information about this product, please refer to the Data Sheet under "Downloads"
Package contents
- 1 x laser, 1 x user manual, 1 x power cord, 1 x key, 1 x interlock
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
IP classification | IP20 |
Power connection | Mains input via IEC connector (M) mounting version |
Laser class | 3B |
Laser color | R/G/B |
Laser module | Green (G) 150 mW 532nm |
Blue (B) 350 mW 450nm | |
Red (R) 400 mW 650nm | |
DMX input | 1 x 3-pin XLR (M) mounting version |
DMX output | 1 x 3-pin XLR (F) mounting version |
Control | DMX; stand-alone; Master/slave function; Sound to light via Microphone |
Housing color | Black |
Dimensions | Width:24 cm |
Depth | 53 cm |
Height | 9 cm |
Weight | 5,5 kg |
