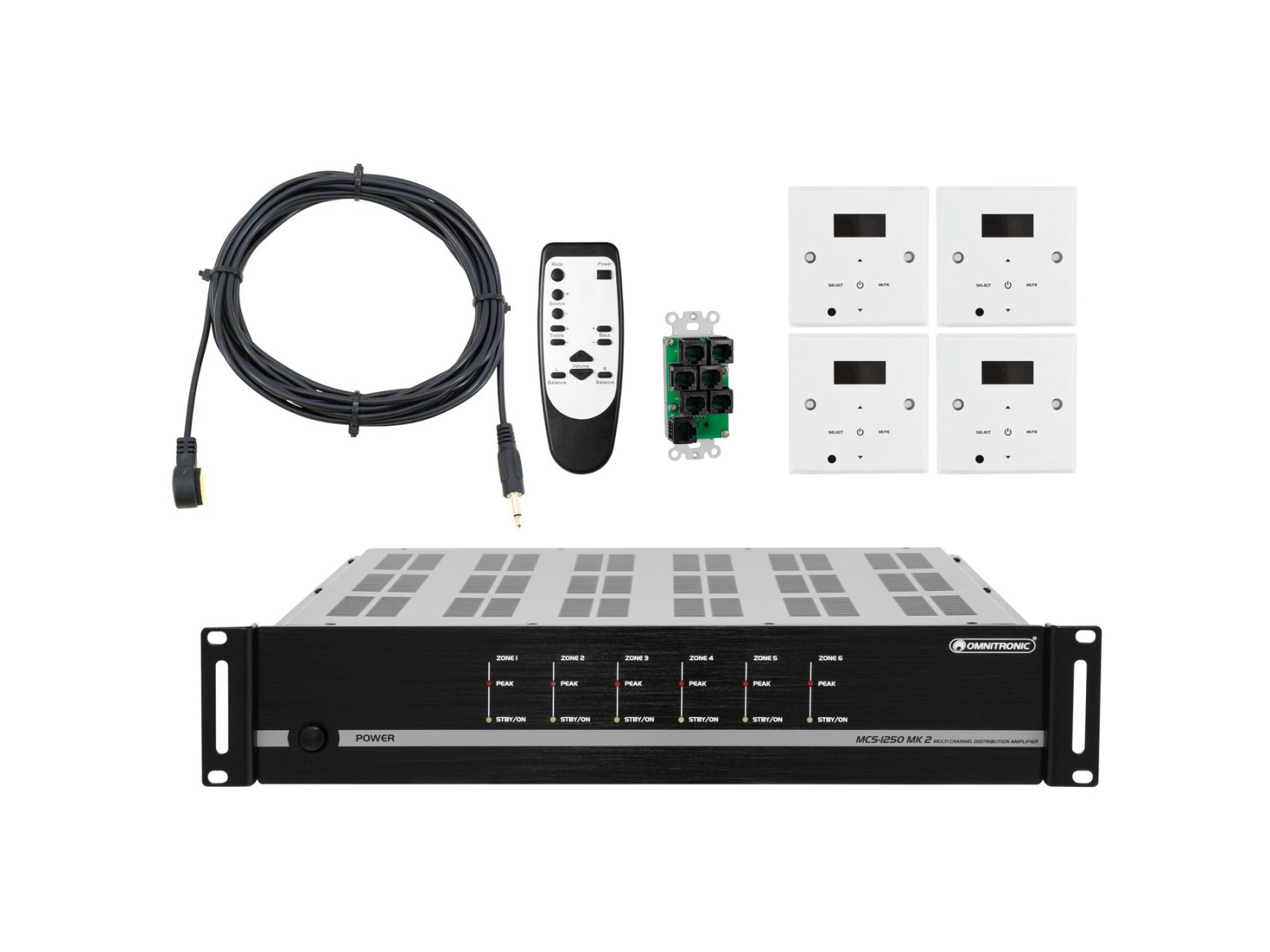

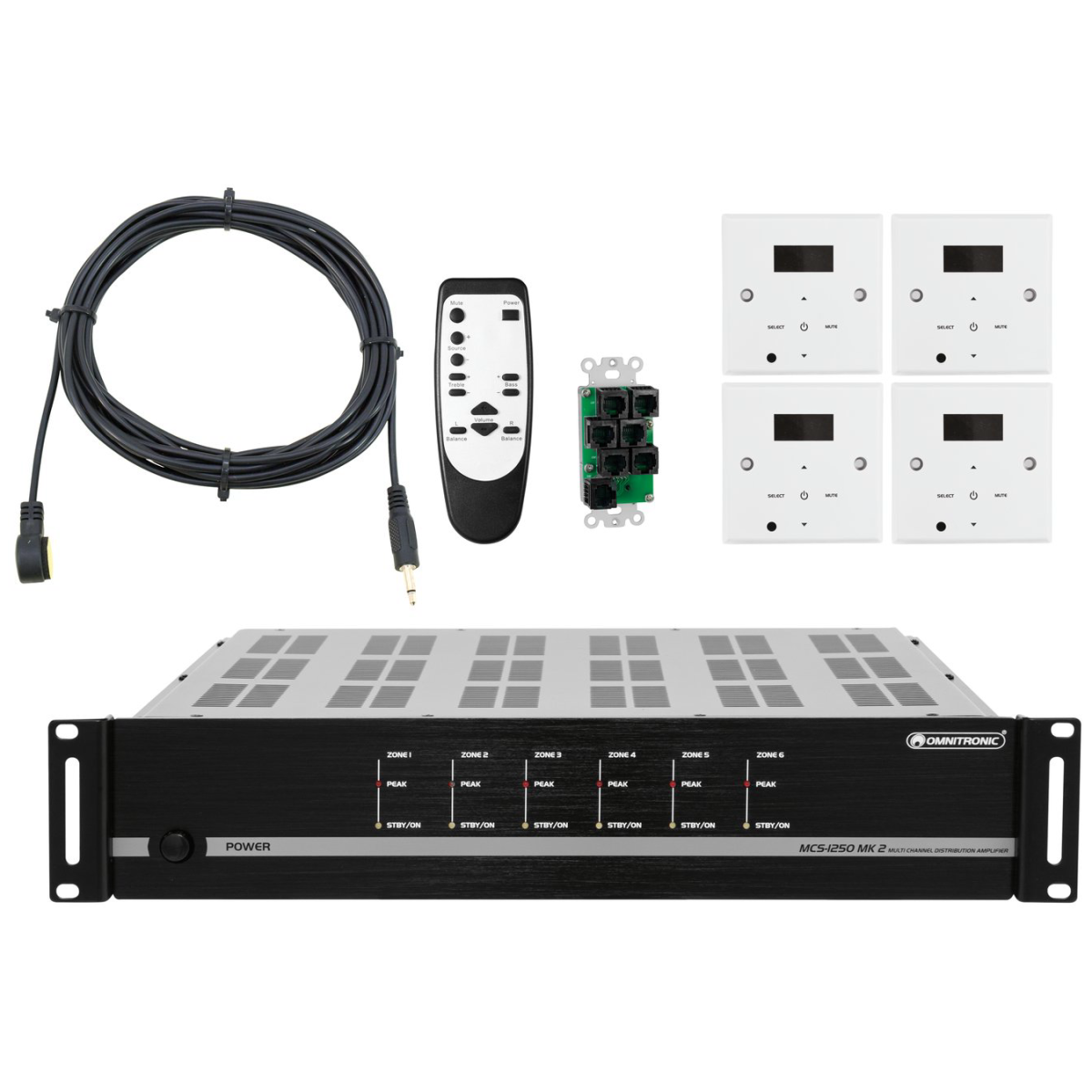

OMNITRONIC Bundle MCS-1250 MK2

6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone

OMNITRONIC MCS-1250 MK2 6-Zone PA Amplifier

• 6-zone stereo amplifier for multi-zone PA applications
• Updated version with touch pad wall controller
• 12 x 50 W/4 ohms per zone
• Bridge mode with 100 W/8 ohms individually selectable per zone
• Efficient Class D technology
• 6 stereo inputs expandable to 18 stereo zones with further units
• Matrix input assignment: input sources are freely assignable to each channel
• 6 pre-amp outputs to connect external power amplifiers
• Convenient control via touch pad wall controller or IR remote control
• Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
• Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
• Automatic gain control selectable for level matching of signal sources
• Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
• RS232 port enables two-way communication with a home automation system
• Trigger input for muting
• 6 trigger outputs for switching external amplifiers
• Control via IR remote control; RS 232
• The device can be connected via RJ-45 (F) mounting version to the PC; The device can be connected via RS 232 to the PC
• (19") 48.3 cm rack installation 2 U

Package contents

• 1 x remote control

OMNITRONIC MCS-1250 MK2 Keypad

MCS-1250 MK2 touch pad wall controller

• Wall controller with touch-sensitive surface (touch pad) for amplifier MCS-1250 MK2
• Allows selecting and adjusting each zone individually: audio source, volume, treble, bass, mute, on/off
• Wiring to amp via hub and network cable (RJ-45)
• Control via IR remote control (optional)
• Monochrome LCD display
• The device can be connected via RJ-45 (F) mounting version to the PC
• Flush mounting

OMNITRONIC MCS-1250 MK2 Hub

MCS-1250 MK2 hub

• Hub for connecting up to 6 wall controllers to the amplifier MCS-1250 MK2
• The device can be connected via RJ-45 (F) mounting version to the PC
• Flush mounting

OMNITRONIC MCS-1250 MK2 Remote Control

MCS-1250 MK2 IR remote control

OMNITRONIC MCS-1250 MK2 IR Emitter

IR remote emitter for MCS-1250 MK2

• Operate your audio/video equipment in other rooms with your existing remote control
• The MCS-1250 MK2 wall controller picks up the signal from your remote control and the IR emitter sends the signal to the A/V component
• Supports all standard A/V components (HDD recorder, set-top box, satellite decoder and stereo) with an infrared sensor
• 3.5 mm jack plug for connecting the MCS-1250 MK2 amplfier

Package contents

• 1 x transmitter
