Leírás

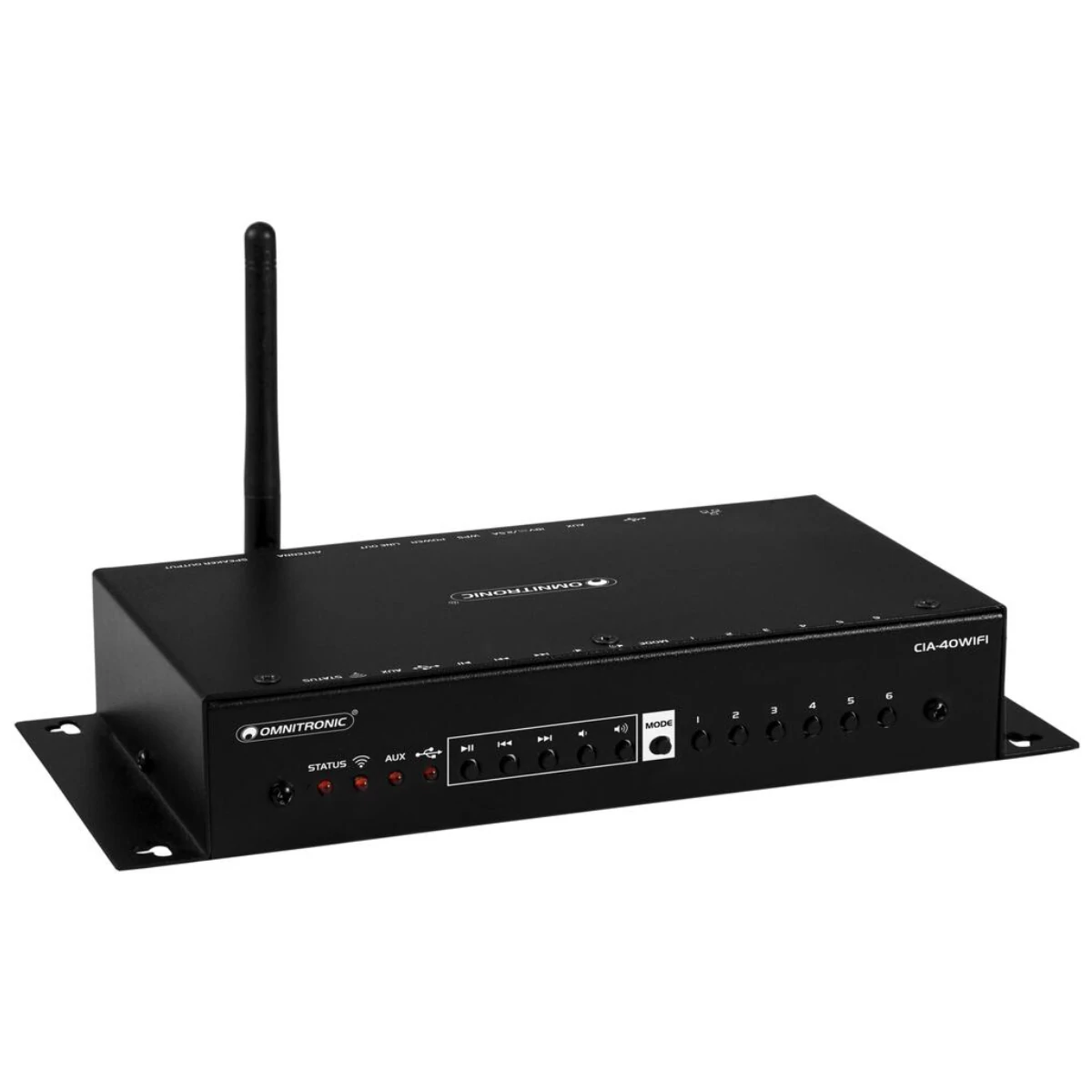

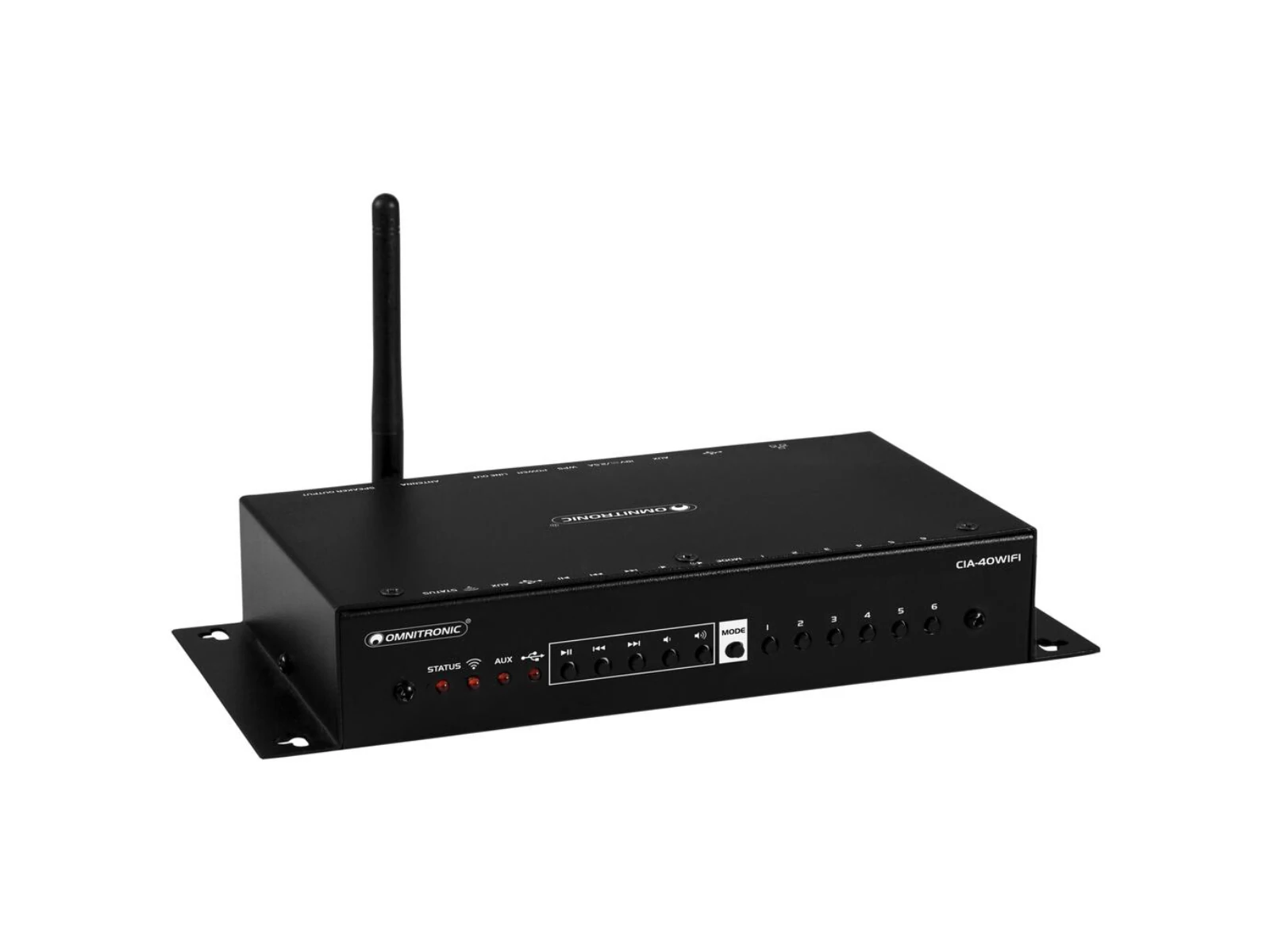

Wireless multi-room amplifier (2 x 25 W) for audio streaming via AirPlay, DLNA and UPnP
Streams and amplifies your favorite music around your homeThe CIA-40WIFI is Omnitronic's new streaming wonder. The wireless multi-room system streams cloud music from your favorite services, such as, Spotify, Tidal, Napster and TuneIn, to speakers you already own. Connect multiple devices in different rooms and enjoy your favorite music throughout the house. Control everything directly from your smartphone and tablet with the free 4STREAM app for iOS and Android.The CIA-40WIFI complies with the DLNA standard and also streams Amazon Music, Apple Music, YouTube and other music sources via AirPlay. You can even connect your analog audio devices such as turntables, stereos or MP3 players and stream this sound through the multi-room feature. A USB port allows direct connection to flash drives or other storage devices. The CIA-40WIFI gives you the ultimate flexibility in streaming your audio sources.The integrated 2 x 25-watt class D amplifier delivers perfect hi-fi sound for your speakers. Whether they are floorstanding, in-wall or ceiling speakers - the CIA-40WIFI is capable of powering any low-impedance loudspeaker type. Active speakers are also compatible and can be connected via the line output.Use the control buttons to directly control your music selection, volume, and playback. Especially handy for Internet radio: 6 station memories for your favorite stations. The CIA-40WIFI starts automatically with the last selected music source. This means that the last played album, playlist or radio station is simply resumed without you having to do anything.The CIA-40WIFI can be integrated into your network within seconds using WPS technology. It also provides an Ethernet jack for a wired network connection. The robust metal housing has mounting strips for simplified wall mounting and measures 14 x 22 x 11 cm. Delivery includes an English operating manual, the power supply unit and a WiFi antenna.
- Enjoy wireless audio streaming with hi-fi quality from your smartphone, tablet, PC and Mac
- Receives audio signals via Wi-Fi and transmits these to existing speakers
- Multi-room function for fully synchronized playback in every room
- WPS function for easy integration into your home network within seconds
- Supports streaming via AirPlay from all Apple iOS devices
- Supports streaming via DLNA from Android, Windows and other DLNA-enabled devices
- Supports streaming via UPnP from all NAS hard disks
- Supports TuneIn with a vast selection of internet radio stations from all over the world
- Supports popular online music providers such as Spotify, Tidal, Napster, Amazon Music and more
- Streams YouTube, Amazon Music, Apple Music and other audio sources via AirPlay
- Streams locally stored music without an internet connection
- Supports all popular audio formats including lossless audio: MP3, WMA, AAC/AAC+, ALAC, FLAC, APE, WAV
- 6 preset buttons for easy access of radio stations (TuneIn only)
- 6 buttons for direct playback control (audio source, play/pause, volume, next/previous title)
- USB port for storage media and portable players
- 3.5 mm AUX input for analog audio equipment such as turntables, stereos or MP3 players
- RJ45 port for network connection via Ethernet cable
- Speaker connection (4-8 ohms) via screw plug terminals
- RCA output for connecting stereos or active speakers
- Rugged, compact metal housing with mounting brackets
- Control via network cable; 4STREAM app; Wi-Fi
- 2.4 GHz license-free worldwide
- For application areas such as: Installation; restaurants, bars and hotels; sports centres/gyms; home entertainment
Package contents
- 1 x device, 1 x external mains adapter, 1 x antenna, 1 x user manual, 1 x declaration of conformity
Manuals
ManualsParaméterek
Power supply | 100-240 V AC, 50/60 Hz |
18 V DC 2,5 A | |
Power consumption | Max. 50 W |
Output power | 25 W RMS (4 ohms) |
Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
Number of channels | 2 |
Frequency range | 20 - 20000 Hz |
S/N ratio | >80 dB |
THD | <0,04 % at 1 kHz |
Wi-Fi | Standard:IEEE 802.11 b/g/n |
Control | Network cable; 4STREAM app; Wi-Fi |
Supported av protocols | DLNA, UPnP, AirPlay, Spotify Connect, QPlay |
Frequency band | 2.4 GHz |
Circuitry | Class D |
Control elements | Navigation keys |
Status LED | Signal, chanal source |
Connections | Antenna via 1 x SMA (F) mounting version |
Network connection via 1 x RJ-45 (F) mounting version | |
Line via 1 x USB A (F) mounting version | |
Input | AUX via 1 x 3.5 mm jack (stereo) mounting version |
Output | speaker via screw plug-in terminal |
Output | line via 1 x stereo RCA |
Music format | MP3, WMA; AAC/AAC+, ALAC; FLAC, APE; WAV |
USB port | Typ A |
Material | Metal |
Color | Black |
Dimensions | Width:23 cm |
Depth | 14 cm |
Height | 11 cm |
Weight | 800 g |
