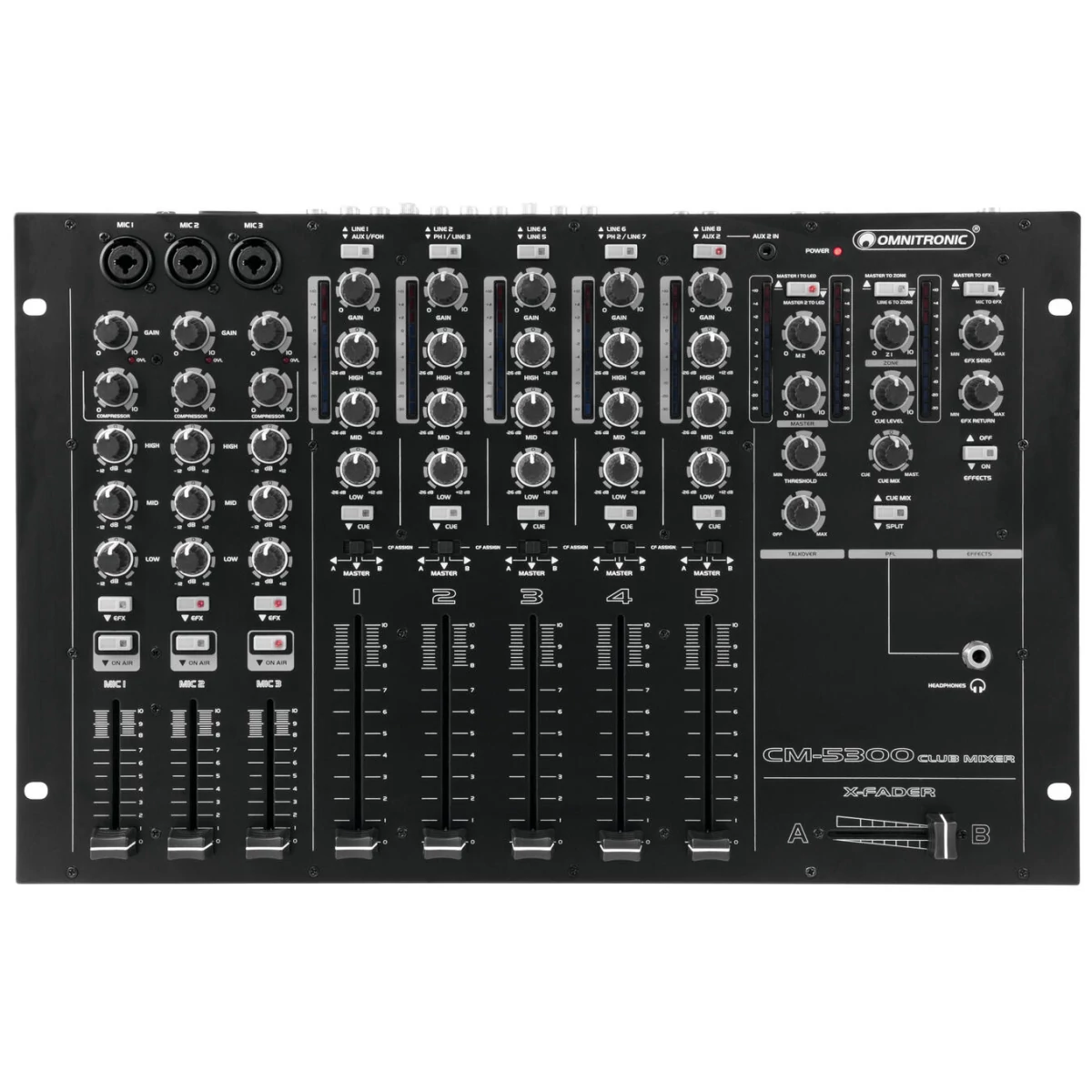

PRO 5-channel club mixer

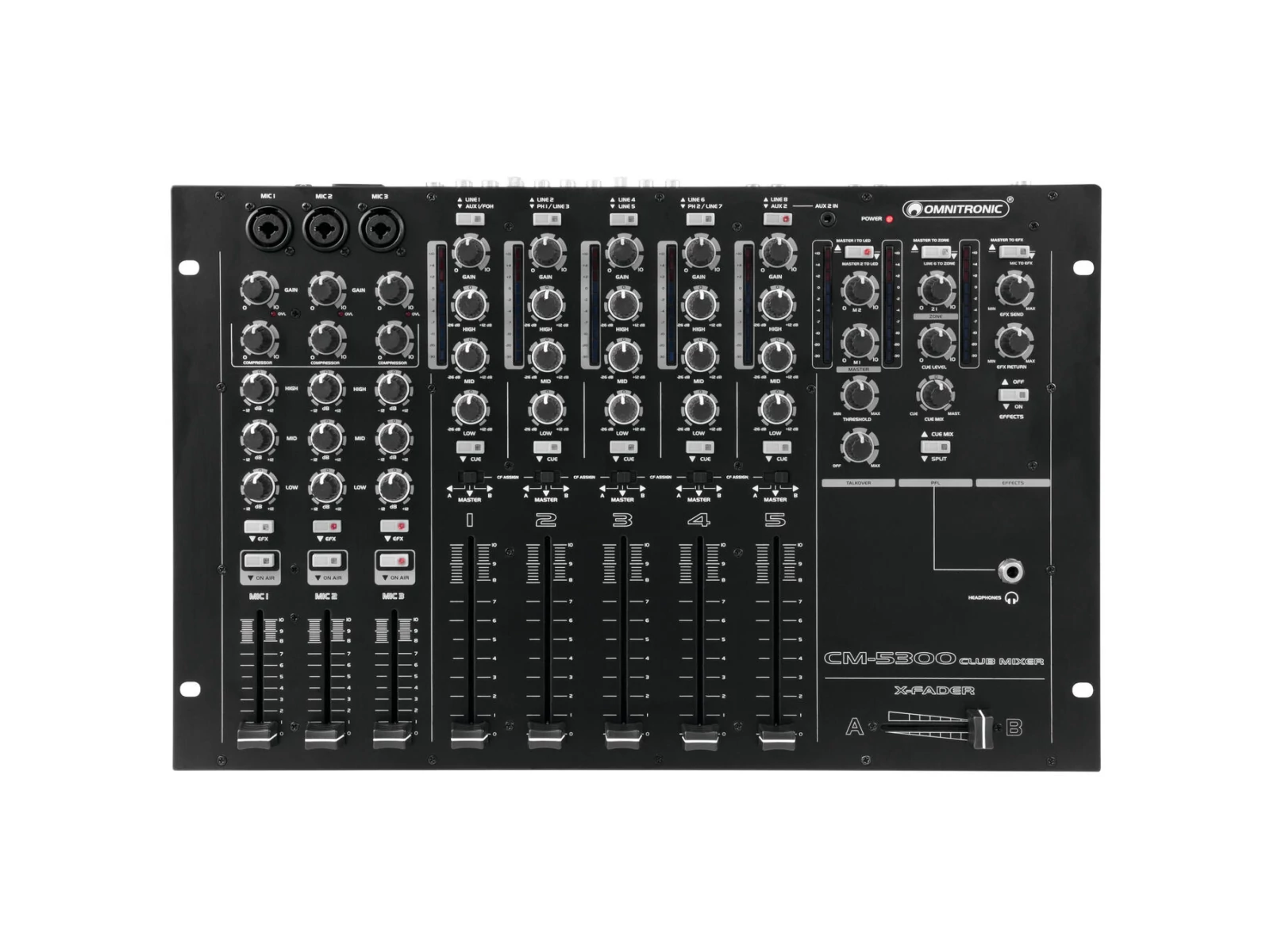

The CM-5300 is a high-grade stereo mixer with an extensive feature set for clubs and numerous mobile PA applications. The 3 microphone channels have a one-knob compressor, adjustable talkover function and a 3-band EQ. the 5 stereo channels come with gain controls, individual VU meters, 3-band kill EQs, 100mm dual-rail faders and assignable crossfader. Channel 1 can be used for FOH signals, channel 6 features a 3.5mm AUX input. The stereo and mono output sections have their own level meters, trimmers for adjusting the maximum output level and electronically balanced XLR connectors. In addition, a subwoofer output with built-in active crossover is provided. The mixer can be used as a table-top unit or installed in a rack.
- High-grade stereo mixer for clubs and numerous mobile PA applications
- 5 stereo input channels with gain control, 3-band kill EQ (+12/ -26 dB) and 10-digit LED level meter
- Front panel AUX input
- Rear stereo input FOH for stage mixers
- Smooth dual-rail channel input faders (60 mm/100 mm)
- 3 microphone input channels with front combo connector
- Gain control, peak LED, 3-band EQ and on air switch per microphone channel
- One-knob compressor per microphone channel
- 2-parameter adjustable auto talkover for automatic music level reduction when microphone is used
- Fully assignable smooth dual-rail crossfader (45 mm)
- Master section with two separately controllable stereo outputs, output 2 switchable to mono
- 10-digit stereo LED level meter, switchable between both master outputs
- Balanced XLR and RCA outputs
- Additional mono zone output (with switchable 80Hz HPF) which can be routed to the master bus or channel 5
- 10-digit LED level meter for the zone output
- Mono subwoofer output with integrated active crossover (frequency/level adjustable)
- All outputs with rear-side maximum level setting controls
- Adjustable effects send/return path, assignable to mic or master bus
- PFL section with PFL/master mix control and cue mix/split option
- Record output, independent of the master
- (19") 48.3 cm rack installation 7 U
- For application areas such as: Clubs/dancing school; Installation; mobile djs / entertainer; restaurants, bars and hotels
Package contents
- 1 x mixer, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
Power supply | 115/230 V AC, 50/60 Hz |
Power consumption | 25 W |
Protection class | Protection class I |
Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
Frequency range | 20 - 20000 Hz |
S/N ratio | >82 dB line |
THD | Line <0,05 % at 1 kHz |
Control elements | Cue mix split function, power switch, Crossfader, regular talkover, FX send/returne control |
Status LED | Power, chanal level meter, switchable master level meter, CUE, chanal source; peak, ON AIR, Routing |
Connections | Input:Microphone via 3 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version) |
Input | line via 6 x stereo RCA |
Input | line/phono via 2 x stereo RCA |
Input | AUX via 2 x 6.3-mm-jack (bal.) |
Input | AUX via 1 x 3.5 mm jack (stereo) mounting version |
Input | FX via 1 x 6.3 mm jack socket (stereo) mounting version |
Output | master via 4 x 3-pin XLR |
Output | master via 2 x stereo RCA |
Output | zones via 1 x 3-pin XLR |
Output | rec. via 1 x stereo RCA |
Output | Subwoofer via 1 x 3-pin XLR |
Output | FX via 1 x 6.3 mm jack socket (stereo) mounting version |
Output | headphones via 1 x 3.5 mm jack (stereo) mounting version |
Channels | Input chanel:2 x stereo with Line-AUX switch via RCA or jack plug, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch |
Input chanel | 2 x stereo with Line-Line/Phono switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch |
Input chanel | 1 x stereo with Line-line switch via RCA, channel control via 100mm fader, 3-band tone control EQ, gain control, CUE switch, Crossfader selector switch |
Microphon chanal | 3 x mono via Combination socket (XLR/jack), channel control via 60mm fader, 3-band tone control EQ, gain control, adjustable single-knob compressor, ON AIR switch, FX routing switch |
Master output | 1 x stereo via XLR or RCA, channel control via Rotary dial, Level attenuator |
Master output | 1 x mono + stereo via RCA or jack plug, channel control via Rotary dial, Level attenuator, stereo/mono switch |
Zone output | 1 x mono via XLR, channel control via Rotary dial, source selector, Level attenuator, low cut switch |
Subwoofer output | 1 x mono via XLR, Level attenuator, hi-cut control |
Headphones output | 1 x stereo via Jack, channel control via Rotary dial, Cue mix split function |
Housing design | (19") 48.3 cm rack installation 7 U |
Dimensions | Width:48,3 cm |
Depth | 10,6 cm |
Height | 32,8 cm |
Weight | 6,00 kg |
