Leírás

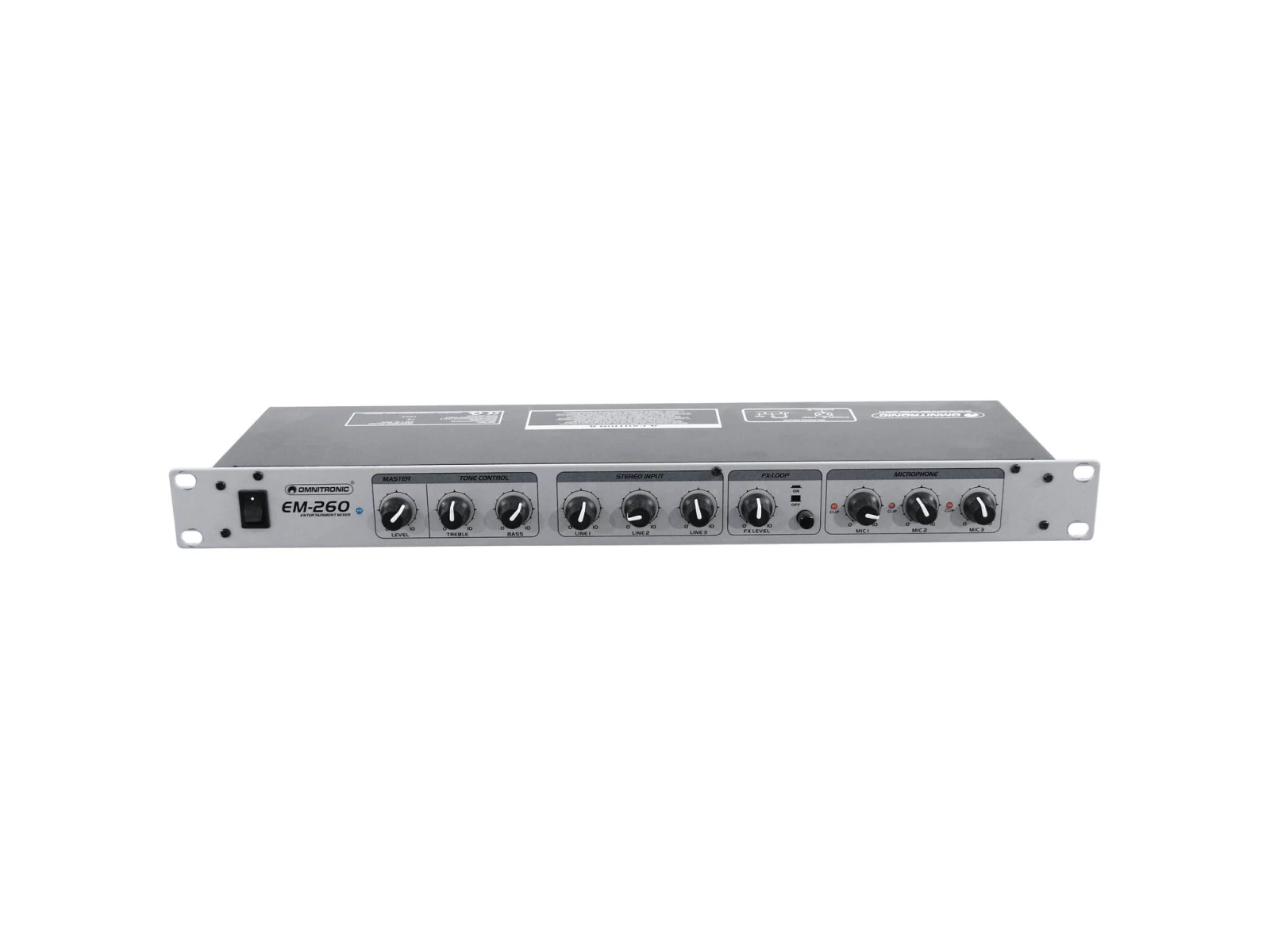

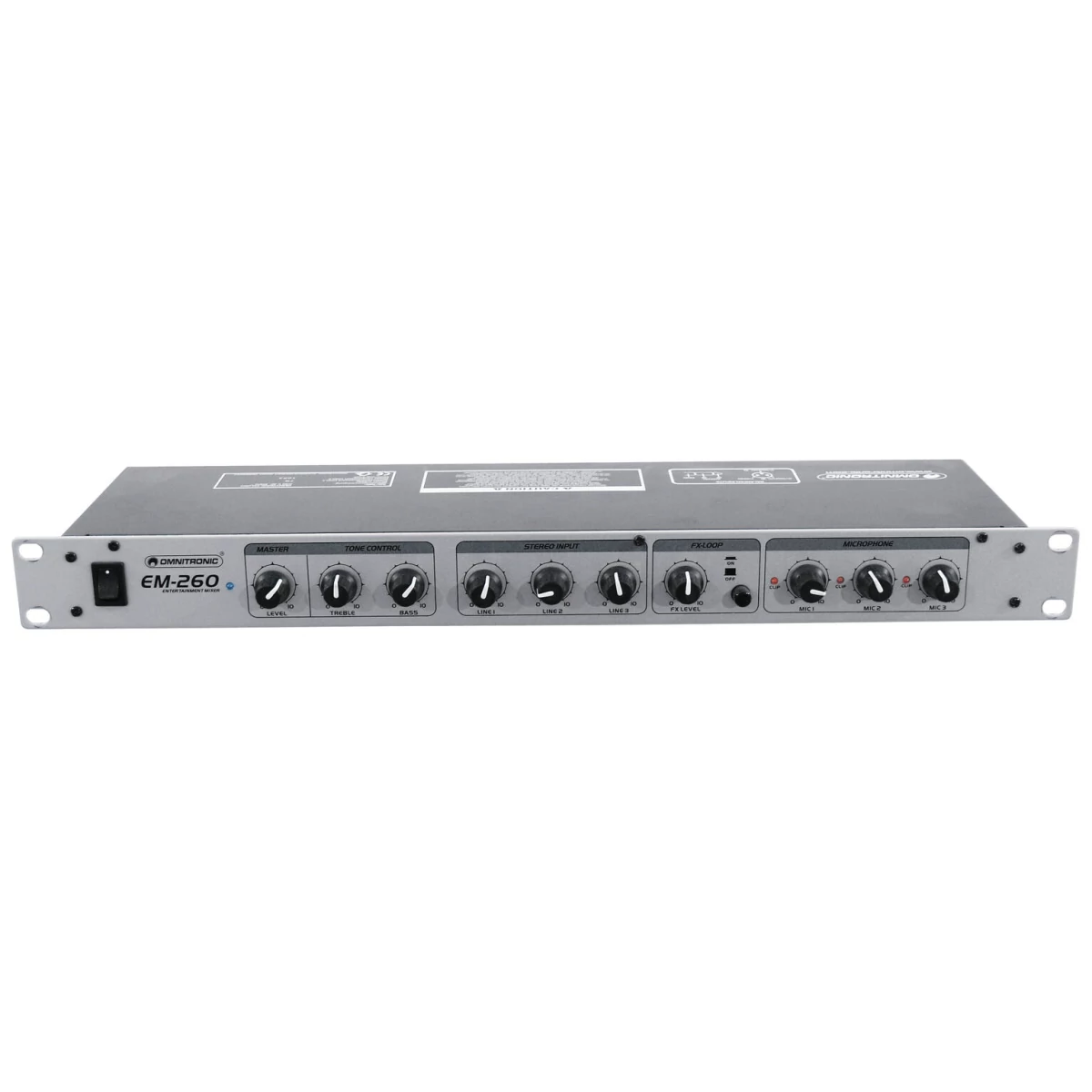

6-channel microphone/line mixer
OMNITRONIC Entertainment Mixer SeriesThe modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.
- 6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
- Ideal e.g. for karaoke when microphones need to mixed with CDs
- 3 mono input channels mic/line (XLR, bal.), switchable
- 3 stereo line input channels (RCA)
- Clip LED for each microphone channel
- Each microphone input with optional 12 V phantom power
- FX send/return with FX level control
- Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
- Stereo record output (RCA)
- (19") 48.3 cm rack installation 1 U
- For application areas such as: Installation; restaurants, bars and hotels; Clubs/dancing school
Package contents
- 1 x device, 1 x power cord, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 115/230 V AC, 50/60 Hz |
| Power consumption | 5 W |
| Protection class | Protection class I |
| Power connection | Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided) |
| Frequency range | 20 - 20000 Hz |
| Phantom power | Or 12 V DC |
| Housing color | Silver |
| Control elements | Phantom power switch, power switch, FX send/returne control |
| Status LED | Power, clip |
| Connections | Input:mic/line via 3 x 3-pin XLR |
| Input | line via 3 x stereo RCA |
| Input | FX via 2 x 6.3 mm jack socket (mono) mounting version |
| Output | rec. via 1 x stereo RCA |
| Output | master via 2 x 6.3 mm jack socket (mono) mounting version |
| Output | FX via 1 x 6.3 mm jack socket (stereo) mounting version |
| Channels | Input chanel:3 x stereo via RCA, channel control via Rotary dial, 2-band tone control EQ 100Hz/10kHz |
| Microphon chanal | 3 x mono with Mic-line switch via XLR, channel control via Rotary dial, 1 Send/AUX, FX routing switch |
| Master output | 1 x stereo via Jack, channel control via Rotary dial |
| Max. level | Input:Microphone +14 dB |
| Input | line +24 dB |
| Material | Metal |
| Housing design | (19") 48.3 cm rack installation 1 U |
| Dimensions | Width:48,3 cm |
| Depth | 12,3 cm |
| Height | 4,45 cm |
| Weight | 2,20 kg |
