Leírás

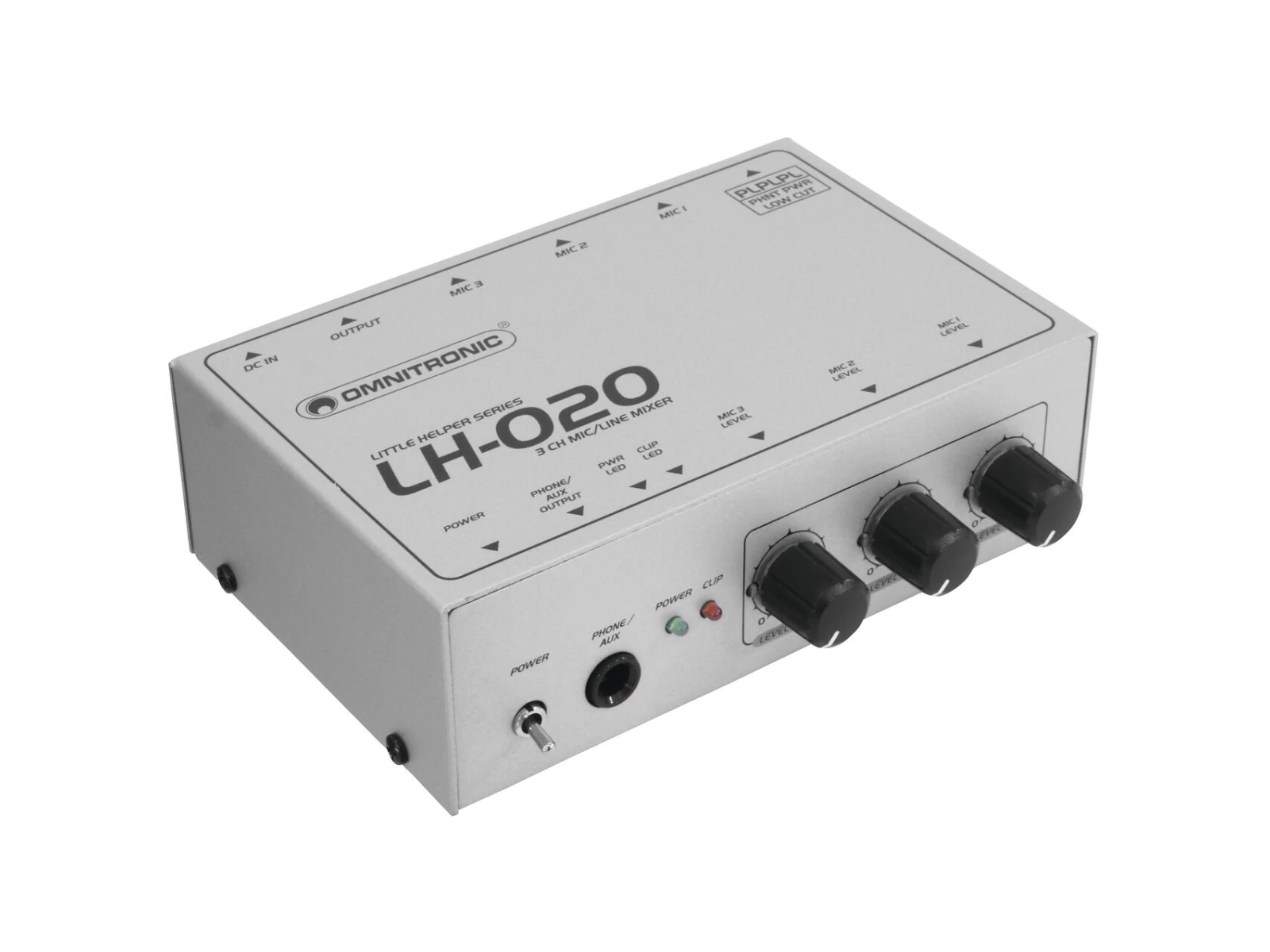

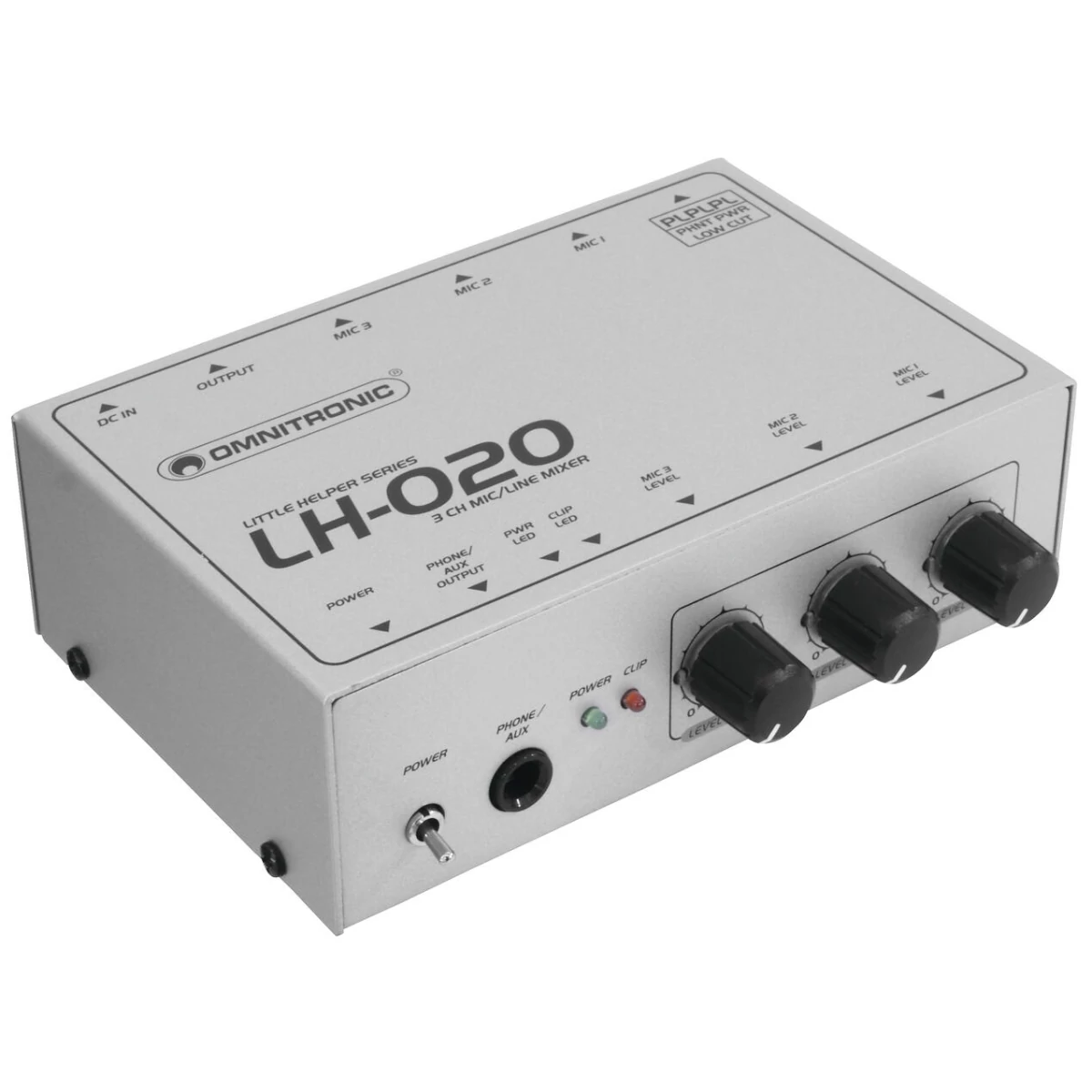

3-channel microphone mixer
- Compact mixer to mix 3 microphones to 1 line output, with individual level control
- 3 microphone input channels with separate level controls, switchable phantom power and low cut
- 1 master output with line level, clip LED
- 1 headphones output (6.3 mm jack)
- Inputs and output via balanced XLR connectors
- Desktop console housing
Package contents
- 1 x user manual, 1 x external mains adapter, 4 x foot, 1 x mixer
Manuals
ManualsParaméterek
| Power supply | 12 V DC 150 mA |
| Or | |
| 18 V DC | |
| Pin configuration | Inside - / outside + |
| Protection class | Protection class III |
| Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Battery/battery pack | |
| Battery | 2 x 9.0 V E block (not included) |
| Frequency range | 25 - 16000 Hz |
| S/N ratio | >75 dB |
| THD | <0,02 % at 1 kHz |
| Phantom power | Or 18 V DC |
| Impedance | Input:600 Ohm |
| 600 Ohm | |
| Gain | 60 dB |
| Housing color | Silver |
| Control elements | Power switch, low cut switch, phantom power switch, level control per channel |
| Status LED | Power, clip |
| Connections | Input:Microphone via 3 x 3-pin XLR |
| Output | Microphone via 1 x 3-pin XLR |
| Output | headphones via 1 x 6.3 mm jack socket (stereo) mounting version |
| Input channels | 3 x mono via XLR, channel control via Rotary dial |
| Max. level | Input:-14 dB |
| Output | +14 dB |
| Housing design | Desktop console housing |
| Dimensions | Width:14,3 cm |
| Depth | 9,3 cm |
| Height | 4,5 cm |
| Weight | 760 g |
