Leírás

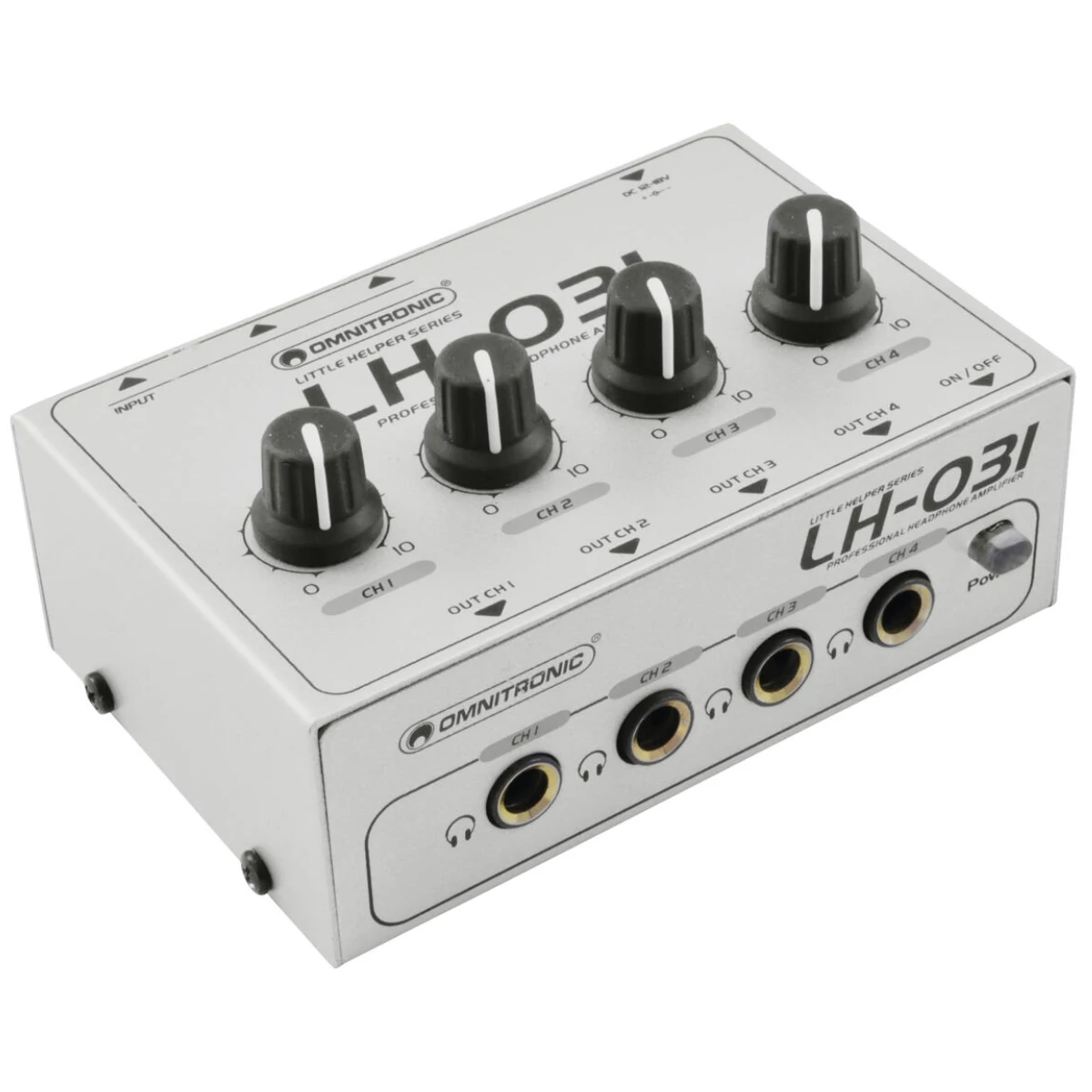

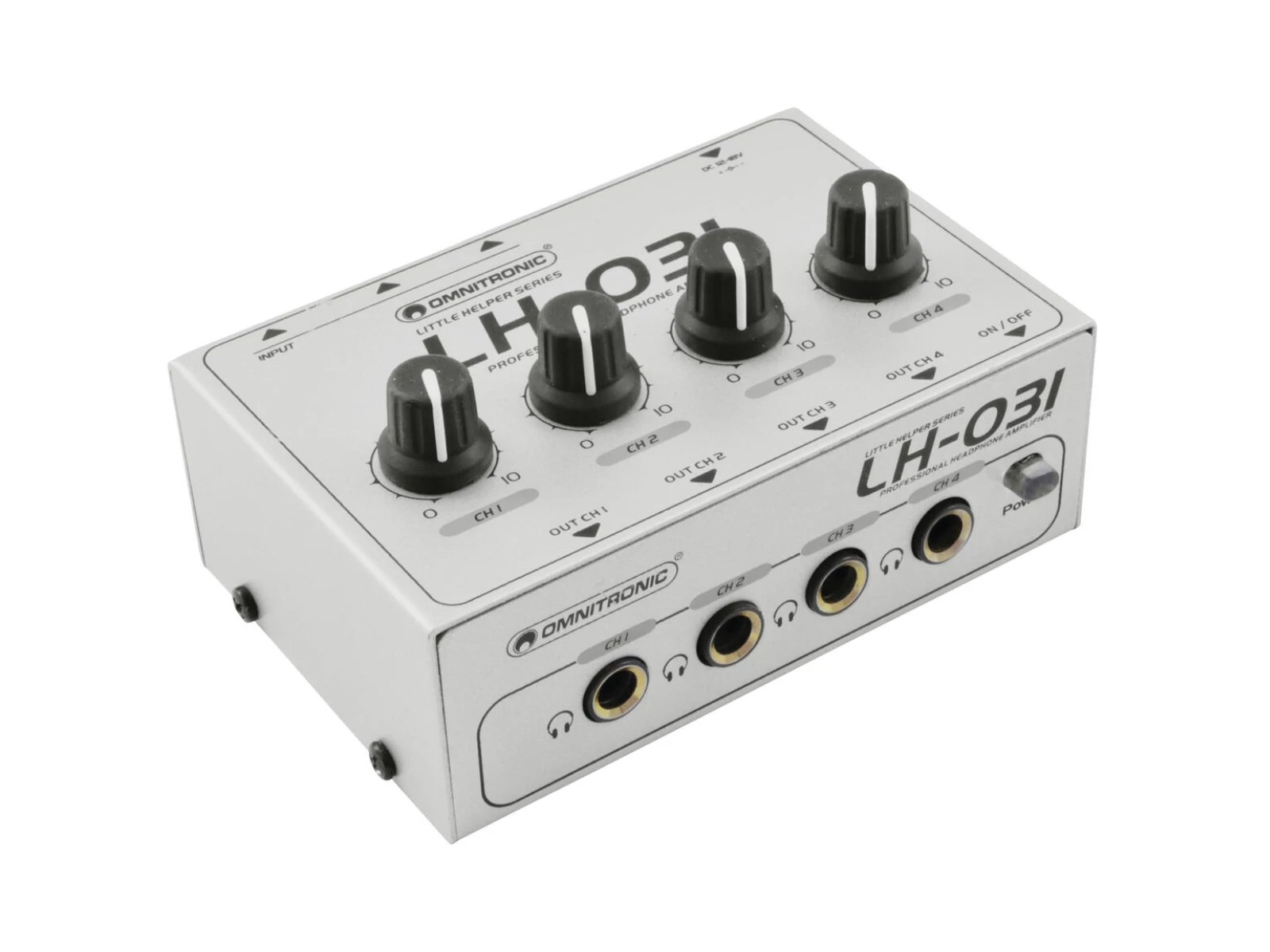

4-channel headphone amplifier, RCA and 6.3 mm jack
- Distributes the signal of 1 audio source to 4 sets of headphones
- 1 stereo input (switchable to mono) via RCA, 3.5 mm and 6.3 mm jack connectors
- 4 separately controllable headphone outputs via 6.3 mm jacks
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 100-240 V AC, 50/60 Hz |
| 12 V 150 mA | |
| Protection class | Protection class III |
| Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Frequency range | 20 - 20000 Hz |
| S/N ratio | >90 dB |
| THD | <0,008 % at 1 kHz |
| Impedance | Input:100 kOhm , unbal. |
| Output | 51 Ohm |
| Gain | 20 dB |
| Control elements | Power switch, level control per channel |
| Connections | Input:line via 1 x stereo RCA |
| Input | line via 6.3 mm jack socket (stereo) mounting version |
| Input | line via 1 x 3.5 mm jack (stereo) mounting version |
| Input | headphones via 4 x 6.3 mm jack socket (stereo) mounting version |
| Max. level | Input:+14 dBV |
| Color | Silver |
| Dimensions | Width:11,3 cm |
| Depth | 8,5 cm |
| Height | 5,5 cm |
| Weight | 570 g |
| Device | |
| Weight | 390 g |
4-channel headphone amplifier, 6.3 mm jack
