Leírás

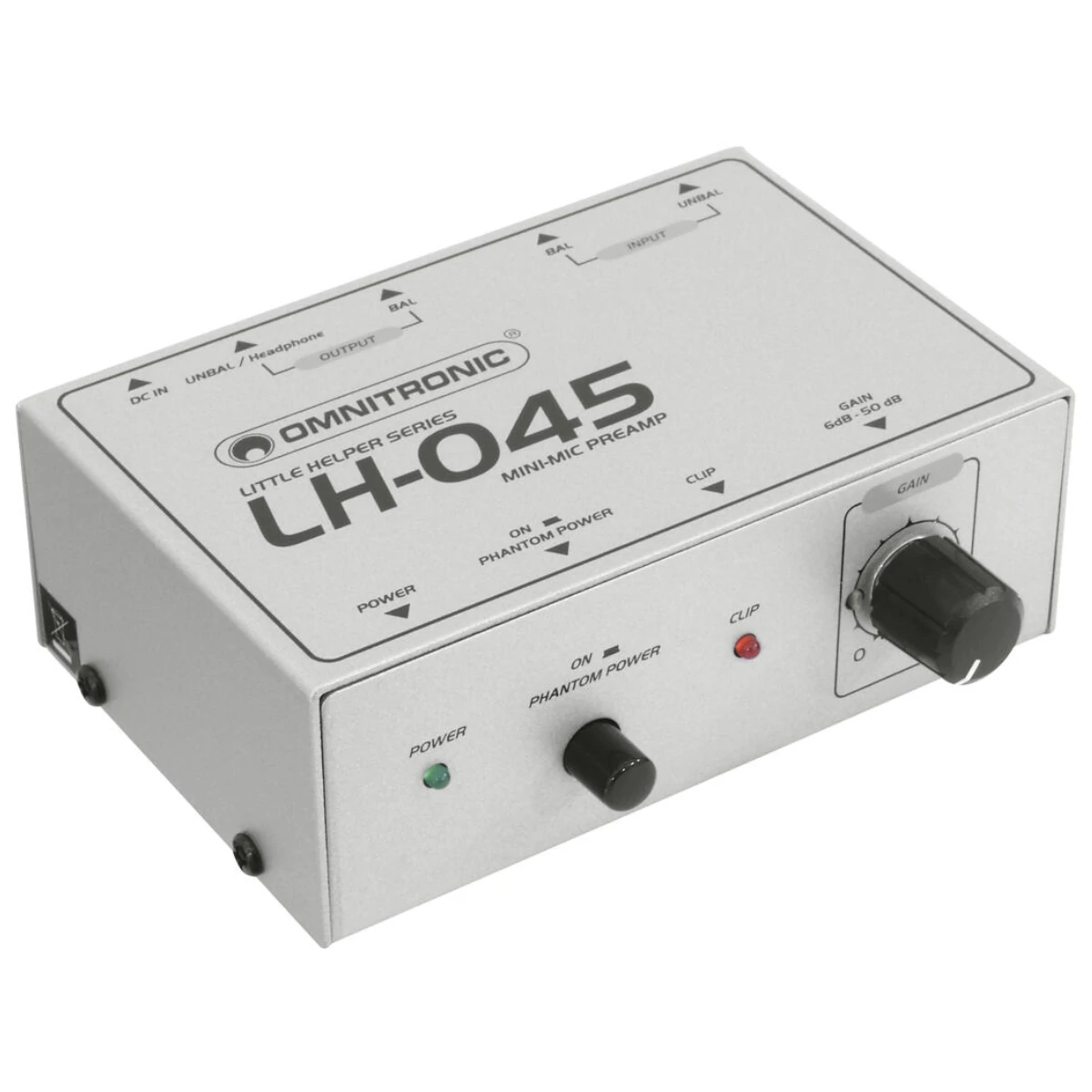

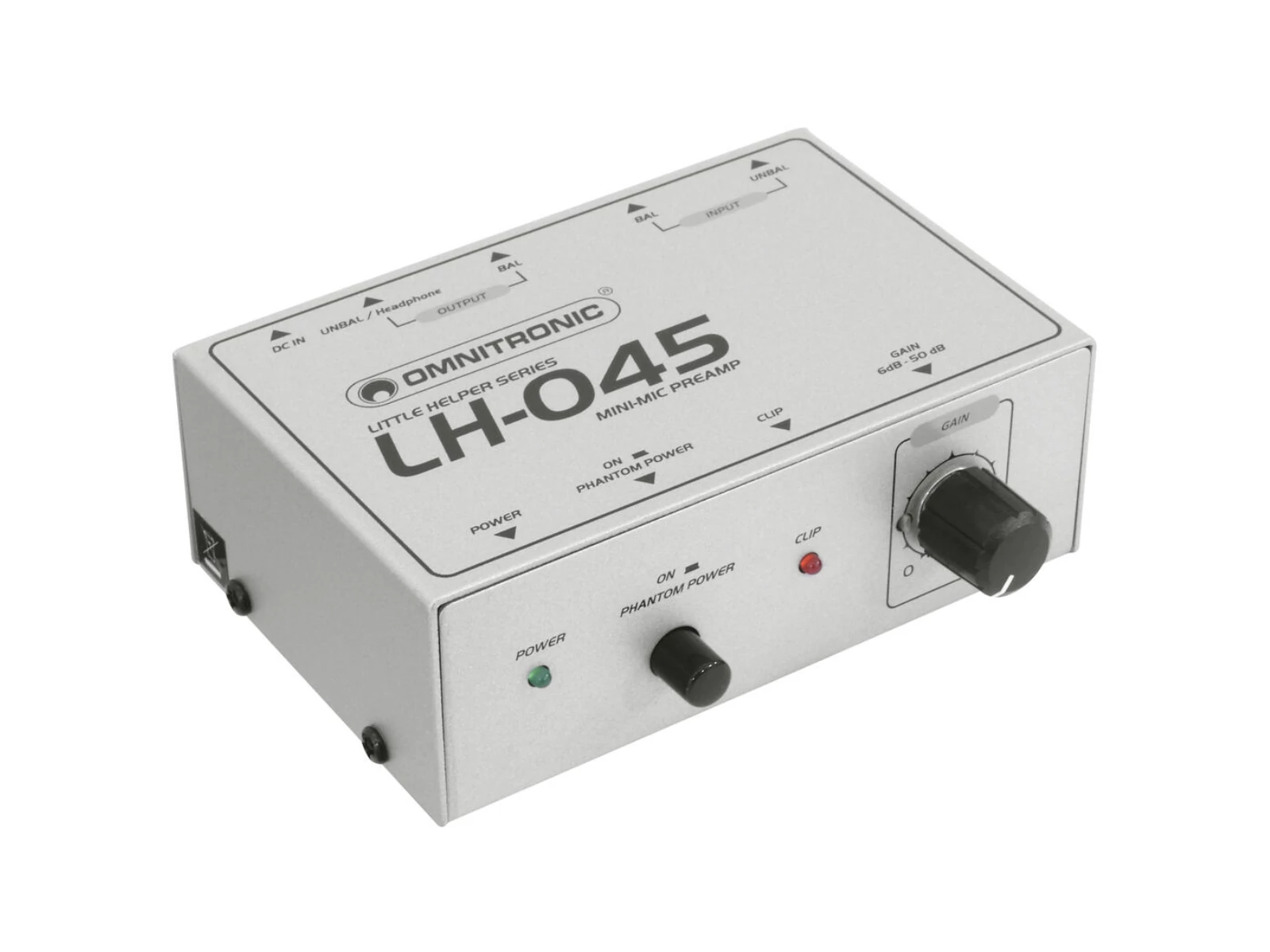

1-channel microphone preamplifier
- 1 microphone, XLR (bal.) or 6.3 mm jack (unbal.)
- Variable gain control (6-50 dB)
- Phantom power can be switched on
- Clip LED
- 1 line output, XLR (bal.) or 6.3 mm (unbal.)
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Package contents
- 1 x device, 1 x external mains adapter, 4 x foot, 1 x user manual
Manuals
ManualsParaméterek
| Power supply | 230 V AC, 50 Hz |
| 12 V 150 mA | |
| Protection class | Protection class III |
| Power connection | Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided) |
| Number of channels | 1 |
| Frequency range | 25 - 16000 Hz |
| S/N ratio | >75 dB |
| THD | <0,01 % at 1 kHz |
| Phantom power | Or 30 V DC |
| Impedance | Input:10 kOhm |
| Gain | 50 dB |
| Control elements | Level control, phantom power switch |
| Connections | Input:Microphone via 1 x 3-pin XLR (F) mounting version |
| Input | Microphone via 1 x 6.3 mm plug (unbal.) |
| Output | line via 1 x 3-pin XLR (M) mounting version |
| Output | line via 1 x 6.3 mm plug (unbal.) |
| Max. level | Input:+4 dB, bal. |
| Input | +10 dB, unbal. |
| Material | Metal |
| Color | Silver |
| Dimensions | Width:11,7 cm |
| Depth | 9,2 cm |
| Height | 4 cm |
| Weight | 540 g |
