Leírás

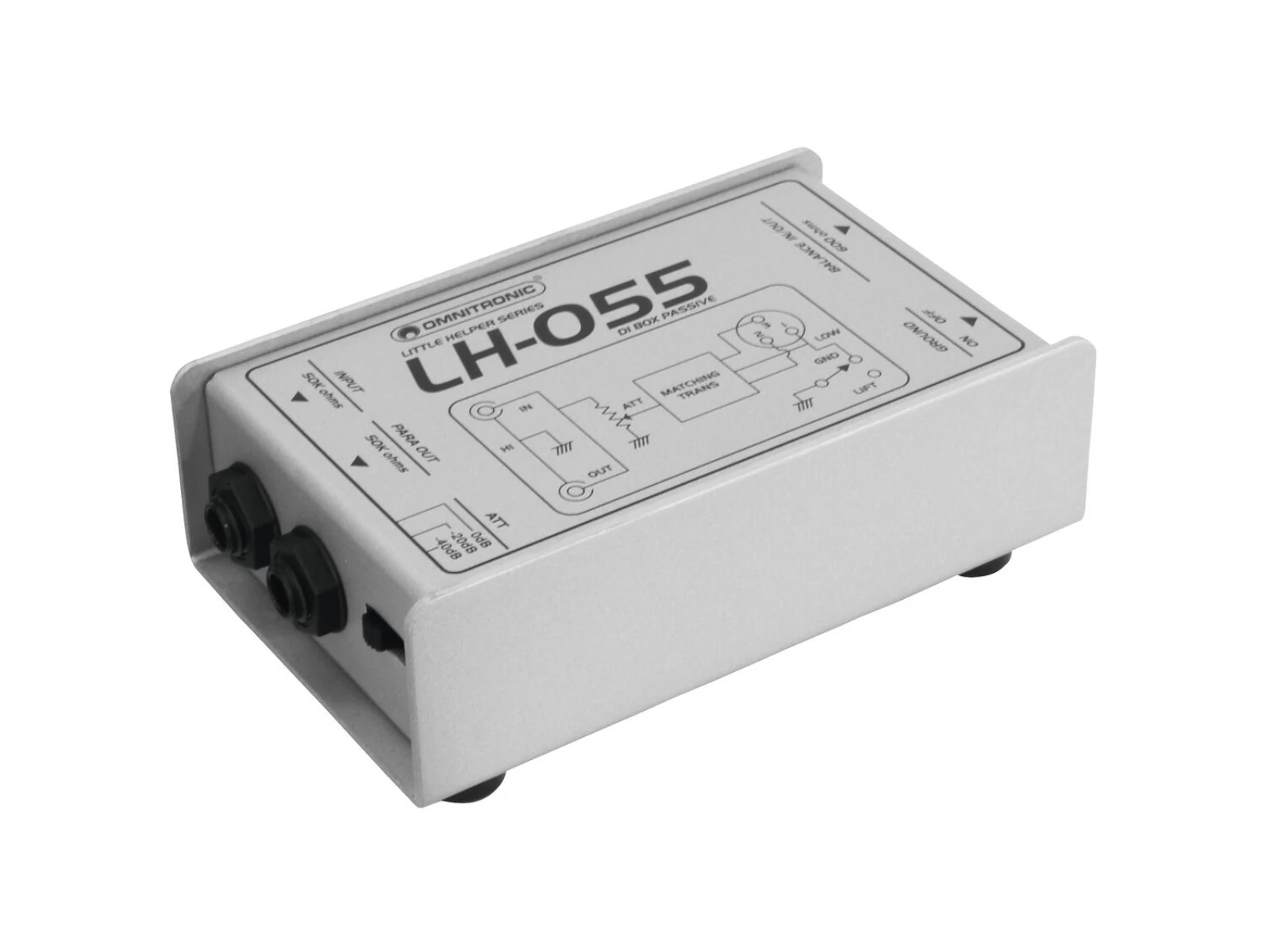

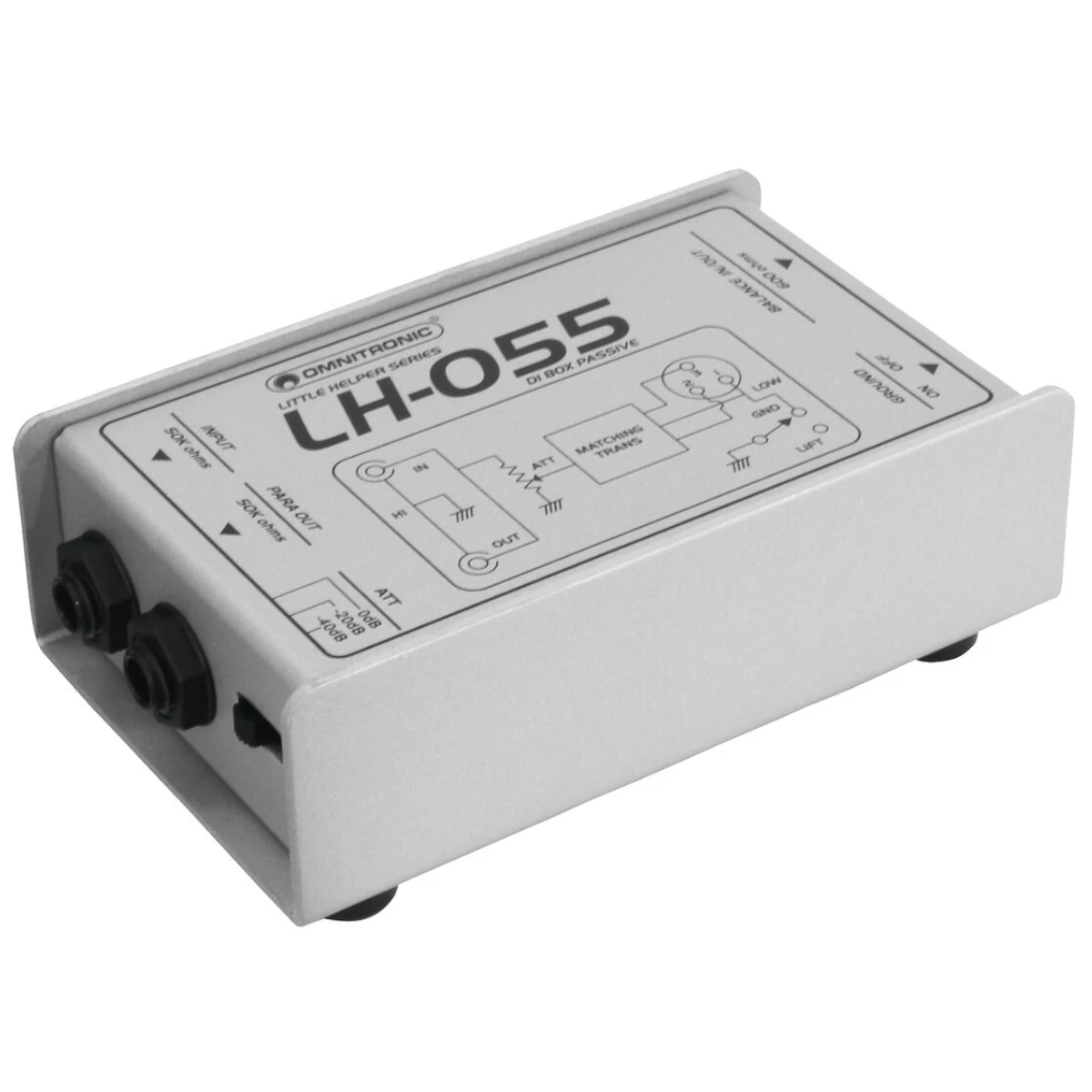

Passive 1-channel DI box, silver
- 1 high-impedance signal input, 6.3 mm jack
- 1 low-impedance XLR output
- 6.35 mm jack input, and output
- Converts an unbalanced line input (e.g. instruments) into a balanced XLR output for connecting a mixer
- Switchable input attenuation: 0 dB, -20 dB, -40 dB
- Rugged metal housing
- For application areas such as: Installation; mobile use; mobile djs / entertainer
Package contents
- 1 x device, 1 x user manual
Manuals
ManualsParaméterek
| Frequency range | 15 - 30000 Hz |
| S/N ratio | >95 dB |
| Impedance | Input:50 kOhm |
| Output | 600 Ohm |
| Input attenuation | 0 dB, -20 dB, -40 dB; switchable |
| Housing color | Silver |
| Control elements | Groundlift selector |
| Connections | Input:1 x 6.3 mm plug (unbal.) |
| Link | 1 x 6.3 mm plug (unbal.) |
| Output | line via 1 x 3-pin XLR |
| Dimensions | Width:12,7 cm |
| Depth | 7,4 cm |
| Height | 4,5 cm |
| Weight | 570 g |
Passive 2-channel DI box/splitter, silver
Passive 2-channel DI box/splitter, black
